Cold Air Intake for Toyota 4Runner (1996-1998) 3.4L Engine

$94.95
$94.95
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Performance Cold Air Intake Kit for 1996–1998 Toyota 4Runner 3.4L V6 (5VZ-FE)

Enhance the Legendary 5VZ-FE Engine That Made the Third-Gen 4Runner Bulletproof

The 1996-1998 Toyota 4Runner represents the early years of the third generation, widely regarded as one of the most reliable 4Runner generations ever built, featuring the renowned 3.4L V6 engine (5VZ-FE) known for its exceptional durability and longevity . Your 4Runner is equipped with Toyota's 3.4-liter V6 producing 183 horsepower at 4800 rpm and 217 foot-pounds of torque at 3600 rpm —a substantial improvement over the previous generation's engine and a powerplant that many examples exceed 300,000 miles with proper maintenance .

This high-performance Cold Air Intake Kit is engineered to maximize the breathing efficiency of your proven 5VZ-FE engine. By replacing the restrictive factory air box with a streamlined T-304 aluminum intake system, this kit delivers noticeable gains in horsepower, torque, and throttle response—exactly what you need for confident highway merging, off-road adventures, and towing capability.

Why the 5VZ-FE Engine Deserves Better Airflow

The Toyota 3.4L 5VZ-FE engine is characterized by its reliability and features a dual overhead camshaft (DOHC) architecture coupled with a cast iron block and aluminum heads . It's an over-engineered engine built to withstand considerable stress and mileage, and its cast-iron block and aluminum cylinder heads contribute to its overall robustness . Furthermore, it's a non-interference engine, meaning if the timing belt breaks, the pistons and valves will not collide, preventing catastrophic engine damage .

Despite this robust engineering, the factory air intake system prioritizes quietness and emissions compliance over performance. This cold air intake eliminates that restriction, allowing your 5VZ-FE to draw in cooler, denser air with minimal resistance. The result is improved combustion efficiency, sharper throttle response, and enhanced power delivery across the RPM range—benefits that are especially noticeable during off-road driving, towing, or any situation where you need reliable power.

Key Features

  • Enhanced Performance: Delivers 8-10% increase in horsepower and torque through improved airflow and more efficient combustion.
  • Premium T-304 Aluminum Construction: Lightweight, corrosion-resistant piping with polished chrome finish provides smooth, unrestricted airflow while adding a clean performance look under the hood.
  • High-Flow Washable Cone Filter: Superior filtration captures impurities while maximizing air volume—clean and re-oil every 50,000 miles instead of replacing paper filters.
  • Improved Throttle Response: Reduced intake restriction delivers smoother acceleration and better power delivery throughout low and mid RPM ranges where SUVs do most of their work.
  • Aggressive Engine Sound: Adds an intense, deep tone that enhances your driving experience without being obnoxiously loud.
  • Complete Installation Kit: Includes all necessary mounting accessories, clamps, and hardware—no additional parts required.
  • Easy DIY Installation: Can be installed with basic hand tools in under an hour—perfect for weekend warriors and DIY enthusiasts.

Performance Benefits for Your 4Runner

  • Better Off-Road Performance: Improved throttle response helps navigate technical terrain with more precise throttle control.
  • Enhanced Towing Capability: Better airflow means more usable power when towing trailers, boats, or camping equipment within your capacity.
  • Confident Highway Merging: Sharper acceleration makes entering freeways and passing slower traffic safer and easier with a loaded vehicle.
  • Improved Fuel Efficiency Potential: More efficient combustion can help offset the 4Runner's otherwise modest fuel economy ratings.
  • Satisfying Sound Character: A sportier intake note that matches the adventurous character of your 4Runner without compromising daily drivability.
  • Long-Term Cost Savings: Reusable filter eliminates the need for frequent paper filter replacements over your vehicle's 300,000+ mile lifespan.

Vehicle Fitment

✅ Compatible Models:

  • 1996–1998 Toyota 4Runner with 3.4L V6 (5VZ-FE) Engine
  • Fits both automatic and manual transmission models
  • Compatible with 2WD and 4WD configurations
  • Works with SR5, SR5 V6, and Limited trim levels

Product Specifications

  • Engine Application: 3.4L V6 5VZ-FE (183 HP / 217 lb-ft torque)
  • Pipe Material: T-304 Lightweight Aluminum with Polished Chrome Finish
  • Filter Type: High-flow washable and reusable cone filter
  • Filter Maintenance: Clean and re-oil every 50,000 miles under normal conditions
  • Power Gains: 8-10% increase in horsepower and torque
  • Installation: Direct bolt-on replacement—no cutting or modifications required
  • Installation Time: Under 60 minutes with basic hand tools

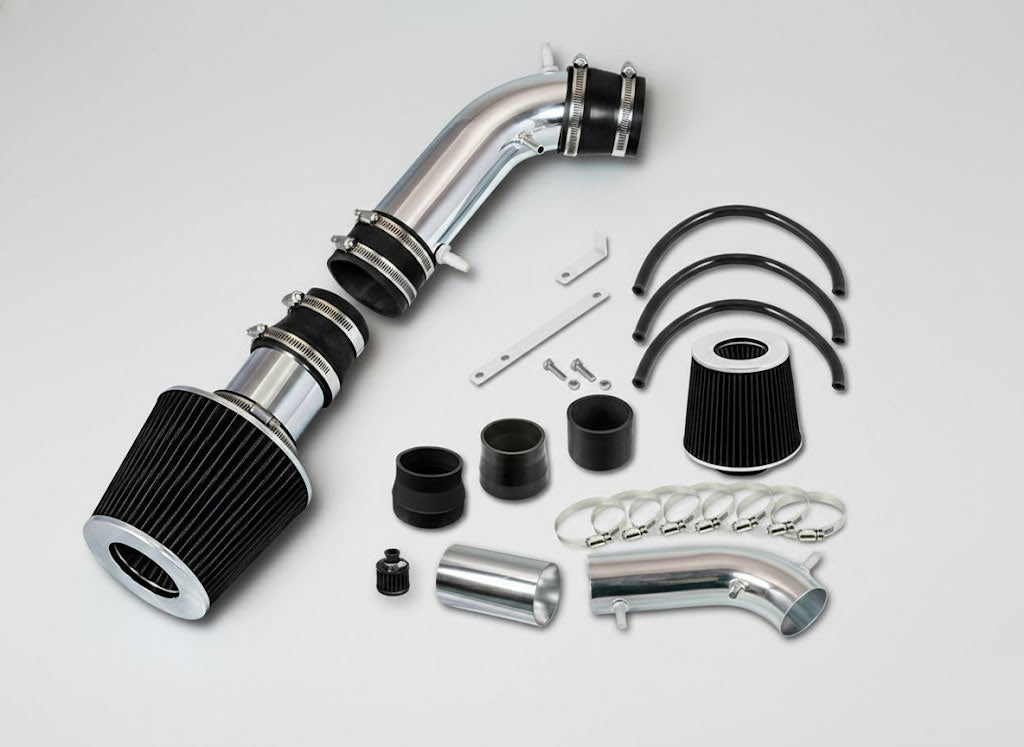

Complete Package Includes

  • T-304 aluminum intake piping with polished chrome finish
  • High-flow washable cone air filter
  • Heavy-duty silicone couplers
  • Stainless steel clamps
  • All necessary mounting hardware and accessories

Installation

Designed for straightforward DIY installation by 4Runner owners comfortable with basic automotive maintenance. Most installations are completed in under an hour using common hand tools.

Tools Required: Basic screwdrivers, socket wrenches, and pliers

Installation Resources: See Basic Guide Here

Installation Tip: After installation, disconnect and reconnect your battery for 60 seconds to allow your engine's ECU to reset and recalibrate for the increased airflow. This reset optimizes performance gains and prevents potential check engine light errors. The ECU will relearn idle and fuel trim parameters during your first few drive cycles.

Perfect For:

  • Off-road enthusiasts who depend on reliable power in challenging terrain
  • Daily drivers seeking better throttle response and highway performance
  • 4Runner owners who tow boats, camping trailers, or utility trailers regularly
  • Long-term owners maintaining their 4Runner for 200,000-300,000+ miles of service
  • DIY mechanics who appreciate the 5VZ-FE's simplicity and proven reliability
  • Adventure seekers who need confident performance in remote locations

Why Upgrade Your Factory Air Box?

  • Noticeable Power Gains: 8-10% increase in horsepower and torque makes a real difference in a vehicle that weighs over 4,000 lbs
  • Better Acceleration & Response: More immediate throttle reaction improves both on-road and off-road driving
  • Enhanced Fuel Economy: More efficient engine operation can help offset the 4Runner's thirsty nature (14 MPG city / 18 MPG highway)
  • Sportier Sound Character: Deep, throaty intake tone that matches the adventurous spirit of your 4Runner
  • Performance Look: Polished aluminum piping and chrome filter transform your engine bay
  • Cost Savings: Washable, reusable filter eliminates paper filter replacement costs for the life of your vehicle

The Truth About the Third-Gen 4Runner

Many consider the third-generation 4Runner to be a sweet spot in terms of reliability, capability, and affordability, widely regarded as one of the most, if not the most reliable generation . The 3.4L V6 engine is a key reason for the third generation's reliability—it's a robust engine capable of handling high mileage with proper maintenance .

When the redesigned 4Runner debuted in 1996, it represented a substantial improvement over the old anemic four-cylinder and wheezy V6—in fact, the new 2.7-liter four was more powerful than the 1995 model's 3.0-liter six . Your 1996-1998 4Runner benefits from this complete redesign, featuring improved safety with dual airbags, better steering with rack-and-pinion setup, and the legendary 5VZ-FE engine that would go on to power Toyota's most capable trucks and SUVs for nearly a decade.

This cold air intake honors the engineering excellence of your 5VZ-FE by allowing it to breathe properly. It's a straightforward, proven upgrade that enhances the performance characteristics this engine was built to deliver—reliable power, strong mid-range torque, and the durability to serve you for hundreds of thousands of miles.

Complementary Performance Upgrades

Build a comprehensive performance package for your third-gen 4Runner:

  • Cat-Back Exhaust System: Pairs perfectly with this intake to reduce backpressure and enhance sound
  • Headers: Further improves exhaust flow for maximum naturally aspirated gains
  • TRD Supercharger Kit: For serious power seekers, the Magnuson TVS1320 supercharger delivers 260+ hp and 260+ ft-lbs at the crank—over 42% more horsepower and 23% more torque than stock
  • Suspension Upgrades: Bilstein shocks, OME springs, and other off-road suspension components maximize your 4Runner's capability

The Bottom Line: Your 1996-1998 Toyota 4Runner is part of the most reliable 4Runner generation ever built, featuring an over-engineered 5VZ-FE engine capable of exceeding 300,000 miles with proper maintenance . This Performance Cold Air Intake Kit helps your legendary engine breathe properly, delivering the power, response, and sound it deserves. Whether you're tackling mountain passes, navigating desert trails, or simply commuting with confidence, this intake ensures your 4Runner performs at its best for the long haul. Give your bulletproof 5VZ-FE the airflow it needs—it's earned it.

Fitment

Make

Toyota

Engine Size
  • 3.4L

Year
  • 1996
  • 1997
  • 1998

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Straightforward driveway bolt-on with basic hand tools.

Tools You Will Need

  • 10mm socket and ratchet with 6-inch extension
  • 12mm socket (for factory airbox mounting bolts)
  • 8mm nut driver or flathead screwdriver (for hose clamps)
  • #2 Phillips screwdriver or JIS bit
  • Pliers (for factory spring-style vacuum hose clamps)
  • MAF cleaner spray (optional but recommended during transfer)
Mechanic’s Pro Tip (The "Gotcha"):
The 5VZ-FE engine bay heat makes 25+ year-old Toyota vacuum lines rock-hard and brittle. When disconnecting the PCV, EVAP, and fuel pressure regulator vacuum hoses from the factory intake silencer, twist them gently to break the crust before pulling. Yanking them will snap the brittle plastic barb fittings clean off. Additionally, the Mass Air Flow (MAF) wiring harness locking tab on 1996-1998 models is notoriously fragile—depress the release tab fully with your thumb or a flat tool before pulling; do not pull by the wires.

Phase 1: Removing the Factory Part

  1. Disconnect the Battery: Disconnect the negative battery terminal on your 1996-1998 Toyota 4Runner 3.4L using a 10mm wrench to prevent electrical shorts and force the ECU to reset its learned fuel trims.
  2. Disconnect the MAF Sensor Harness: Depress the release tab on the factory MAF sensor connector and pull straight back to disconnect it. Unclip the wire harness loom from the stock airbox body.
  3. Remove Factory Vacuum and PCV Lines: Using pliers, slide back the tension clamps on the PCV breather line, EVAP purge line, and idle air vacuum lines running into the OEM intake resonator tube. Gently twist and pull each hose free.
  4. Loosen Throttle Body and Airbox Clamps: Use an 8mm nut driver or flathead screwdriver to loosen the hose clamp securing the intake elbow to the throttle body.
  5. Unbolt and Extract the Factory Airbox: Remove the three mounting bolts securing the lower airbox assembly to the inner passenger fender apron using a 12mm socket with a 6-inch extension. Lift the entire factory intake tract, silencer chambers, and air filter housing out of the engine bay.

Phase 2: Installing the Cold Air Intake for Toyota 4Runner (1996-1998) 3.4L Engine

  1. Transfer the Factory MAF Sensor: Carefully remove the OEM MAF sensor from the factory airbox housing using a #2 Phillips screwdriver. Inspect the internal hot-wire element (do not touch it directly). Install the MAF sensor into the new intake pipe’s sensor adapter flange using the supplied hardware and hand-tighten to avoid stripping threads in the aluminum bung. Ensure the O-ring or gasket seats flush.
  2. Mount the Heat Shield / Airbox: Position the new intake heat shield into the factory airbox location on the inner fender and secure it using the factory mounting holes with the provided hardware and a 12mm socket or 10mm socket depending on the hardware kit.
  3. Install Throttle Body Coupler and Intake Pipe: Slide the silicone coupler over the 3.4L 5VZ-FE throttle body inlet and secure it loosely with an 8mm nut driver. Insert the new intake tube into the coupler and align the MAF end through the heat shield opening. Tighten the hose clamps until snug, but do not over-torque to avoid deforming the silicone.
  4. Reconnect Vacuum Lines and MAF Harness: Slide all factory vacuum and PCV breather hoses onto the dedicated aluminum barbs on your new intake pipe, securing them with the factory spring clamps or supplied worm-drive clamps. Plug the MAF electrical harness into the sensor until the locking tab clicks securely.
  5. Install Air Filter and Reconnect Battery: Install the high-flow cone filter onto the intake tube velocity stack inside the heat shield and tighten the clamp with an 8mm nut driver. Reconnect the negative battery terminal using a 10mm wrench.
  6. ECU Idle Relearn (Crucial): Start the vehicle. Do not touch the gas pedal for at least 20 seconds to allow the 5VZ-FE ECU to establish base idle air-fuel trims with the new unrestricted airflow. Check for any vacuum leaks or whistling around the couplers.

Disclaimer: This is a general guide provided for the 1996-1998 Toyota 4Runner 3.4L. Always refer to your factory service manual for exact torque specifications and safety procedures.

Warranty

All products are backed by our Limited Lifetime Warranty. We stand by our quality. [See terms]
