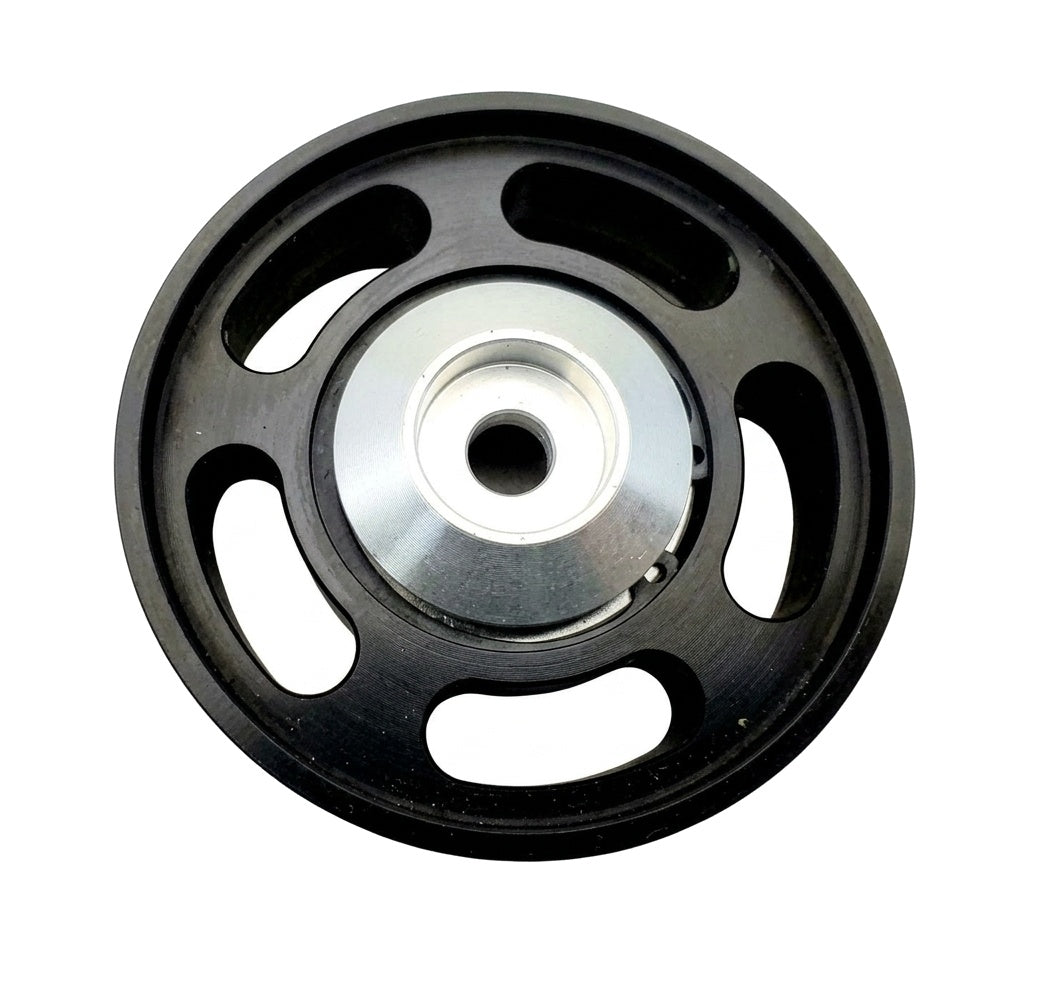

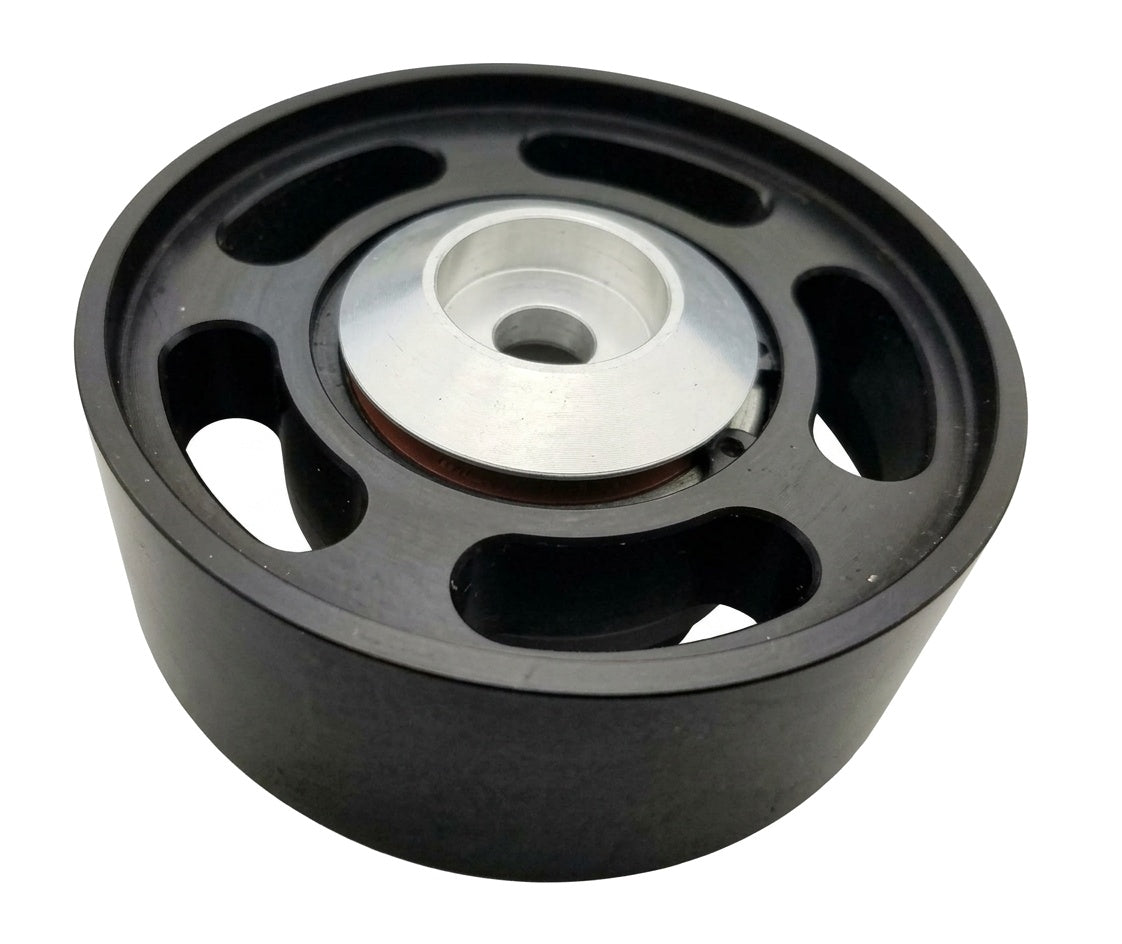

Upgraded Billet Belt Idler for Mercedes Benz C-Class SLK-Class C32 SLK32 (2002-2004) 3.2L

Heavy-Duty Billet Belt Idler Pulley for 2002-2004 Mercedes Benz C-Class, SLK-Class (W203 / R170)

What it Does: The Upgraded Billet Belt Idler Pulley replaces the failure-prone factory plastic idlers on the 2002-2004 Mercedes Benz C-Class and SLK-Class to eliminate belt slip, bearing seizure, and accessory drive failure under high supercharger loads.

The Stock Mercedes Benz C-Class, SLK-Class Factory Idler Weakness

The factory smooth idler pulleys on the supercharged M112K (3.2L AMG) utilize a molded composite plastic shell paired with standard-grade bearings. Under the rotational stress, high RPM spikes, and severe thermal cycles generated by the Lysholm twin-screw supercharger drive system, these OEM plastic pulleys frequently deform, develop stress fractures, or experience catastrophic bearing breakdown. When the bearing fails or the plastic wall collapses, the accessory serpentine belt shreds immediately, resulting in instantaneous boost loss, overheating, and potential collateral damage to nearby cooling lines and wiring harnesses.

The Engineering Solution

Engineered as a direct-replacement upgrade, this idler is CNC-machined from aircraft-grade 6061-T6 billet aluminum and finished in a resilient black hard-anodized coating to withstand belt friction and corrosion. The aluminum housing integrates precision cooling slots that dissipate heat away from the core, significantly extending the life of the internal high-speed Nachi bearing. Finished with a custom protective bearing shield to block road debris and belt dust, it provides rigid tracking across the smooth tensioner and secondary idler positions without deflection.

What's Included

• 1 x Black Billet Aluminum Belt Idler Pulley with integrated Nachi bearing and custom bearing shield

Technical Specifications

Compatibility

• 2002-2004 Mercedes Benz C-Class C32 AMG (W203.065) 3.2L V6 Kompressor (M112K)
• 2002-2004 Mercedes Benz SLK-Class SLK32 AMG (R170.466) 3.2L V6 Kompressor (M112K)

Frequently Asked Questions & Fitment Warnings

Does this fit the W203 and R170 C-Class and SLK-Class?

Yes, this is a direct fit for the 2002-2004 Mercedes Benz C-Class and SLK-Class equipped with the M112K supercharged 3.2L engine; it does NOT fit naturally aspirated M112 models or ribbed guide pulley locations.

Can this be used for both smooth idler locations on the M112K engine?

Yes, this pulley serves as a direct replacement for both the smooth tensioner idler and the secondary smooth accessory idler, requiring two units if performing a complete system refresh.

The Mercedes Benz AMG Precision Caliber

Engineered to meet the exact mechanical tolerances demanded by hand-assembled AMG powertrains, this billet upgrade maintains dead-true belt alignment without throwing accessory codes or chewing belts under peak supercharger load.
