Turbochargers for Ford F-150 (2013-2016) 3.5L EcoBoost Left & Right

Direct-Fit Replacement Twin Turbocharger Set for 2013-2016 Ford F-150 (P415 / P552)

What it Does: The matched twin turbocharger set replaces worn or failing factory turbos on the 2013-2016 F-150 to eliminate boost imbalance, restore volumetric efficiency, and return full towing capacity across both cylinder banks.

The Stock Ford F-150 Turbocharger Wear & Boost Leakage

Factory turbochargers on the twin-turbocharged 3.5L EcoBoost undergo severe thermal cycling and prolonged exhaust gas heat soak, especially during sustained towing. Over time, high oil operating temperatures lead to oil coking in the center rotating assembly, accelerating journal bearing wear and seal degradation. This results in compressor shaft play, oil contamination inside the charge piping and intercooler, and chronic smoke on acceleration. Simultaneously, the factory vacuum wastegate pivots develop mechanical play, venting drive pressure prematurely and triggering P0299 underboost diagnostic trouble codes.

The Engineering Solution

This matched left- and right-hand pair upgrades the rotating assembly with CNC-machined billet aluminum compressor wheels, providing higher tensile strength, reduced rotational inertia, and faster transient spool-up than stock cast alternatives. Built on a proven K03-pattern architecture, these units incorporate reinforced thrust bearings to manage high axial loads. Each housing retains OEM-spec oil feed, oil return, and coolant port locations to reuse factory hardlines without fabrication. Pre-calibrated vacuum wastegate actuators ensure identical, synchronized boost output across both cylinder banks to safeguard drivetrain balance.

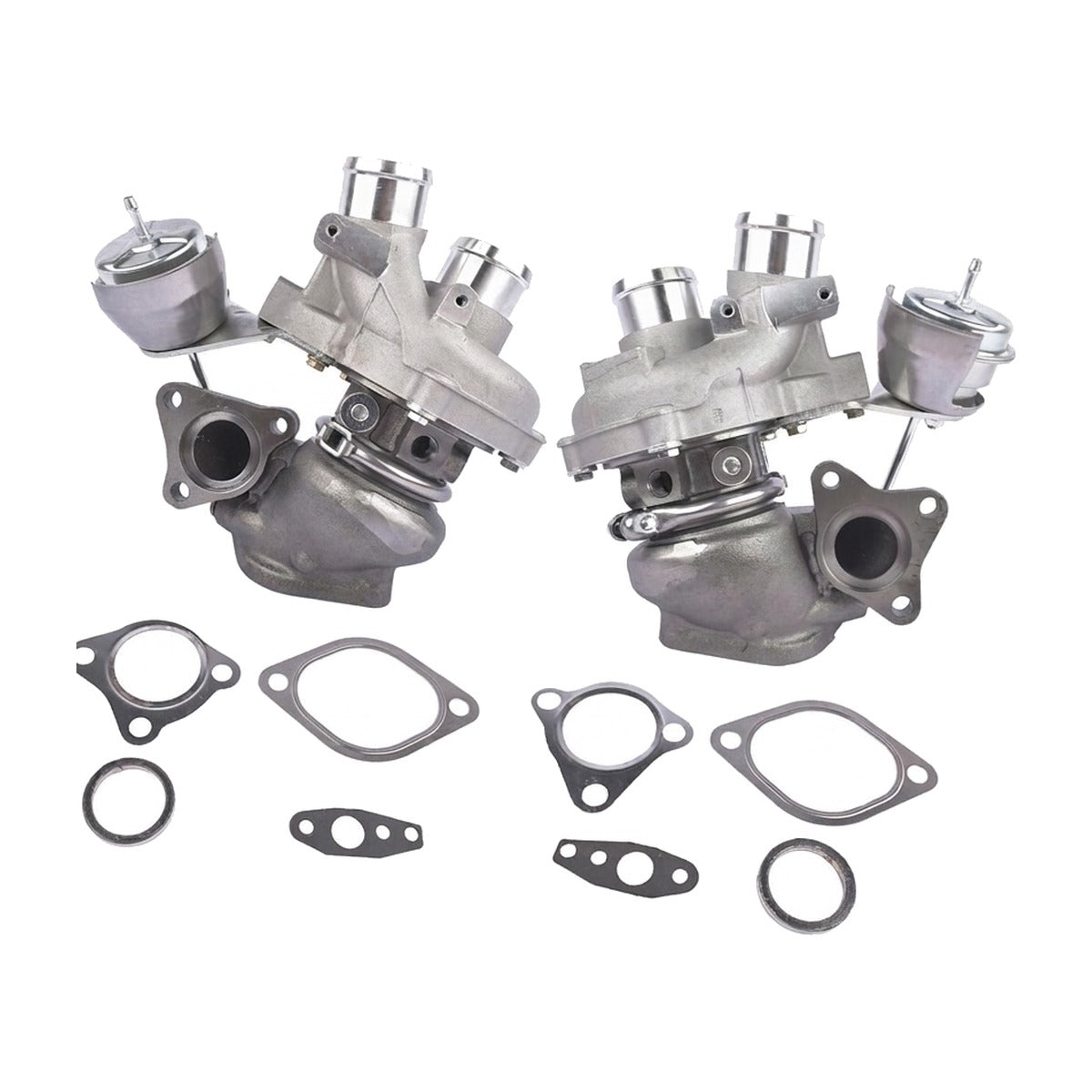

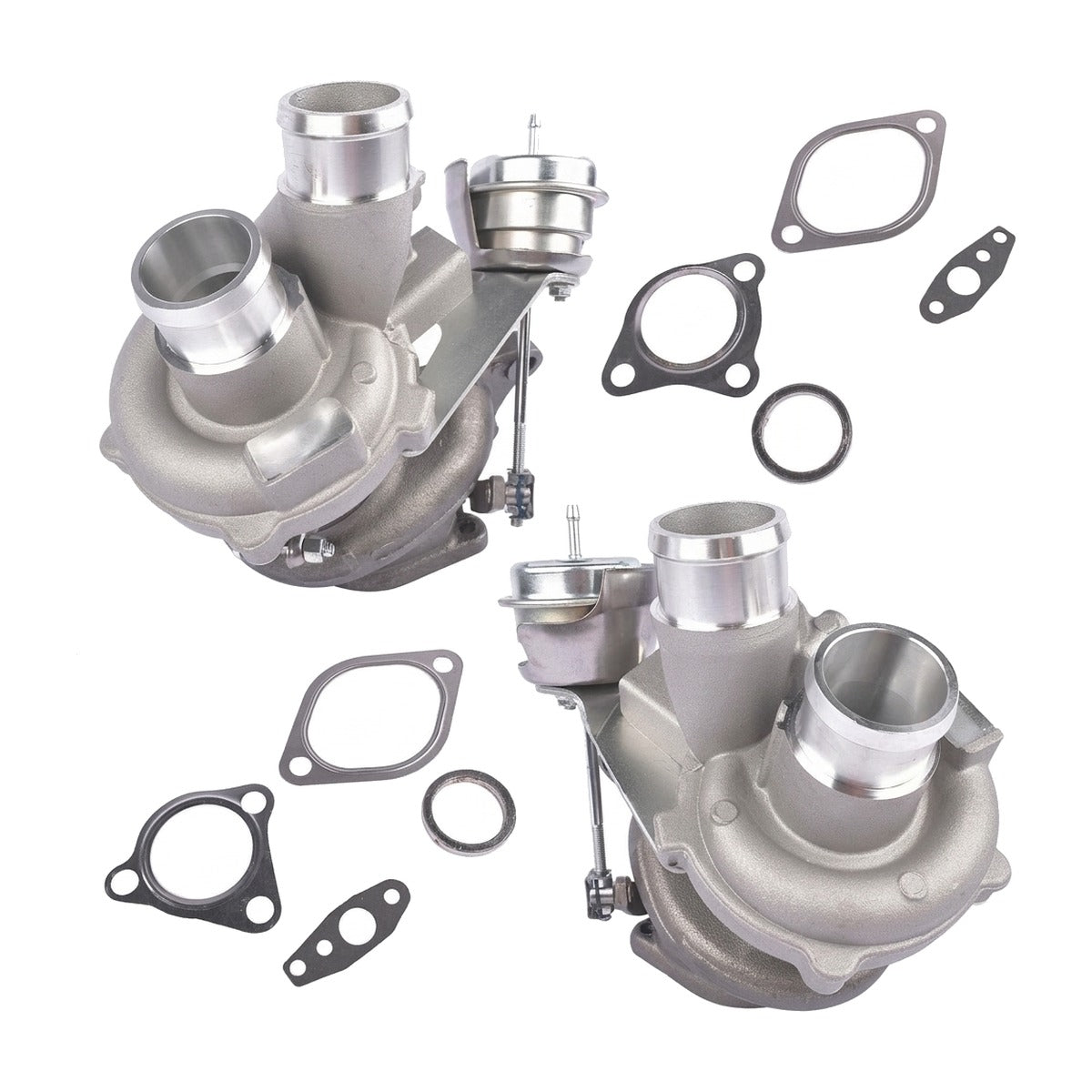

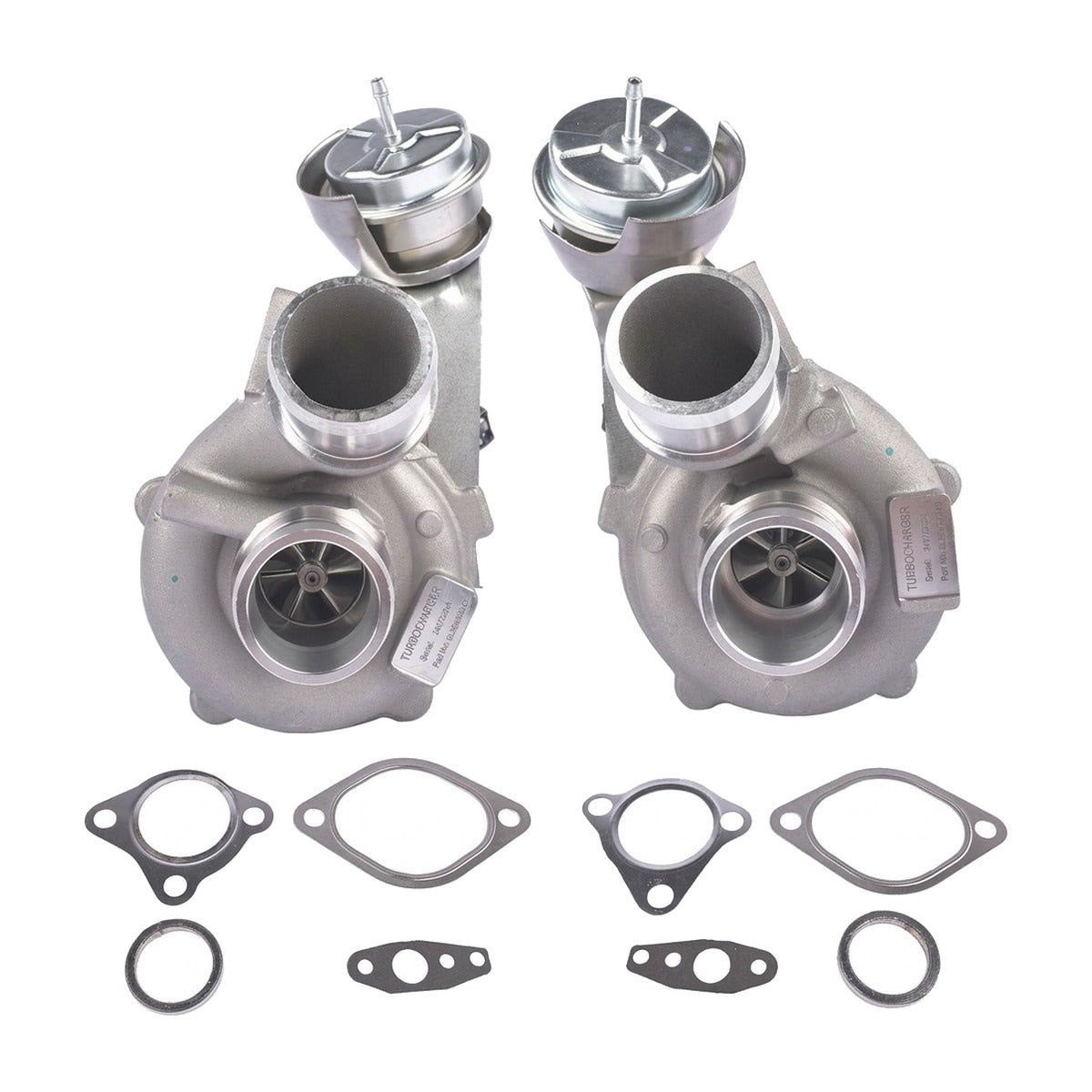

What's Included

• 1x Left (Driver Side) Turbocharger
• 1x Right (Passenger Side) Turbocharger
• Complete Installation Gasket Set

Technical Specifications

Compatibility

• 2013-2016 Ford F-150 3.5L V6 EcoBoost
• 2015-2016 Ford Expedition 3.5L V6 EcoBoost
• 2015-2016 Lincoln Navigator 3.5L V6 EcoBoost
• 2015-2016 Ford Transit 3.5L V6 EcoBoost

Frequently Asked Questions & Fitment Warnings

Does this fit the P415 / P552 F-150?

Yes, this is a direct fit for the 2013-2016 Ford F-150 equipped with the 3.5L EcoBoost engine. Does not fit naturally aspirated 3.5L V6, 3.7L V6, or 5.0L Coyote V8 platforms.

Do I need to pre-oil the turbochargers before startup?

Yes, each center cartridge must be manually primed with clean motor oil into the feed port prior to installing the oil supply lines to prevent catastrophic dry-bearing damage upon initial turnover.

The Ford Towing Standard

Built to handle the severe duty cycles expected of an F-150 work truck, this matched pair restores manifold boost density, ensuring heavy trailer hauls and steep grade climbs are handled without thermal breakdown or power loss.
