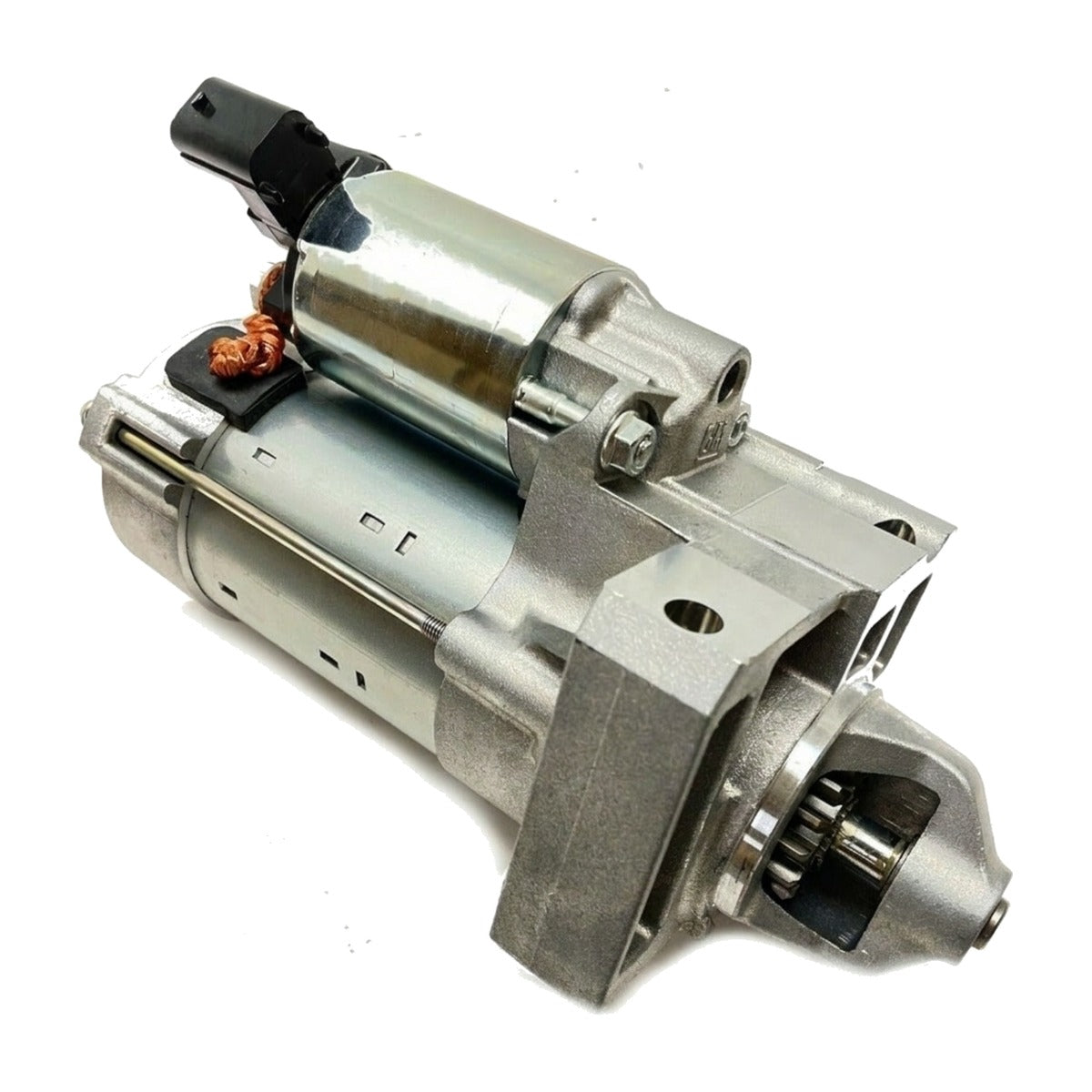

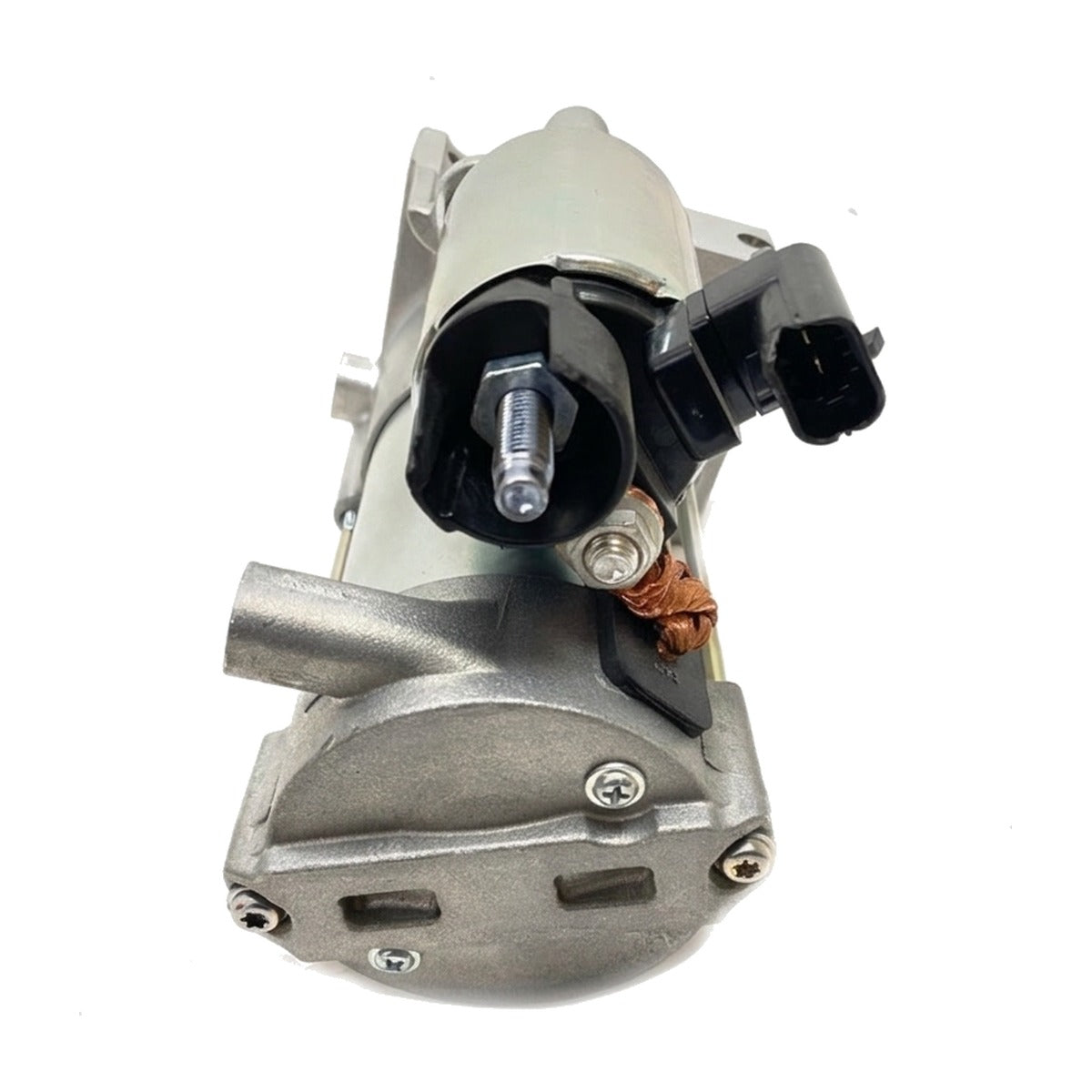

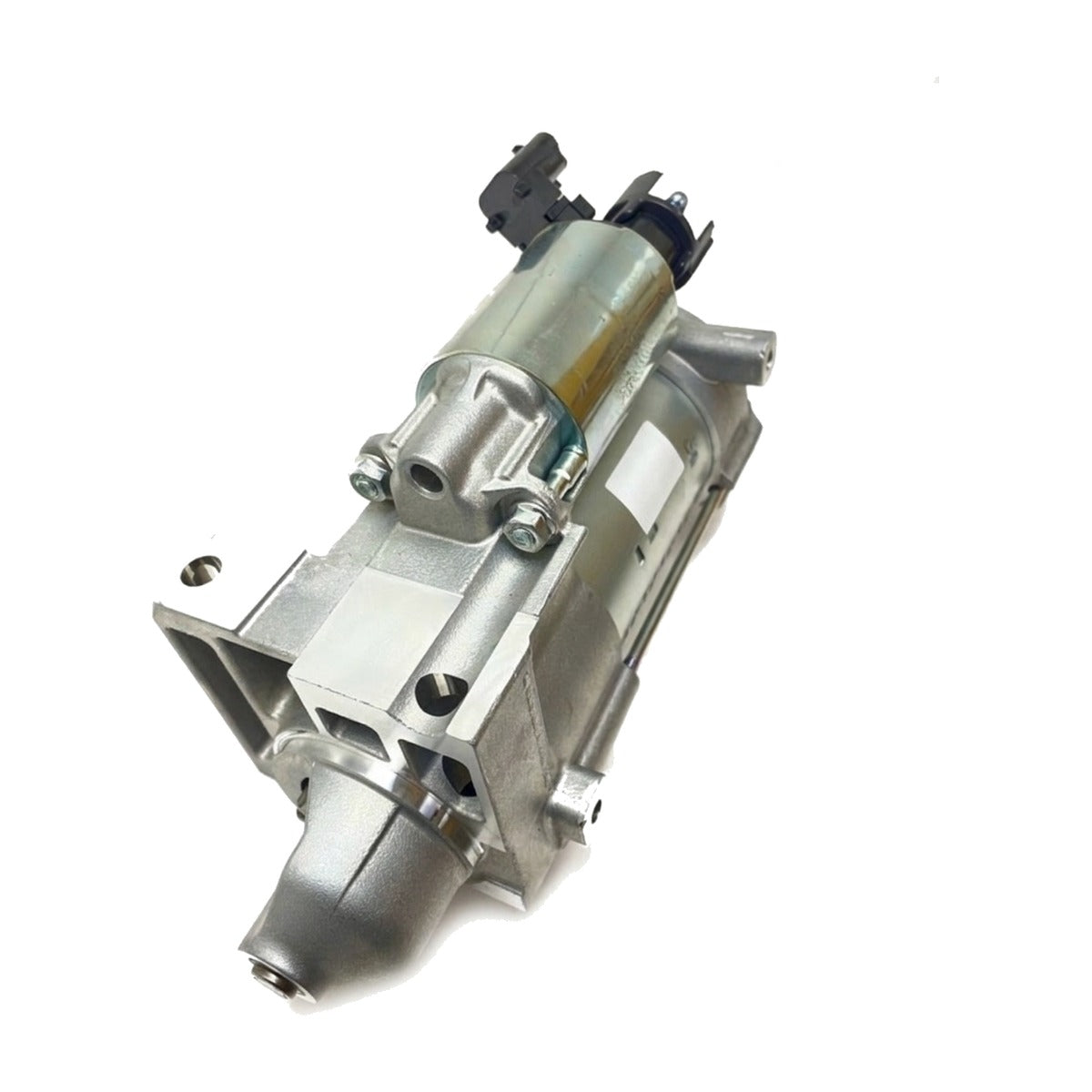

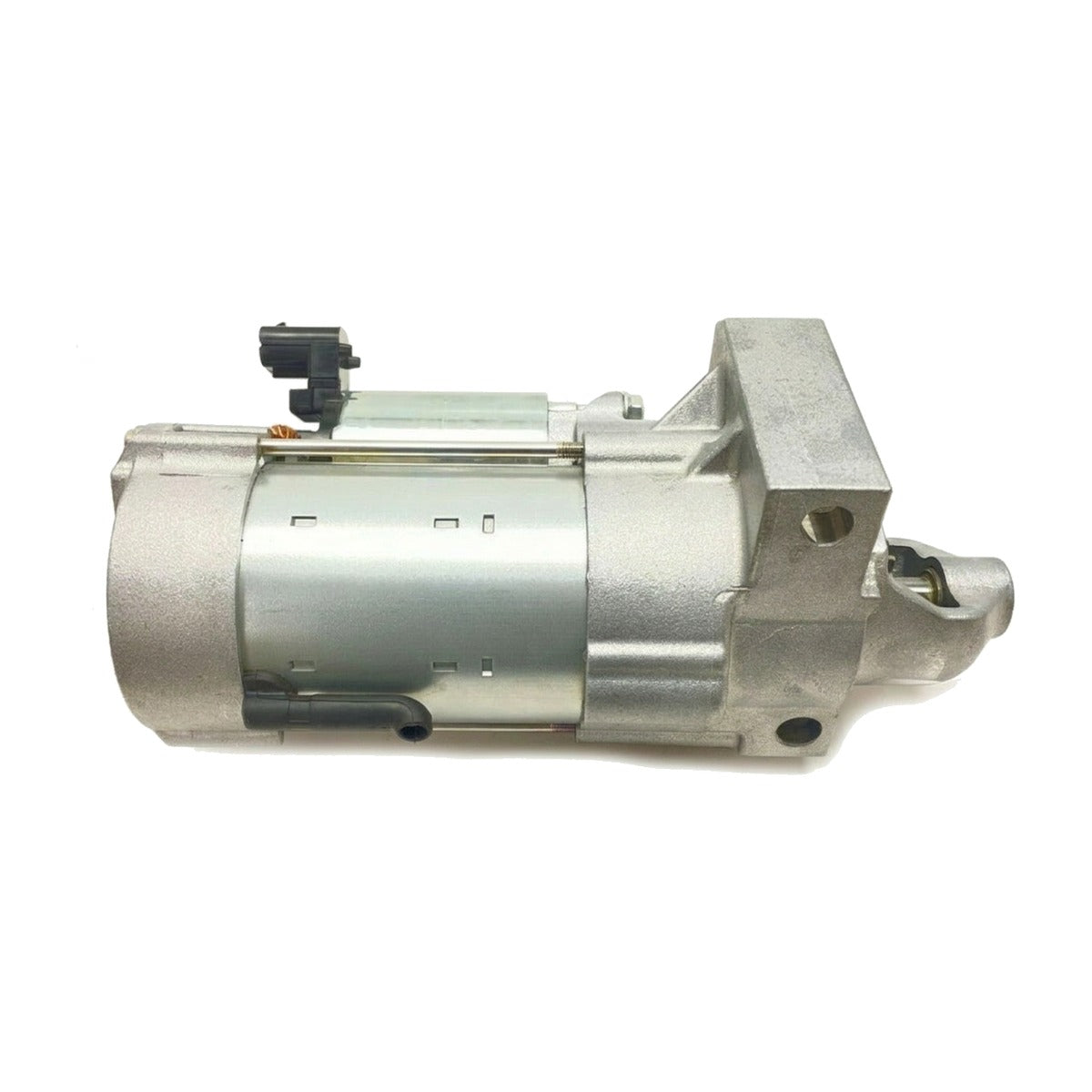

Starter for GMC Sierra (2019-2020) 5.3L 6.2L

OEM-Replacement Starter Motor for 2019-2020 GMC Sierra (T1XX)

What it Does: The replacement starter motor delivers high-torque cranking to the 2019-2020 Sierra flywheel to restore rapid, dependable engine turnover under all operating temperatures.

The Stock GMC Sierra Starter Failure Modes

On modern T1XX platform trucks, factory starters face severe thermal cycling and sustained electrical loads due to tight engine bay packaging and auto start-stop operations. Over time, radiant heat from the exhaust manifolds degrades the internal solenoid contacts, resulting in high internal resistance, voltage drops, and classic single-click or no-crank conditions. Furthermore, mechanical wear on the copper commutator brushes and internal planetary gears causes sluggish rotation, excessive amp draw, and eventual failure of the internal overrunning clutch to properly engage the flexplate ring gear.

The Engineering Solution

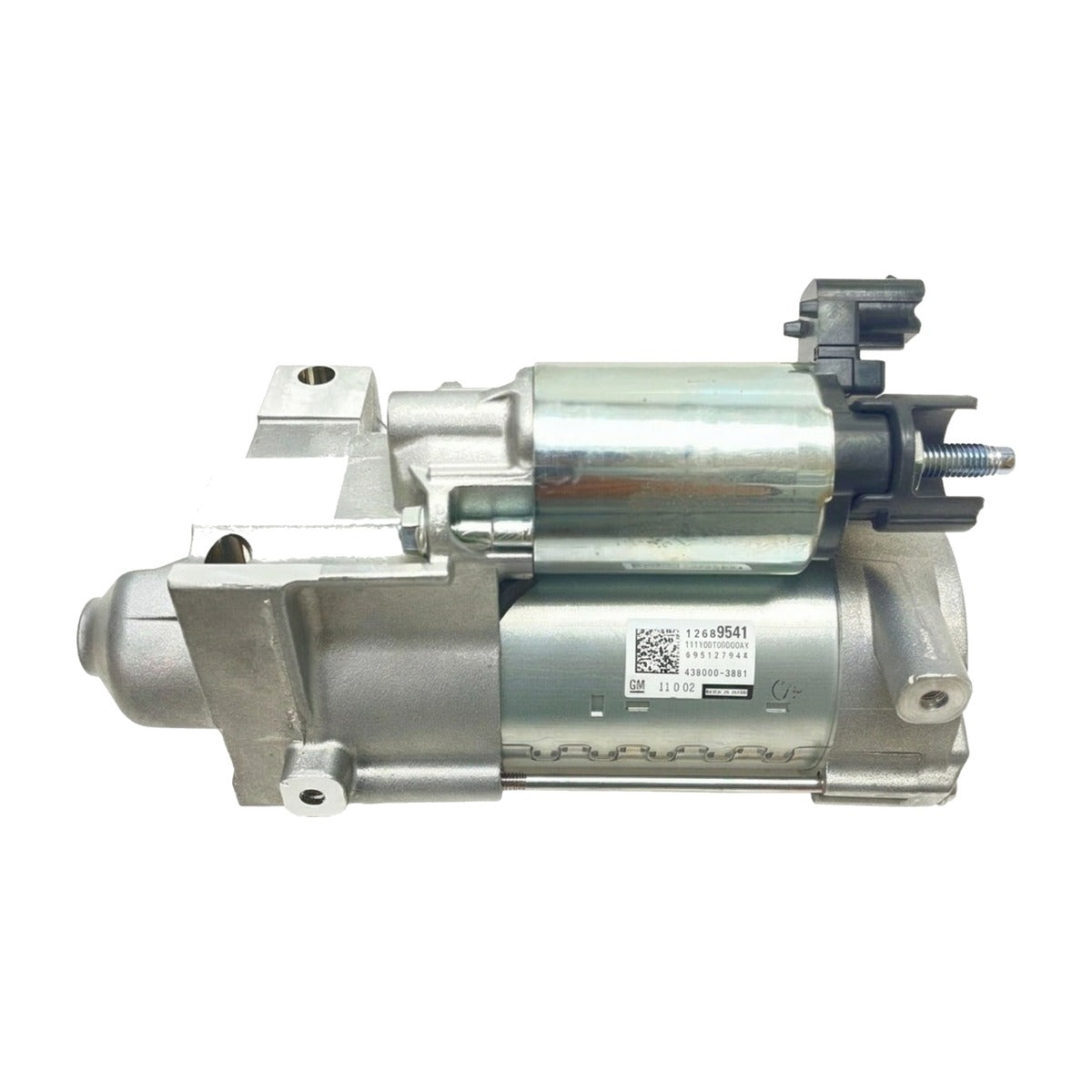

Engineered to exact GM OE specifications under part numbers 12689541 and 438000-3881, this unit incorporates a permanent magnet gear reduction (PMGR) architecture. The PMGR configuration generates maximum stall torque while drawing significantly lower amperage from the 12V electrical system. Heavy-duty pure copper windings, high-temp insulated armature wire, and a hardened 15-tooth pinion gear resist premature stripping and heat-induced short circuits. The precision-cast mounting flange matches factory bellhousing locations perfectly, ensuring seamless gear mesh without shimming.

What's Included

• 1 Genuine GM Starter Motor

Technical Specifications

Compatibility

• 2019 GMC Sierra 1500 5.3L V8 (L84)
• 2019 GMC Sierra 1500 6.2L V8 (L87)
• 2020 GMC Sierra 1500 5.3L V8 (L84)
• 2020 GMC Sierra 1500 6.2L V8 (L87)

Frequently Asked Questions & Fitment Warnings

Does this fit the T1XX Sierra?

Yes, this is a direct fit for the 2019-2020 GMC Sierra equipped with the L84 (5.3L) or L87 (6.2L) engine.

Do I need to shim the starter during installation?

No, this starter features a direct-fit factory bellhousing pattern that requires no shimming or modification.

The GMC Heavy-Duty Standard

Engineered to handle severe fleet duty and heavy towing demands, this starter provides instant, reliable turnover across severe temperature swings and heavy duty cycles.
