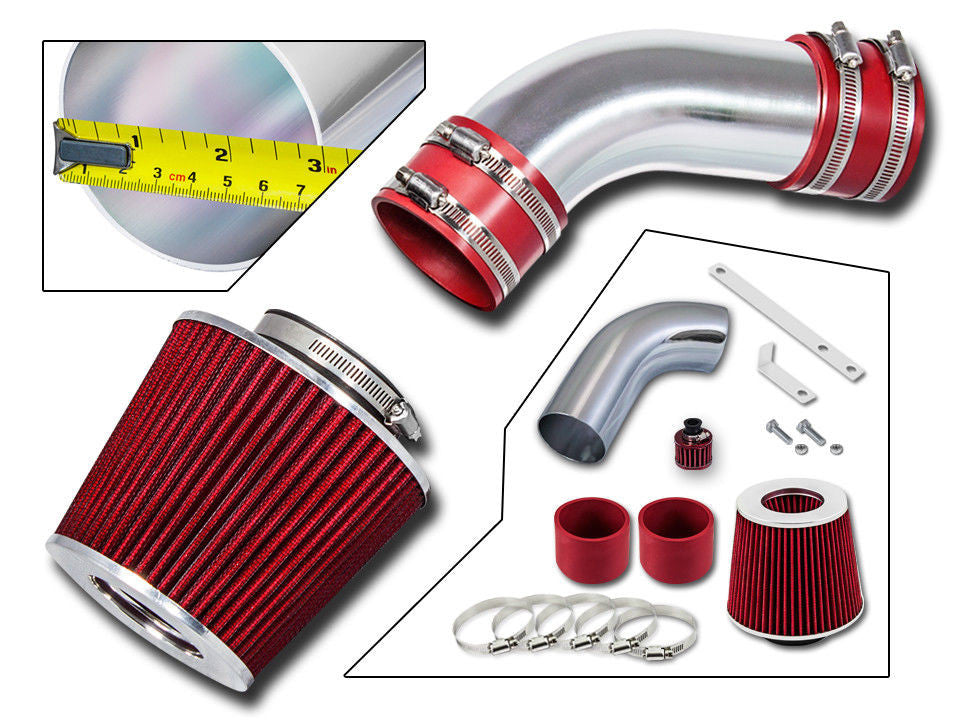

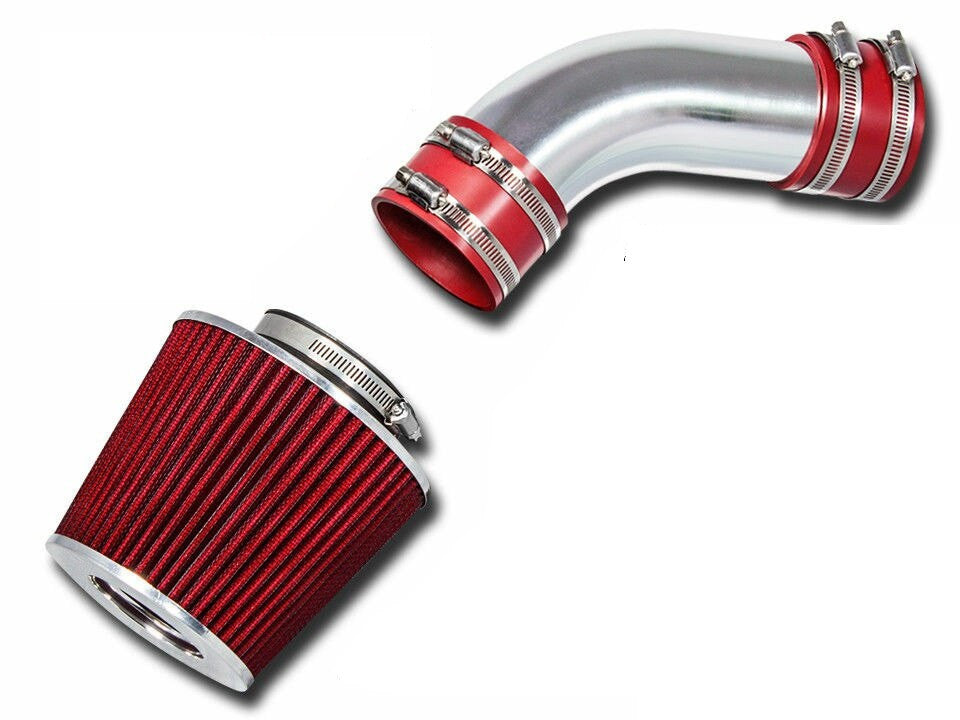

Sport Air Intake System for Audi A4 (2002-2005) with 3.0L SFI V6 Engine Red

$87.99

Shipping calculated at checkout.

Guaranteed Fitment
Free Shipping, Lower 48 States
Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Shop safely

Secure checkout with trusted payment providers.

Shop safely with us

Tired of your Audi A4 feeling sluggish and held back? Reclaim the responsive power and exhilarating sound that was always meant to be yours with a performance upgrade.

Performance Sport Air Intake System for Audi A4 (B6 Chassis) with 3.0L SFI V6 Engine

The factory air box in your 2002-2005 Audi A4 3.0L V6 is an inherent restriction, designed for quiet operation and cost-effectiveness rather than peak performance. This bottleneck chokes your engine’s ability to ingest the cool, oxygen-rich air it desperately needs, leading to compromised horsepower, torque, and throttle response.

Our Sport Air Intake System directly addresses this limitation by replacing the restrictive OEM air box and tubing with a high-flow, lightweight aluminum pathway. This allows your 3.0L V6 to breathe freely, delivering a significant boost in power, sharper acceleration, and a much more engaging engine note.

Why You Need This Upgrade

Unleash Hidden Power: Experience up to a 10% gain in both horsepower and torque, translating to noticeably stronger acceleration and a more responsive Audi A4.
Enhanced Driving Dynamics: Improve throttle response and enjoy smoother power delivery across the RPM range, making every drive more engaging and dynamic.
Premium Durability & Sound: Constructed from lightweight aluminum for maximum strength and corrosion resistance, coupled with a deeper, sportier engine sound that truly reflects your Audi’s performance potential.

Technical Specifications

Fitment	2002-2005 Audi A4 (B6)
Factory Stats	Stock: 220 HP / 221 lb-ft (3.0L SFI V6)
Installation	Easy DIY / Est. 1 Hour

Replaces These OEM Applications

Compatible Vehicles:

2002 Audi A4 with 3.0L SFI V6 Engine
2003 Audi A4 with 3.0L SFI V6 Engine
2004 Audi A4 with 3.0L SFI V6 Engine
2005 Audi A4 with 3.0L SFI V6 Engine

Unlock Your Audi A4 3.0L V6’s True Potential Today

Don’t let a restrictive factory air box hold back your Audi A4 (B6 Chassis). Shop with confidence knowing that we deliver the best air intake system parts with fast shipping and expert support to help your 3.0L SFI V6 engine achieve its peak performance.

Common Questions

Will this intake fit my 2002-2005 Audi A4 with the 3.0L V6?
Yes. This Sport Air Intake System is built specifically for 2002, 2003, 2004, and 2005 Audi A4 (B6 chassis) models equipped with the 3.0L SFI V6 engine.

Will this fit an Audi A4 with a 4-cylinder or 2005 B7 3.2L V6?
It is engineered specifically for the 2002-2005 B6 chassis with the 3.0L SFI V6 engine (220 HP / 221 lb-ft stock).

What does this intake replace on my A4?
It replaces the restrictive factory OEM air box and intake tubing with a high-flow lightweight aluminum intake pathway.

What kind of performance gains can I expect?
The system is designed to deliver up to a 10% gain in horsepower and torque by removing the factory air box restriction, along with sharper throttle response and a deeper engine note.

How long does installation take?
It is a straightforward DIY upgrade that takes approximately 1 hour to install.

Fitment

Make	Audi
Engine Size	3.0L
Year	2002 2003 2004 2005

Installation & Tools

The Wrench Time

Estimated Time: 45-60 Minutes
Difficulty: 3/10 - Basic hand tools, but requires extreme patience with 20-year-old German plastics.

Tools You Will Need

10mm Socket & Ratchet (for battery and heat shield mounts)
T25 Torx Bit (for factory MAF sensor housing screws)
8mm Nut Driver or Flathead Screwdriver (for worm-gear hose clamps)
Panel Popper (for factory intake snorkel clips)
Needle Nose Pliers (for spring clamps on factory PCV/vacuum lines)

Mechanic’s Pro Tip (The "Gotcha"):
The B6 platform’s 3.0L AVK engine bay is notorious for baking its plastics. The Mass Air Flow (MAF) sensor wiring harness is extremely short, and the retaining clip on the connector is practically guaranteed to snap if you force it. Push the connector IN first, press the release tab with a small flathead screwdriver, and then pull it off. Furthermore, be hyper-aware of the brittle vacuum lines crossing over the factory airbox. Snap one, and you’ll be chasing a rough idle and a Check Engine Light (CEL) for days.

Phase 1: Removing the Factory Part

Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm socket to prevent check engine lights and reset the ECU on your 2002-2005 Audi A4 3.0L.
Remove the Fresh Air Snorkel: Locate the plastic ram-air duct at the front of the core support. Use your panel popper or flathead screwdriver to carefully pry up the retaining clips and slide the snorkel out of the factory airbox.
Disconnect the MAF Sensor: Carefully unplug the MAF sensor harness using the push-and-click method described above. Do not pull on the wires! Tuck the harness safely out of the way.
Loosen the Intake Hose: Use your 8mm nut driver to loosen the hose clamp securing the corrugated factory intake tube to the throttle body inlet. Pull the tube free.
Extract the Factory Airbox: Remove the mounting hardware securing the lower airbox to the chassis using your 10mm socket. Carefully lift the entire B6 airbox assembly out of the engine bay, ensuring you don’t snag any of those brittle vacuum or coolant lines.

Phase 2: Installing the Sport Air Intake System for Audi A4 (2002-2005) with 3.0L SFI V6 Engine Red

Transfer the MAF Sensor: Using your T25 Torx bit, carefully remove the two screws holding the delicate MAF sensor in the factory housing. Gently pull it out—do NOT touch the hot wire inside—and transfer it into your new aftermarket intake tube using the provided hardware.
Mount the Heat Shield: Lower the new custom heat shield into the engine bay. Align it with the factory mounting points and secure it down firmly using your 10mm socket.
Install the Intake Tube: Slide the provided red silicone couplers onto the throttle body and the new intake tube. Secure them loosely with the provided worm-gear clamps. Position the tube so it clears all hoses, then lock it down tight using your 8mm nut driver.
Mount the Red Air Filter: Attach the high-flow red cone filter to the end of the intake tube inside the heat shield area. Tighten the filter clamp securely with your 8mm nut driver.
Reconnect and Calibrate: Reconnect the MAF sensor harness until it clicks securely. Reconnect the negative battery terminal with your 10mm socket. Crucial step: On the first startup, turn the key and let the vehicle idle. Do NOT touch the gas pedal for at least 20 seconds. This allows the ECU to adapt its fuel trims to the new, higher volume of airflow.

Disclaimer: This is a general guide provided for the 2002-2005 Audi A4 3.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.
