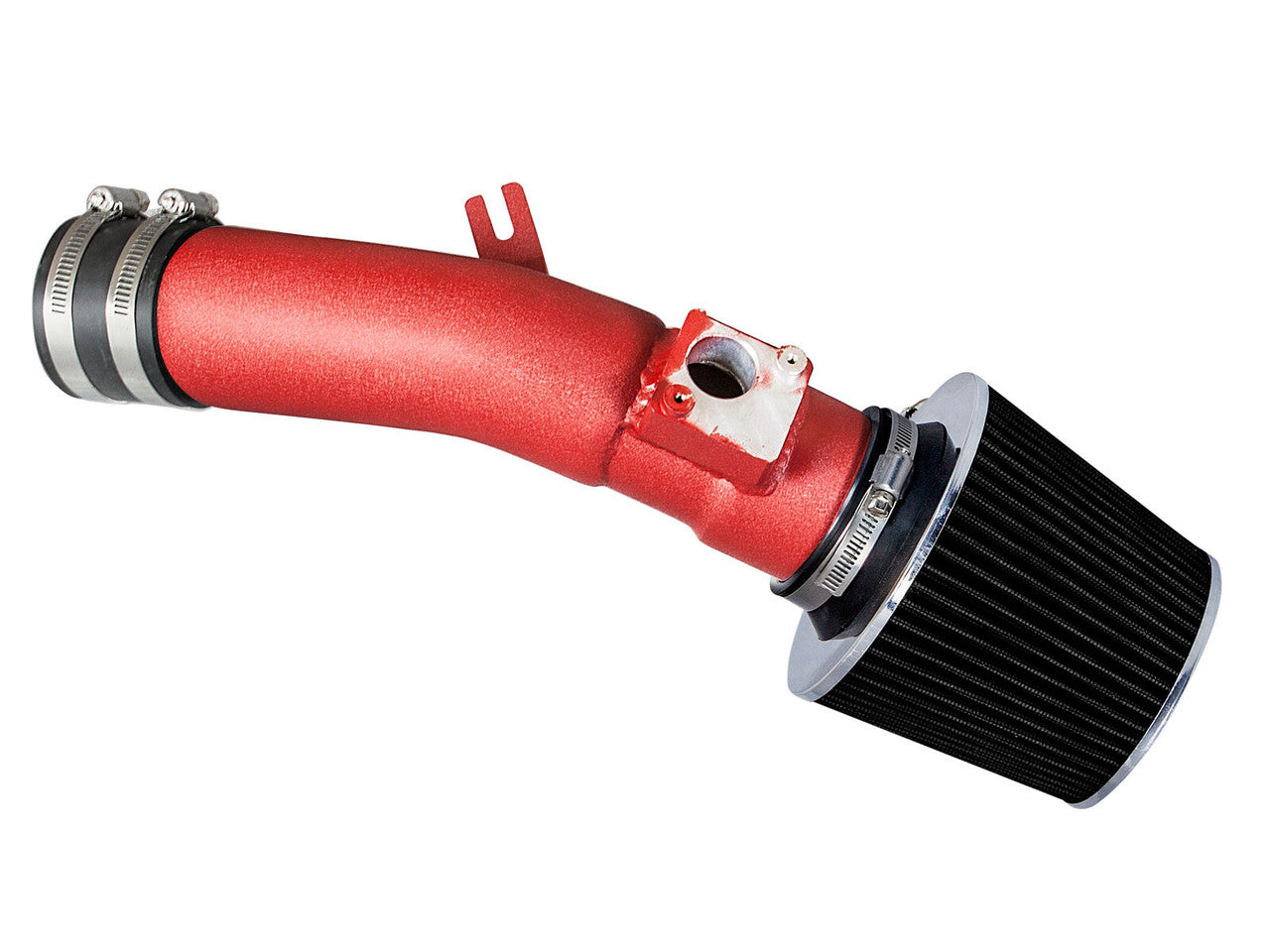

Short Ram Air Intake for Honda Civic (2016-2021) 1.5L Turbo Engine - Red

Short Ram Air Intake for Honda Civic 1.5L Turbo L15B7 (2016–2021) - Red Aluminum Performance Kit

This short ram air intake system is designed to replace the factory air box on 2016–2021 Honda Civic models equipped with the 1.5L L15B7 Earth Dreams turbocharged engine. The system reduces intake restriction by using mandrel-bent T304 aluminum piping with a race-red powder coat finish and a high-velocity conical filter. This results in improved throttle response, enhanced turbo spool characteristics, and measurable gains across the RPM range.

The intake uses a shorter, more direct air path compared to the factory intake system, positioning the filter closer to the engine. The mandrel-bent construction maintains consistent internal diameter throughout each bend, creating a streamlined airflow path to the turbocharger. The system eliminates restrictive factory baffles and chambers for improved turbo efficiency.

Vehicle Fitment

• 2016–2021 Honda Civic (1.5L L15B7 Turbocharged Engine)
• Compatible with manual and automatic (CVT) transmissions
• Factory horsepower: approximately 174–180 HP
• Factory torque: approximately 162–167 lb-ft
• Does not fit Si models

Performance & Design

Airflow Optimization: The system is engineered to improve airflow efficiency by eliminating restrictive elements in the factory air box assembly. The mandrel-bent T304 aluminum piping provides a streamlined air path to the turbocharger. The reduced restriction allows the turbo to spool more efficiently during acceleration and boost conditions, reducing turbo lag. Actual performance improvements will vary based on vehicle condition, elevation, ambient temperature, and existing modifications.

Turbo Response: The shortened intake path and reduced restriction allow the turbocharger to operate more efficiently by providing less restricted airflow. This results in improved throttle response and power delivery throughout the RPM range, particularly noticeable during acceleration, merging, and passing maneuvers.

Construction & Materials

T304 Aluminum Construction: The intake pipe is constructed from lightweight T304 aluminum with mandrel-bent tubing. The T304 material provides corrosion resistance, superior heat dissipation compared to factory plastic components, and maintains structural integrity across engine bay temperature ranges. The race-red powder coat finish provides additional protection against scratches and oxidation.

Filter Design: The high-velocity conical air filter provides increased surface area for improved airflow capacity. The filter uses washable filter media that can be cleaned and reused. The open-element design produces a more audible turbo spool and intake sound during acceleration, particularly under boost conditions.

Features & Components

• Mandrel-bent T304 aluminum intake piping
• Race-red powder coat finish
• High-velocity conical air filter
• Washable and reusable filter
• Short ram design for direct airflow path to turbocharger
• Direct replacement for factory air box assembly
• Uses factory mounting points
• Reduces turbo lag and improves spool characteristics
• Enhances throttle response across RPM range
• Produces more audible turbo spool and intake sound
• Lightweight construction compared to factory components
• Heat dissipation superior to factory plastic

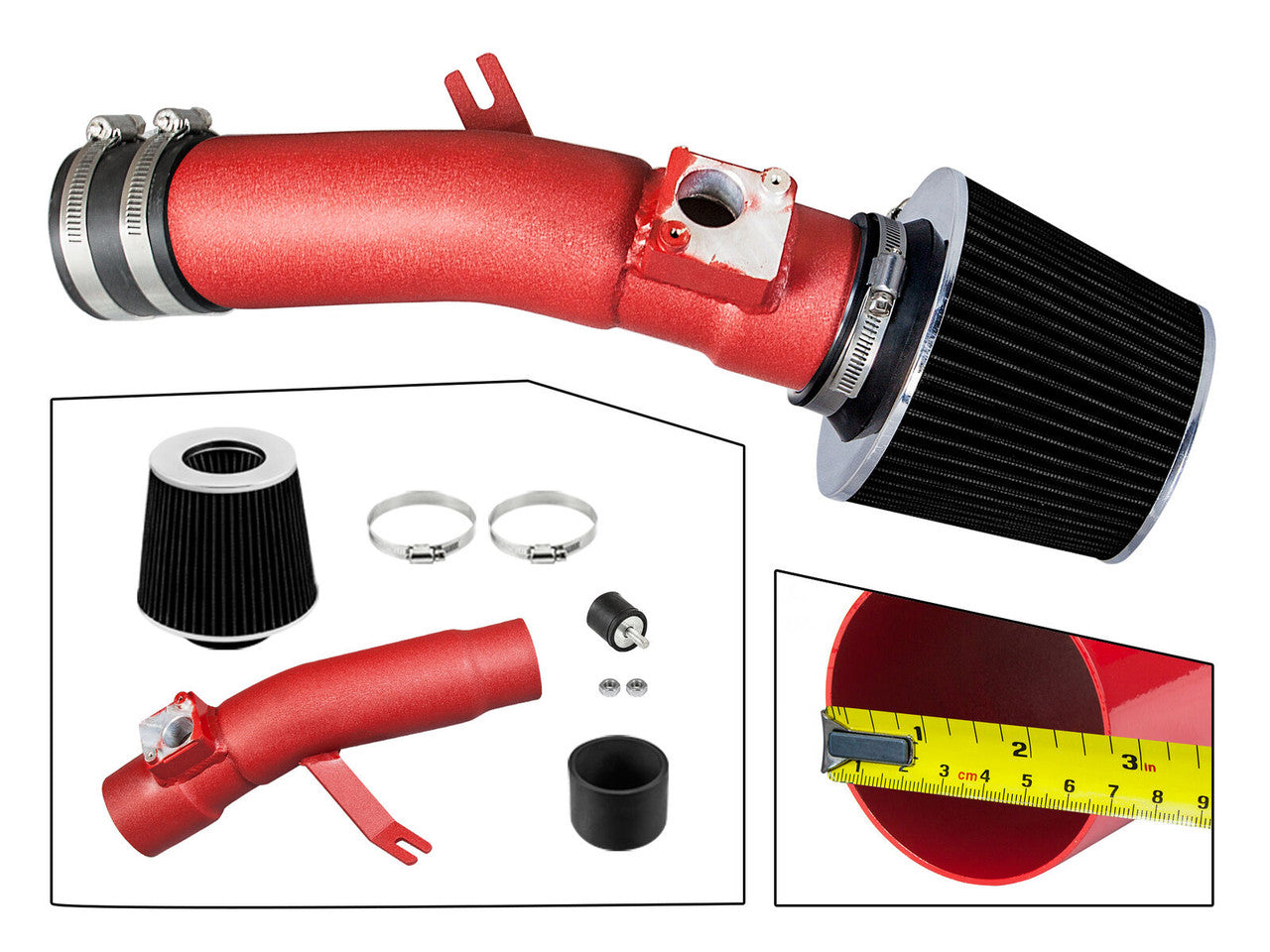

What's Included

• T304 aluminum intake pipe (red powder coat)
• High-velocity conical air filter
• Mounting hardware and clamps
• Installation components

Installation

• Direct replacement for factory air box system
• Uses factory mounting points
• No cutting, drilling, or custom fabrication required
• Installation time approximately 45–60 minutes
• Basic hand tools required (screwdrivers, socket wrenches)

Installation Note:
After installation, disconnect the negative battery terminal for approximately 30 seconds to allow the engine control unit to reset. This allows the ECU to recalibrate fuel delivery, ignition timing, and boost control parameters to optimize performance with the modified airflow characteristics. Always disconnect the battery before performing any engine bay work. The ECU will continue to adapt during normal driving operation.

Filter Maintenance

Inspection Schedule: Inspect the air filter every 5,000 miles and clean if necessary. Driving conditions such as dusty environments, spirited driving, or heavy traffic may require more frequent inspection and cleaning.

Cleaning Procedure: Remove the filter from the intake tube. Gently tap the filter to remove loose debris. Apply an appropriate air filter cleaning solution to both the inside and outside of the filter element, working it into the filter media. Allow the cleaner to soak for approximately 10 minutes. Rinse the filter thoroughly with low-pressure water from the clean side out, continuing until water runs clear. Shake off excess water and allow the filter to air dry completely in a clean environment. Once fully dry, apply air filter oil evenly to the filter media according to product specifications. Allow the oil to wick through the filter material for approximately 20 minutes before reinstalling. Ensure the filter is completely dry before applying oil, as moisture will prevent proper oil absorption.

Sound Characteristics

Turbo and Intake Sound: The short ram design and open-element filter produce more audible turbo spool and intake sound during acceleration and boost conditions. The sound characteristics include increased turbo whistle and deeper induction tone compared to the factory intake system. The sound is particularly pronounced during acceleration and under boost pressure.

Compatibility Requirements

Engine Verification: This short ram air intake system is designed specifically for 2016–2021 Honda Civic models equipped with the 1.5L L15B7 Earth Dreams turbocharged engine. The system is compatible with both manual and CVT automatic transmissions. This intake does not fit Si models, which use different engine configurations. Verify your vehicle is a non-Si model with the 1.5L turbocharged engine before purchase to ensure proper fitment.

This short ram air intake system provides improved airflow characteristics for the 1.5L L15B7 turbocharged engine while maintaining reliable filtration through a washable, reusable conical filter. The T304 aluminum construction with red powder coat finish provides superior heat dissipation and durability compared to factory plastic components. The direct bolt-on design uses factory mounting points without requiring cutting, drilling, or custom fabrication. The system is designed to work with factory engine management components without requiring additional modifications or tuning.
