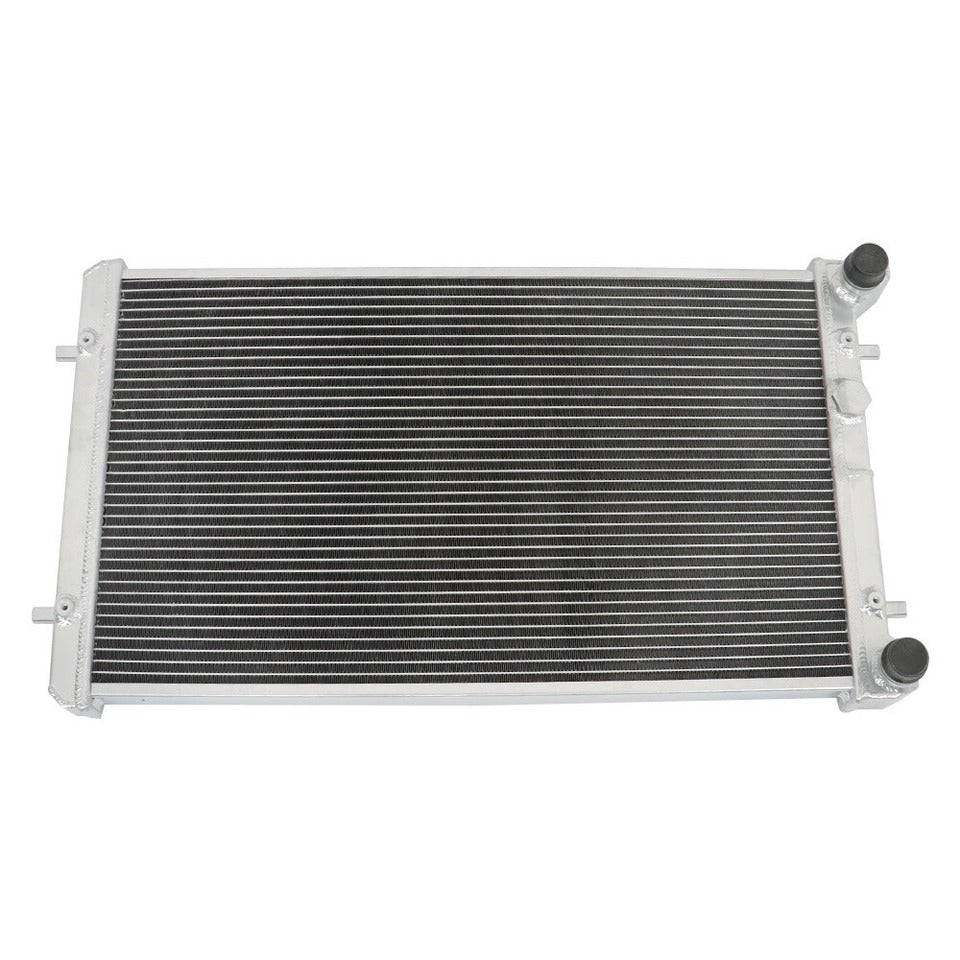

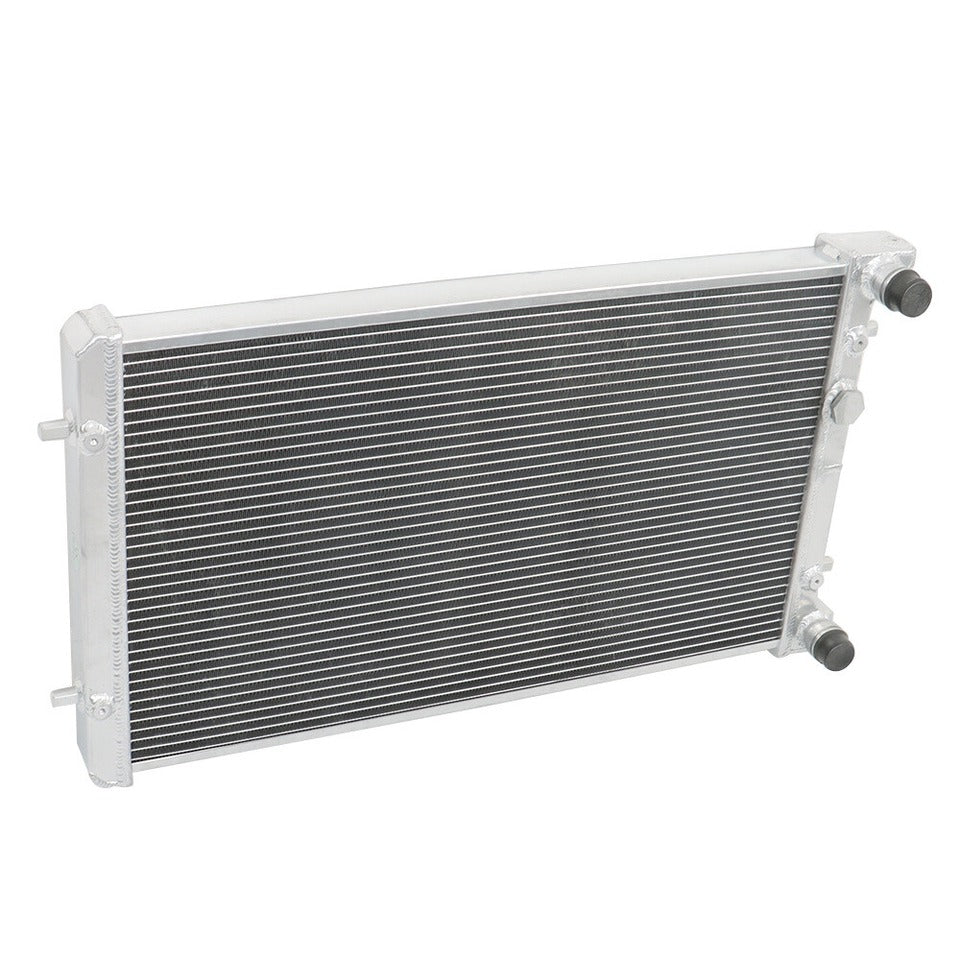

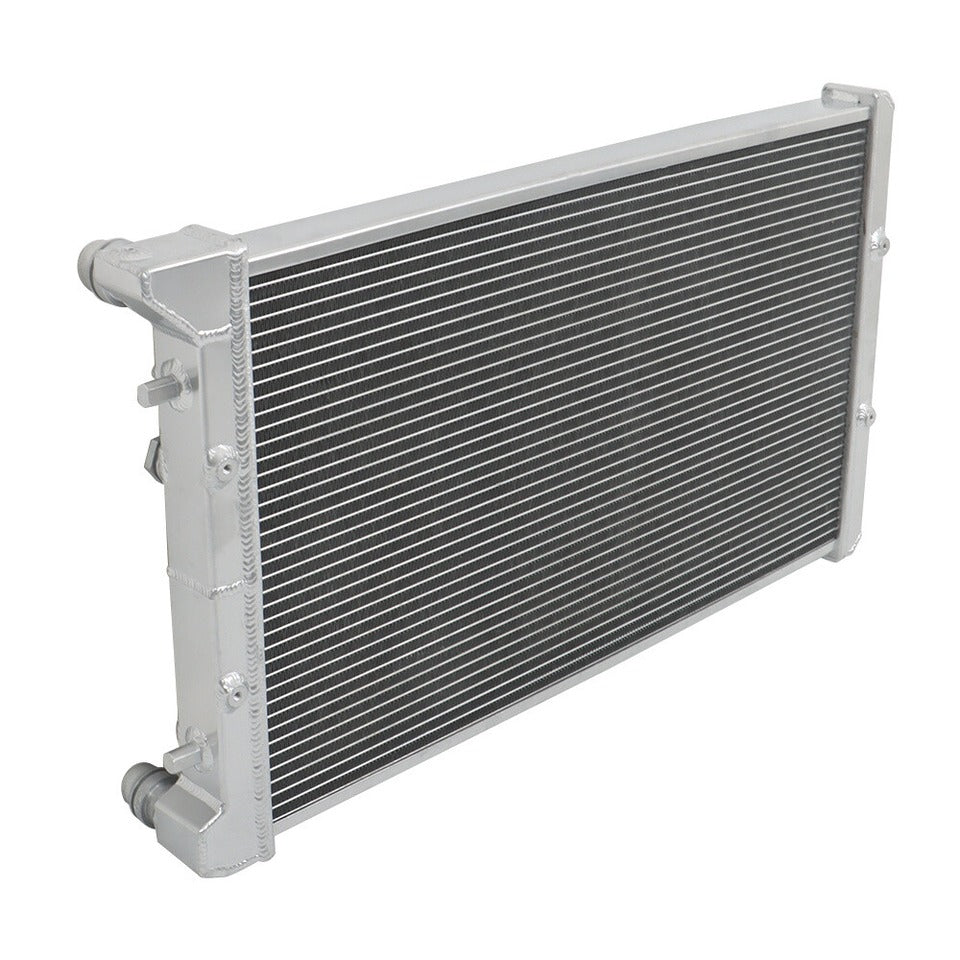

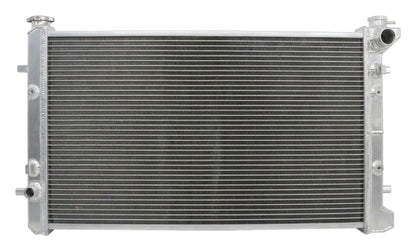

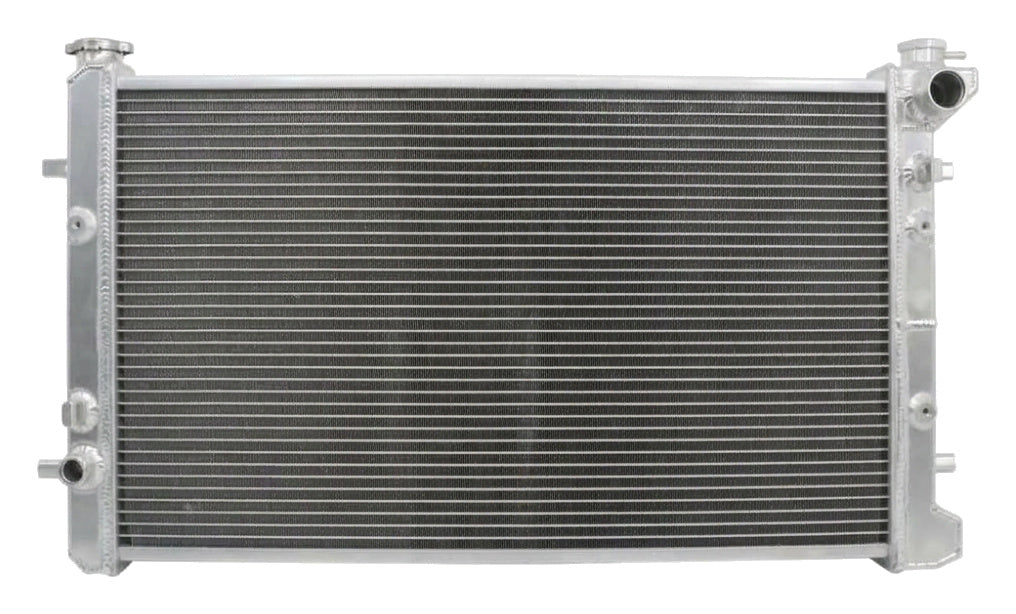

Radiator for Volkswagen Jetta (1999-2004) 2.8L

High-Efficiency Direct-Fit All-Aluminum Radiator for 1999-2004 Volkswagen Jetta (Mk4)

What it Does: The high-efficiency all-aluminum radiator replaces the fragile factory cooling assembly on the 1999-2004 Volkswagen Jetta to enhance heat dissipation, prevent boil-overs, and eliminate structural failure points in the cooling circuit.

The Stock Volkswagen Jetta Radiator Failure Points

Factory cooling systems on the Mk4 platform rely on radiators constructed with crimped plastic polymer end tanks mated to an aluminum core via elastomer gaskets. Under the elevated operational temperatures generated by the compact, tightly packaged 2.8L VR6, continuous thermal cycling fatigues these plastic neck connections and side tanks. Over time, brittle plastic fractures near the radiator hose couplings, and crimp seals loosen under pressure, leading to catastrophic coolant evacuation and subsequent engine overheating.

The Engineering Solution

Engineered for sustained thermal rejection, this performance unit features a robust 2-row all-aluminum tube-and-fin core joined to heavy-gauge aluminum end tanks with 100% TIG-welded seams. By eliminating crack-prone plastic and vulcanized rubber seals, this drop-in replacement completely mitigates rupture risks under increased cooling system pressures. The high-density fin layout accelerates crossflow heat exchange, warding off heat soak during prolonged idling and high-load driving while matching factory plumbing dimensions for 1J0121253AD and 1J0121253AT.

What's Included

• 1 x All-aluminum direct-fit 2-row performance radiator
• Protective transport caps on inlet/outlet ports

Technical Specifications

Compatibility

• 1999-2004 Volkswagen Jetta 2.8L VR6 (GL, GLS, GLX, GLI)

Frequently Asked Questions & Fitment Warnings

Does this fit the Mk4 Jetta?

Yes, this is a direct fit for the 1999-2004 Volkswagen Jetta equipped with the 2.8L VR6 engine. This product is specified for listed 2.8L VR6 models only; it is not a universal radiator and does not fit 2.0L, 1.8T, or 1.9L TDI models without custom modification.

Do I need to bleed the cooling system after installation?

Yes, thoroughly flush the cooling circuit, refill with VW G12/G13 compliant coolant, and purge all air pockets using a vacuum-fill tool or proper cycle procedure to prevent hotspot cavitation.

The Volkswagen Precision Caliber

Maintain the strict thermal tolerances demanded by German engineering with an all-aluminum direct-fit replacement that delivers OEM-level fitment precision without check engine lights or mechanical compromises.
