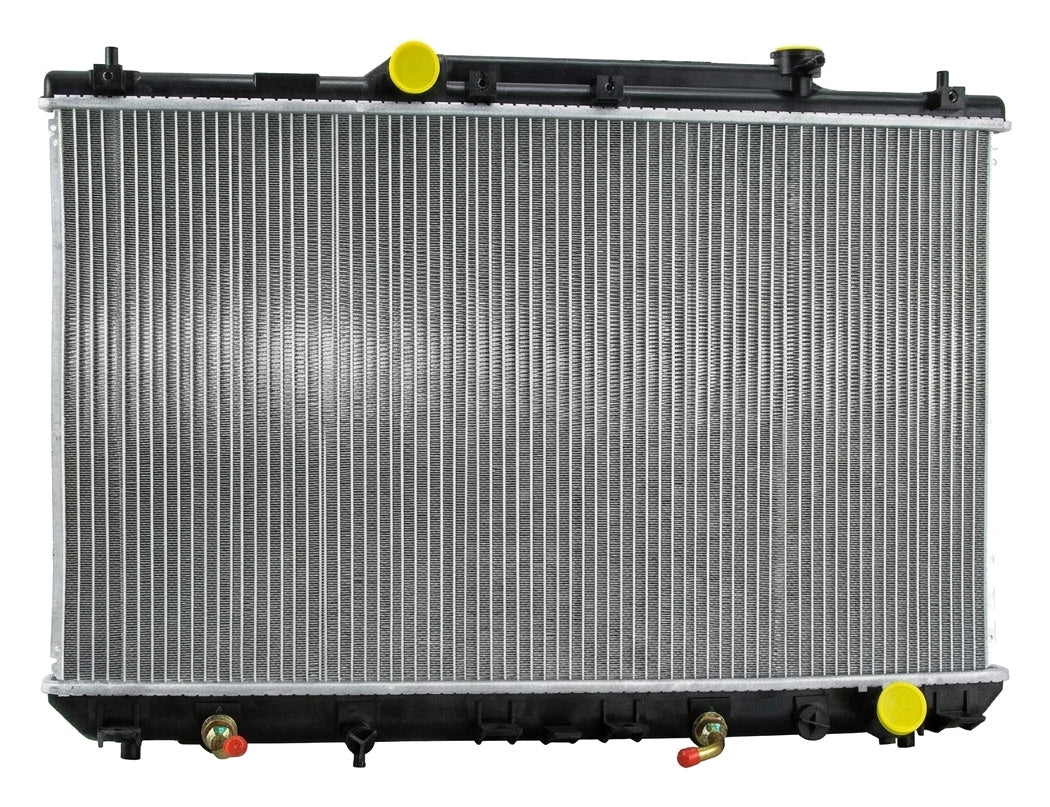

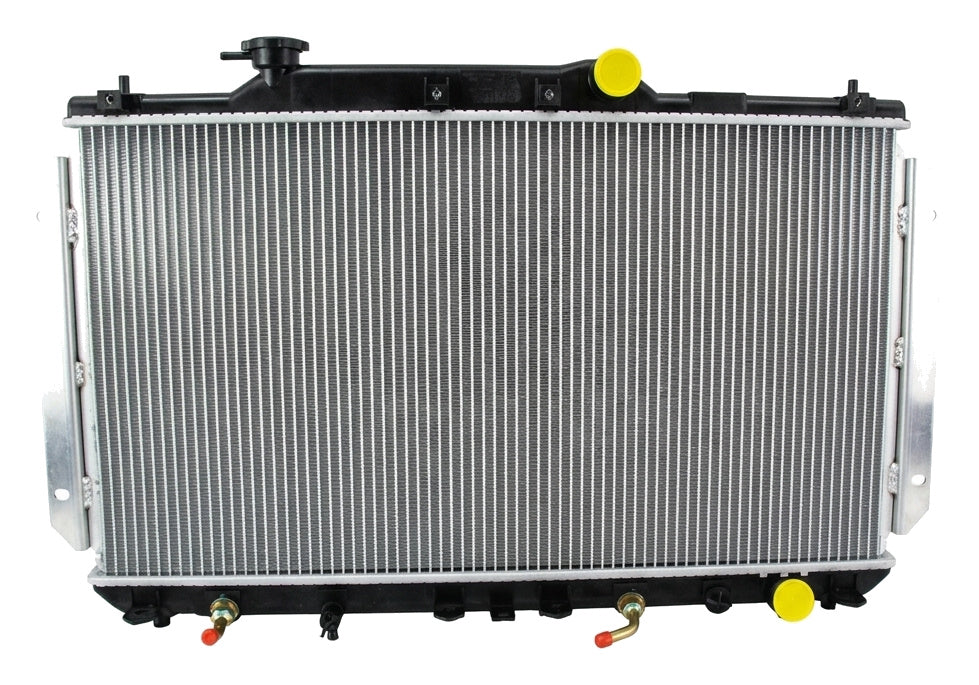

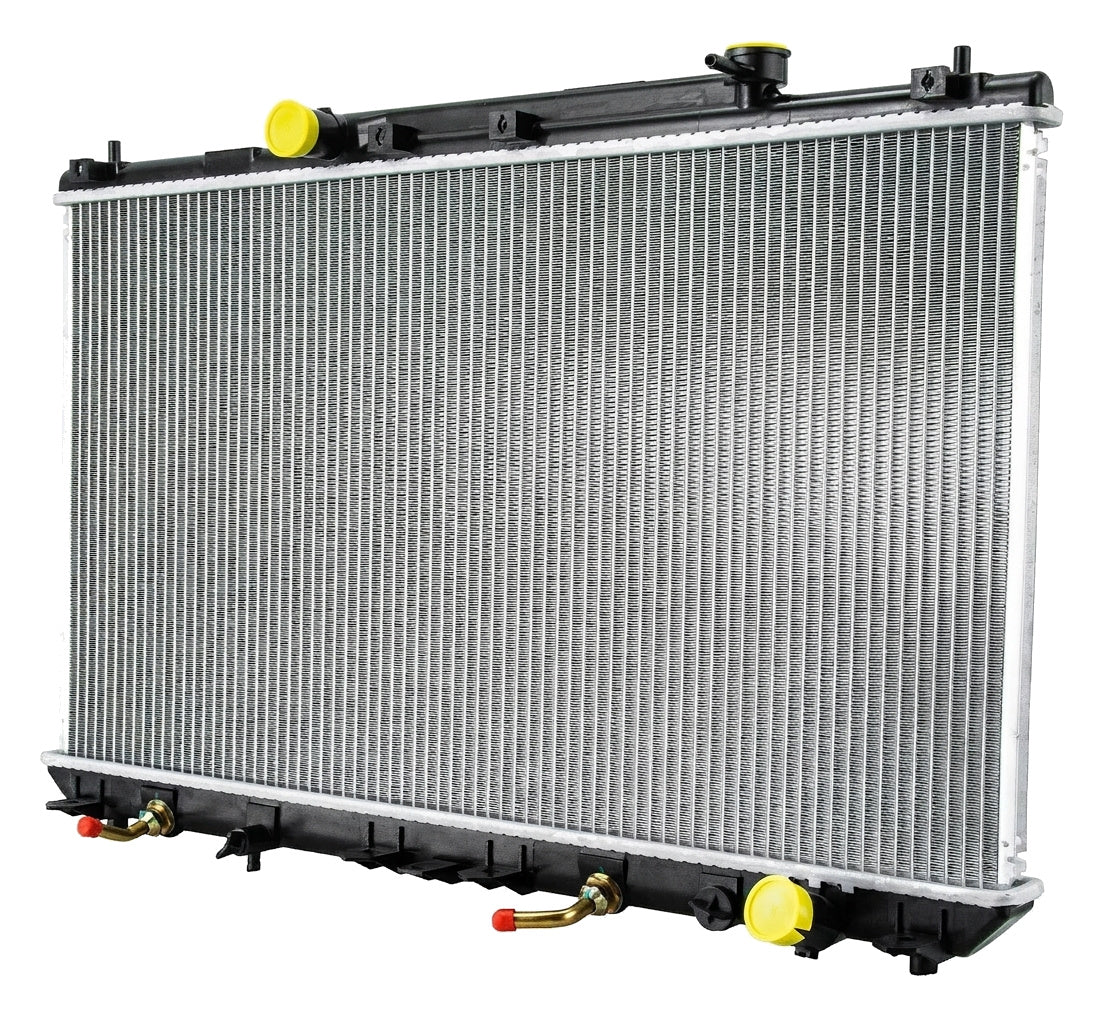

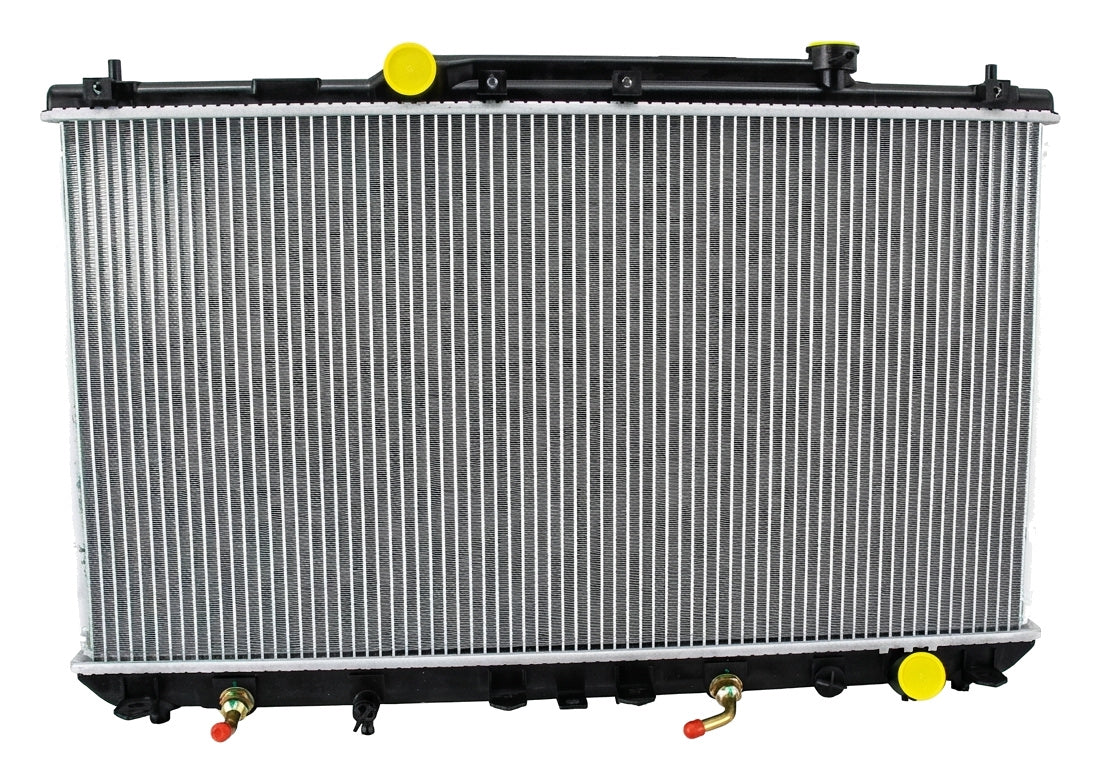

Radiator for Toyota Camry (1997-2001) 2.2L

High-Efficiency All-Aluminum Radiator for 1997-2001 Toyota Camry

What it Does: The All-Aluminum Performance Radiator replaces the leak-prone factory cooling assembly on the 1997-2001 Toyota Camry to maximize heat rejection, stabilize operating temperatures, and prevent catastrophic engine overheating.

The Stock Toyota Camry Radiator Degradation

Factory radiators installed in the fourth-generation XV20 platform utilize composite nylon-reinforced plastic end tanks crimped onto a thin-gauge aluminum core using an elastomeric gasket. Over tens of thousands of thermal cycles, engine heat soak and cooling system pressure embrittle this PA66 plastic. The most prevalent failure modes include stress fractures at the upper inlet neck, seam separation along the crimp tabs, and core internal clogging. These failures quickly lead to coolant loss, head gasket failure, and warped cylinder heads on the inline-four powerplant.

The Engineering Solution

Engineered as a rugged mechanical upgrade, this drop-in replacement features 100% all-aluminum construction. The assembly incorporates heavy-gauge, furnace-brazed cooling tubes and high-density multi-louvered fins designed to maximize ambient heat exchange without restricting engine bay airflow. The core is bonded to heavy-duty, robotically TIG-welded aluminum end tanks, completely eliminating the brittle failure points of OEM crimped plastic. Built around DPI/CU 1909 core dimensions, this radiator bolts directly into the factory support brackets and aligns with the original transmission oil cooler lines and coolant hoses for reliable thermal stability.

Technical Specifications

Compatibility

• 1997 Toyota Camry 2.2L L4 (CE, LE, XLE)
• 1998 Toyota Camry 2.2L L4 (CE, LE, XLE)
• 1999 Toyota Camry 2.2L L4 (CE, LE, XLE)
• 2000 Toyota Camry 2.2L L4 (CE, LE)
• 2001 Toyota Camry 2.2L L4 (CE, LE)

Frequently Asked Questions

Does this fit the XV20 Camry?
Yes, this is a direct fit for the 1997-2001 Toyota Camry equipped with the 5S-FE engine.

Does this radiator support automatic transmission cooler lines?
Yes, it features integrated, direct-threaded transmission cooler connections compatible with factory automatic routing.

The Toyota JDM Reliability Caliber

Constructed to reinforce the legendary longevity of classic JDM commuters, this all-aluminum core ensures continuous heat dissipation and resilient protection against daily-driven wear, traffic gridlock, and extreme ambient summer heat.
