Radiator for Honda Pilot (2009-2015) 3.5L

Direct-Fit Replacement Radiator for 2009-2015 Honda Pilot (YF3/YF4)

What it Does: The direct-fit replacement radiator restores efficient thermal transfer for the 2009-2015 Honda Pilot to prevent engine overheating and maintain optimal operating temperatures under load.

The Stock Honda Pilot Thermal Fatigue and Structural Breakdown

Factory cooling assemblies on the second-generation Pilot endure heavy thermal cycling, leading to micro-fractures in the composite end tanks and degradation of the crimped tank-to-core elastomeric seals. Over time, internal calcification and external debris impact compromise coolant velocity across the tubes. More critically, corrosion of the internal transmission fluid cooler heat exchanger risks catastrophic cross-contamination between ATF and engine coolant, causing transmission slipping or warped cylinder heads on the J35Z4 V6 platform.

The Engineering Solution

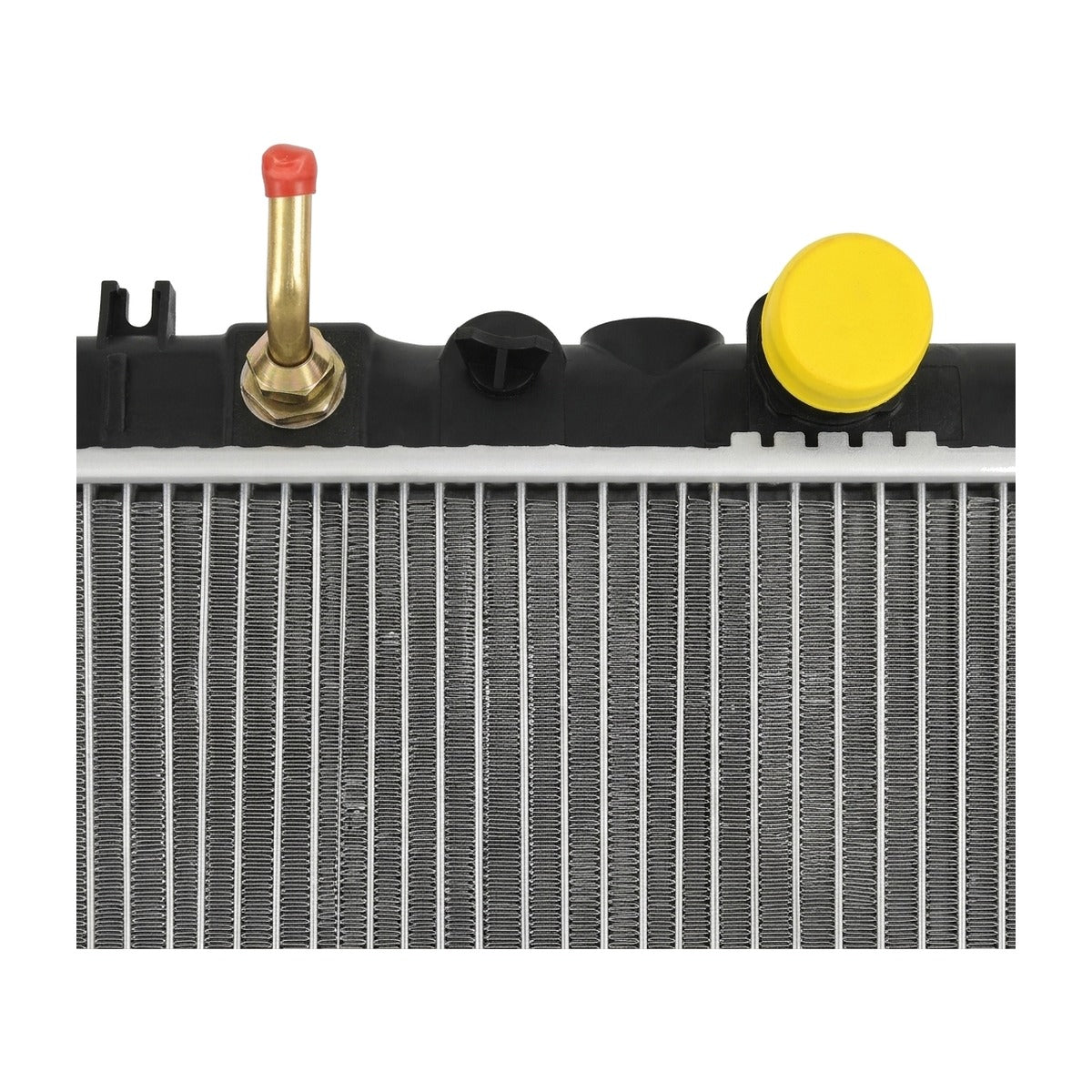

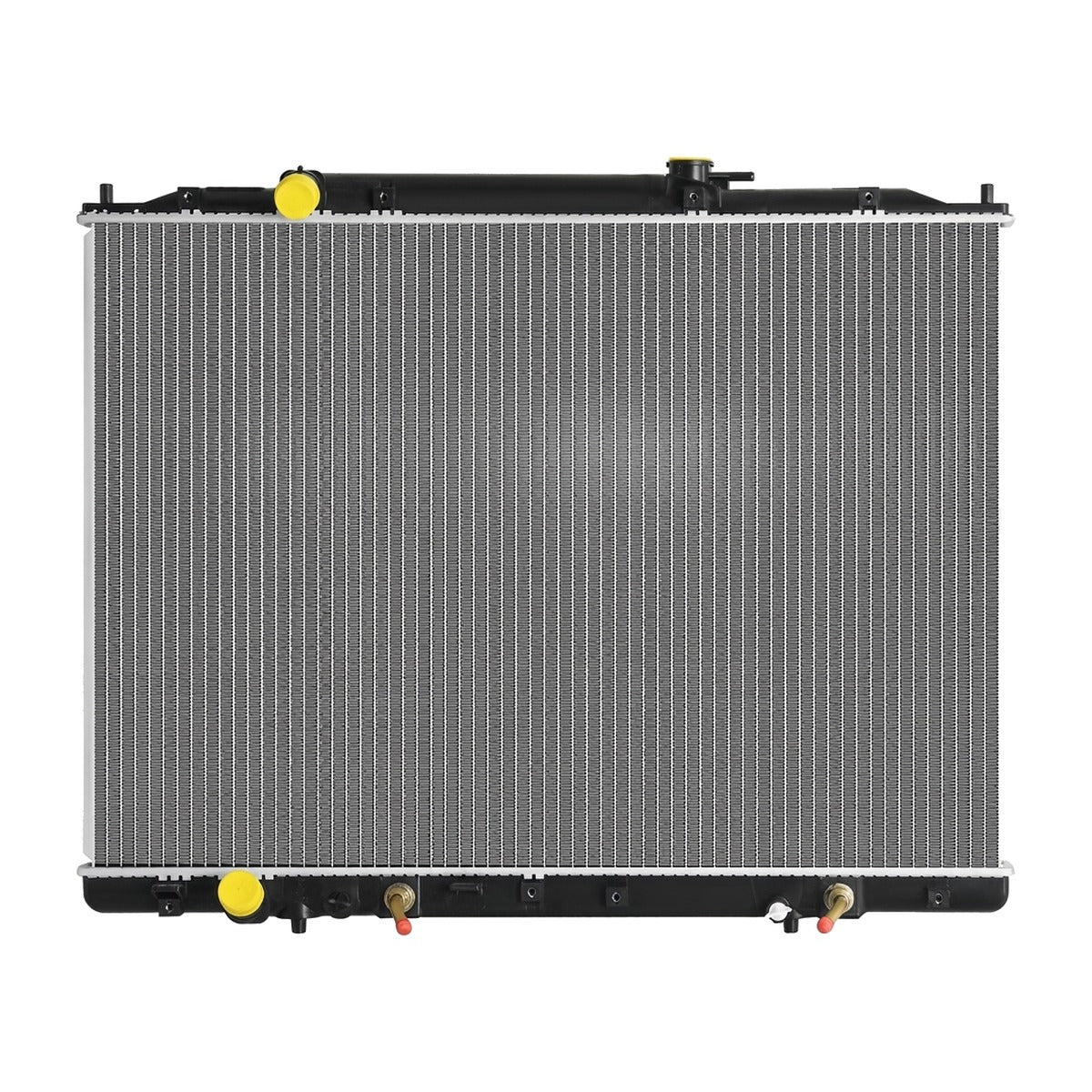

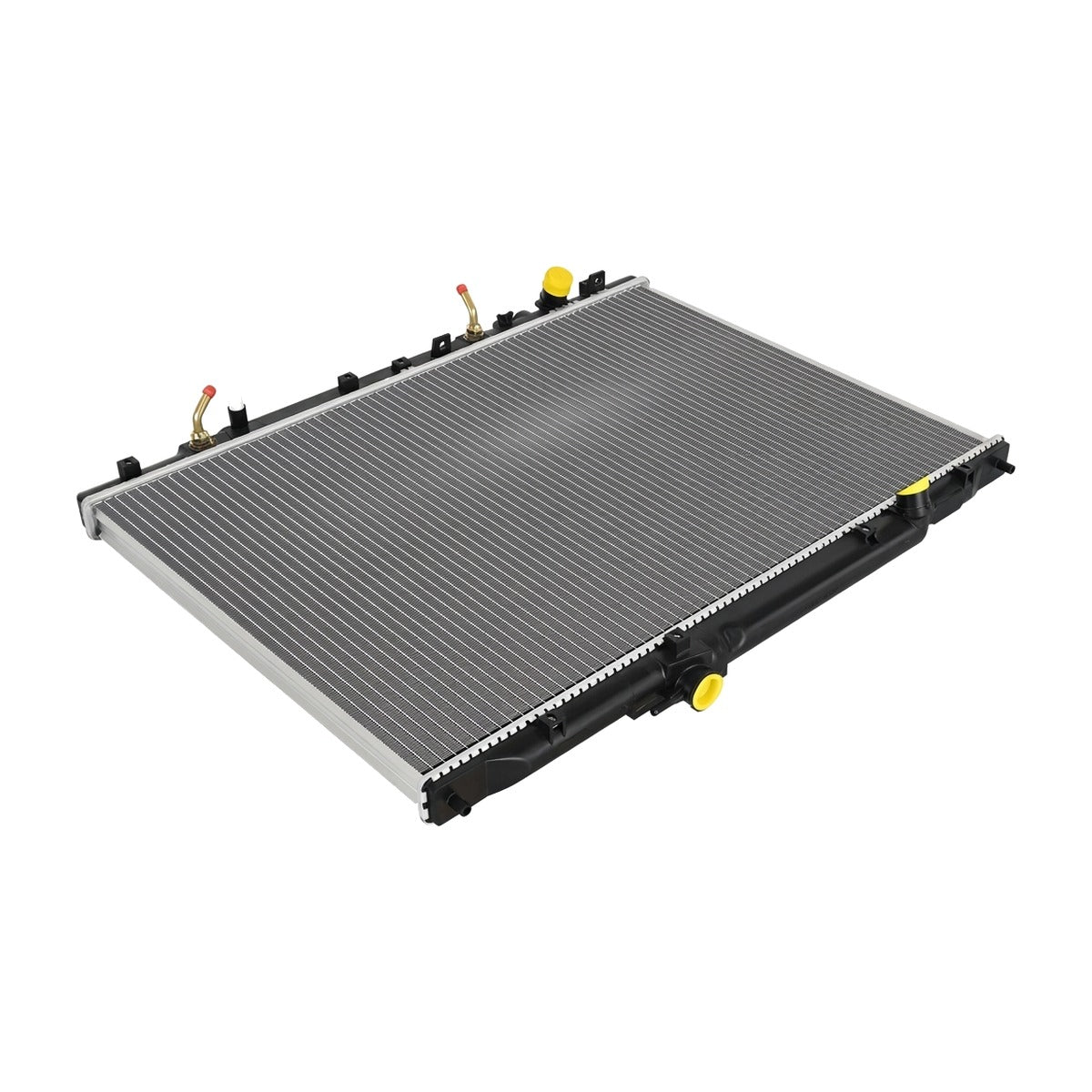

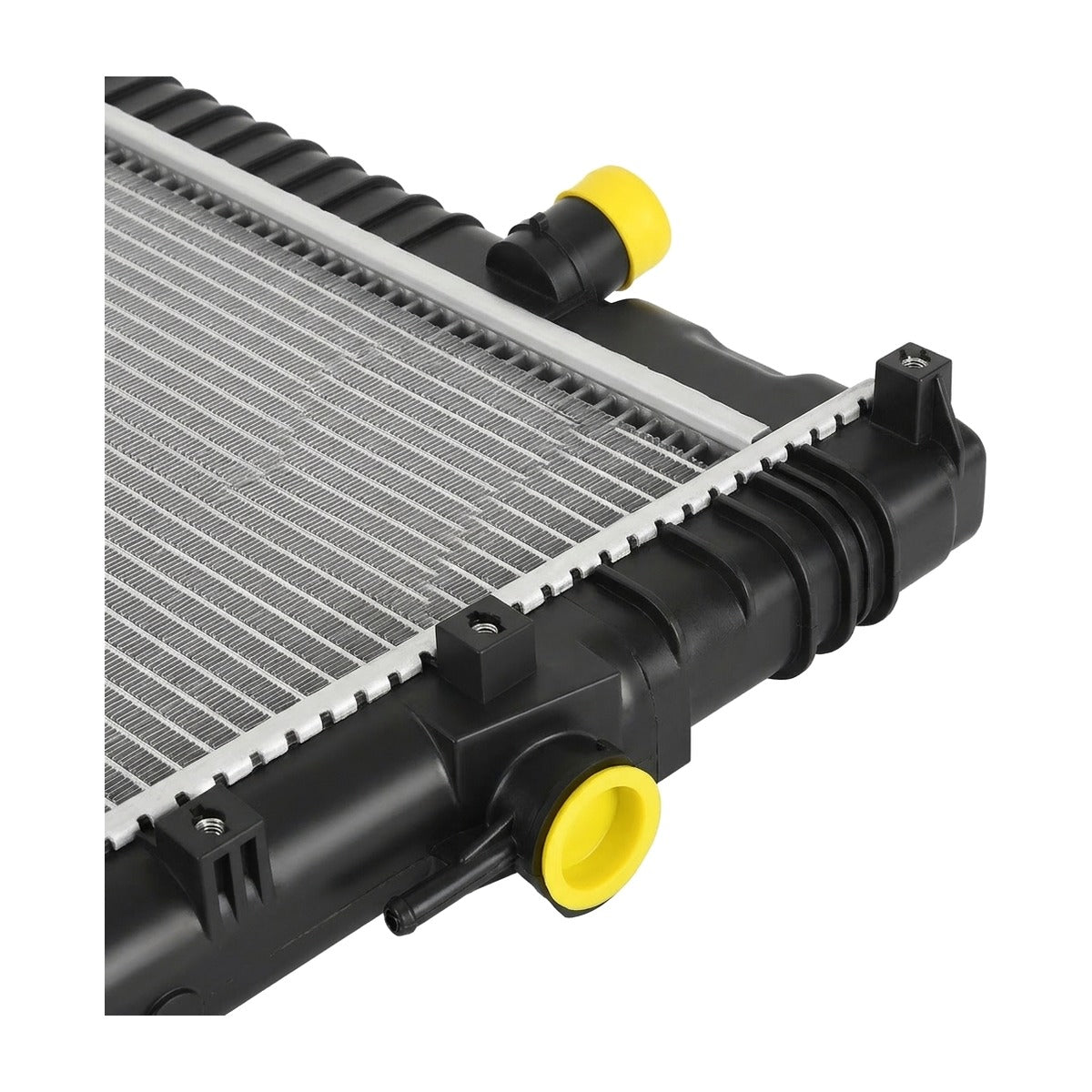

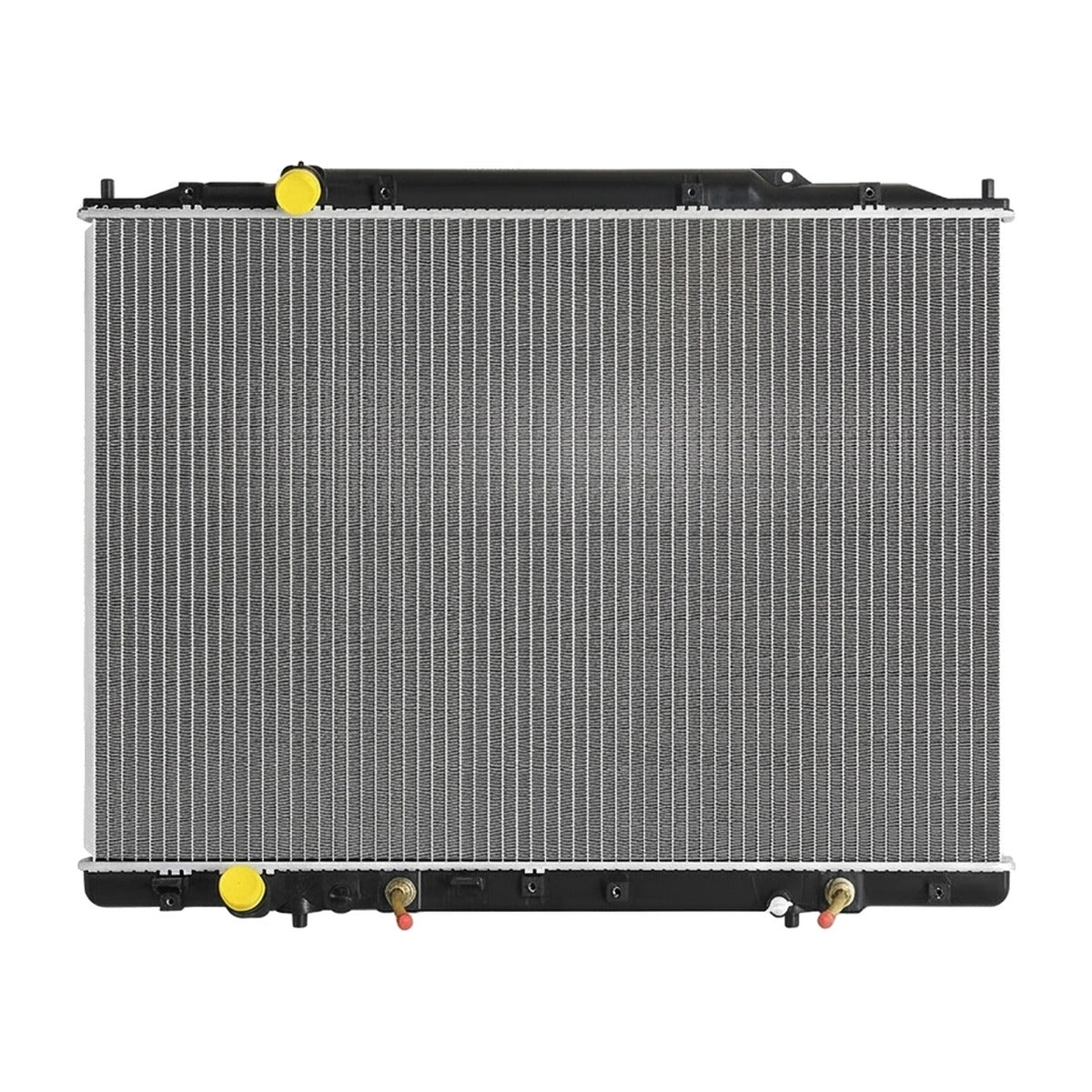

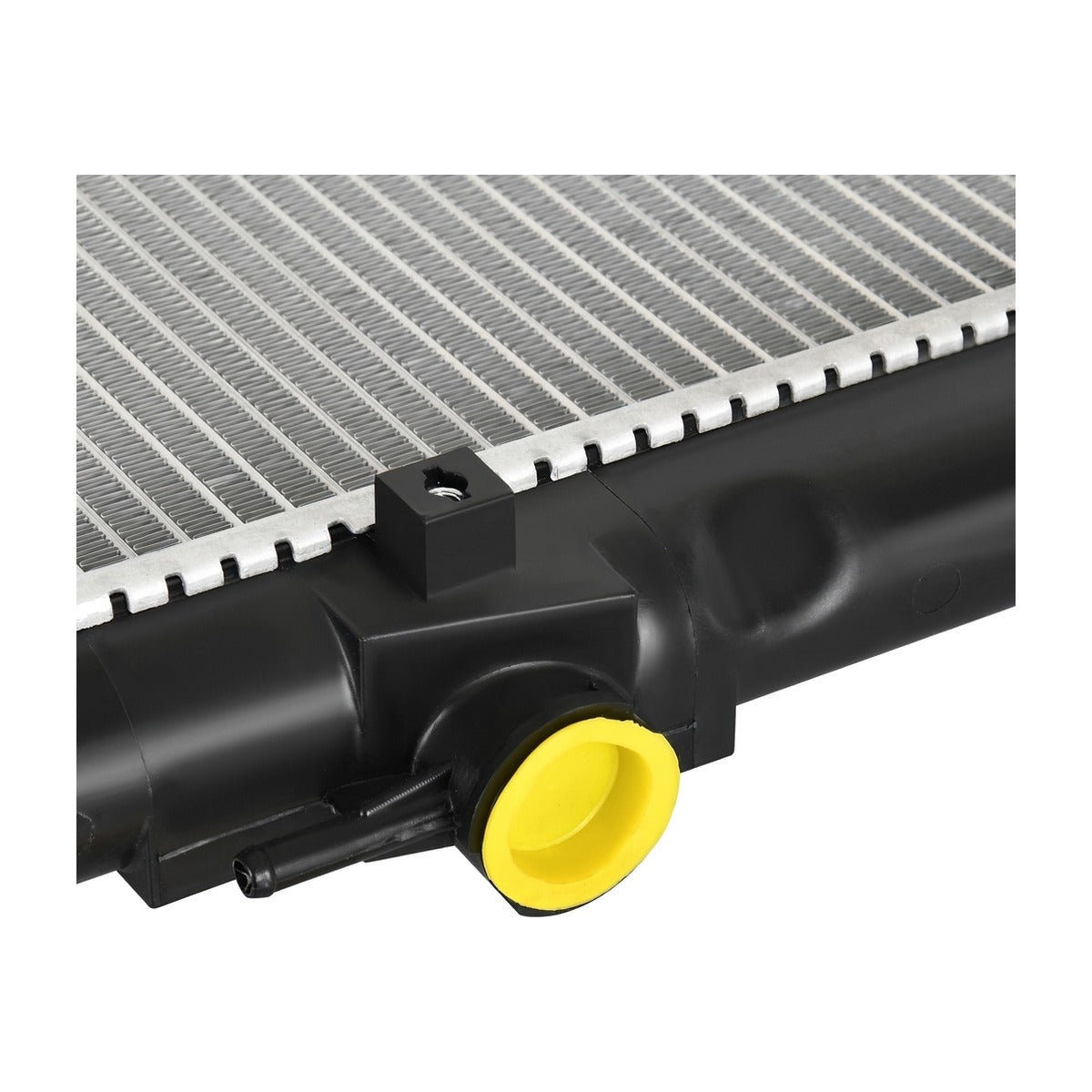

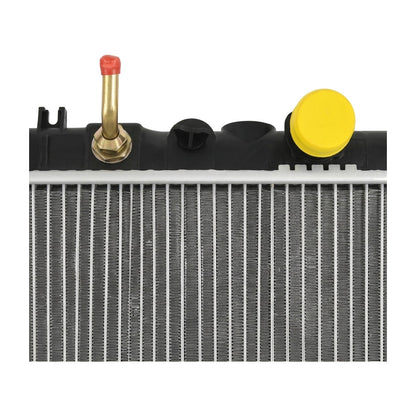

Engineered to exact OEM dimensions, this direct-swap cooling unit features an optimized aluminum core matched with high-density louvered fin arrays to accelerate convective heat dissipation. The single-row downflow configuration maximizes tube-to-fin surface area, preventing heat soak during towing or extended stop-and-go idling. Reinforced polymer tanks are mechanically swaged with robust sealing gaskets to withstand elevated operating pressures, while an integrated internal transmission oil cooler provides direct plug-and-play compatibility with OE hydraulic lines. Every production unit undergoes factory pneumatic pressure testing to guarantee leak-free reliability straight out of the box.

What's Included

• 1 Radiator (with built-in transmission oil cooler)

Technical Specifications

Compatibility

• 2009-2015 Honda Pilot 3.5L V6 (2WD Models - YF3 Chassis)
• 2009-2015 Honda Pilot 3.5L V6 (4WD Models - YF4 Chassis)
• 2009-2014 Honda Ridgeline 3.5L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the YF3/YF4 Pilot?

Yes, this is a direct fit for the 2009-2015 Honda Pilot equipped with the J35Z4 3.5L V6 engine across all 2WD and 4WD sub-models.

Do I need to bleed the air from the cooling system after installation?

Yes, you must bleed all trapped air through the radiator filler neck until the cooling fans cycle twice and the engine achieves full operating temperature.

The Honda Durability Standard

Built to handle continuous duty cycles, family hauling, and rated towing limits without thermal degradation, this cooling assembly maintains stable engine and transmission operating temperatures across all load demands.
