Radiator for Chevrolet Impala (2000-2005) 3.4L 3.8L

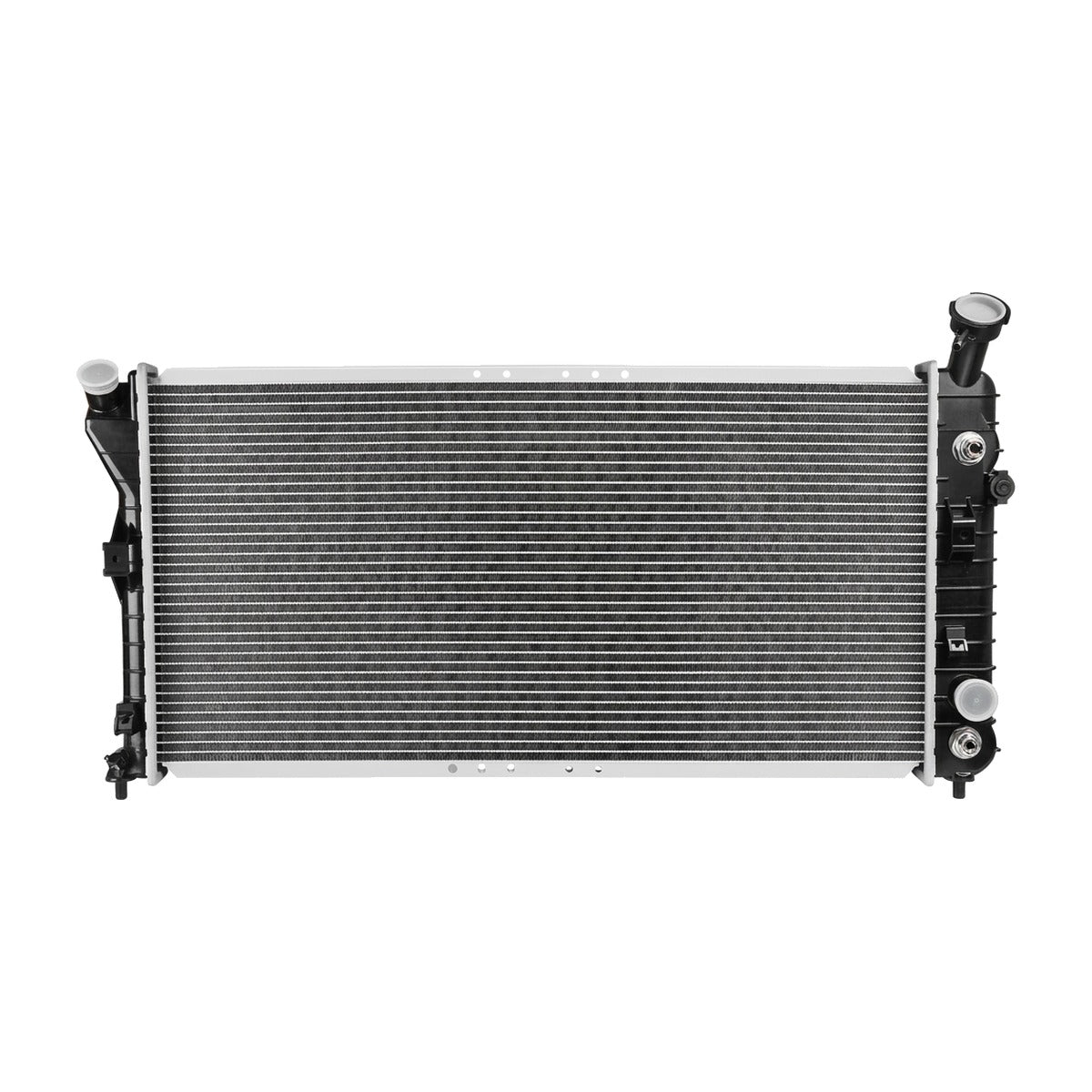

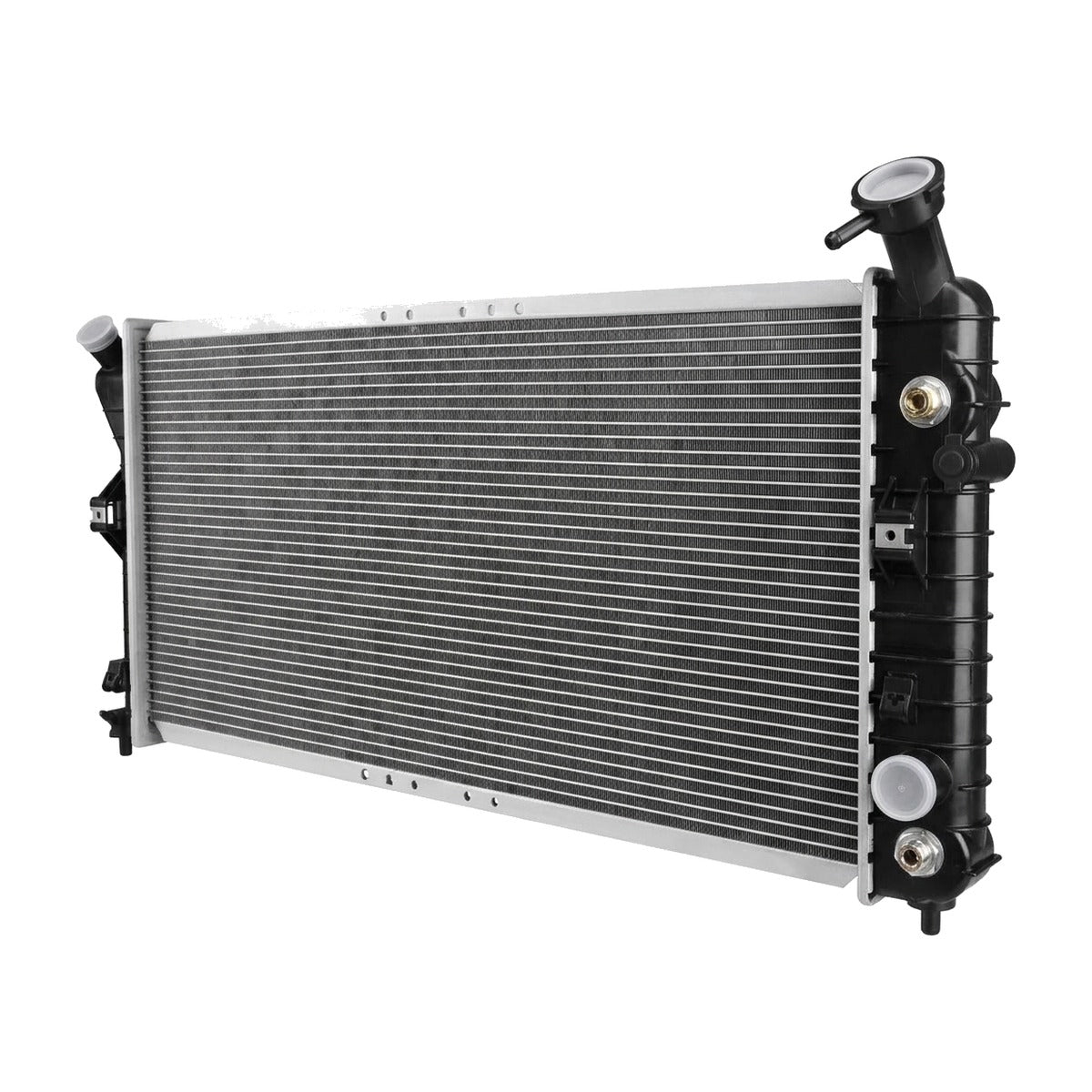

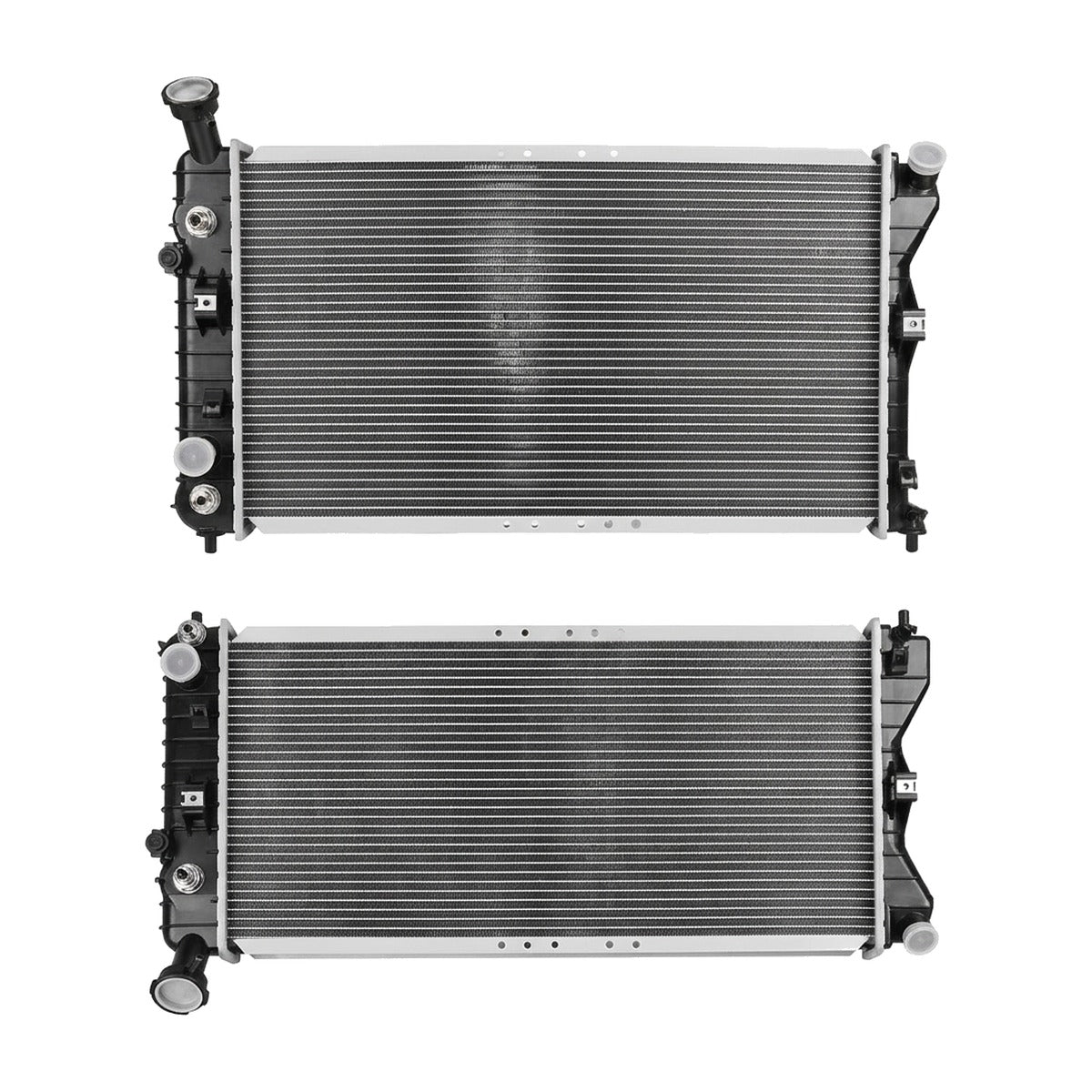

Direct-Fit Replacement Radiator for 2000-2005 Chevrolet Impala (W-Body)

What it Does: The direct-fit replacement radiator regulates operating temperatures on the 2000-2005 Chevrolet Impala by transferring internal engine coolant heat to ambient air through a high-efficiency aluminum core to eliminate overheating.

The Stock Chevrolet Impala Cooling System Vulnerability

Factory radiators on the eighth-generation W-Body platform rely on molded composite polymer tanks crimped to an aluminum core via standard elastomer gaskets. Over repeated thermal expansion cycles, these plastic end tanks turn brittle, developing hairline fatigue fractures near the upper inlet neck and transmission cooler line fittings. Furthermore, internal coolant tube degradation and corrosion buildup choke core flow over time. On the LA1 and L36/L67 engines, restricted heat dissipation elevates cooling circuit pressures, which dramatically accelerates lower intake manifold gasket erosion and increases the risk of blown cylinder head gaskets.

The Engineering Solution

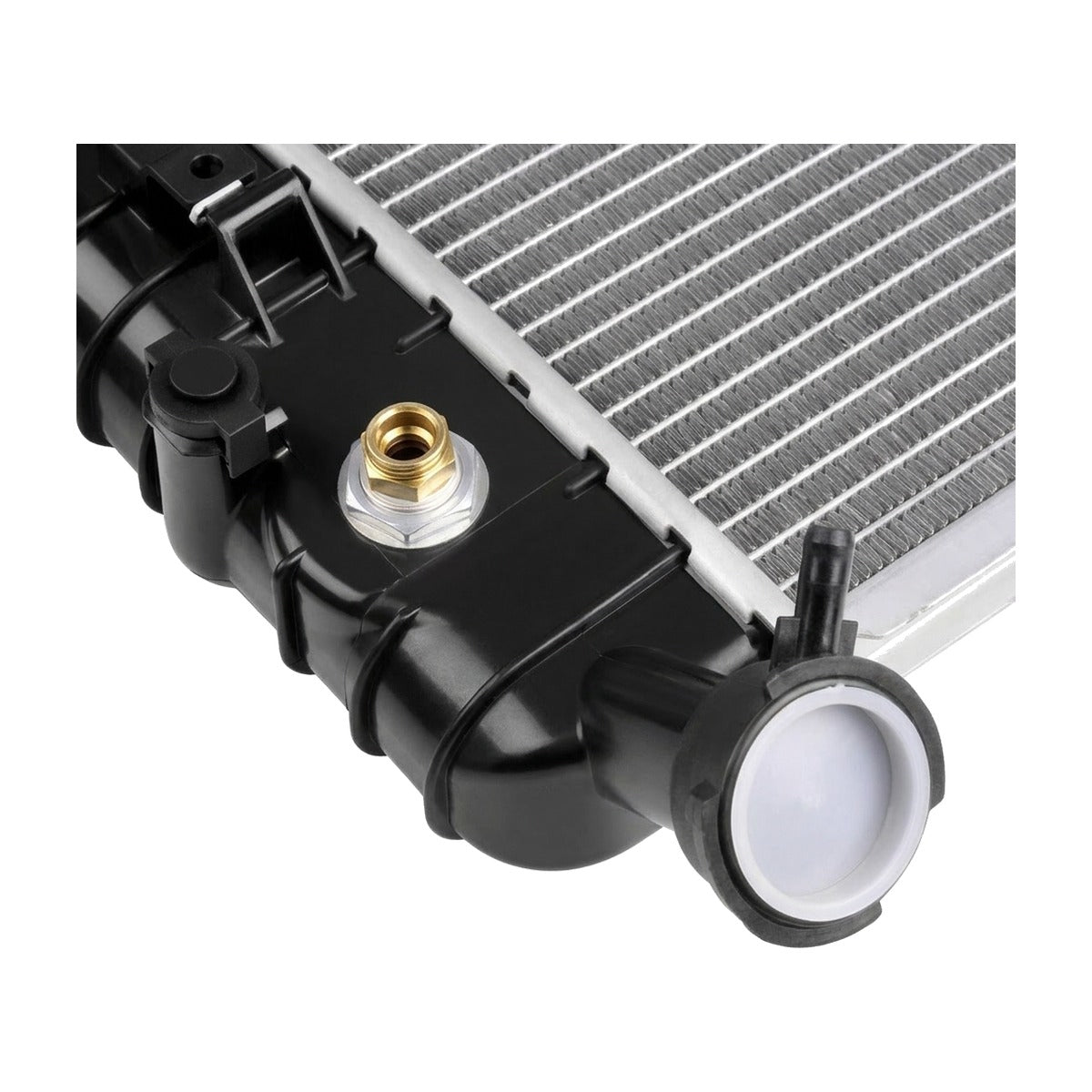

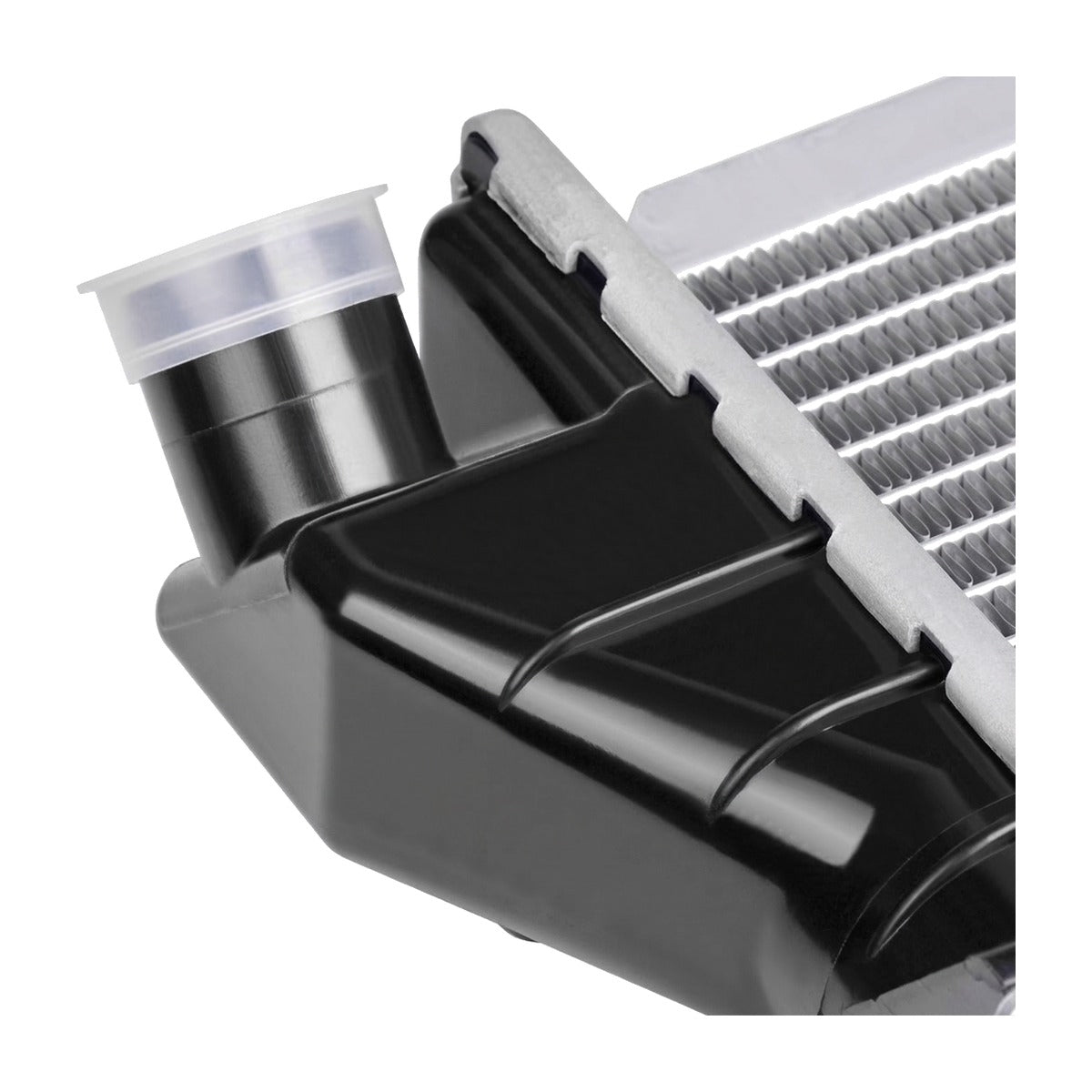

This replacement heat exchanger restores critical thermal stability using a high-density, furnace-brazed aluminum crossflow core with louvered dissipation fins. The high-capacity single-row channel design maximizes fluid surface contact while reducing airflow resistance through the engine bay. End tanks are manufactured from virgin thermal-stabilized polymer bonded with heavy-gauge mechanical crimps over durable EPDM gaskets to prevent cyclic leakage. An integrated, high-heat transfer internal transmission oil cooler matches OEM hydraulic fittings, protecting the 4T65-E transaxle from excessive fluid breakdown during stop-and-go load cycles. Every completed core is 100% factory pressure tested to verify hydraulic integrity prior to dispatch.

What's Included

• 1x Direct-Fit Replacement Aluminum Core Radiator with Built-in Transmission Oil Cooler

Technical Specifications

Compatibility

• 2000-2005 Chevrolet Impala 3.4L V6 (Base)
• 2000-2005 Chevrolet Impala 3.8L V6 (LS)
• 2004-2005 Chevrolet Impala 3.8L Supercharged V6 (SS)

Frequently Asked Questions & Fitment Warnings

Does this fit the W-Body Impala?

Yes, this is a direct fit for the 2000-2005 Chevrolet Impala equipped with the LA1 3.4L, L36 3.8L, or supercharged L67 3.8L engine backed by automatic transaxles.

Do I need to bleed the cooling system after radiator installation?

Yes, GM 60-degree and 3800 Series II V6 cooling systems require bleeding through the dedicated air bleeder screw on the thermostat housing to eliminate localized steam pockets and avoid immediate head hot-spotting.

The Chevrolet Durability Standard

Engineered to handle severe heat soak in commuter stop-and-go driving as well as high-temperature highway cruising, this cooling assembly ensures consistent heat extraction and hydraulic reliability to safeguard your engine under all operating loads.
