Radiator for Chevrolet Aveo (2004-2008) 1.6L

High-Efficiency All-Aluminum Radiator for 2004-2008 Chevrolet Aveo

What it Does: The all-aluminum radiator replaces the failure-prone factory heat exchanger on the 2004-2008 Chevrolet Aveo to eliminate coolant leaks and maintain stable operating temperatures under heavy thermal load.

The Stock Chevrolet Aveo Radiator Failure Modes

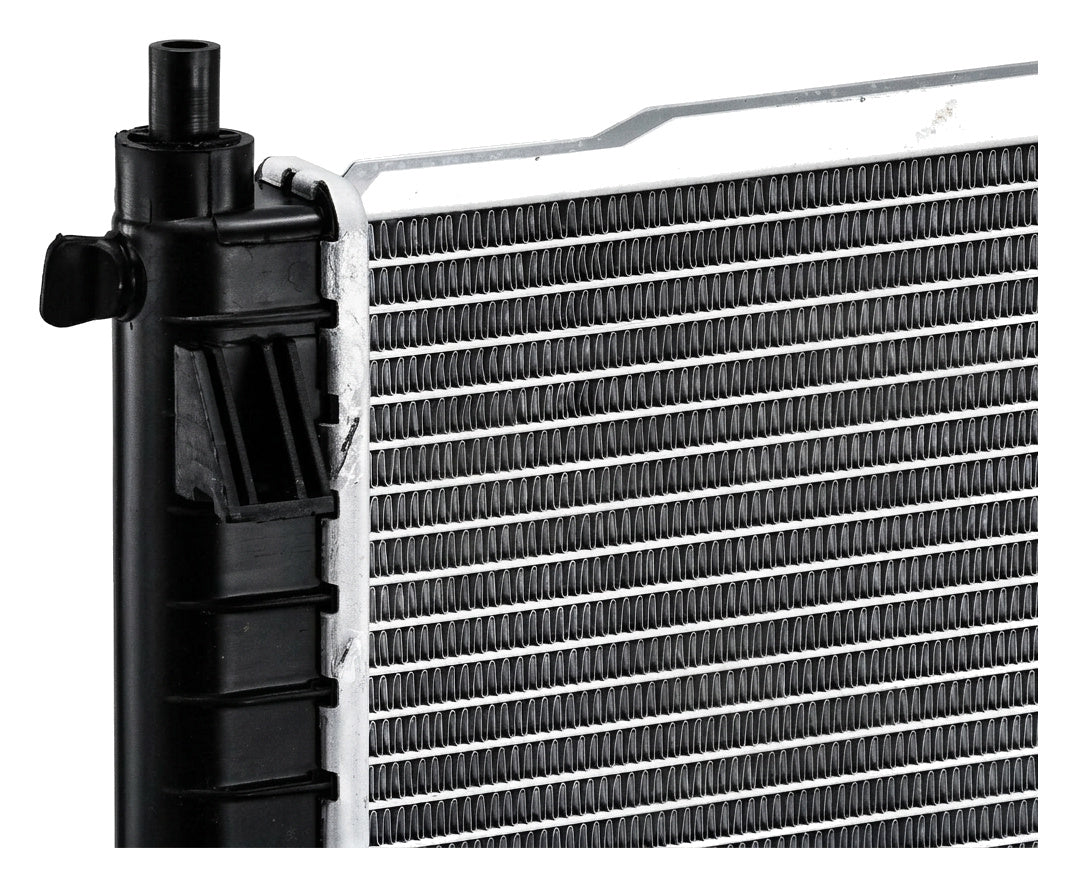

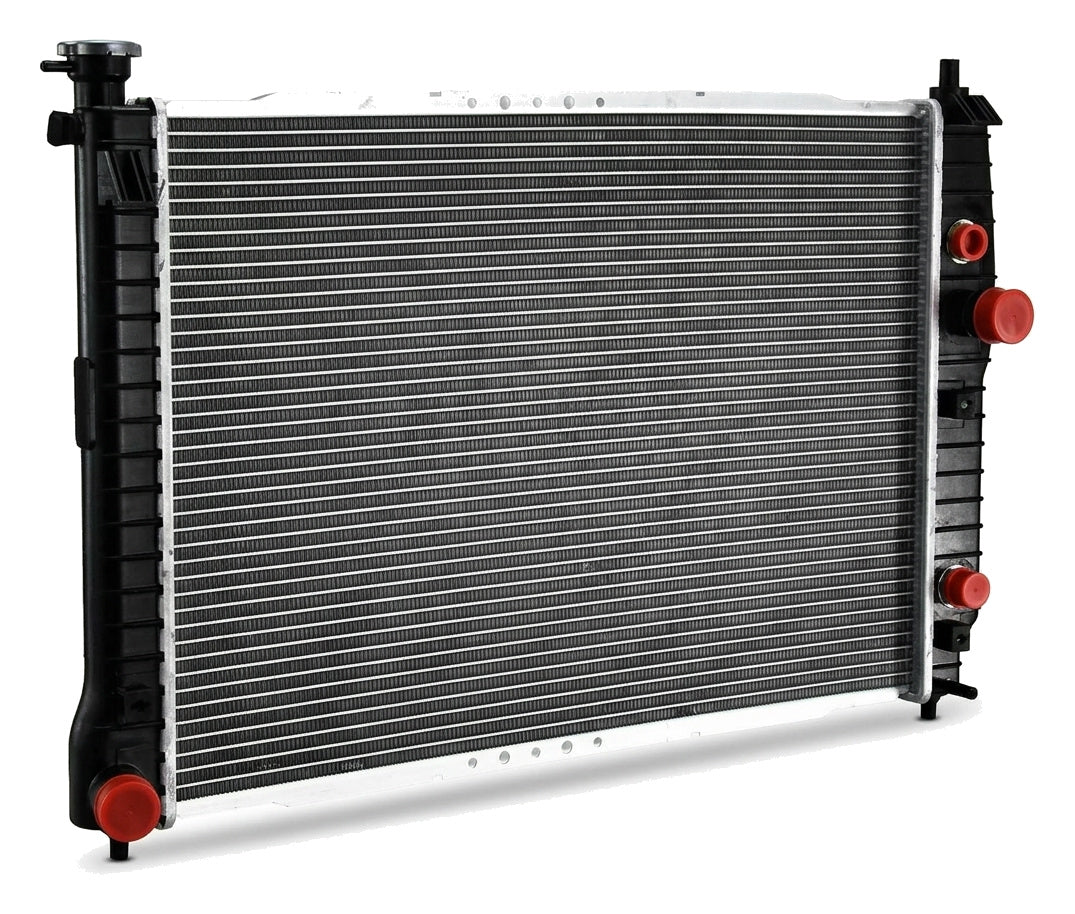

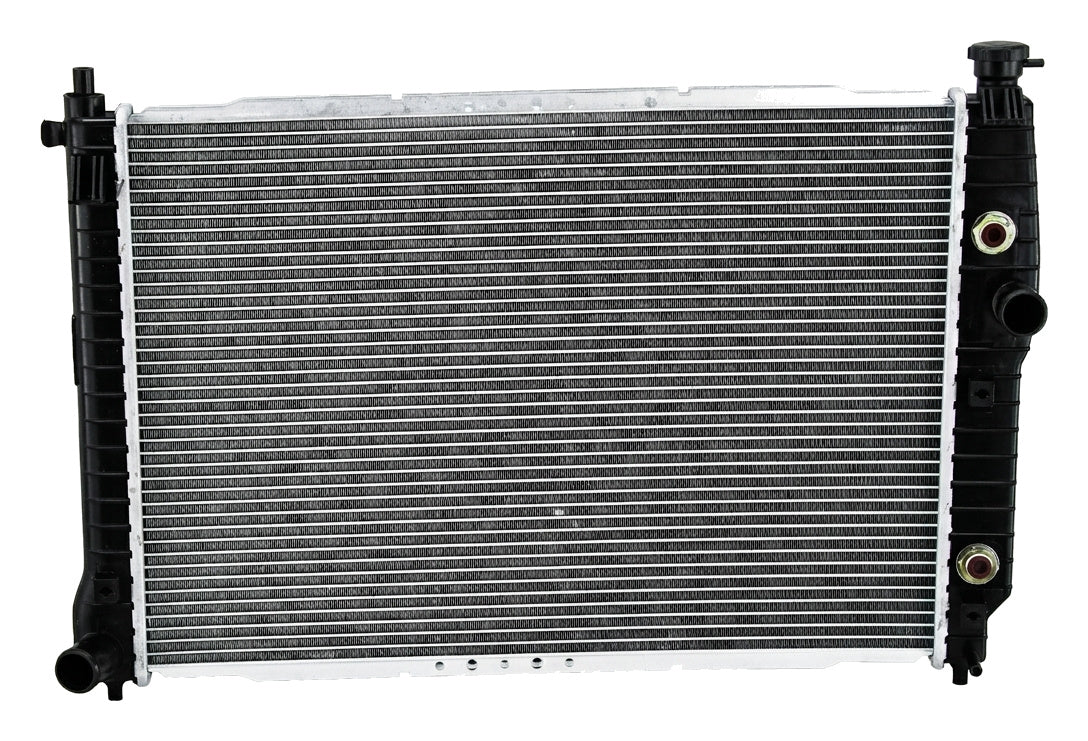

The OEM radiator in the T200 and T250 Aveo utilizes composite plastic end tanks mechanically crimped to an aluminum core via an elastomeric gasket. Over repeated thermal cycles, the brittle nylon tanks degrade, resulting in micro-fractures along the upper inlet neck and leak paths across the crimp joint under 14–18 PSI operating pressures. Furthermore, the single-row factory core easily suffers from internal scale buildup and external fin flattening, causing convective heat transfer loss that puts the 1.6L L91 / F16D3 engine at severe risk of cylinder head warping.

The Engineering Solution

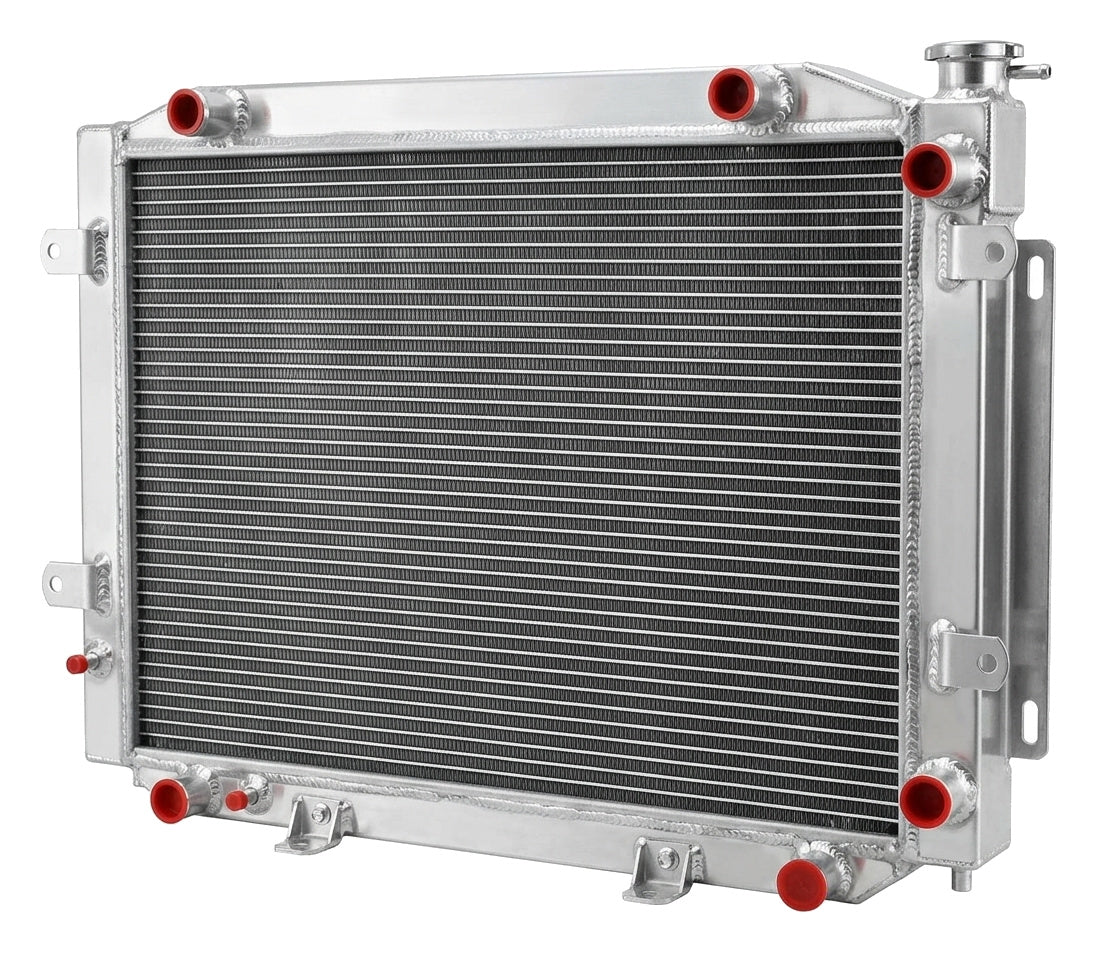

This unit provides a durable, all-metal cooling solution featuring 100% TIG-welded aluminum end tanks joined to a furnace-brazed aluminum tube-and-fin core. High-density louvered fins maximize ambient heat rejection surface area, while heavy-duty tank bungs withstand cooling system pressure spikes without fatigue. Designed with factory-located inlet and outlet connections and precision brackets, it bolts directly into the stock chassis location while accepting original fan shroud assemblies and factory hose routing.

Technical Specifications

Compatibility

• 2004-2008 Chevrolet Aveo 1.6L
• 2006-2008 Chevrolet Aveo5 1.6L

Frequently Asked Questions

Does this fit the T200 and T250 Aveo?
Yes, this is a direct fit for the 2004-2008 Chevrolet Aveo equipped with the L91 / F16D3 1.6L engine.

Can I reuse my factory fan shroud and mounting hardware?
Yes, this direct replacement incorporates OEM-located mounting tabs to retain original cooling fans and chassis isolators without modification.

The Chevrolet Daily-Driver Reliability Standard

Engineered to handle stop-and-go commuting and severe summer heat cycles, this all-aluminum cooling assembly delivers long-term durability, structural integrity, and leak-free reliability where brittle factory plastic units fail.
