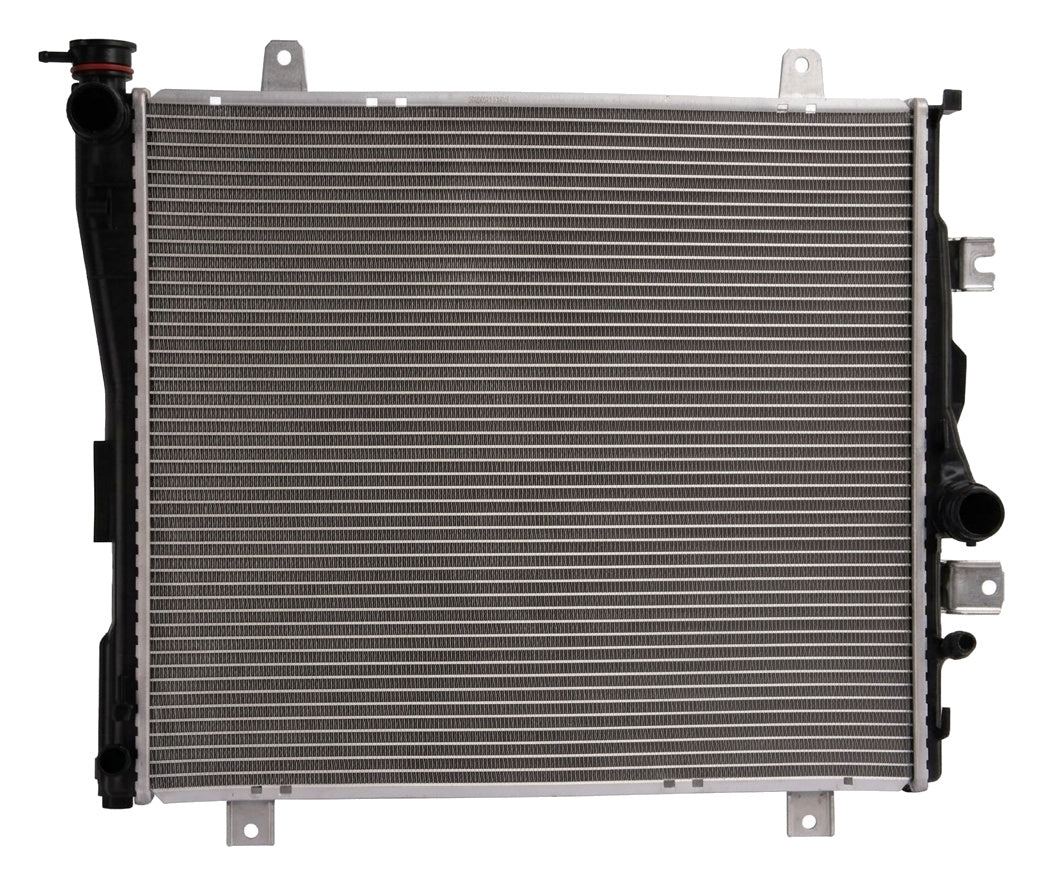

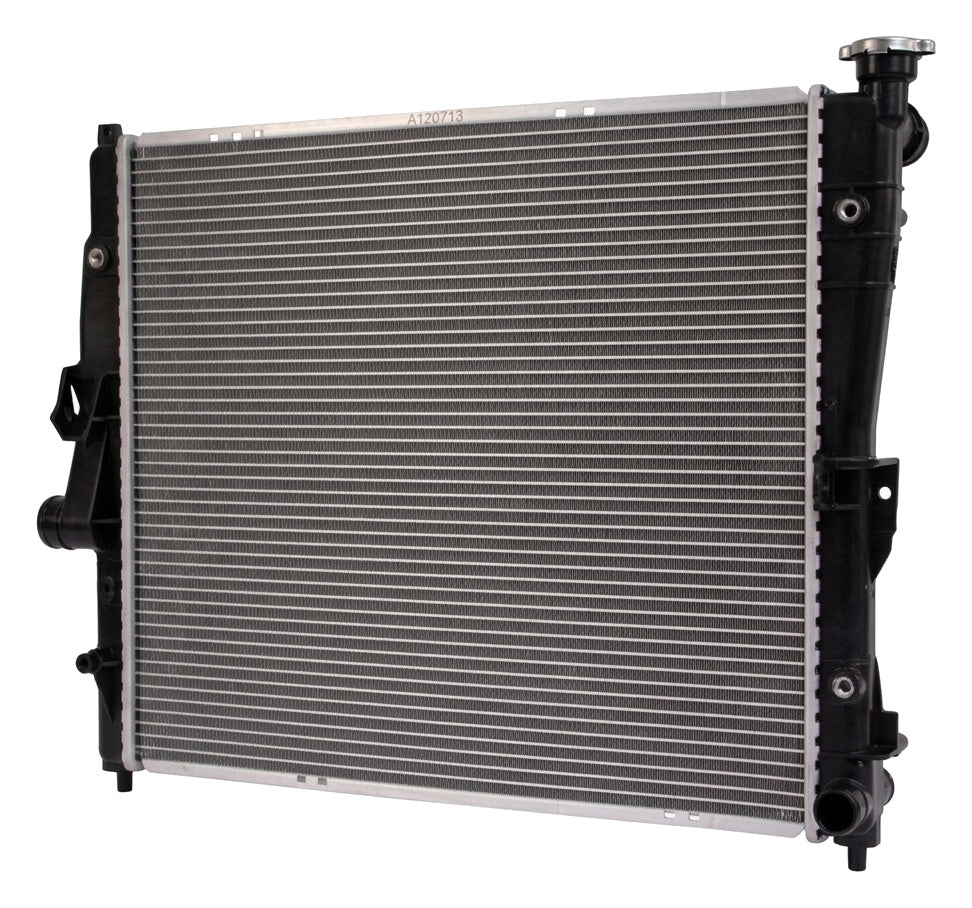

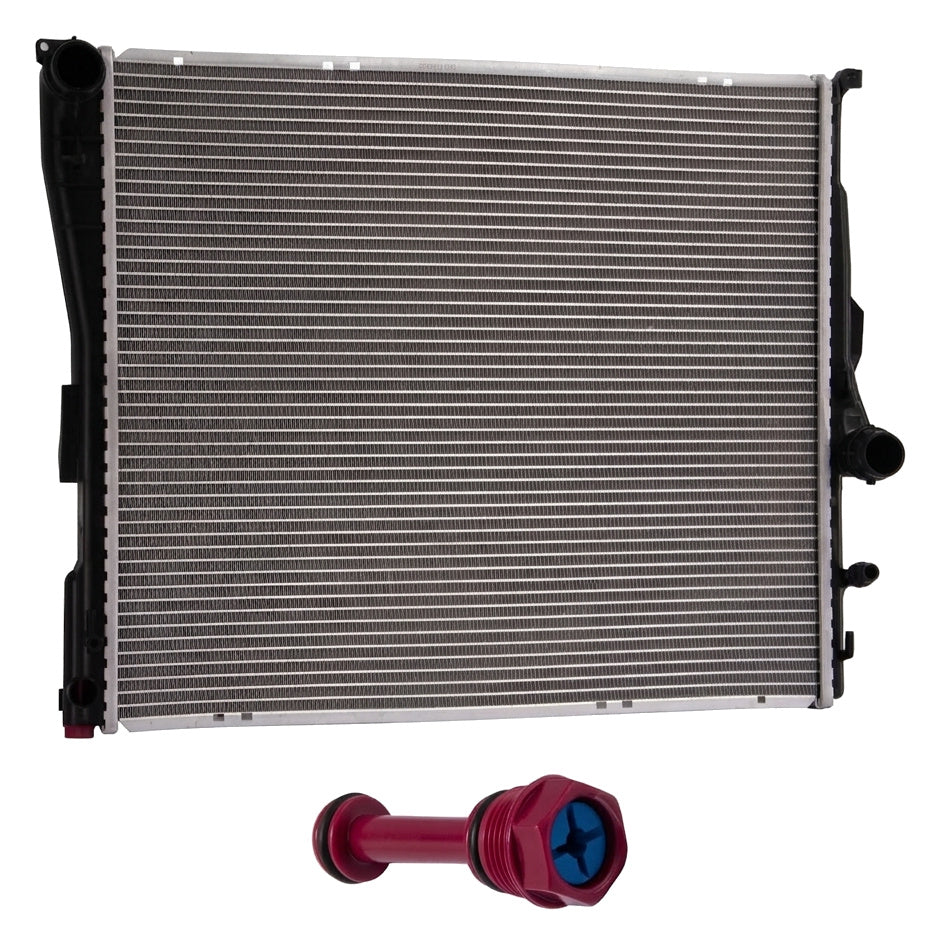

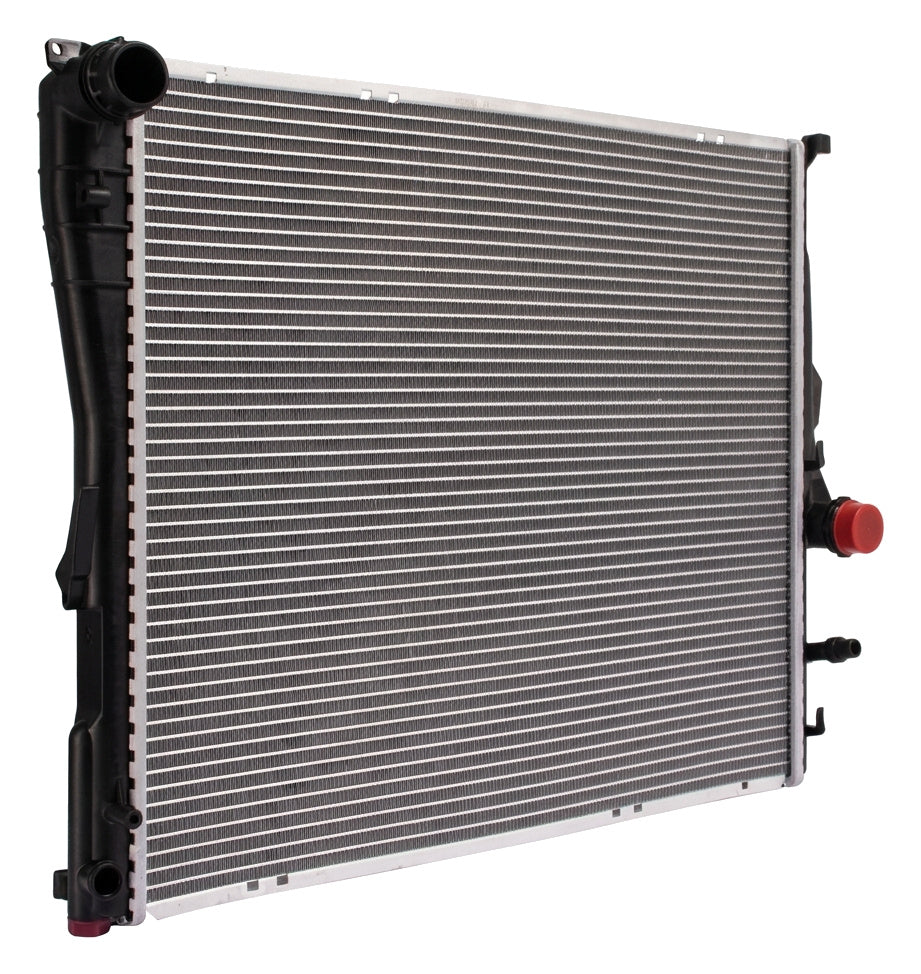

Radiator for BMW X3 (2007-2010) 3.0L

All-Aluminum Performance Radiator for 2007-2010 BMW X3

What it Does: The all-aluminum performance radiator replaces the failure-prone plastic-tank factory unit on the 2007-2010 BMW X3 to eliminate coolant leaks, improve thermal dissipation, and stabilize operating temperatures under demanding loads.

The Stock BMW X3 Cooling System Vulnerability

Factory cooling modules on the BMW E83 X3 rely on an aluminum heat exchanger core mechanically crimped to glass-reinforced polymer end tanks. Subjected to continuous thermal cycling and the high baseline operating temperatures (~105°C) commanded by the N52 3.0L engine's electronic thermostat, these composite plastic tanks suffer severe plasticizer loss and embrittlement. Over time, the stress manifests as micro-fractures along the inlet and outlet neck bosses and blown crimp gaskets, causing rapid depressurization, sudden coolant loss, and severe cylinder head warpage.

The Engineering Solution

This direct-replacement unit removes the plastic failure point entirely through 100% all-aluminum construction. Precision TIG-welded tanks are robotically joined to a furnace-brazed tube-and-fin core, providing structural resistance against pressure surges and heat degradation. The optimized fin density expands operational surface area, maximizing heat rejection and preventing heat soak during extended high-RPM use or heavy climbing. Built to reference DPI 60807 specifications, the unit integrates factory-located mounting provisions and quick-disconnect ports for true bolt-in installation without bracket fabrication.

Technical Specifications

Compatibility

• 2007 BMW X3 3.0si (3.0L L6 N52)
• 2008 BMW X3 3.0si (3.0L L6 N52)
• 2009 BMW X3 xDrive30i (3.0L L6 N52)
• 2010 BMW X3 xDrive30i (3.0L L6 N52)

Frequently Asked Questions

Does this fit the E83 X3?
Yes, this is a direct fit for the 2007-2010 BMW X3 equipped with the N52 naturally aspirated inline-six engine.

Does the N52 cooling system require a specific filling procedure?
Yes, after installation and filling with OE-spec nitrite-free coolant, you must run the vehicle's automated 12-minute electric water pump bleeding sequence to eliminate air pockets.

The BMW Precision Standard

Engineered to exact European performance tolerances, this radiator delivers leak-proof structural stability, zero check-engine lights, and consistent heat rejection to protect your N52 valvetrain and magnesium-aluminum engine block under demanding driving conditions.
