Performance Water Pump & Timing Belt Kit for Toyota T100 (1995-1998) 3.4L

Heavy-Duty Timing Belt & Water Pump Kit for 1995-1998 Toyota T100 (RCK10/VCK11/VCK21)

What it Does: The Performance Water Pump & Timing Belt Kit replaces worn internal drive components and the mechanical cooling pump on 1995-1998 Toyota T100 trucks to maintain valve synchronization and eliminate cooling system failure under load.

The Stock Toyota T100 Timing and Cooling Vulnerabilities

The factory 5VZ-FE timing architecture relies on elastomeric belt compounds and hydraulic dampening units that degrade through thermal cycling, oil mist exposure, and sheer mileage. Over time, OEM belt tensile cords stretch, throwing off cam-to-crank timing alignment and inducing valve float at higher RPM. Compounding this, the factory water pump features stamped internal impellers prone to cavitation, bearing chatter, and shaft seal weeping. When the factory hydraulic tensioner weakens, slack along the drive run accelerates belt cog shearing, while hardened front crank and camshaft seals begin leaking oil into the timing cover cavity.

The Engineering Solution

This master overhaul kit addresses mechanical fatigue across the front drive assembly. The high-tensile timing belt utilizes heat-resistant HNBR rubber reinforced with aramid cordage to resist tooth deformation, delamination, and stretch under severe load. The included water pump integrates a cast-alloy housing with a precision-machined impeller to ensure laminar coolant circulation without high-RPM cavitation. Complete with heavy-duty idler and tensioner bearing assemblies, a nitrogen-charged hydraulic tensioner, high-temp fluoroelastomer crank and cam seals, and a matched 90916-03075 thermostat, this package completely refreshes the front timing drive for heavy towing and fleet reliability.

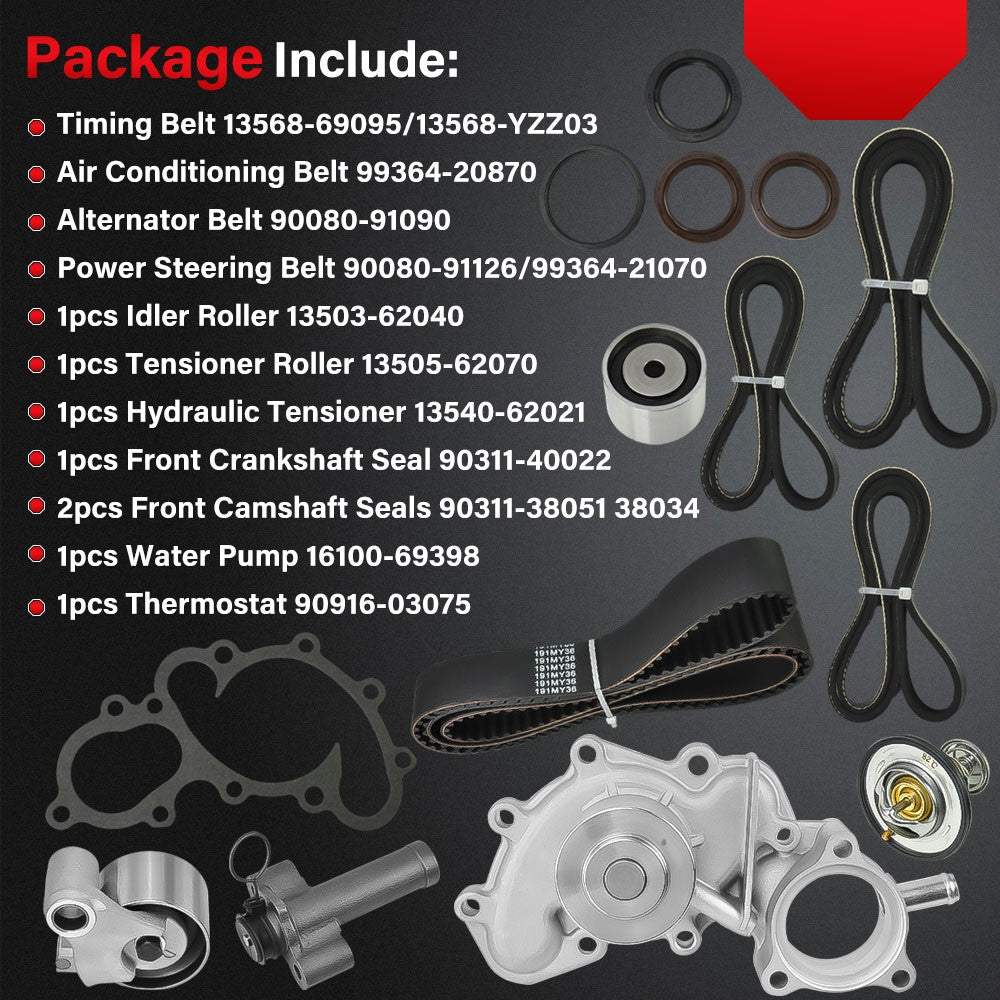

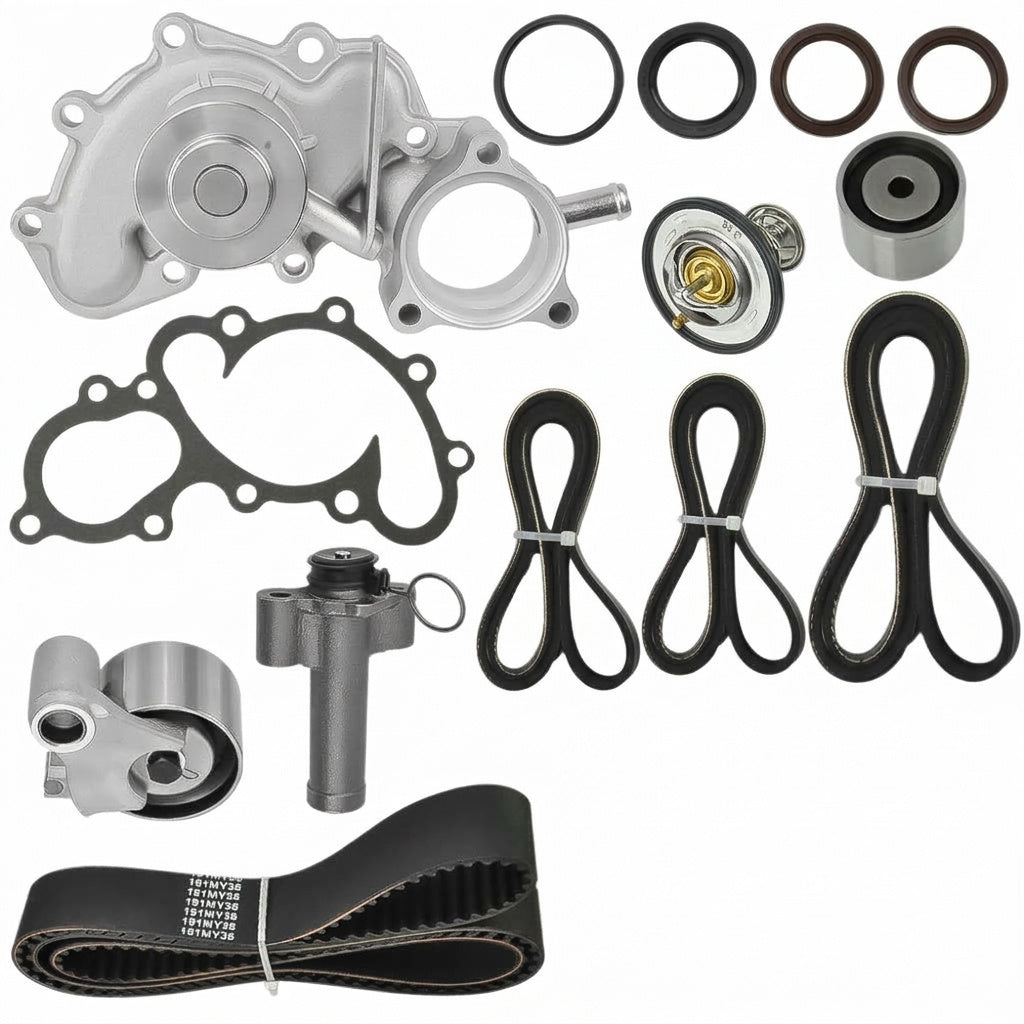

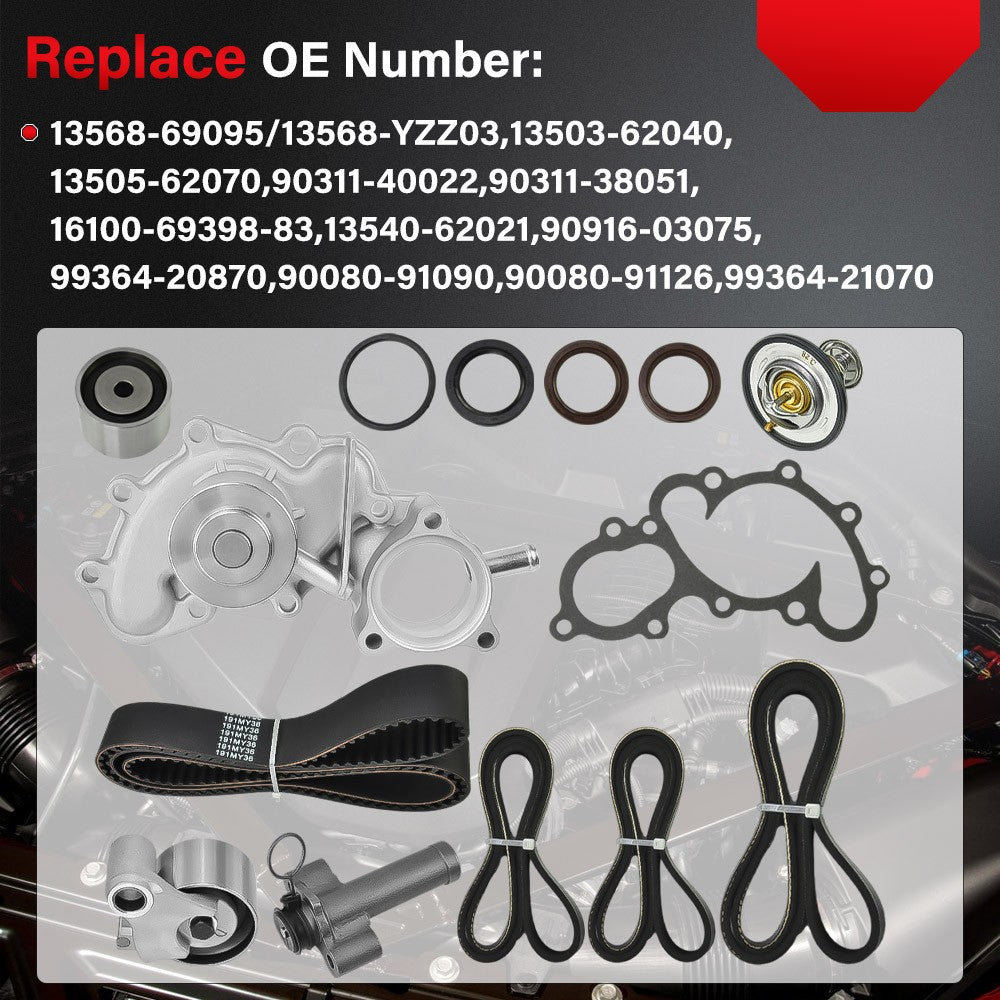

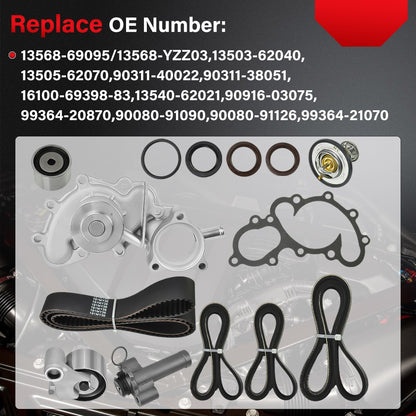

What's Included

• 1 Timing Belt (OE: 13568-69095 / 13568-YZZ03)
• 1 Idler Roller (OE: 13503-62040)
• 1 Tensioner Roller (OE: 13505-62070)
• 1 Front Crankshaft Seal (OE: 90311-40022)
• 2 Front Camshaft Seals (OE: 90311-38051)
• 1 Water Pump Assembly (OE: 16100-69398-83)
• 1 Hydraulic Timing Tensioner (OE: 13540-62021)
• 1 Thermostat (OE: 90916-03075)

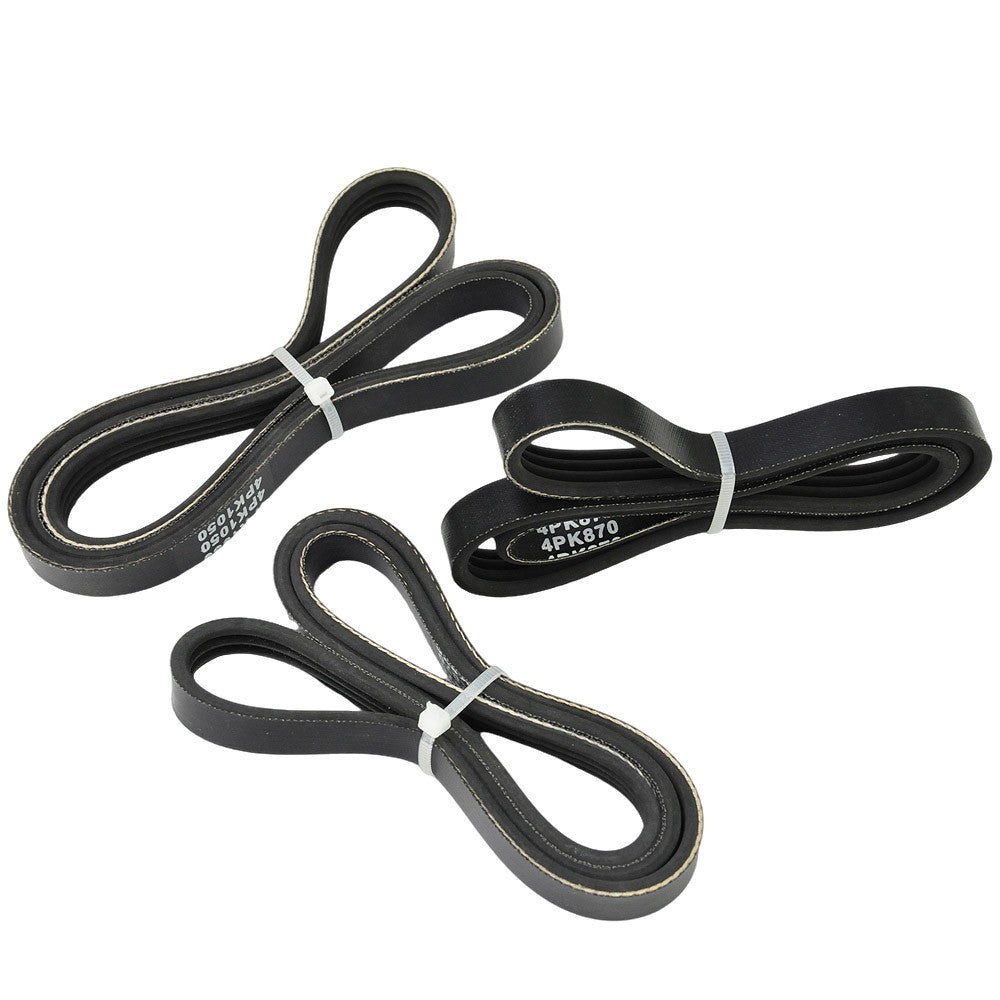

• 1 Air Conditioning Drive Belt (OE: 99364-20870)
• 1 Alternator Drive Belt (OE: 90080-91090)
• 1 Power Steering Drive Belt (OE: 90080-91126 / 99364-21070)

Technical Specifications

Compatibility

• 1995 Toyota T100 3.4L V6 5VZ-FE (Base, DX, SR5)
• 1996 Toyota T100 3.4L V6 5VZ-FE (Base, DX, SR5)
• 1997 Toyota T100 3.4L V6 5VZ-FE (Base, DX, SR5)
• 1998 Toyota T100 3.4L V6 5VZ-FE (Base, DX, SR5)

Frequently Asked Questions & Fitment Warnings

Does this fit the RCK10/VCK11/VCK21 T100?

Yes, this is a direct fit for the 1995-1998 Toyota T100 equipped with the 3.4L V6 5VZ-FE engine. Does not fit 2.7L 3RZ-FE 4-cylinder or older 3.0L 3VZ-E V6 models.

What are the torque specifications for installation?

Fasteners must be torqued to factory 5VZ-FE service specifications, including the crankshaft harmonic balancer bolt (217 lb-ft) and water pump mounting bolts (14 lb-ft).

The Toyota Truck Caliber

The 5VZ-FE platform is recognized for commercial-grade longevity, but demanding haul profiles and trail service require zero-compromise cooling and valvetrain synchronization. Utilizing heavy-duty elastomeric compounds and premium mechanical seals is designed to ensure sustained thermal control and heavy towing capability mile after mile.
