Performance Radiator with Shroud for Volkswagen Touareg (2003-2010) 3.0L 4.2L 5.0L

High-Efficiency Performance Radiator with Shroud for 2003-2010 Volkswagen Touareg

What it Does: The Performance Radiator with Shroud replaces the failure-prone factory cooling assembly on the 2003-2010 Touareg to maximize thermal dissipation, eliminate coolant leaks under load, and prevent engine overheating.

The Stock Volkswagen Touareg Thermal Vulnerability

Factory radiators in the 7L chassis rely on crimped plastic end tanks mated to a lightweight core. Over heat cycles, the composite plastic embrittles from thermal expansion and chemical degradation, causing critical hairline fractures along the tank seams and inlet/outlet necks. Under heavy load—especially in high-torque configurations like the 4.2L V8 or 5.0L V10 TDI—the stock cooling unit suffers from rapid heat soak, while aged mechanical or electric fan assemblies struggle to pull adequate CFM through the congested front-end heat-exchanger stack.

The Engineering Solution

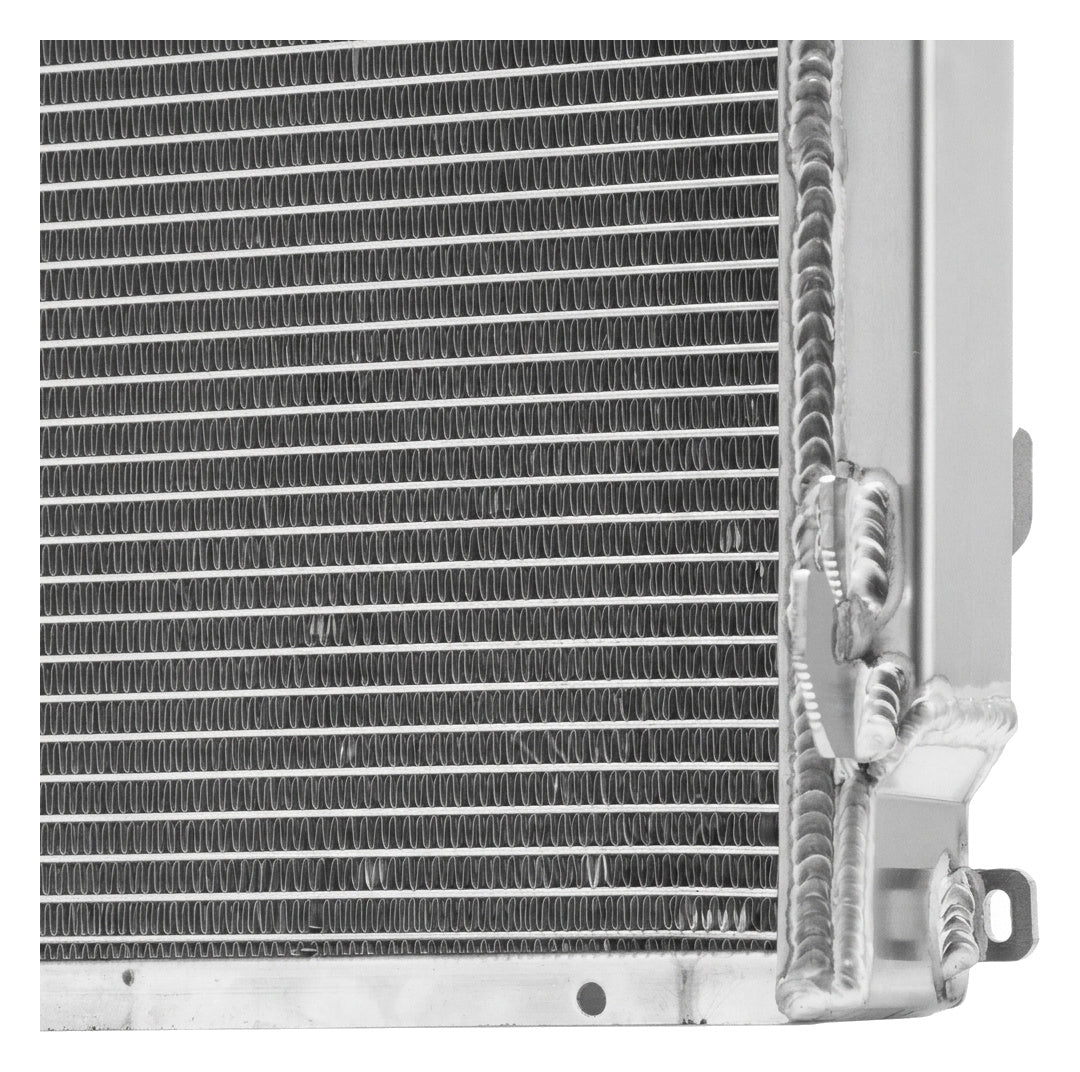

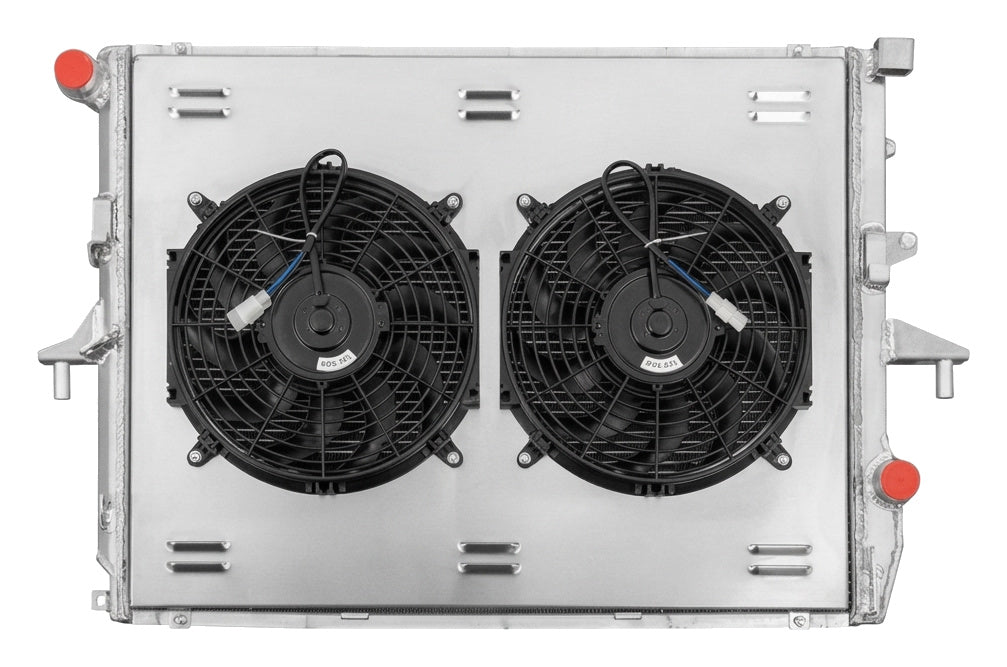

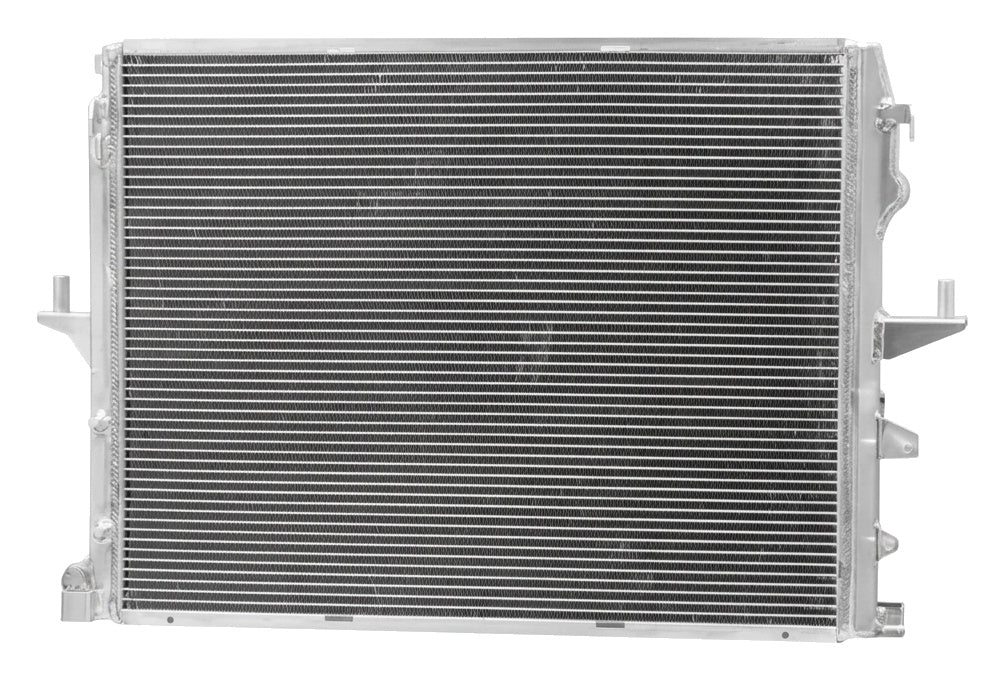

This cooling upgrade replaces OEM plastic with an all-aluminum, direct-fit design featuring 100% TIG-welded end tanks and a robust 2-row brazed tube-and-fin core measuring approximately 28 in x 21.5 in. To maximize convective heat rejection, the assembly integrates a precision laser-cut aluminum fan shroud holding dual high-CFM electric puller fans. This sealed shroud forces airflow uniformly across the entire core surface rather than pulling vacuum around the perimeter. Billet 1-5/8 in inlet and outlet connections provide high burst pressure resistance, maintaining structural integrity under sustained operating temperatures and aggressive towing conditions.

Technical Specifications

Compatibility

• 2003-2010 Volkswagen Touareg 3.0L V6 TDI (7L)
• 2003-2010 Volkswagen Touareg 4.2L V8 (AXQ / BAR / 7L)
• 2003-2010 Volkswagen Touareg 5.0L V10 TDI (AYH / BLE / BWF / 7L)

Frequently Asked Questions

Does this fit the 7L Touareg?
Yes, this is a direct fit for the 2003-2010 Volkswagen Touareg equipped with the 3.0L TDI, 4.2L V8, and 5.0L V10 diesel engines.

Are the fans wired for factory dual-relay harness integration?

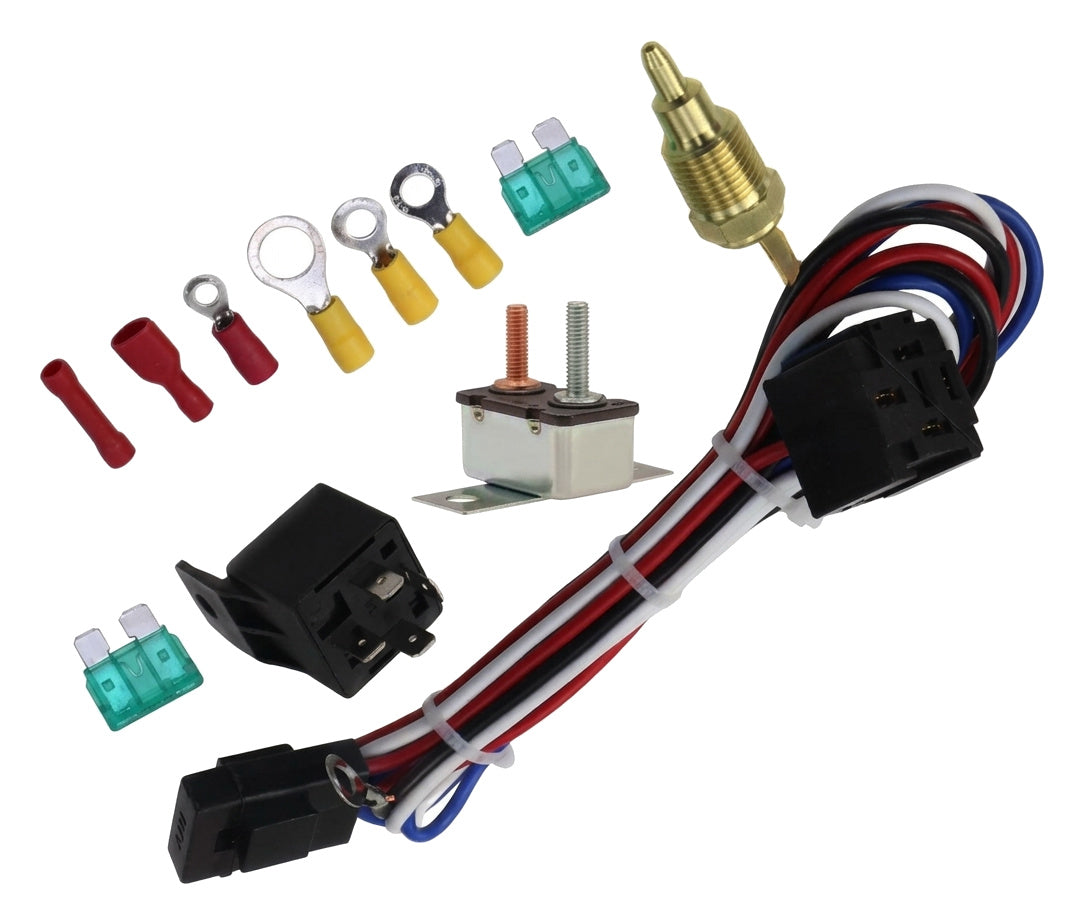

The kit includes universal wiring and relay hardware designed to tap directly into your vehicle's switched cooling fan circuits.

The Volkswagen Precision Caliber

Engineered to meet rigorous European SUV cooling demands, this all-aluminum system restores consistent thermal stability without triggering instrument cluster fault codes or risking coolant loss during demanding towing operations.
