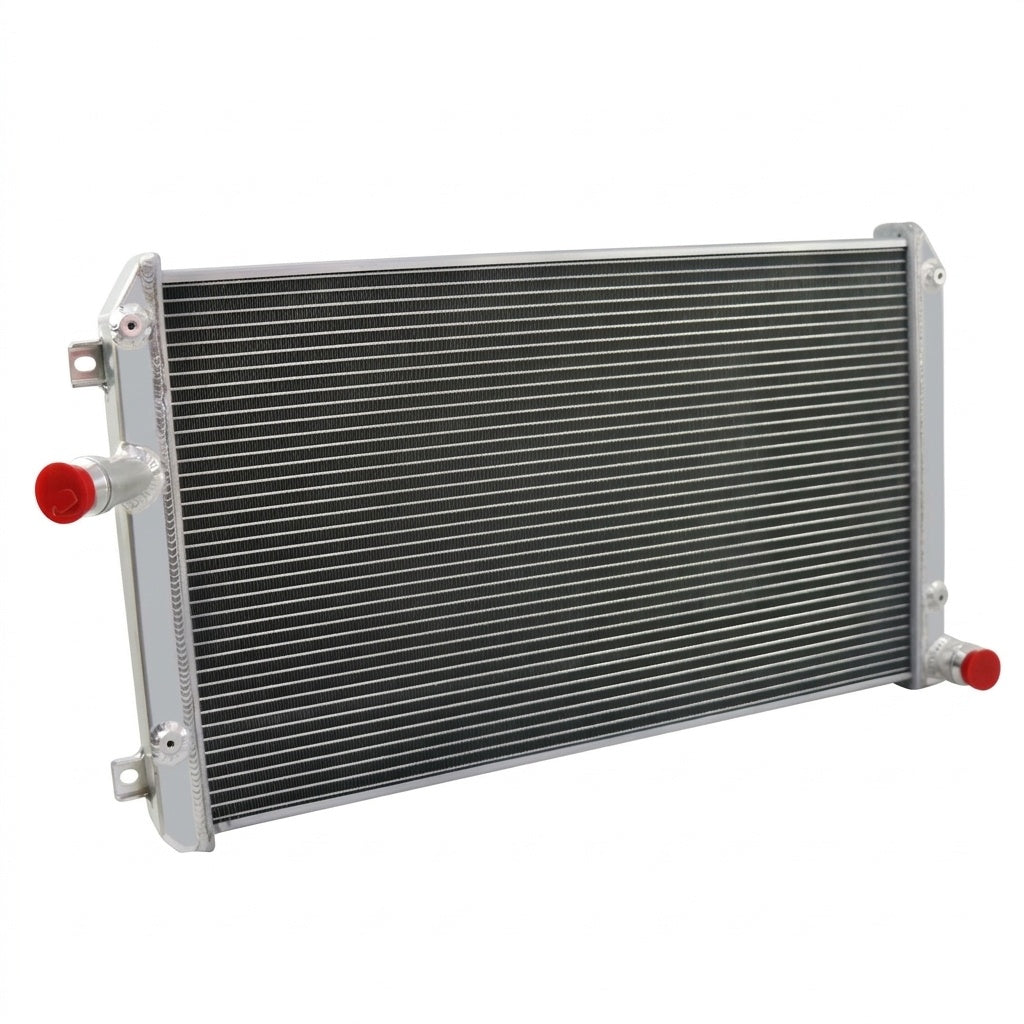

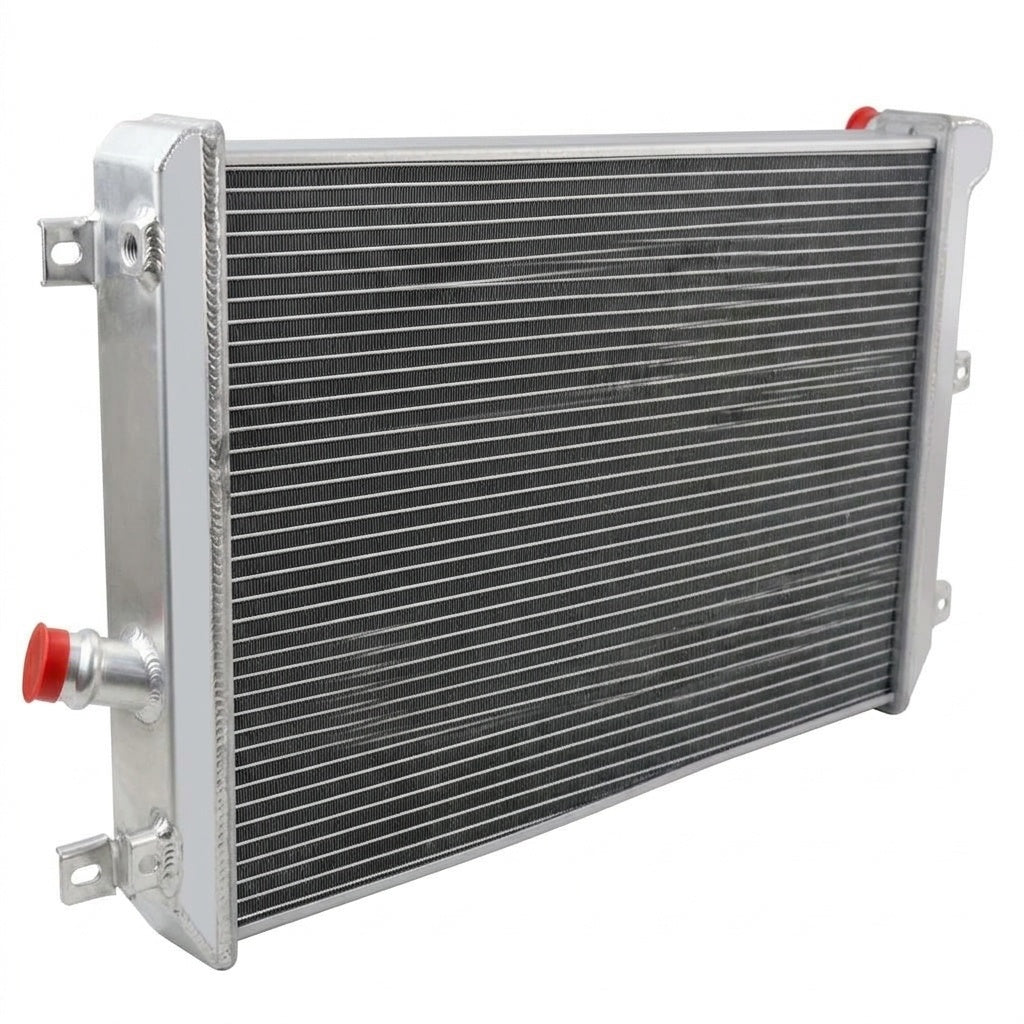

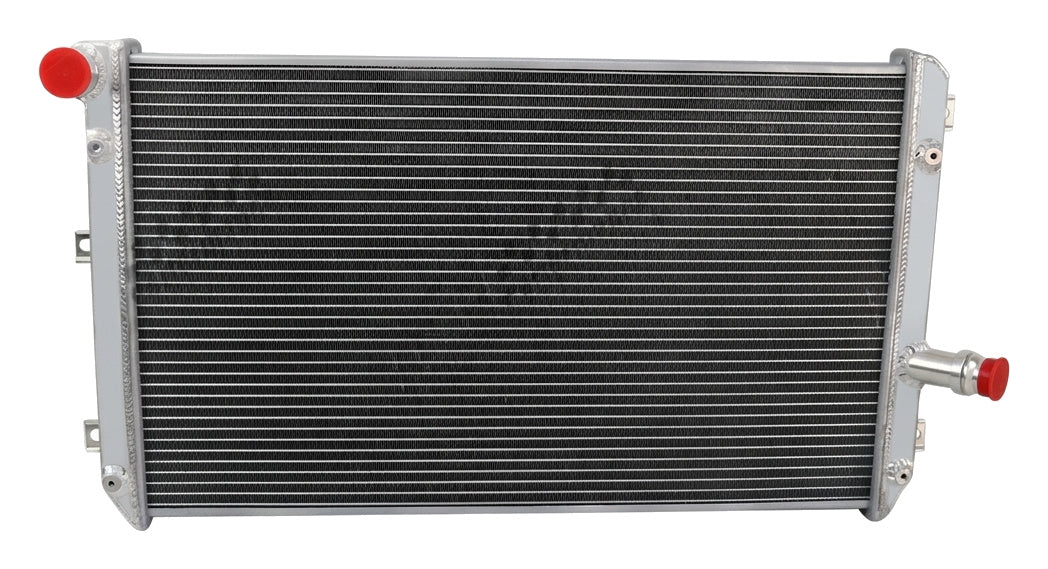

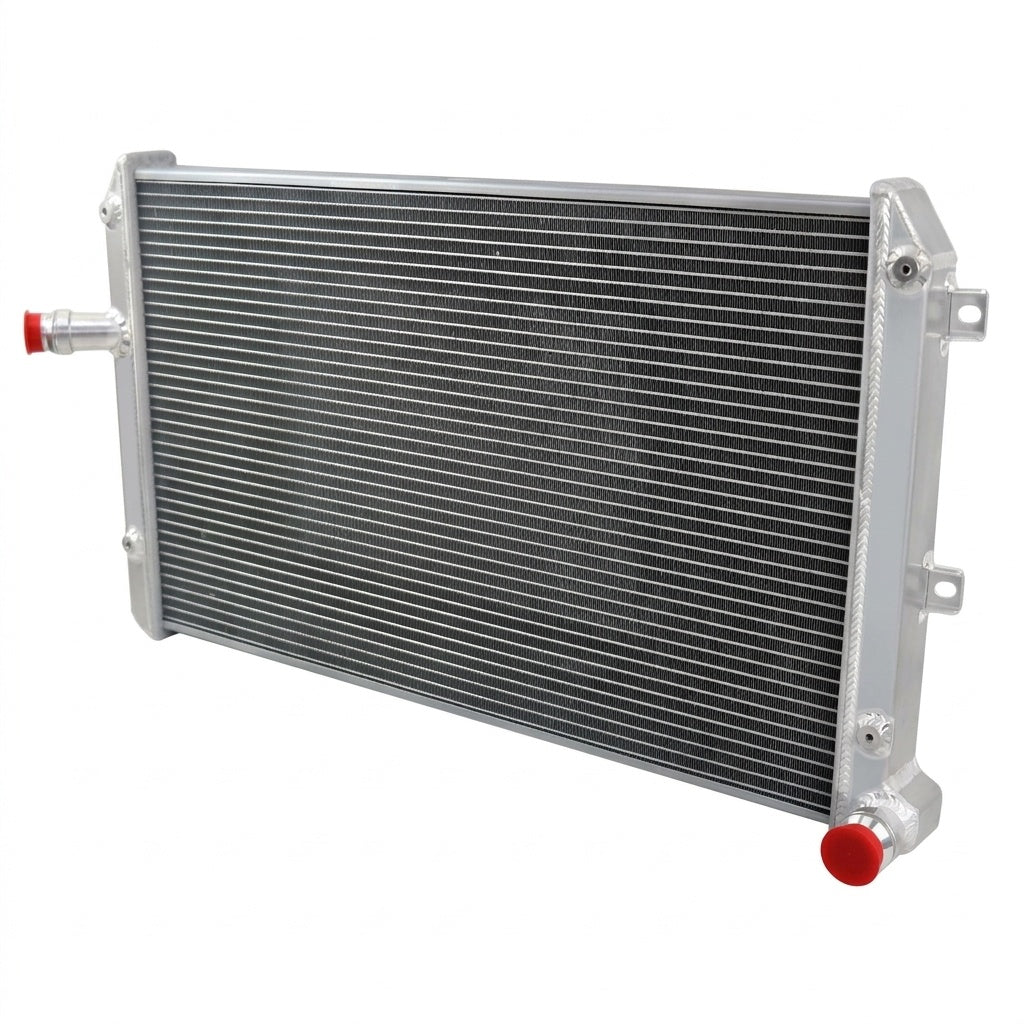

Performance Radiator for Volkswagen Passat (2006-2008) 2.0L

High-Efficiency Performance Radiator for 2006-2008 Volkswagen Passat

What it Does: The Performance Radiator replaces the leak-prone OEM heat exchanger on the 2006-2008 Passat to maximize cooling efficiency, prevent thermal degradation, and eliminate plastic end-tank failure points under pressure.

The Stock Volkswagen Passat Radiator Failure Point

Factory radiators installed in the B6 platform rely on molded plastic end tanks crimped onto an aluminum core with rubber compression gaskets. Over repeated heat cycling and operating pressures common to the turbocharged EA113 2.0T FSI engine, these composite tanks embrittle. Common structural failure points include hairline cracking along the tank seams, failure at the OE quick-disconnect neck couplers, and crimp separation. This rapid loss of coolant leads to sudden thermal spikes, risking severe head gasket damage or cylinder head warpage.

The Engineering Solution

This direct-fit performance radiator replaces vulnerable plastic components with a 100% all-aluminum construction. Featuring heavy-duty, TIG-welded end tanks joined to an advanced furnace-brazed aluminum tube-and-fin core, it completely eliminates structural crimp seals. The engineered fin-density profile increases heat-rejection surface area, minimizing thermal soak under sustained boost while maintaining optimal fluid velocity. Fabricated to strict OE dimensional standards, it directly replaces factory reference 1K0121251DM without requiring chassis modifications.

Technical Specifications

Compatibility

• 2006 Volkswagen Passat 2.0L Turbo Sedan & Wagon (B6 Platform)
• 2007 Volkswagen Passat 2.0L Turbo Sedan & Wagon (B6 Platform)
• 2008 Volkswagen Passat 2.0L Turbo Sedan & Wagon (B6 Platform)

Frequently Asked Questions

Does this fit the B6 Passat?
Yes, this is a direct fit for the 2006-2008 Volkswagen Passat equipped with the EA113 2.0T engine.

Does installation require trimming or aftermarket fan shrouds?
No, this unit maintains factory drop-in dimensions and accepts all OEM cooling fans, brackets, and quick-connect hose fittings without alteration.

The Volkswagen Engineering Standard

Engineered to precise European performance tolerances, this all-aluminum unit provides dependable temperature regulation and structural durability while ensuring factory sensor integration and zero check-engine lights.
