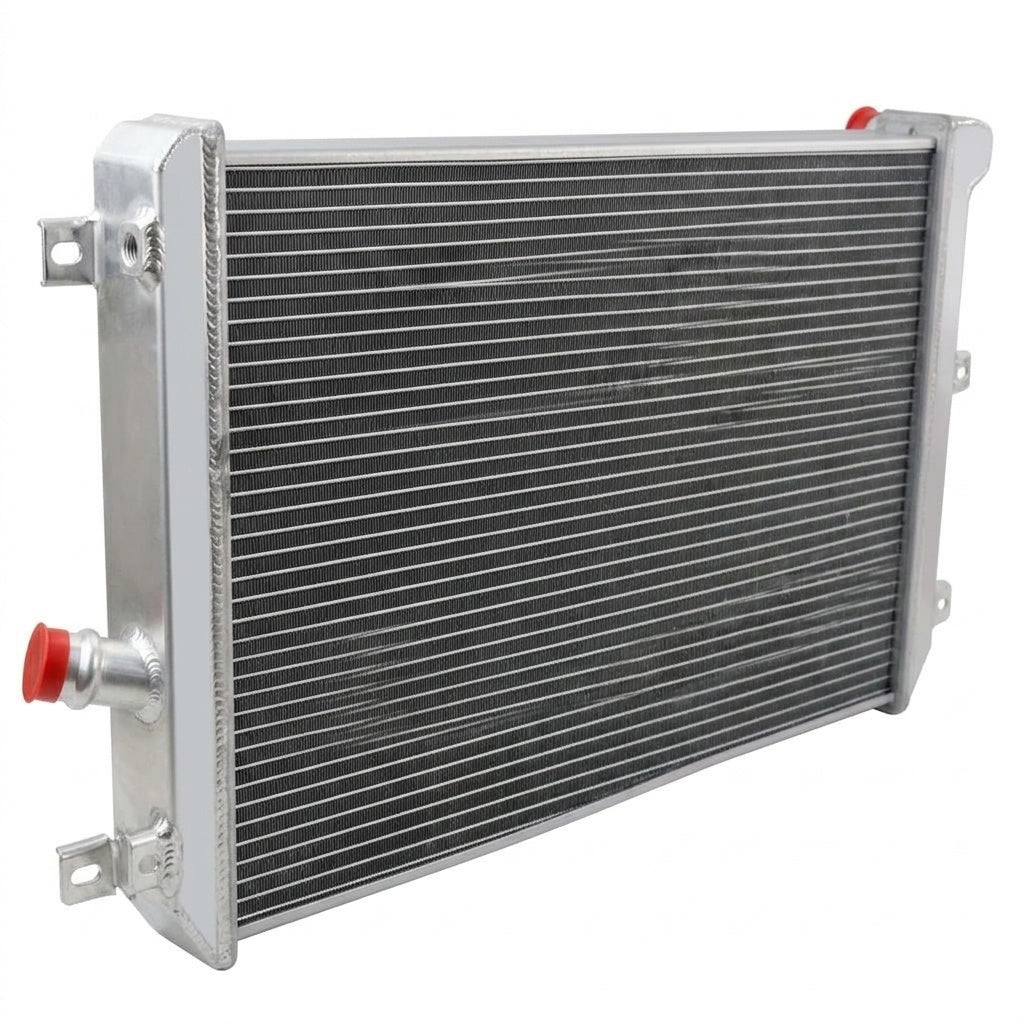

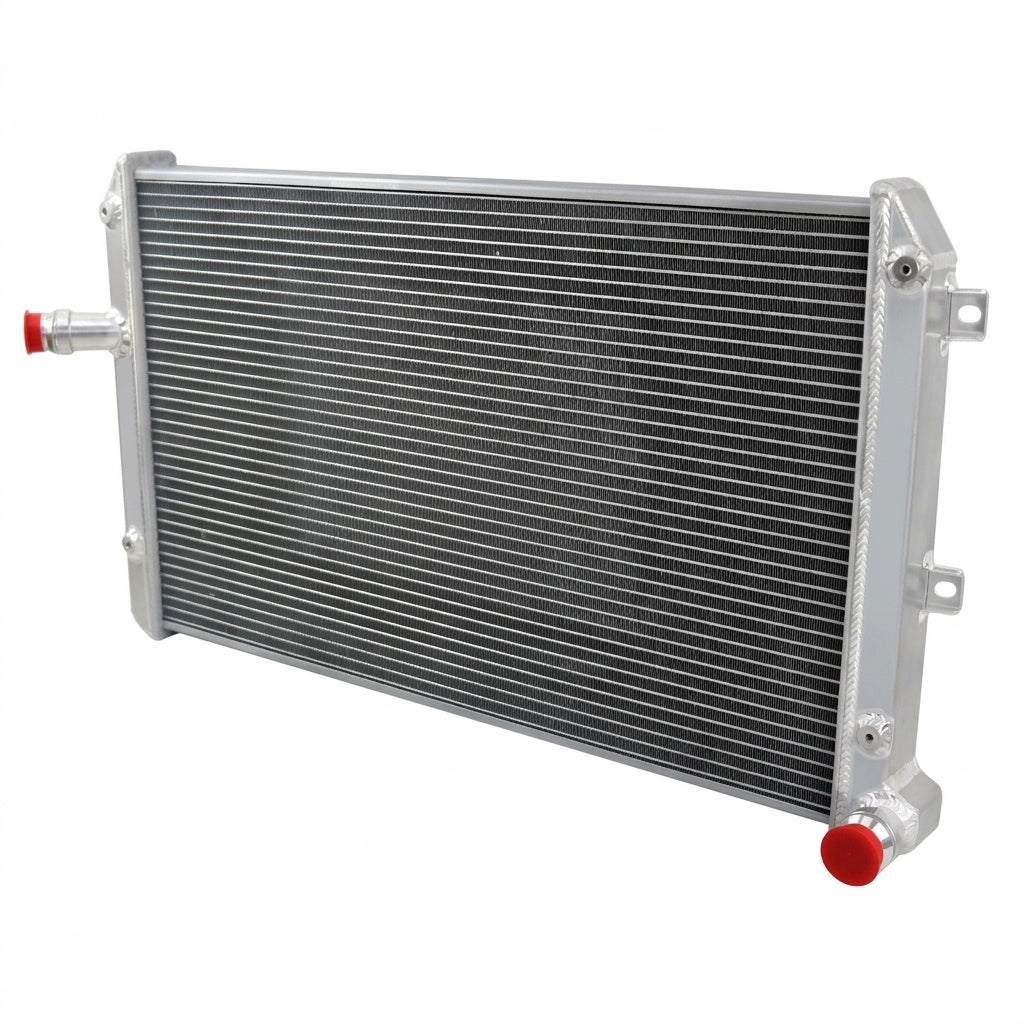

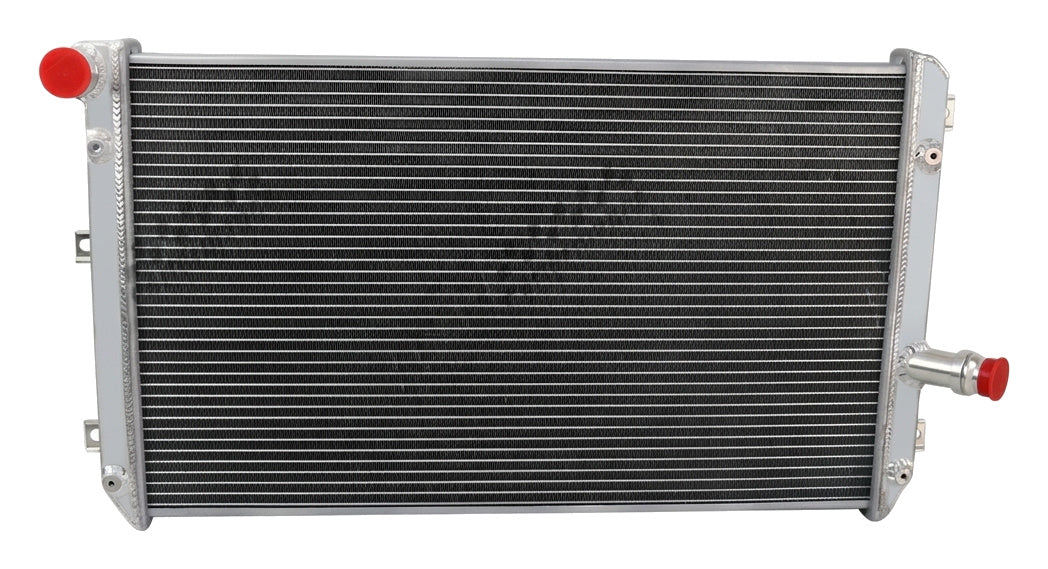

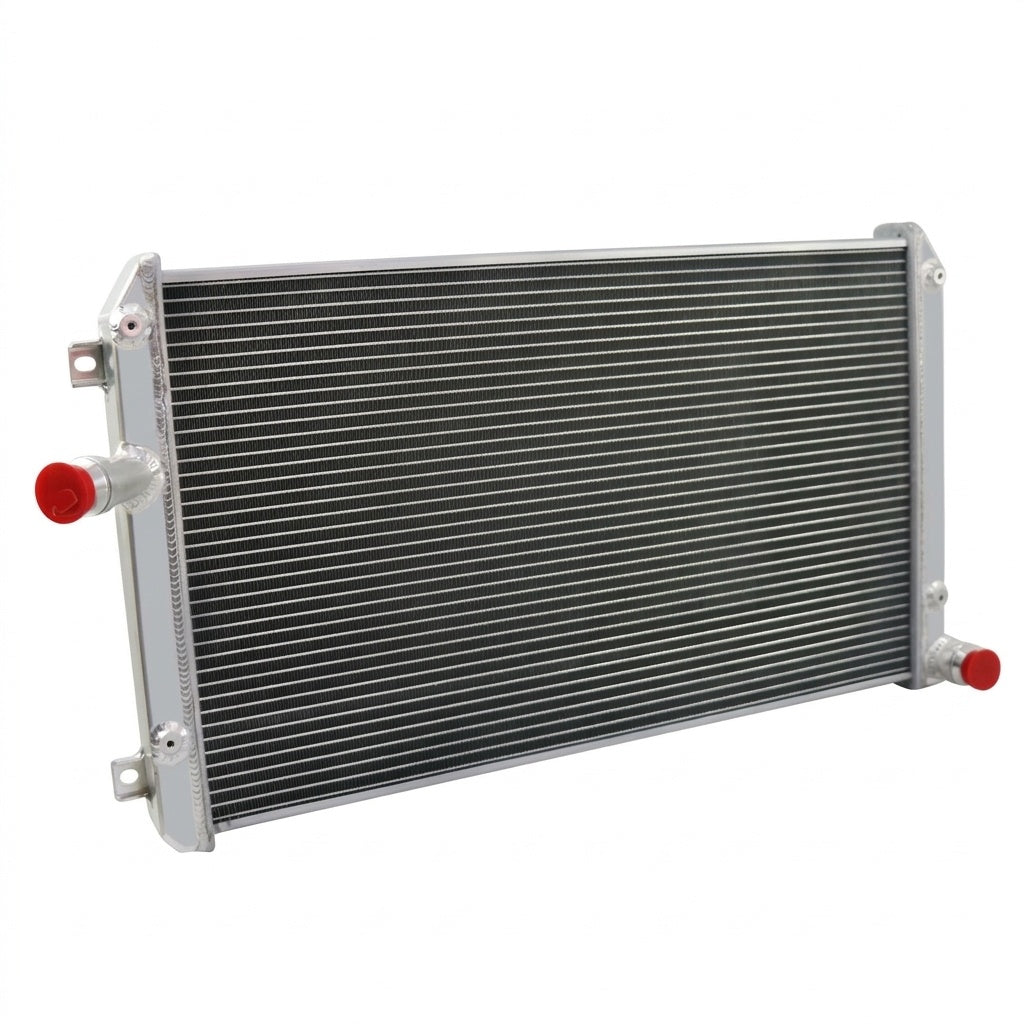

Performance Radiator for Volkswagen Golf GTI (2007-2008) 2.0L

Heavy-Duty All-Aluminum Performance Radiator for 2007-2008 Volkswagen Golf GTI

What it Does: The all-aluminum performance radiator replaces the crack-prone plastic end-tank factory unit on the 2007-2008 Golf GTI to accelerate heat rejection and stabilize coolant temperatures under aggressive boost levels.

The Stock Volkswagen Golf GTI Plastic Tank Vulnerability

Factory radiators on the Mk5 (Typ 1K) chassis rely on mechanically crimped, injection-molded plastic end tanks joined to an aluminum core via rubber o-ring gaskets. Driven by constant heat cycles and elevated cooling circuit pressures from the turbocharged 2.0T EA113 engine, the composite plastic turns brittle over time. Micro-fractures commonly propagate at the upper inlet and lower hose necks, yielding coolant blowouts and risking warped cylinder heads. Furthermore, the OEM core density is ill-equipped to counter severe heat soak during track sessions or spirited summer driving.

The Engineering Solution

This direct-fit drop-in cooling upgrade replaces vulnerable plastic with fully TIG-welded, furnace-brazed aerospace-grade aluminum end tanks. Eliminating crimped seams and polymer components ensures the assembly withstands high thermal expansion and increased hydraulic pressure without leaking. Engineered with a high-efficiency multi-louvered tube-and-fin core, it substantially increases thermal transfer surface area over stock. Fin pitch and internal tube channels are optimized to lower coolant delta-T and preserve safe operating temperatures, all while preserving the factory fan shroud spacing and quick-connect hose geometry.

Technical Specifications

Compatibility

• 2007 Volkswagen Golf GTI 2.0L Turbo Hatchback (Mk5)
• 2008 Volkswagen Golf GTI 2.0L Turbo Hatchback (Mk5)

Frequently Asked Questions

Does this fit the Mk5 Golf GTI?
Yes, this is a direct fit for the 2007-2008 Volkswagen Golf GTI equipped with the 2.0T EA113 engine.

Does this require trimming or custom cooling lines?
No, the core and mounting provisions directly match OEM specifications, accommodating the factory electric fan shroud and OE hose routing without alteration.

The Volkswagen Precision Engineering Standard

European forced-induction platforms demand strict temperature regulation to avoid ECU-triggered timing pull and limp-mode parameters. This performance all-aluminum radiator delivers true drop-in mechanical reliability, ensuring consistent cooling performance under demanding road and track conditions without check-engine warnings.
