Performance Radiator for Lincoln Mark VIII (1996-1998) 4.6L Automatic

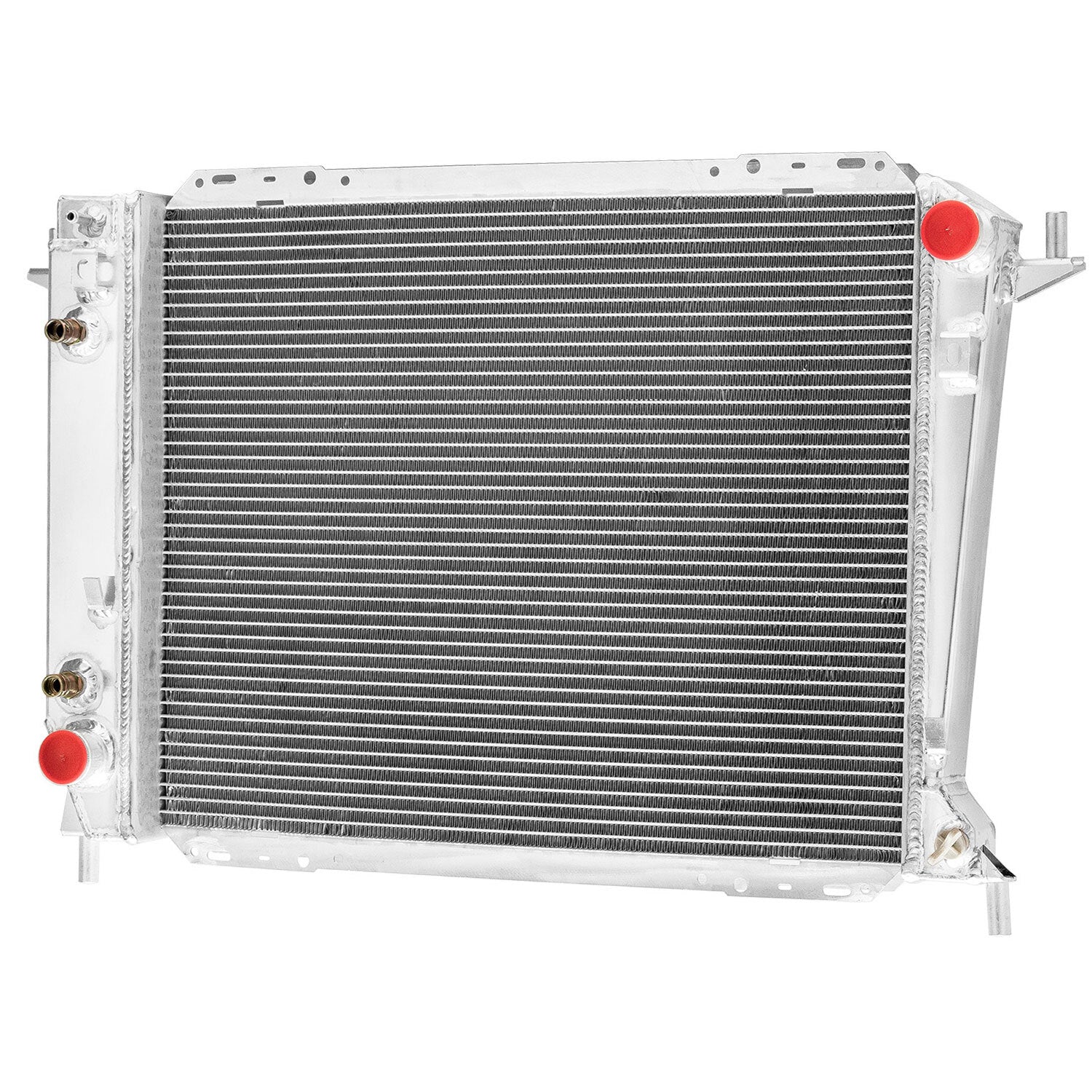

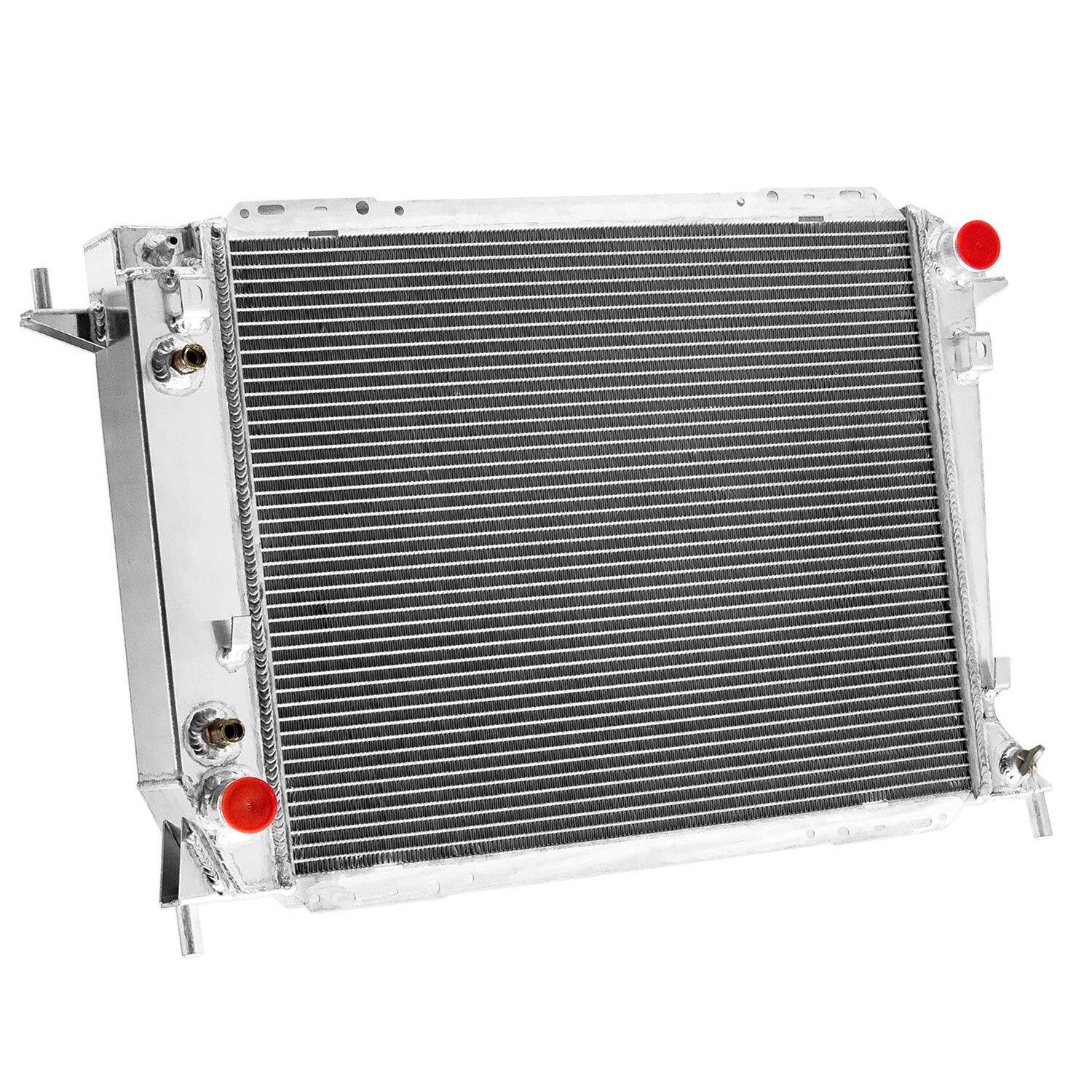

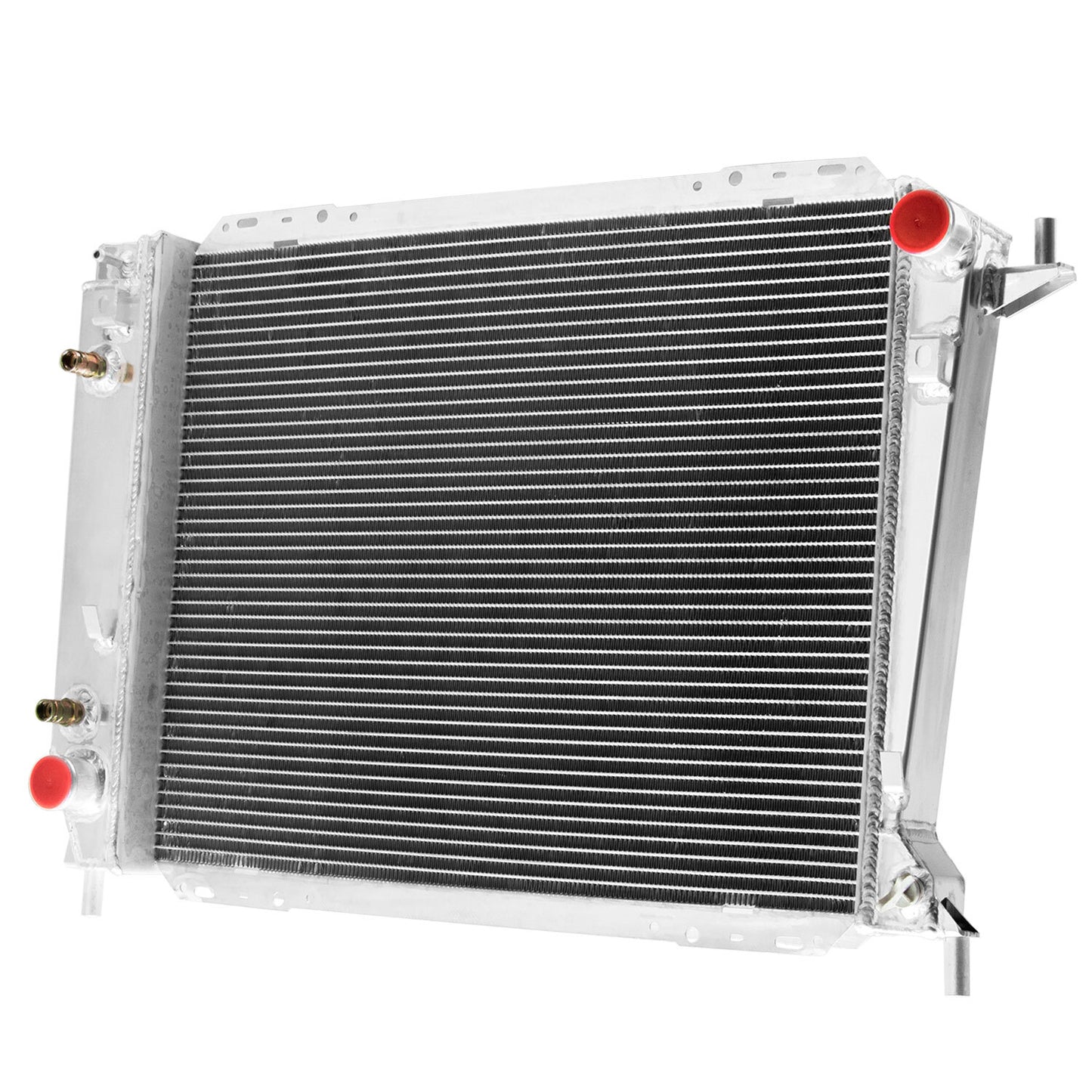

All-Aluminum 3-Row Performance Radiator for 1996-1998 Lincoln Mark VIII

Direct-Fit Cooling Upgrade: Replaces failure-prone composite factory radiators with an all-aluminum 3-row crossflow assembly to eliminate heat soak and prevent thermal breakdown under load.

The Stock Mark VIII Cooling Weakness

The factory FN10 cooling system utilizes composite plastic end-tanks crimped onto a thin single-row core. Over repeated thermal cycles, the OEM plastic embrittles, resulting in hairline fractures at the inlet/outlet necks and catastrophic crimp seam separation. Additionally, the high-revving 32-valve 4.6L Modular V8 generates substantial underhood thermal energy that easily overwhelms the stock single-row core during spirited driving or high ambient temperatures, leading to transmission fluid overheating.

The Engineering Solution

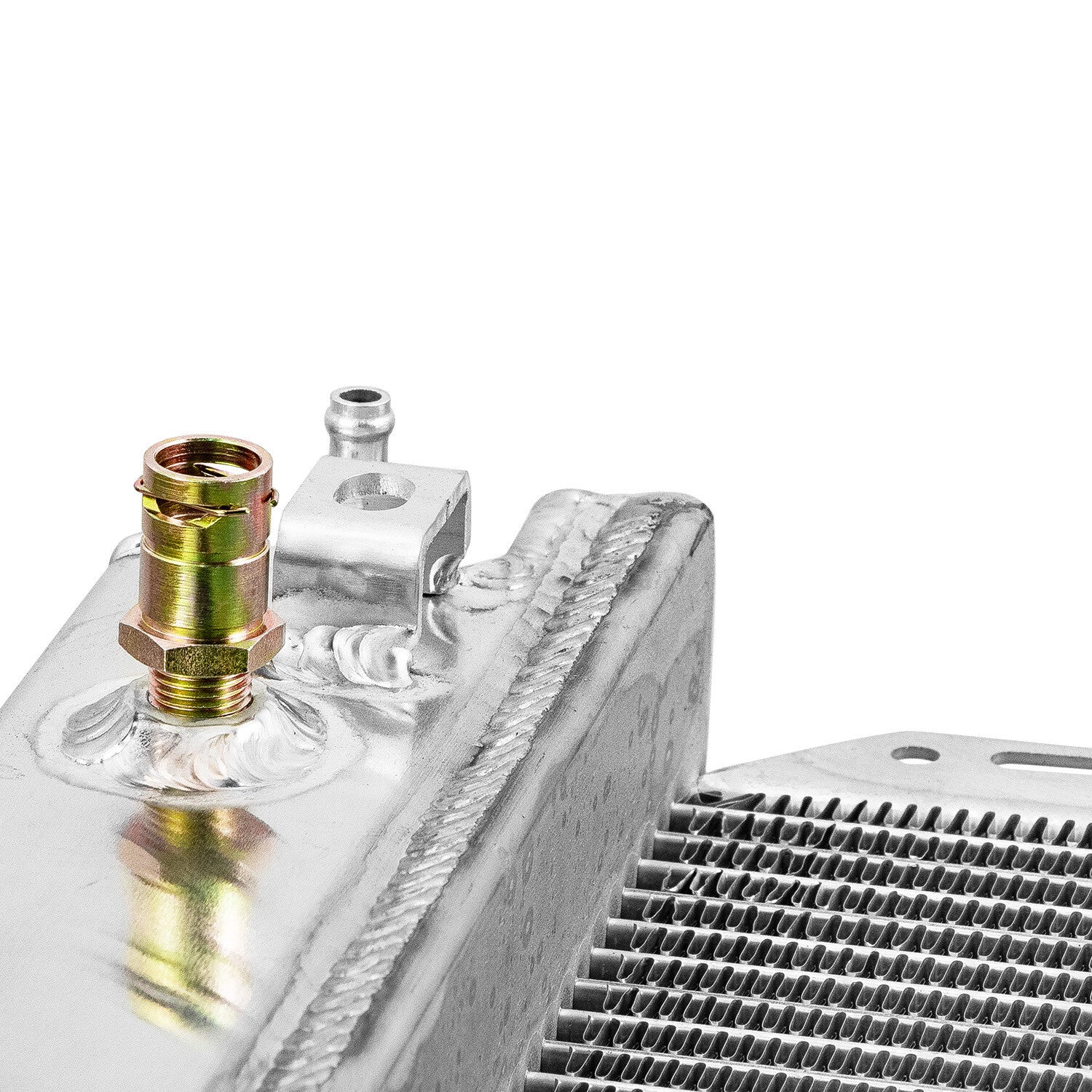

Constructed entirely from aircraft-grade aluminum with precision TIG welds, this performance unit eliminates plastic-to-metal failure points. The 3-row racing tube core measures 22-7/16 in. W x 18-3/8 in. H, maximizing fluid volume and heat dissipation surface area. Each unit is 100% leak-tested and features an integrated internal transmission oil cooler and factory-spec 1-1/2 in. inlet and outlet ports for a direct bolt-on installation into the factory core support.

Technical Specifications

Compatibility

• 1996 Lincoln Mark VIII Base / LSC 4.6L V8 Automatic
• 1997 Lincoln Mark VIII Base / LSC 4.6L V8 Automatic
• 1998 Lincoln Mark VIII Base / LSC 4.6L V8 Automatic
• Interchange: DPI 1551, CU1551, RAD1551, OE F4SZ8005A, F4SZ8005H, FO3010124

The Lincoln Performance Standard

Engineered to support the sustained output of the DOHC InTech V8, this heavy-duty all-aluminum radiator provides the required thermal stability and transmission line cooling for reliable high-speed touring and aggressive street performance.
