Performance Radiator for Dodge Dakota (2000-2004) 3.7L 4.7L Automatic

Heavy-Duty 3-Row Aluminum Performance Radiator for 2000-2004 Dodge Dakota

Direct-Fit Cooling Upgrade: Replaces the leak-prone OEM crimped plastic tank unit with a high-capacity, 100% TIG-welded all-aluminum 3-row core engineered to eliminate overheating under heavy towing and high-temperature loads.

The Stock Dakota AN Plastic Tank Vulnerability

Factory radiators on 2000-2004 Dakota models utilize plastic end tanks crimped onto a thin core with rubber gaskets. Over repeated thermal cycles, continuous heat soak from the 3.7L and 4.7L PowerTech engines embrittles the composite plastic, leading to fatigue fractures at the inlet/outlet necks and blown tank-to-core seals. Additionally, the stock single-row core lacks adequate fluid volume, creating thermal bottlenecks during sustained grade climbs and payload hauling.

The Engineering Solution

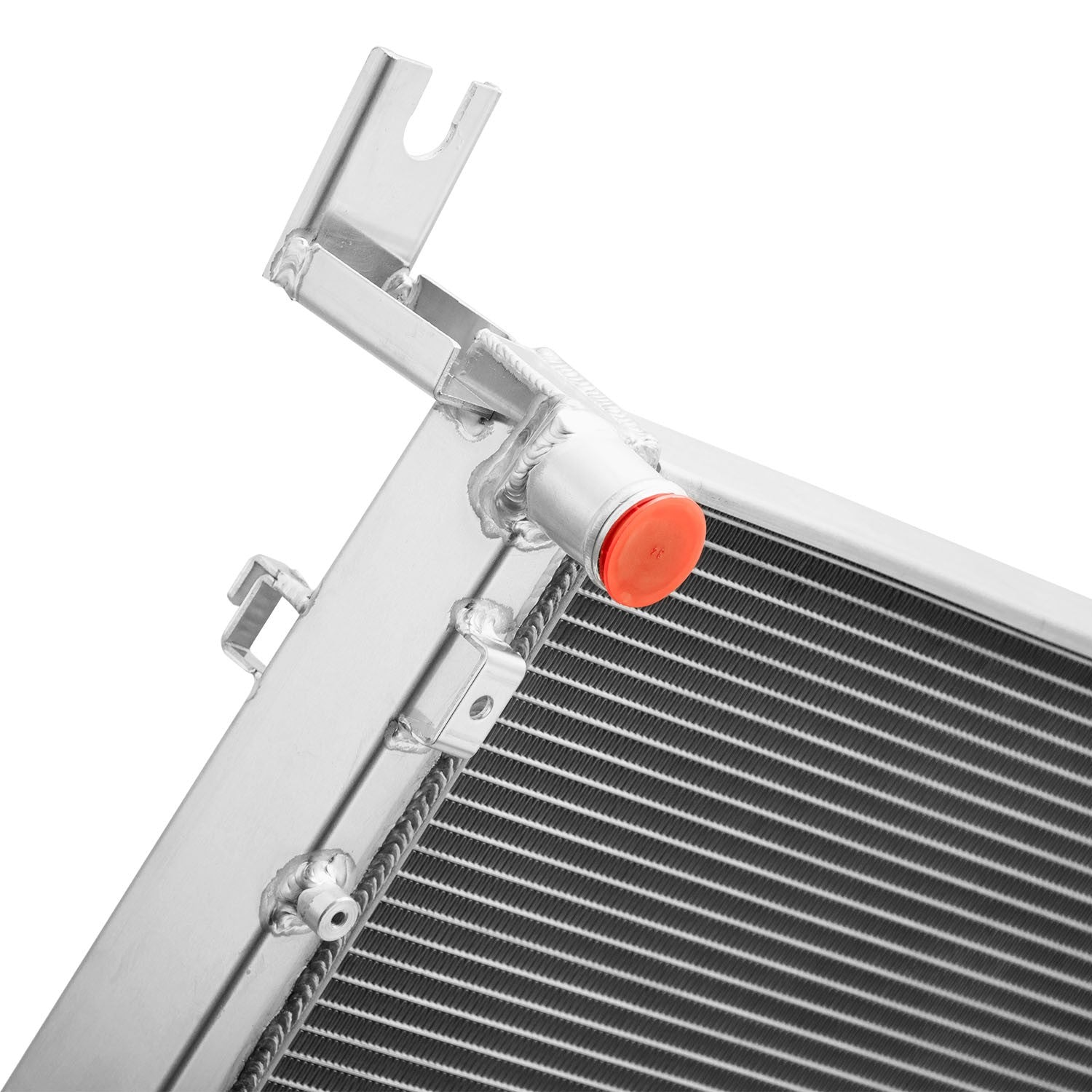

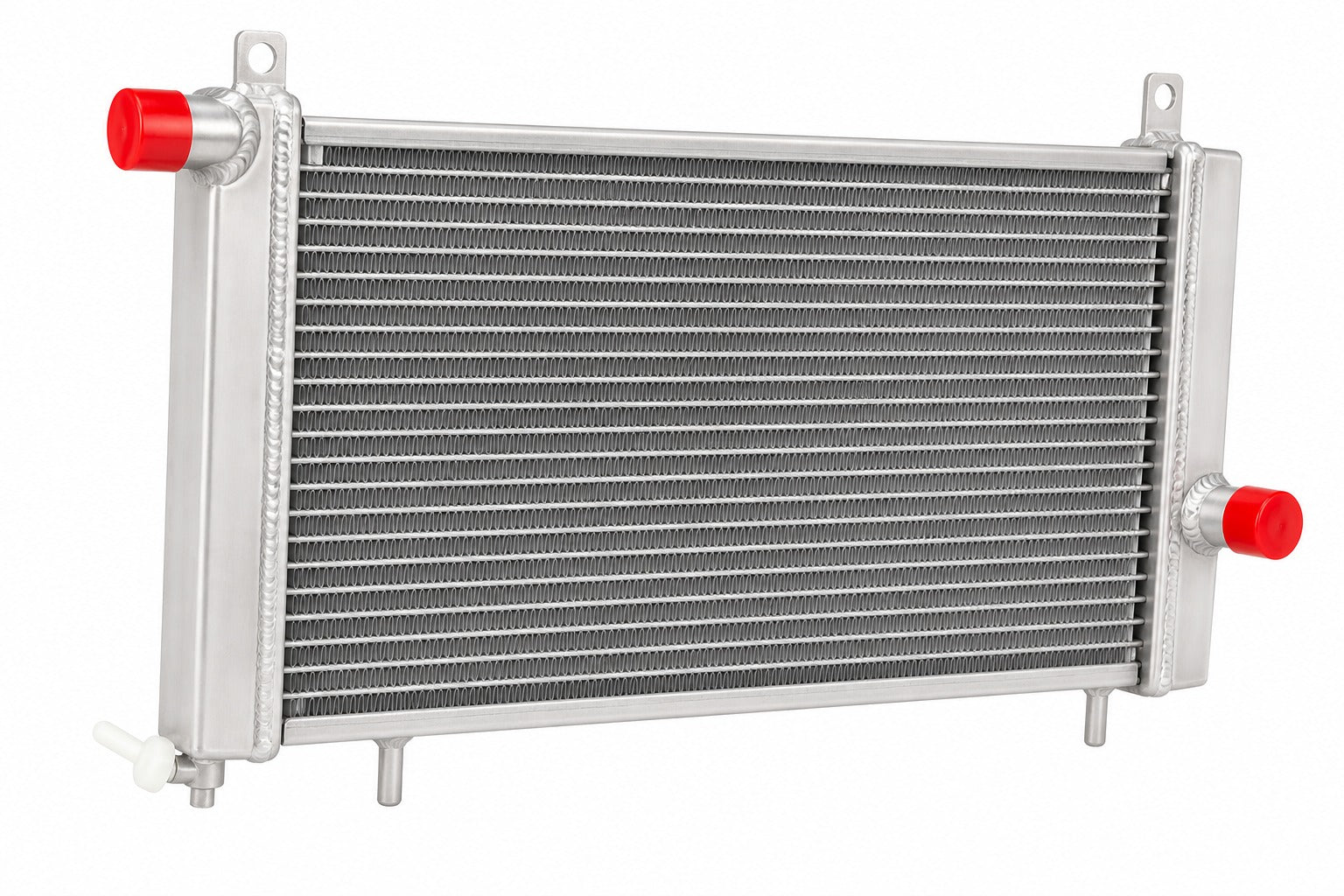

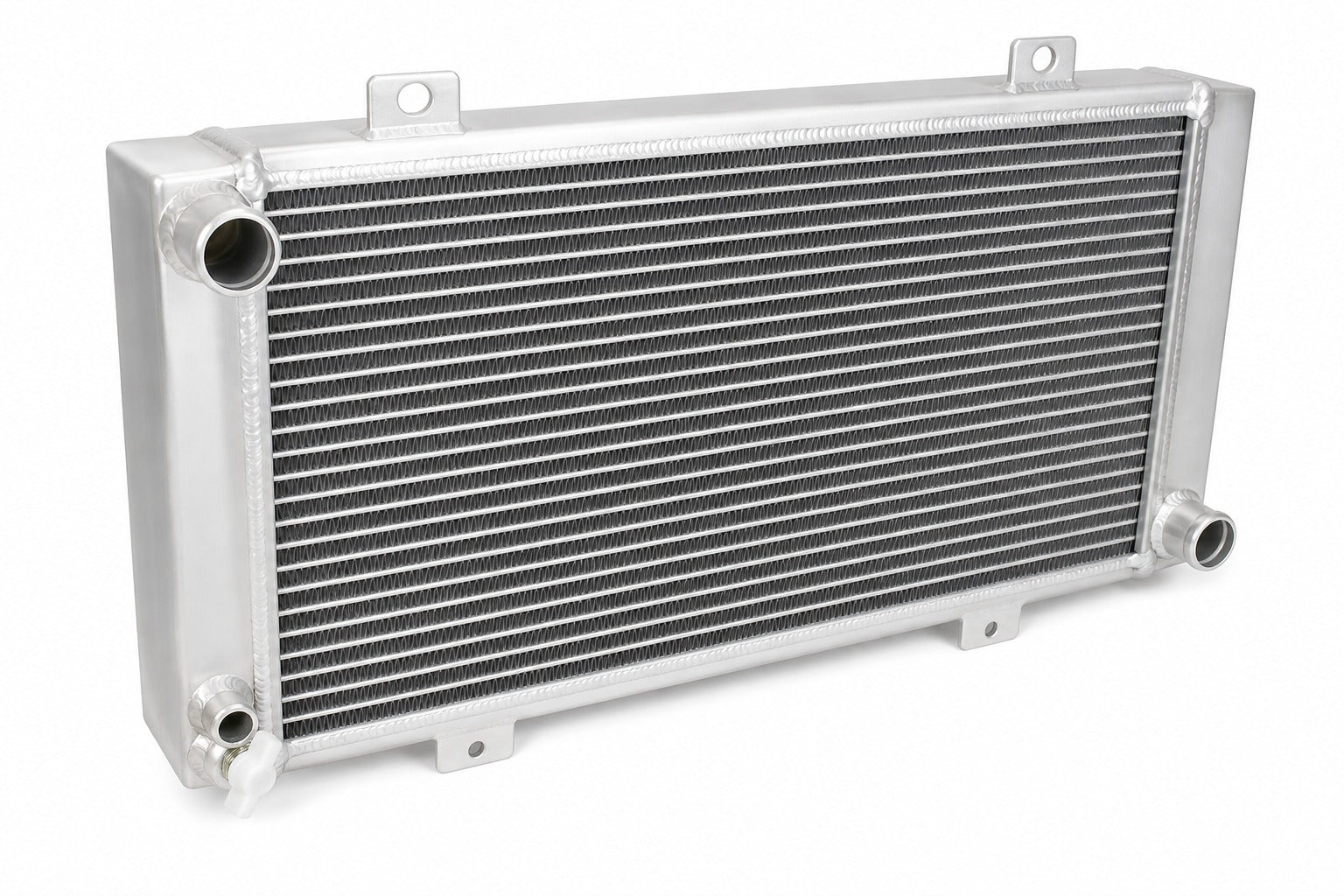

This drop-in unit features an all-aluminum vacuum-brazed 3-row crossflow core (23.4 in W x 18.8 in H) fully assembled with 100% TIG-welded end tanks and zero structural epoxy. Multi-louvered high-density fins significantly enhance convective heat transfer while expanding overall fluid capacity. It includes an integrated 5/8-18 UNF transmission oil cooler (TOC) to maintain safe automatic transmission fluid operating temps, protecting against thermal breakdown and transmission slip.

Technical Specifications

Compatibility

• 2000-2004 Dodge Dakota 4.7L PowerTech V8 (Automatic Transmission)
• 2004 Dodge Dakota 3.7L PowerTech V6 (Automatic Transmission)
• Fits Automatic transmission models with 5/8-18 UNF internal TOC
• Does not fit 1994-1999 Dodge Dakota models

The Dodge Truck Durability Standard

Engineered to handle severe towing, off-road articulation, and severe duty cycles, this all-aluminum cooling system ensures maximum thermal stability and engine protection under heavy mechanical load.
