Performance Radiator for Chevrolet Cruze (2011-2016) 1.4L 1.8L

High-Capacity Performance Radiator for 2011-2016 Chevrolet Cruze

Replaces the restrictive and crack-prone OEM plastic-tank radiator with a high-capacity all-aluminum unit to significantly lower coolant temperatures during high-stress driving.

The Stock Cruze Thermal Weakness

The OEM Chevrolet Cruze J300 cooling system utilizes a plastic-tank and aluminum-core radiator that is notoriously prone to thermal fatigue and cracking at the crimped seams over time. Under repeated heat cycles, especially on the turbocharged 1.4L LUJ/LUV engines, the plastic degrades, leading to micro-fractures, coolant leaks, and sudden pressure loss. Furthermore, the factory core thickness and tube pitch are adequate for daily commuting but struggle with heat soak during aggressive driving, long grades, or when engine modifications increase the thermal load beyond the stock parameters.

The Engineering Solution

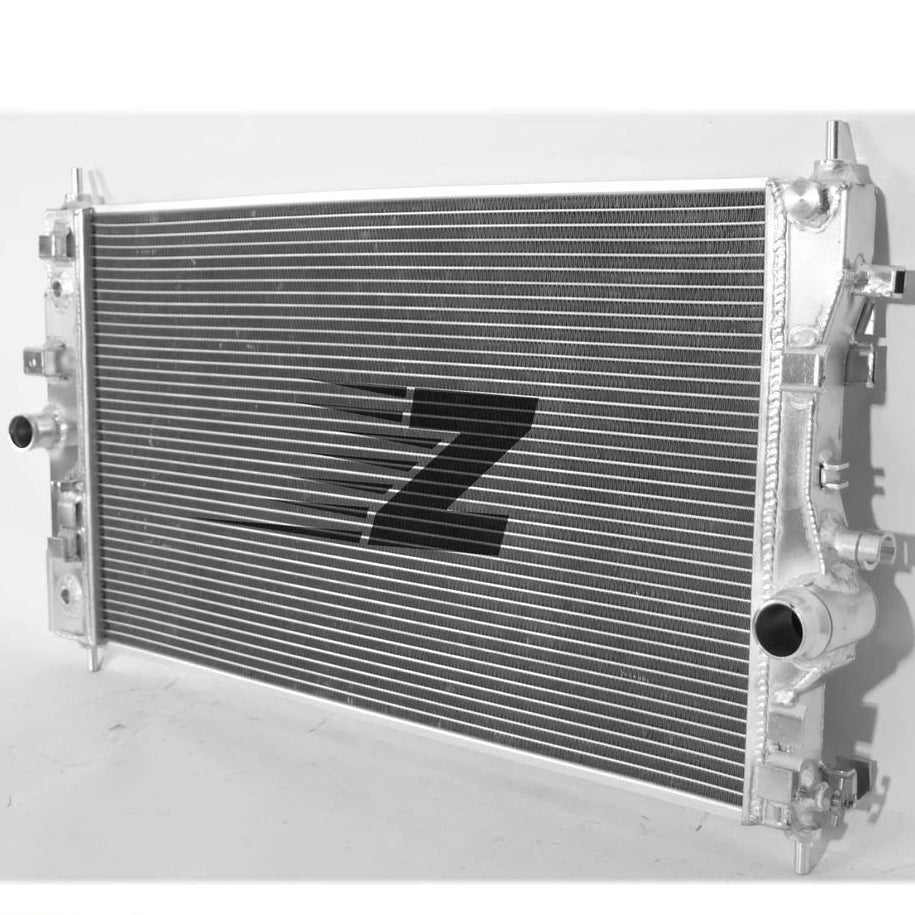

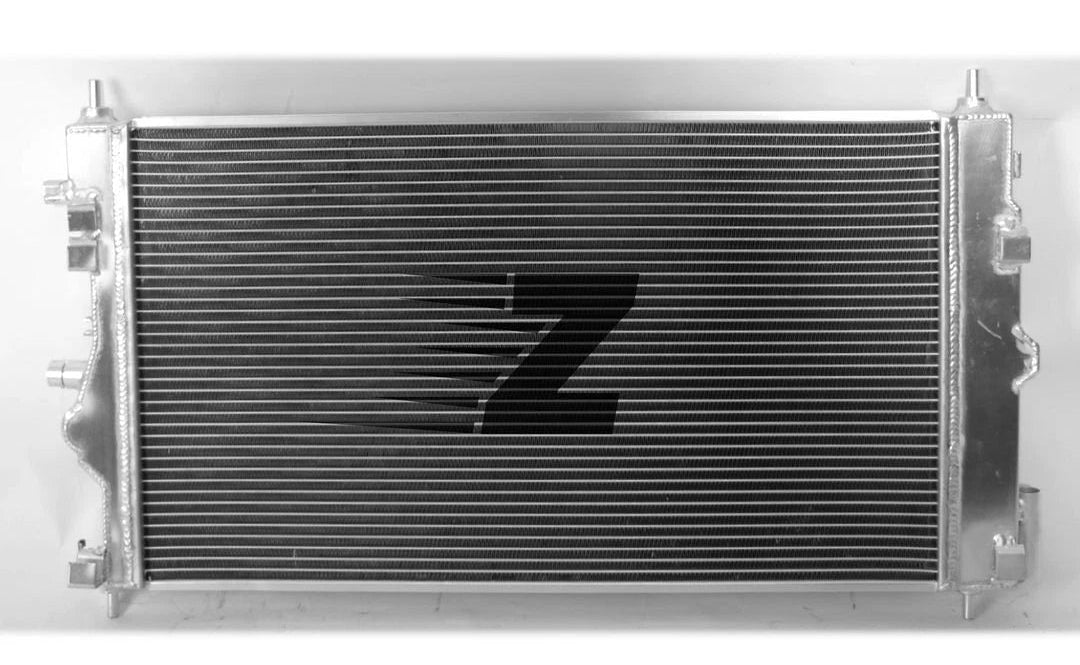

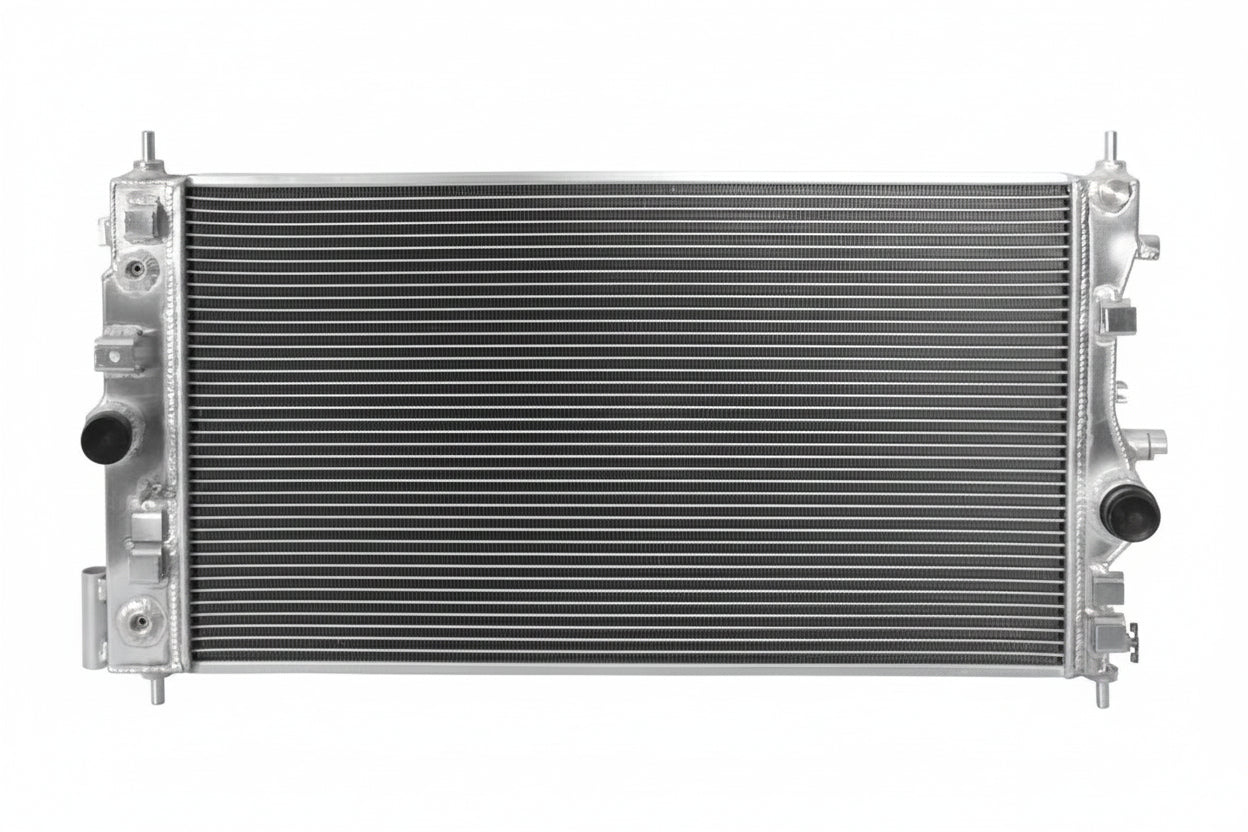

This performance aluminum radiator eliminates factory failure points by utilizing a 100% brazed aluminum construction. The TIG-welded aluminum end tanks replace the brittle plastic OEM components, guaranteeing structural integrity under elevated system pressures and extreme thermal expansion. Featuring a high-density tube and fin design, this racing-spec core maximizes the convective heat transfer coefficient. The dramatically increased surface area and higher fluid capacity yield a 30% to 45% increase in cooling efficiency compared to the standard Ecotec radiator. With a 15.67" H x 26.77" W core size and optimized 1.34" inlet / 1.5" outlet diameters, this unit ensures rapid coolant flow and heat dissipation, effectively preventing localized boiling and premature engine wear in demanding applications.

Technical Specifications

Compatibility

• 2011-2015 Chevrolet Cruze 1.4L
• 2011-2015 Chevrolet Cruze 1.8L
• 2016 Chevrolet Cruze Limited 1.4L
• 2016 Chevrolet Cruze Limited 1.8L

The Chevrolet Performance Caliber

For modern domestic compacts like the Cruze, maintaining optimal thermal efficiency is critical to preserving Ecotec engine longevity and sustaining reliable power delivery without triggering localized heat damage or ECU power-pulling heat soak.
