Performance Head Gasket Kit for GMC Sierra (2002-2011) 4.8L 5.3L

Multi-Layer Steel Engine Head Gasket Kit for 2002-2011 GMC Sierra (GMT800 / GMT900)

What it Does: The Multi-Layer Steel Head Gasket Kit replaces degraded factory seals on the 2002-2011 GMC Sierra to restore high-pressure combustion sealing, prevent coolant crossover, and eliminate vacuum leaks across the cylinder heads and crankcase.

The Stock GMC Sierra Cylinder Sealing Failure

Factory GM Gen III and Gen IV small block engines—including the Vortec 4800 and Vortec 5300—are prone to gasket degradation due to differential thermal expansion between cast iron engine blocks and aluminum cylinder heads. Over continuous thermal cycles and heavy towing loads, factory composite gaskets experience shear stress, causing fire ring distortion, localized coolant burn, and oil migration. Additionally, aging perimeter seals and intake gaskets harden, allowing unmetered air into the intake runners and triggering persistent lean codes.

The Engineering Solution

This comprehensive overhaul kit integrates premium Multi-Layer Steel (MLS) cylinder head gaskets engineered to withstand elevated peak cylinder pressures and continuous shear stress. The high-grade spring steel layers feature specialized elastomer coatings to ensure micro-sealing across deck surfaces without weeping. Accompanying fluoropolymer and Viton valve stem seals withstand severe exhaust gas temperatures, while precision-molded perimeter gaskets for the valley cover, oil pan, and timing assembly maintain positive crankcase vacuum and stop fluid egress under severe operating conditions.

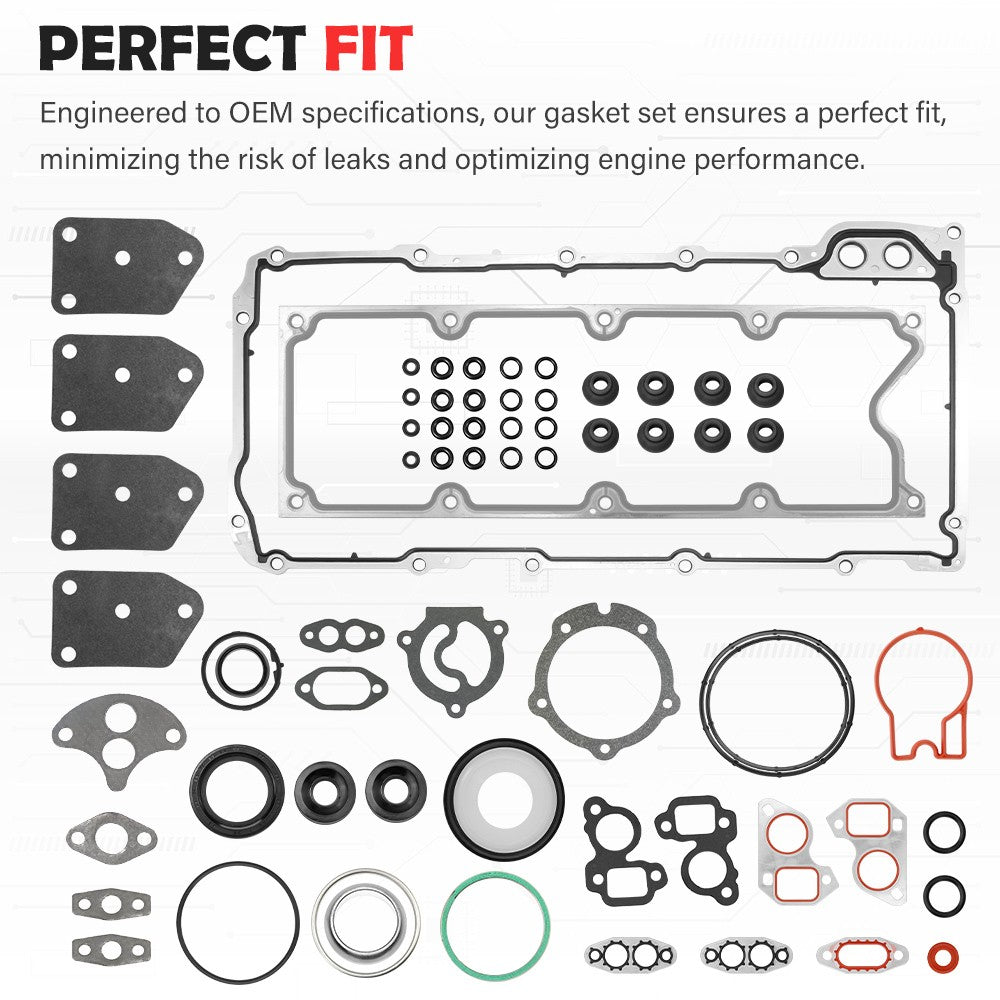

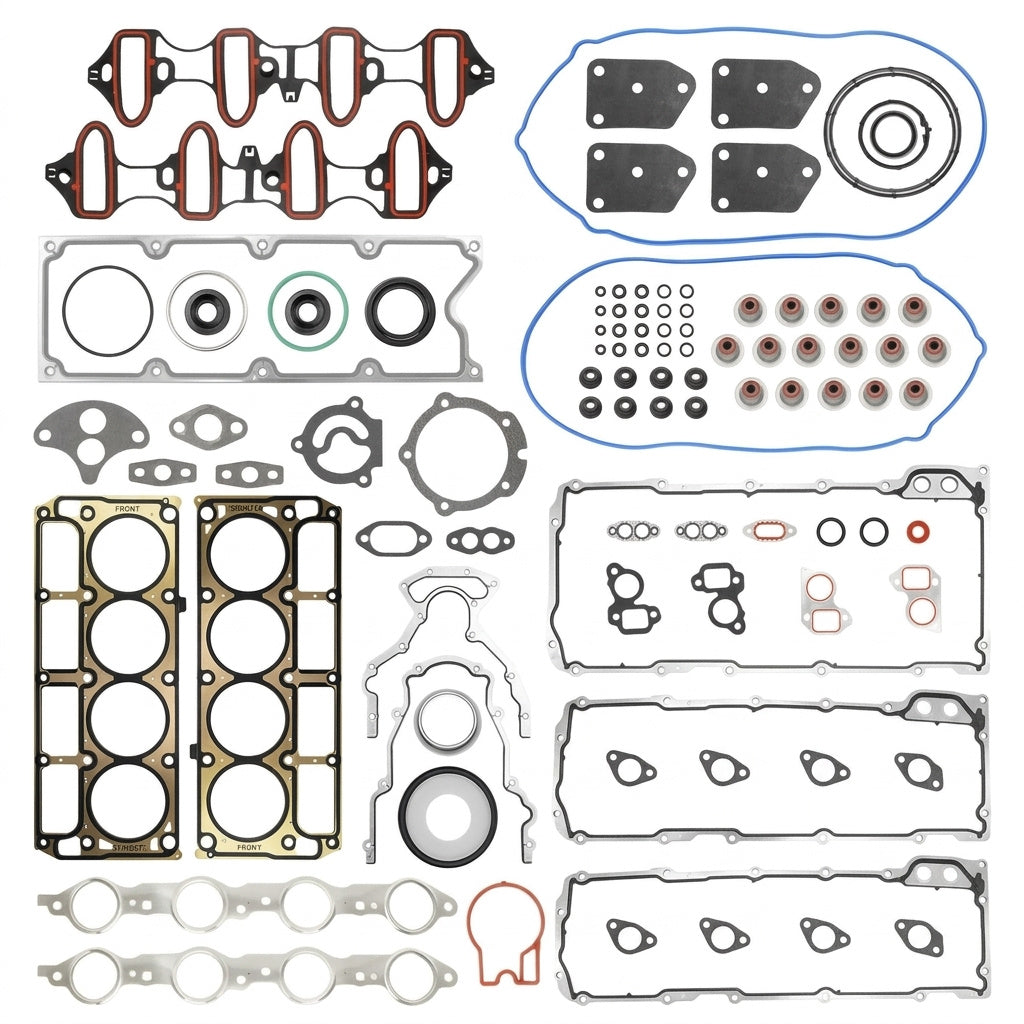

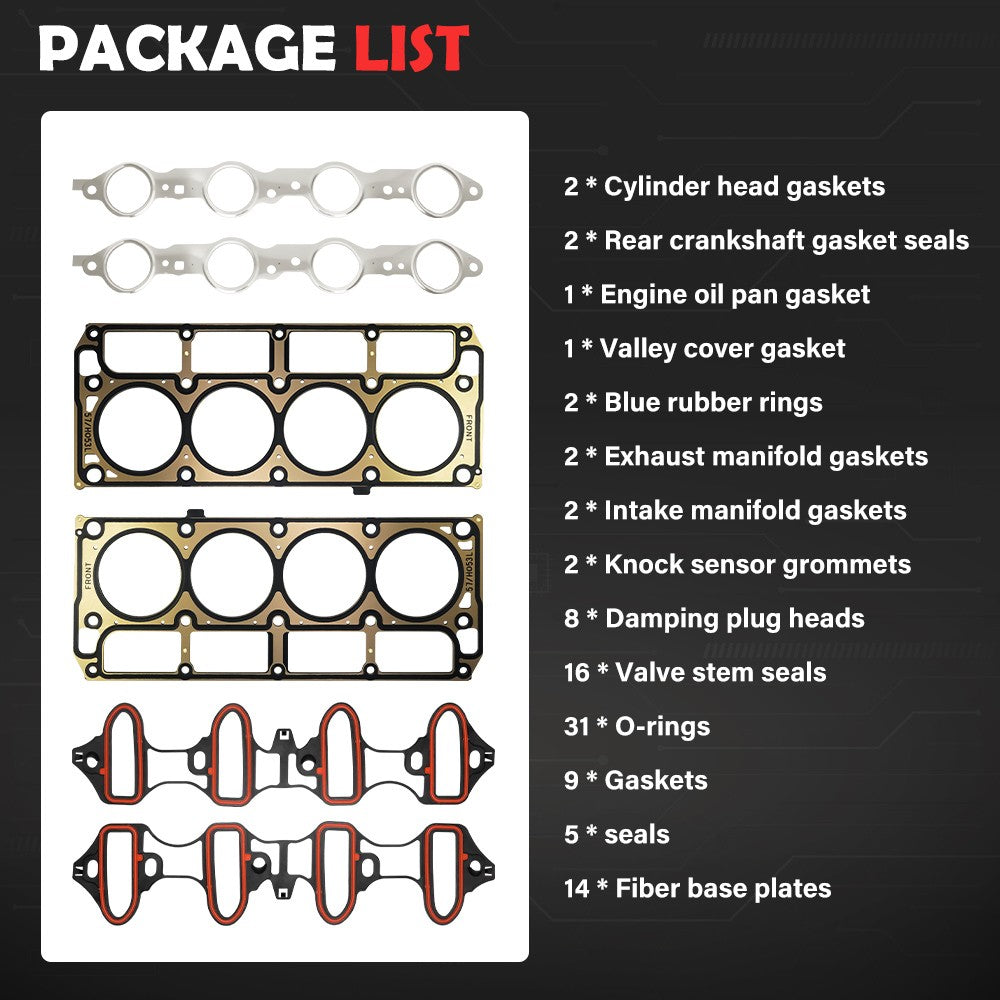

What's Included

• 2 Multi-Layer Steel (MLS) Head Gaskets
• 1 Rear Crankshaft Gasket Seal
• 1 Engine Oil Pan Gasket
• 1 Valley Cover Gasket
• Intake Manifold Gaskets
• Exhaust Manifold Gaskets
• Knock Sensor Grommets
• Damping Plug Heads
• Valve Stem Seals
• Fiber Base Plates
• Assorted O-rings and Secondary Gaskets

Technical Specifications

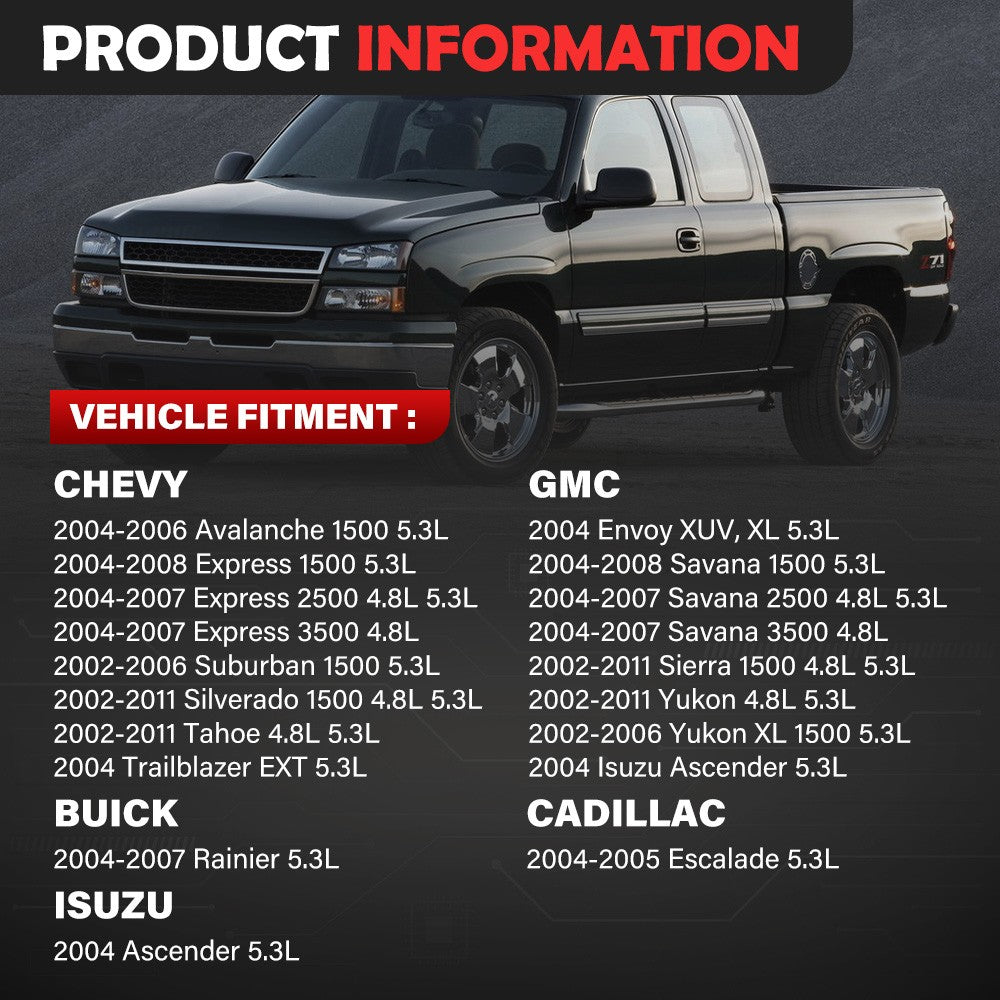

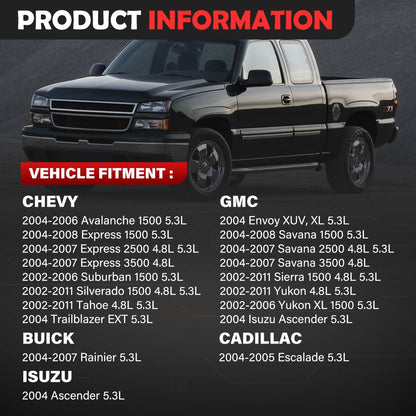

Compatibility

• 2002-2011 GMC Sierra 1500 (4.8L V8 OHV)
• 2002-2011 GMC Sierra 1500 (5.3L V8 OHV)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 and GMT900 Sierra?

Yes, this is a direct fit for 2002-2011 GMC Sierra trucks equipped with the 4.8L and 5.3L OHV V8 engines; verify your engine code and displacement prior to installation as this kit does not fit 6.0L or 6.2L configurations.

Are cylinder head bolts or internal piston rings included with this set?

No, piston rings and cylinder head bolts are not included and must be sourced separately to complete your long-block rebuild.

The GMC Heavy-Duty Caliber

Built to handle the demanding torque loads and sustained operating temperatures required by commercial fleets and heavy-duty towing, this sealing solution guarantees maximum clamping retention across all critical block mating surfaces.
