Performance Head Gasket Kit for Chevrolet Avalanche (2004-2006) 5.3L

Heavy-Duty Multi-Layer Steel Head Gasket Kit for 2004-2006 Chevrolet Avalanche (GMT805)

What it Does: The Performance Head Gasket Kit seals the combustion chambers and fluid galleries on 2004-2006 Chevrolet Avalanche 5.3L engines to prevent coolant cross-contamination and hold compression under high thermal stress.

The Stock Chevrolet Avalanche Cylinder Head & Gasket Failure Modes

Factory composite gaskets on high-mileage GMT805 trucks running the Vortec 5300 LM7/L59 platform degrade from continuous thermal cycling and combustion scrub. Micro-fretting between the iron engine block and aluminum cylinder heads causes fire-ring degradation, external coolant leaks along the block deck, and oil contamination into coolant passages. Additionally, factory intake gaskets and aging valley cover seals harden over time, causing unmetered vacuum leaks and persistent lean codes (P0171/P0174).

The Engineering Solution

This master overhaul kit utilizes Multi-Layer Steel (MLS) head gaskets engineered with tempered stainless steel outer layers and an elastomer coating to handle differential thermal expansion rates between cast-iron blocks and aluminum heads. The integrated combustion seal beads maintain high recovery under elevated cylinder pressures, preventing blowout under heavy towing loads. Paired with high-grade fluoroelastomer valve stem seals, silicone-beaded intake and oil pan gaskets, and precision knock sensor grommets, this complete overhaul package restores stoichiometric sealing integrity and crankcase vacuum retention.

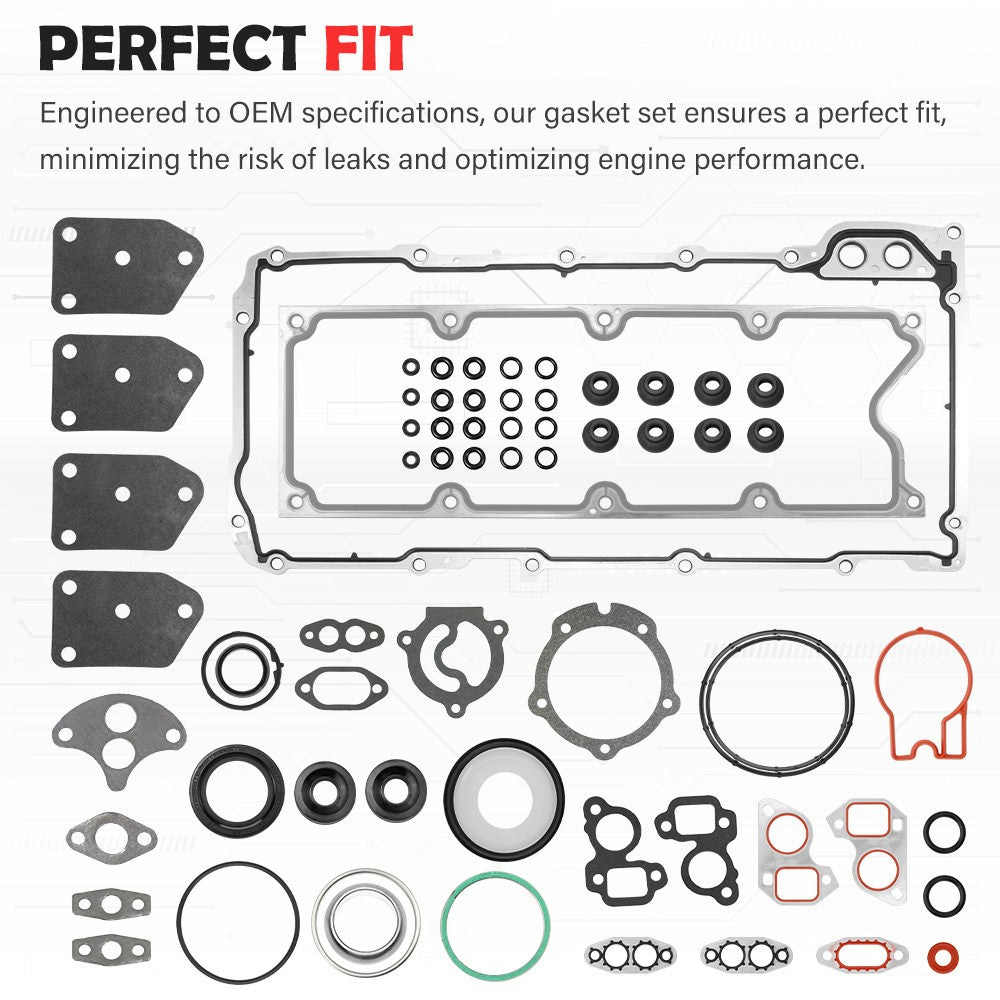

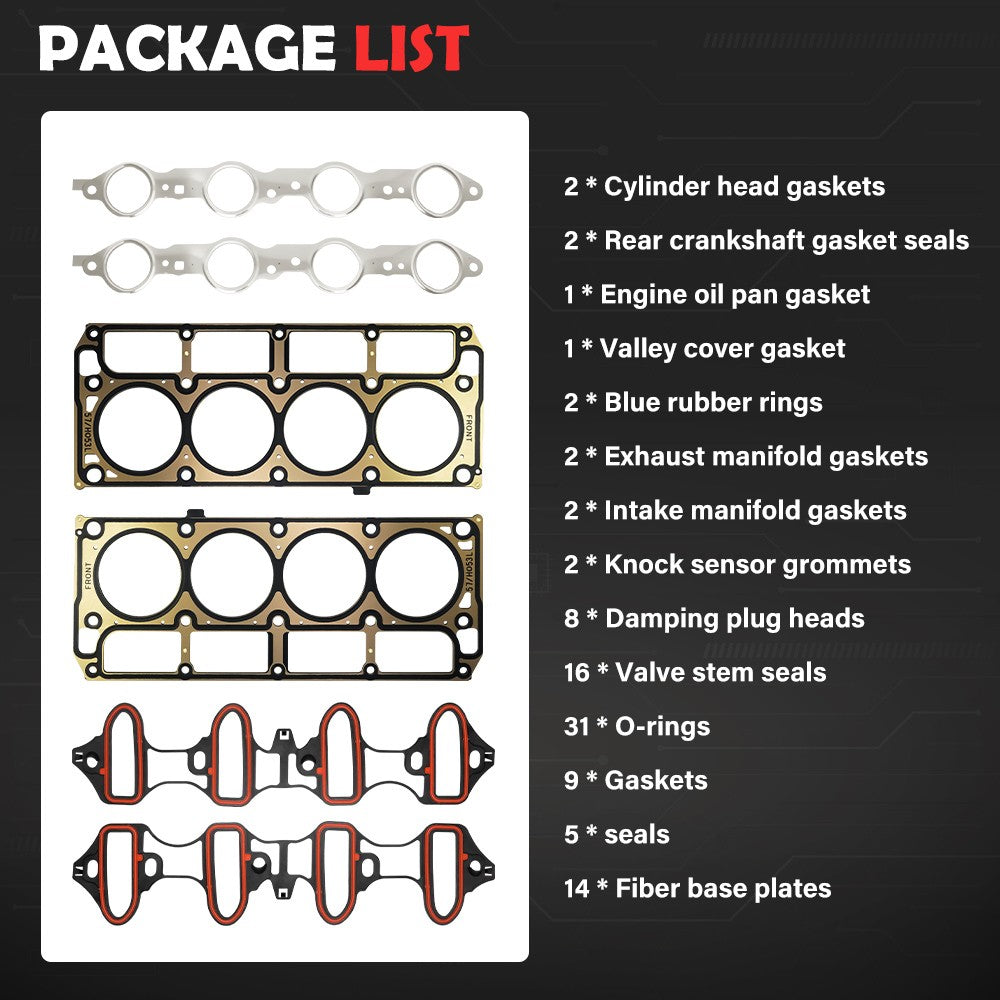

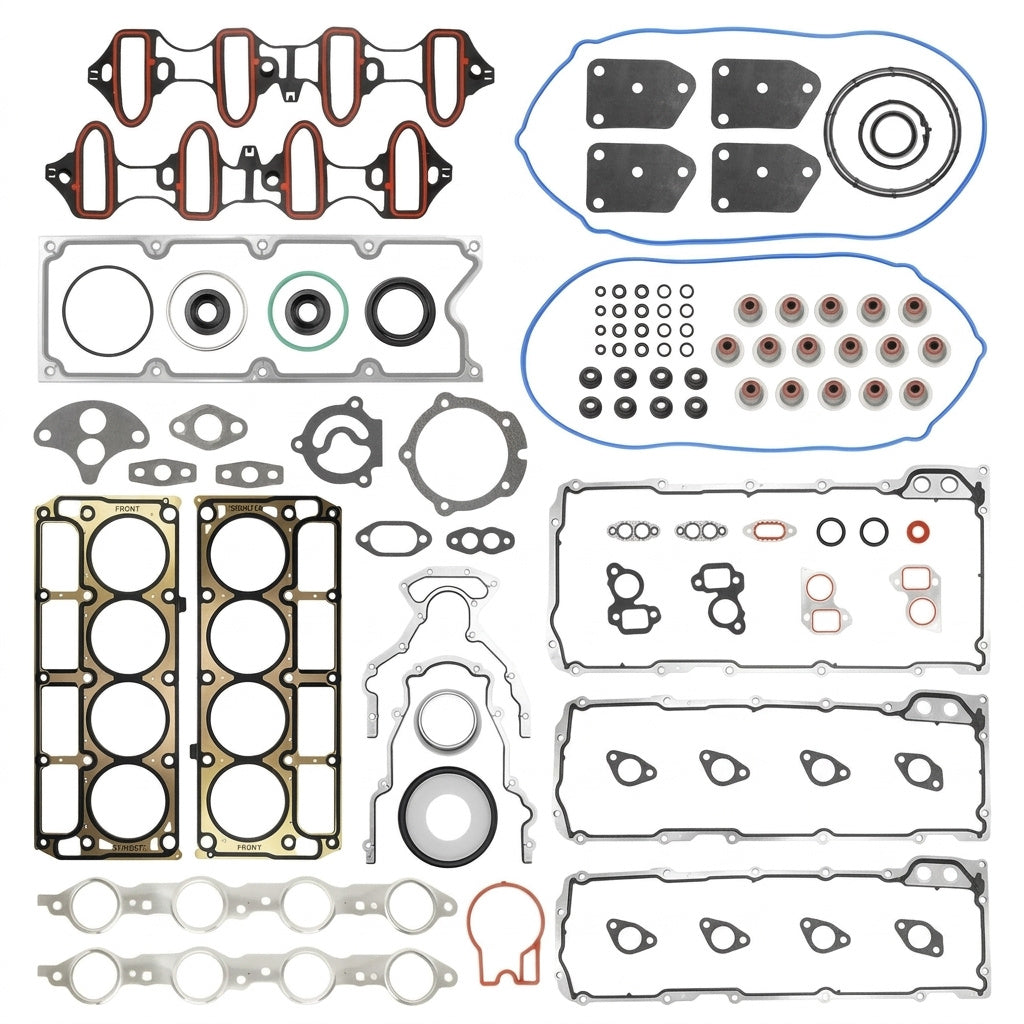

What's Included

• 2 Multi-Layer Steel (MLS) Head Gaskets
• 1 Rear Crankshaft Gasket Seal
• 1 Engine Oil Pan Gasket
• 1 Valley Cover Gasket
• Intake Manifold Gaskets
• Exhaust Manifold Gaskets
• Knock Sensor Grommets
• Damping Plug Heads
• Valve Stem Seals
• Fiber Base Plates
• Other O-rings and Gaskets

Technical Specifications

Compatibility

• 2004 Chevrolet Avalanche 1500 (5.3L V8)
• 2005 Chevrolet Avalanche 1500 (5.3L V8)
• 2006 Chevrolet Avalanche 1500 (5.3L V8)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT805 Avalanche?

Yes, this is a direct fit for the 2004-2006 Chevrolet Avalanche equipped with the Vortec 5.3L V8 engine. Note: This kit is not intended for 8.1L big-block models, and piston rings are explicitly not included in this gasket set.

Are new cylinder head bolts required during this installation?

Yes, the factory cylinder head bolts on Gen III Vortec engines are Torque-to-Yield (TTY) and cannot be reused under any circumstances.

The Chevrolet Durability Standard

Engineered to handle severe-duty payload and towing conditions, this sealing system restores the structural resilience and heavy-duty reliability required of full-size GMT800-series utility platforms.
