Cold Air Intake with Heat Shield for Toyota Camry 2.5L (2018–2022) - Performance & Efficiency Upgrade

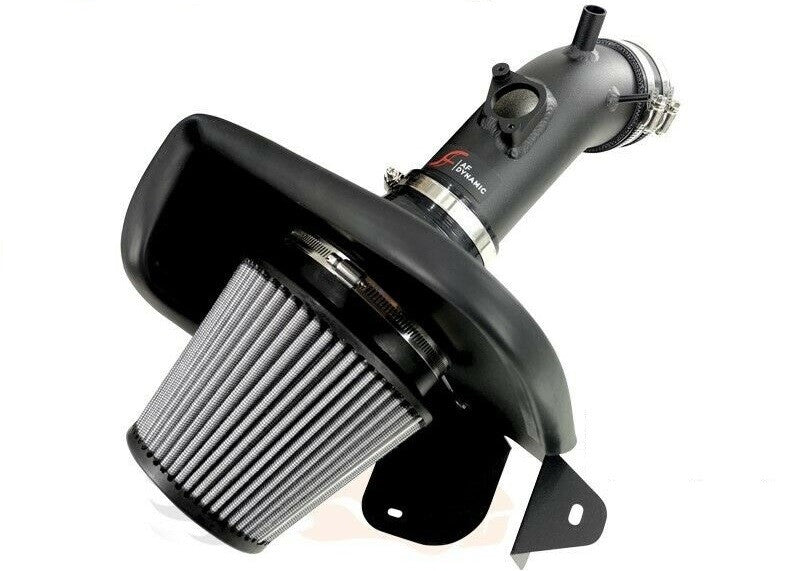

This cold air intake system with integrated heat shield is designed to replace the factory air box on 2018–2022 Toyota Camry and Camry Hybrid models (LE, SE, XLE trims) equipped with the 2.5L L4 engine. The system reduces intake restriction by using T304 aluminum piping and a high-flow air filter positioned within a heat shield enclosure. This results in improved throttle response, enhanced airflow efficiency, and measurable gains in horsepower and torque across the RPM range.

The intake uses larger diameter aluminum tubing compared to the factory intake tract, creating a less restrictive path for incoming air. The integrated heat shield isolates the air filter from engine bay heat sources, allowing the engine to draw cooler, denser air for improved combustion efficiency. The high-flow filter is engineered to provide adequate filtration while maintaining lower restriction than factory paper elements.

Vehicle Fitment

• 2018–2022 Toyota Camry LE (2.5L L4 Engine)
• 2018–2022 Toyota Camry SE (2.5L L4 Engine)
• 2018–2022 Toyota Camry XLE (2.5L L4 Engine)
• 2018–2022 Toyota Camry Hybrid LE (2.5L L4 Engine)
• 2018–2022 Toyota Camry Hybrid SE (2.5L L4 Engine)
• 2018–2022 Toyota Camry Hybrid XLE (2.5L L4 Engine)

Performance & Design

Airflow Optimization: The system is engineered to improve airflow efficiency by eliminating restrictive elements in the factory air box assembly. The T304 aluminum piping provides a smoother, less restricted path for incoming air. Testing under controlled conditions has shown potential gains of up to 10% in horsepower and torque. Actual performance improvements will vary based on vehicle condition, elevation, ambient temperature, and existing modifications.

Heat Shield Integration: The integrated heat shield creates a barrier between the air filter and engine bay heat sources. This allows the filter to draw cooler air from outside the immediate engine compartment, which increases air density and improves combustion efficiency. Cooler intake air contributes to more consistent power delivery during extended driving conditions.

Construction & Materials

T304 Aluminum Construction: The intake pipe is constructed from T304 lightweight aluminum, which provides corrosion resistance and reduces weight compared to factory plastic components. The aluminum construction maintains structural integrity across engine bay temperature ranges while resisting oxidation and heat exposure.

Filter Design: The high-flow air filter is engineered for exceptional filtration while maintaining maximum airflow. The filter uses washable filter media that can be cleaned, re-oiled, and reused. The filter is positioned within the heat shield enclosure to draw cooler air while maintaining protection from engine heat.

Features & Components

• T304 lightweight aluminum intake piping
• High-flow washable and reusable air filter
• Integrated heat shield for cooler air intake
• Direct replacement for factory air box and intake tube
• Reduces intake restriction for improved airflow
• Maximizes airflow through stock manifold system
• Enhances throttle response across RPM range
• Produces deeper intake sound under acceleration
• Reusable filter reduces long-term maintenance costs
• Compatible with hybrid and non-hybrid models

What's Included

• T304 aluminum intake pipe
• High-flow washable air filter
• Heat shield assembly
• Mounting hardware and clamps
• Installation components

Installation

• Direct replacement for factory air box and intake tube
• Uses existing factory mounting points
• No cutting or drilling required
• Installation time approximately 45–60 minutes
• Basic hand tools required (screwdrivers, socket wrenches)

Installation Note:
After installation, disconnect the negative battery terminal for approximately 30 seconds to allow the engine control unit to reset. This allows the ECU to recalibrate fuel delivery and ignition timing parameters to optimize performance with the modified airflow characteristics. Always disconnect the battery before performing any engine bay work. The ECU will continue to adapt during normal driving operation.

Filter Maintenance

Inspection Schedule: Inspect the air filter every 5,000 miles and clean if necessary. Driving conditions such as dusty environments, urban traffic, or spirited driving may require more frequent inspection and cleaning.

Cleaning Procedure: Remove the filter from the intake tube. Gently tap the filter to remove loose debris. Apply an appropriate air filter cleaning solution to both the inside and outside of the filter element, working it into the filter media. Allow the cleaner to soak for approximately 10 minutes. Rinse the filter thoroughly with low-pressure water from the clean side out, continuing until water runs clear. Shake off excess water and allow the filter to air dry completely in a clean environment. Once fully dry, apply air filter oil evenly to the filter media according to product specifications. Allow the oil to wick through the filter material for approximately 20 minutes before reinstalling. Ensure the filter is completely dry before applying oil, as moisture will prevent proper oil absorption.

Compatibility Requirements

Model Verification: This cold air intake system is designed specifically for 2018–2022 Toyota Camry and Camry Hybrid models (LE, SE, XLE trims) equipped with the 2.5L L4 engine. The system is compatible with both hybrid and non-hybrid variants. Verify your vehicle's model trim and engine size before purchase to ensure proper fitment.

This cold air intake system with integrated heat shield provides improved airflow characteristics for the 2.5L Camry engine while maintaining reliable filtration through a washable, reusable filter element. The T304 aluminum construction provides durability and reduced weight compared to factory components. The heat shield design isolates the filter from engine bay heat sources to maintain cooler intake air temperatures. The system is designed to work with factory engine management components and stock manifold systems without requiring additional modifications or tuning.
