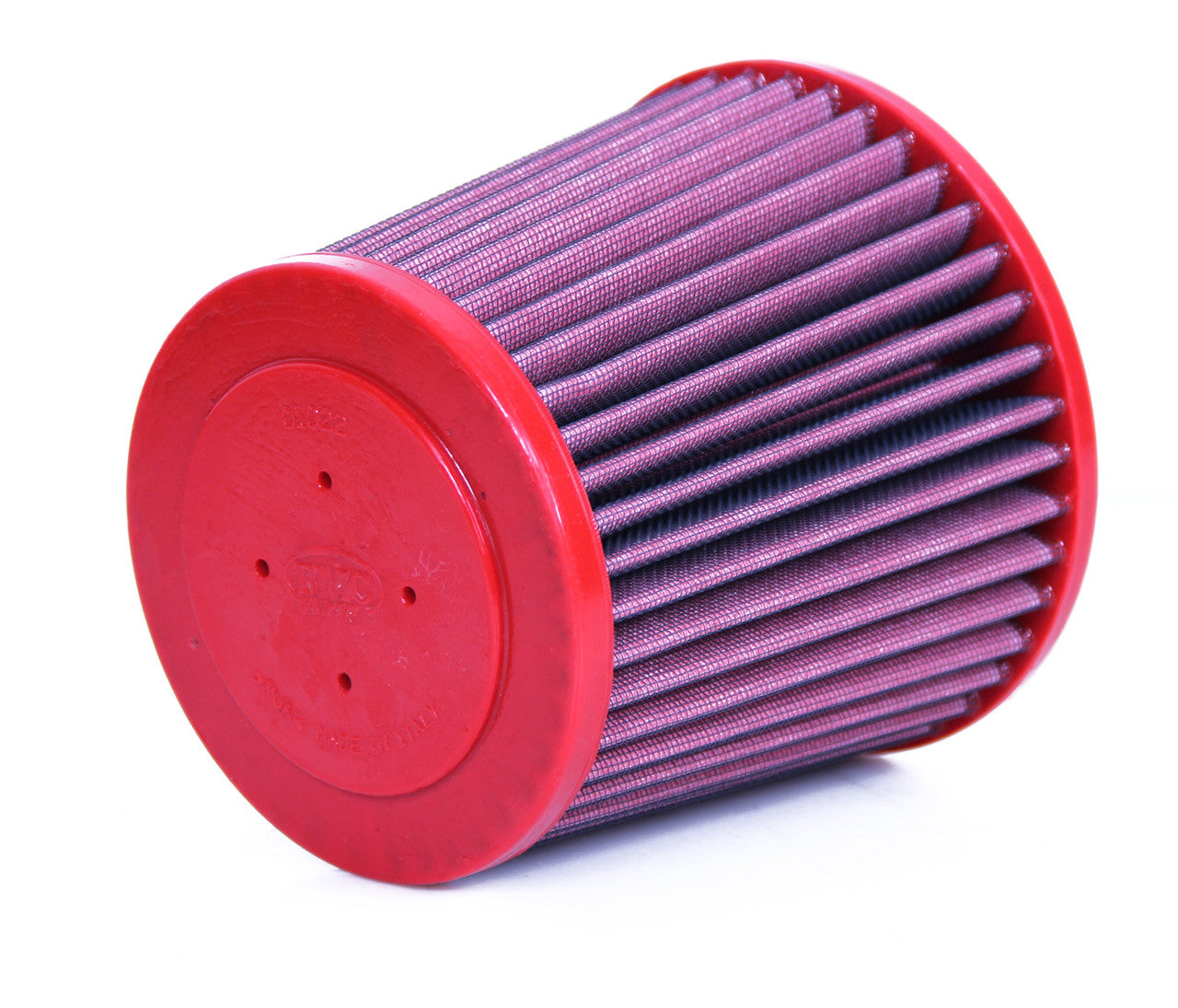

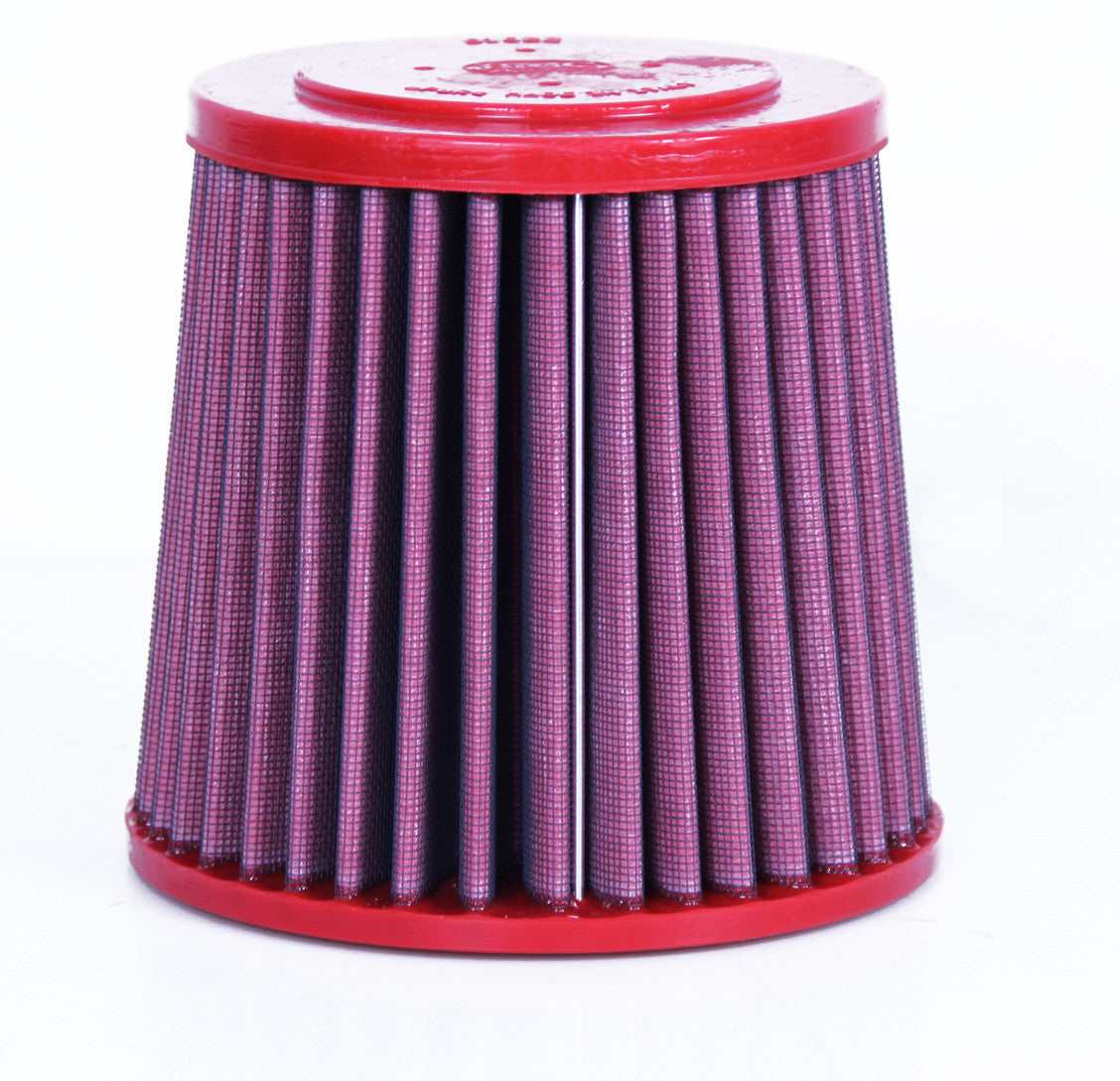

Performance Air Filter Cone for McLaren 720S (2017-2023) 4.0L

$250.00

Free Shipping within USA.

Guaranteed Fitment
Performance Tested
Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Shop safely

Secure checkout with trusted payment providers.

Shop safely with us

Maximum Induction Efficiency for the McLaren 720S M840T V8

Who It’s For: Designed specifically for McLaren 720S owners looking to optimize the breathing capacity of their M840T twin-turbocharged engine. This is for the driver who demands peak performance during high-speed pulls and track sessions where intake volume is critical.

The Problem: The M840T engine is a masterpiece of engineering, but it’s often stifled by factory paper filters. These OEM units are designed for long service intervals and cost-effectiveness, not maximum flow. For a high-revving, twin-turbo V8, these restrictive filters can lead to increased pressure drops across the intake tract, forcing the turbos to work harder to hit target boost levels.

The Solution: These BMC performance filters are engineered to correct the air-starvation issues of the stock M840T setup. By utilizing a multi-layered cotton gauze media soaked in low-viscosity oil, we provide a 7-micron filtration level that outperforms the 10-micron OEM standard while significantly increasing the volume of air reaching the combustion chamber. This allows for faster turbo spool and more consistent power delivery throughout the rev range.

Why This is the Ultimate Upgrade

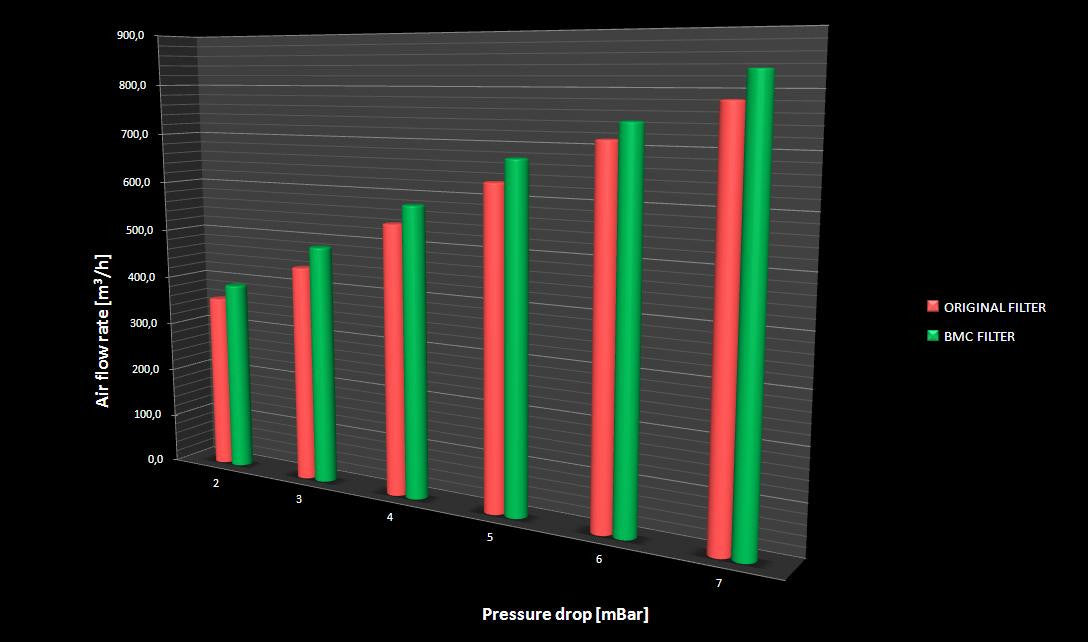

Enhanced Airflow: The low-viscosity oil and epoxy-coated alloy mesh allow for a much higher CFM rating compared to stock paper, ensuring your turbos aren’t gasping for air at 8,000 RPM.
Full Moulding Construction: Unlike cheaper filters that use glued sections, these utilize a "Full Moulding" system. This single-mould design eliminates welded joints, preventing failures or air leaks under the high-suction environments of a 700+ HP engine.
Washable & Regenerable: These aren’t throw-away items. Using a BMC regeneration kit, these filters can be cleaned and re-oiled, maintaining "like-new" flow characteristics for the life of your 720S.

Technical Specifications

Fitment	2017-2023 McLaren 720S
Engine Family	M840T Twin-Turbocharged V8
Factory Ratings	710 HP & 568 LB-FT Torque
Filter Material	Multi-layered Oiled Cotton Gauze

Compatibility & OEM Reference

Fits the Following Vehicles:

2017 McLaren 720S 4.0L V8
2018 McLaren 720S 4.0L V8
2019 McLaren 720S 4.0L V8
2020 McLaren 720S 4.0L V8
2021 McLaren 720S 4.0L V8
2022 McLaren 720S 4.0L V8
2023 McLaren 720S 4.0L V8

Kit Contents:

Includes 2 High-Performance Air Filters (Left and Right Bank)

The Performance Promise

Buy with confidence. As specialists in high-performance induction systems, we understand that a McLaren requires precision. These filters are pre-oiled and ready for immediate installation into your factory airbox. Backed by real automotive experts and fast shipping.

Fitment

Make	McLaren
Engine Size	4.0L
Year	2017 2018 2019 2020 2021 2022 2023

Installation & Tools

The Wrench Time

Estimated Time: 2 to 2.5 Hours
Difficulty: 5/10 - Accessible for DIYers, but requires careful wheel removal and meticulous disassembly of composite wheel arch liners.

Tools You Will Need

Floor jack & dedicated McLaren slotted jack puck adapter
Jack stands with flat rubber contact pads
19mm protective non-marring lug socket & breaker bar (or center lock socket if equipped)
Wheel hanger guide pin (essential for protecting Carbon Ceramic Rotors)
T25 & T30 Torx drivers (or 1/4"-drive Torx bits with ratchet)
7mm & 8mm nut drivers or flat-blade screwdriver (for hose clamps)
10mm wrench (for 12V battery disconnect)
Nylon trim panel popper tool
Calibrated torque wrench

Mechanic’s Pro Tip (The "Gotcha"):
The 720S wheel arch liners use several T25 and T30 Torx screws that look identical at a glance but differ in thread pitch and shank length. Map them out on cardboard as you remove them. Installing a long Torx screw into a shallow blind chassis hole can crack the composite inner fender structure or punch directly into exterior bodywork. Additionally, always screw in a wheel guide pin before sliding the rear wheels off to eliminate any chance of the wheel barrel striking and chipping your brittle Carbon Ceramic Matrix (CCM) brake rotors.

Phase 1: Removing the Factory Air Filters on the 2017-2023 McLaren 720S 4.0L

Disconnect the Battery: Open the front luggage compartment (frunk), remove the access trim using a panel popper, and disconnect the negative battery terminal using a 10mm wrench to power down the vehicle electronics and prevent diagnostic fault codes.
Lift and Secure the Vehicle: Place your McLaren slotted jack puck adapter into the rear jack points. Lift the rear of the vehicle with a floor jack and lower it onto heavy-duty jack stands. Ensure the vehicle is rock-solid before proceeding under the wheel wells.
Remove the Rear Wheels: Break the lug bolts loose using a 19mm protective socket and breaker bar. Thread a wheel hanger guide pin into the top hub hole before pulling the wheel straight off to avoid contact with the ceramic brake discs.
Disassemble the Rear Fender Liners: Using T25 and T30 Torx drivers, remove the perimeter fasteners holding the multi-piece composite inner wheel arch liner. Use a nylon panel popper to release the push rivets along the rocker edge, then carefully maneuver the liner out to expose the lower intake airbox tucked in the forward quarter panel.
Extract the OEM Airbox Assembly: Loosen the factory worm clamp securing the intake duct using an 8mm nut driver. Unfasten the retaining screws around the factory airbox cover using a T25 Torx driver, split the housing, and slide the restrictive factory paper filter element out of the intake tract. Repeat this process for the opposite side of the vehicle.

Phase 2: Installing the Performance Air Filter Cone for McLaren 720S (2017-2023) 4.0L

Prep and Inspect the Intake Inlet: Wipe down the internal rubber intake boot and turbo inlet tract with a clean, lint-free microfiber towel to ensure no road grit enters the M840T twin-turbochargers.
Mount the Performance Cone Filter: Slide the silicone adapter/flange of the new performance cone filter firmly over the airbox intake inlet neck. Ensure the filter is fully bottomed out against the stop shoulder for an airtight seal.
Secure the Intake Clamps: Align the filter so the cone body does not contact any surrounding chassis wiring or air conditioning hard lines. Tighten the stainless steel clamp using a 7mm or 8mm nut driver until snug (approximately 35 in-lbs; do not over-torque to prevent deforming the filter base).
Reinstall Housing and Wheel Liners: Secure the airbox housing or heat shields with the T25 Torx driver. Realign the multi-piece wheel arch liners, reinstalling all T25 and T30 Torx fasteners into their exact original positions.
Reinstall Wheels and Reconnect Power: Mount the rear wheels over the guide pin, hand-thread all lugs, lower the car to the ground, and torque the lugs in a star pattern to factory specification (135 Nm / 100 ft-lbs) using a calibrated torque wrench. Reconnect the negative battery terminal with a 10mm wrench and reinstall the frunk trim.
Perform the ECU Idle Trim Calibration: Start the engine and DO NOT touch the gas pedal for at least 20 seconds. Allow the McLaren Bosch ME17 engine management system to baseline its idle mass air flow readings and trim values to the new high-flow intake architecture without interruption.

Disclaimer: This is a general guide provided for the 2017-2023 McLaren 720S 4.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.

Warranty

All products are backed by our Limited Lifetime Warranty. We stand by our quality. [See terms]

Performance Air Filter Cone for McLaren 720S (2017-2023) 4.0L
