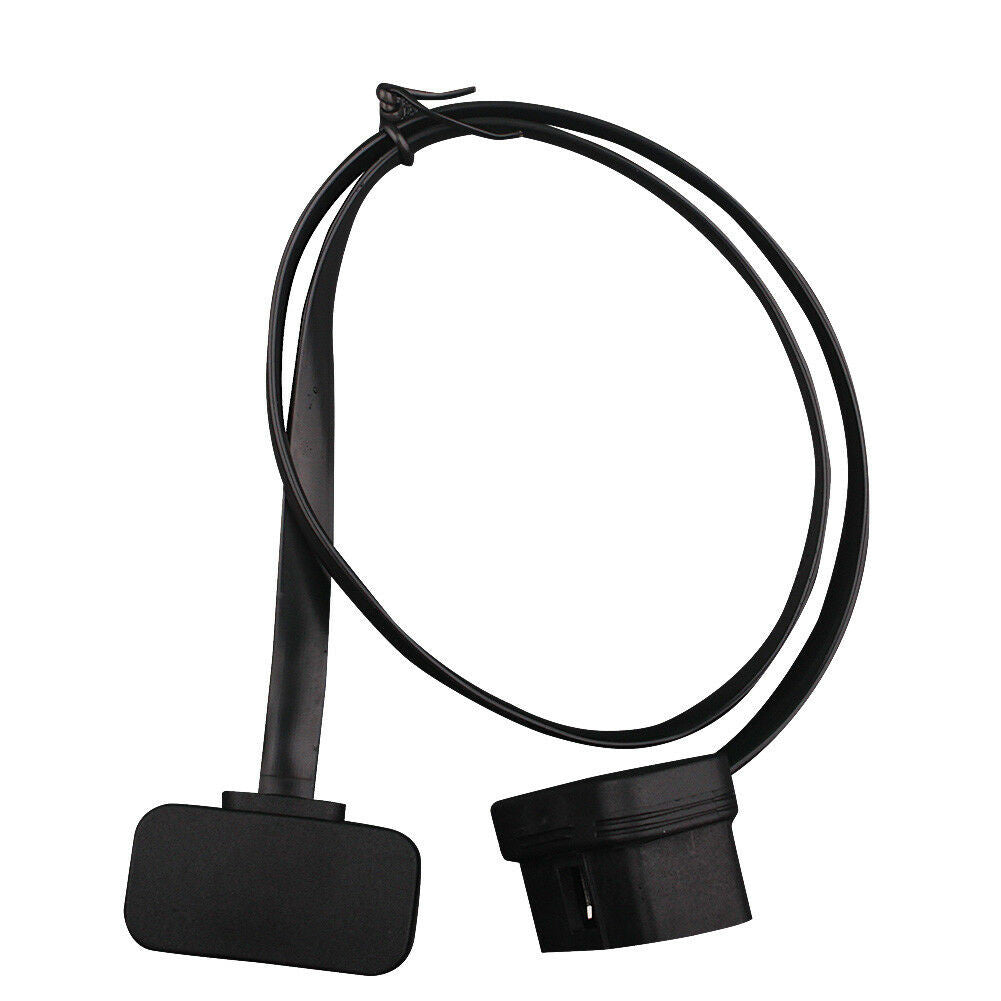

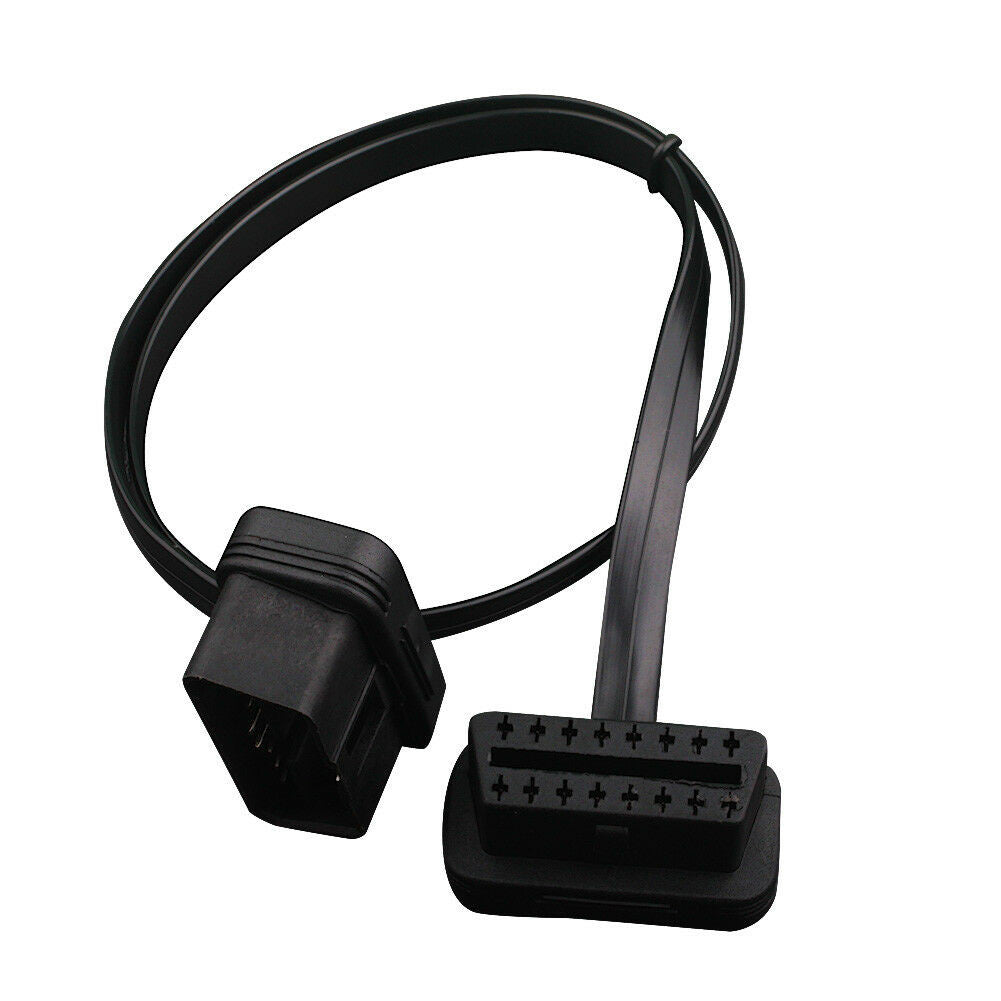

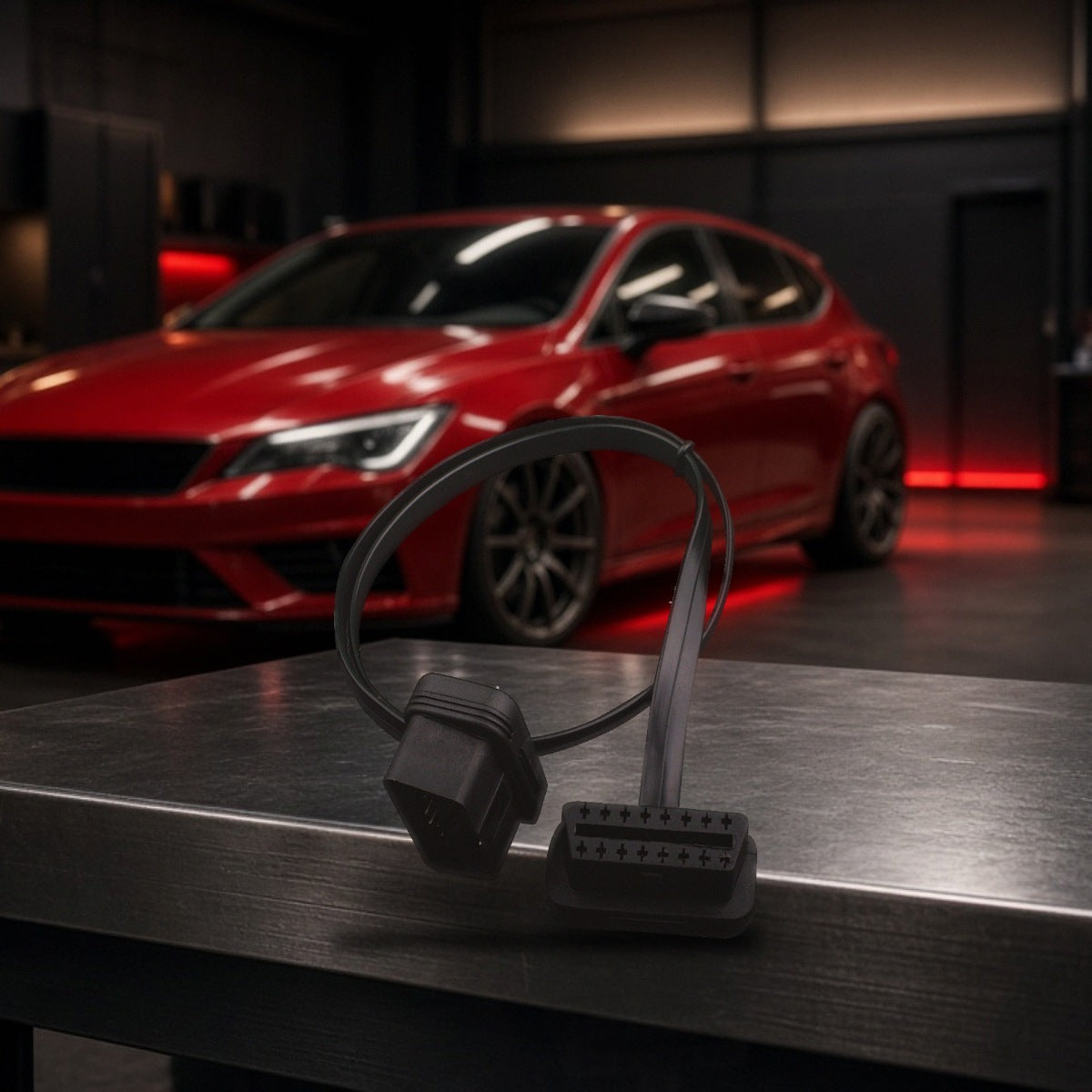

OBD2 16-Pin Flat Extension Cable – Male to Female (24 Inch)

Need more flexibility when installing your performance chip or diagnostic tool? This OBD2 16-pin flat extension cable makes it easy to relocate your device without strain on the factory OBD port. Designed for clean, professional installs, the ultra-thin "noodle" style cable routes neatly under trim panels and dashboards with minimal bulk.

Whether you're mounting a performance module out of sight or need better access for diagnostics, this extension cable provides a reliable, plug-and-play solution without signal loss or interference.

Key Features

  • OBD2 16-Pin Male to Female Extension
  • Compatible with performance chips, tuning modules, scanners, and diagnostic tools
  • Flat, thin cable design reduces tangling and improves flexibility
  • Ideal for hidden or remote mounting of OBD devices
  • Plug-and-play — no modification required

Why You'll Want It

Most vehicles place the OBD2 port in tight, awkward locations. This extension cable lets you relocate your device to a safer, more accessible position while reducing stress on the factory connector. The flat profile allows for clean routing under interior panels, helping maintain a factory-style look.

Specifications

  • Connector Type: 16-Pin OBD2 Male to Female
  • Cable Length: 60 cm / 24 inches
  • Cable Style: Flat "noodle" design

Package Includes

  • 1 × OBD2 16-Pin Flat Extension Cable

Perfect for performance upgrades, diagnostics, or tuning setups where space and cable management matter. Install smarter, protect your equipment, and keep your interior clean.

Engine Safety Rating
Difficulty

Fitment

Make

 -

Engine Size

 -

Year

 -

Installation & Tools

The Wrench Time

  • Estimated Time: 15-30 Minutes
  • Difficulty: 2/10 - A simple plug-and-play process, but requires careful cable routing to avoid pedal interference on your vehicle.

Tools You Will Need

  • 10mm Wrench or 10mm Socket (for the battery terminal)
  • Plastic Panel Popper
  • Zip Ties (High-quality, automotive grade)
  • Flush-Cut Wire Snips
  • Headlamp or Work Light
Mechanic’s Pro Tip (The "Gotcha"):
The biggest headache on this chassis is the brittle factory OBD2 port bracket. When data logging or running monitors, weekend warriors constantly kick the dongle with their knee, breaking the tabs. If you decide to unclip the factory port to tuck it completely behind the dash, do not force the plastic tabs. Gently massage them with a Plastic Panel Popper so they don’t snap off, leaving your diagnostic port dangling forever.

Phase 1: Removing the Factory Part

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench to prevent check engine lights or accidental shorts when working near dash wiring.
  2. Illuminate the Footwell: Strap on your Headlamp and locate the factory OBD2 port under the driver-side dash.
  3. Clear the Area: Use your Plastic Panel Popper to carefully remove any lower kick panel covers if your vehicle requires it to access the wiring harness behind the port.
  4. Release the OEM Port (Optional): If you are fully relocating the port to prevent knee-strikes, carefully depress the two side retaining clips with your Plastic Panel Popper and push the factory port up and out of its bracket.

Phase 2: Installing the OBD2 Extension Cable

  1. Connect the Extension: Take your new OBD2 Extension Cable and plug the male end firmly into the factory OBD2 port. Listen for the click. The pins inside handle sensitive CAN-bus and ECU data, so ensure it is seated straight and fully to avoid communication errors.
  2. Route the Ribbon Cable: Thread the extension cable up underneath the dashboard. You must route this strictly away from the steering column U-joint, the brake pedal arm, and the clutch pedal (if equipped).
  3. Anchor the Wiring: Secure the extension cable to a solid factory wiring harness using Zip Ties. Pull them tight so the cable cannot vibrate loose and drop onto your feet while driving.
  4. Trim the Excess: Use your Flush-Cut Wire Snips to cut the zip tie tails completely flush. Leaving sharp plastic tails is a rookie mistake that will slice your knuckles the next time you wrench under the dash.
  5. ECU Calibration: Reconnect the negative battery terminal and tighten it with your 10mm wrench. On the first startup, the vehicle gas pedal should not be touched for 20 seconds until the ECU adjusts to the restored power.

Disclaimer: This is a general guide provided for your vehicle. Always refer to your factory service manual for exact torque specifications and safety procedures.
