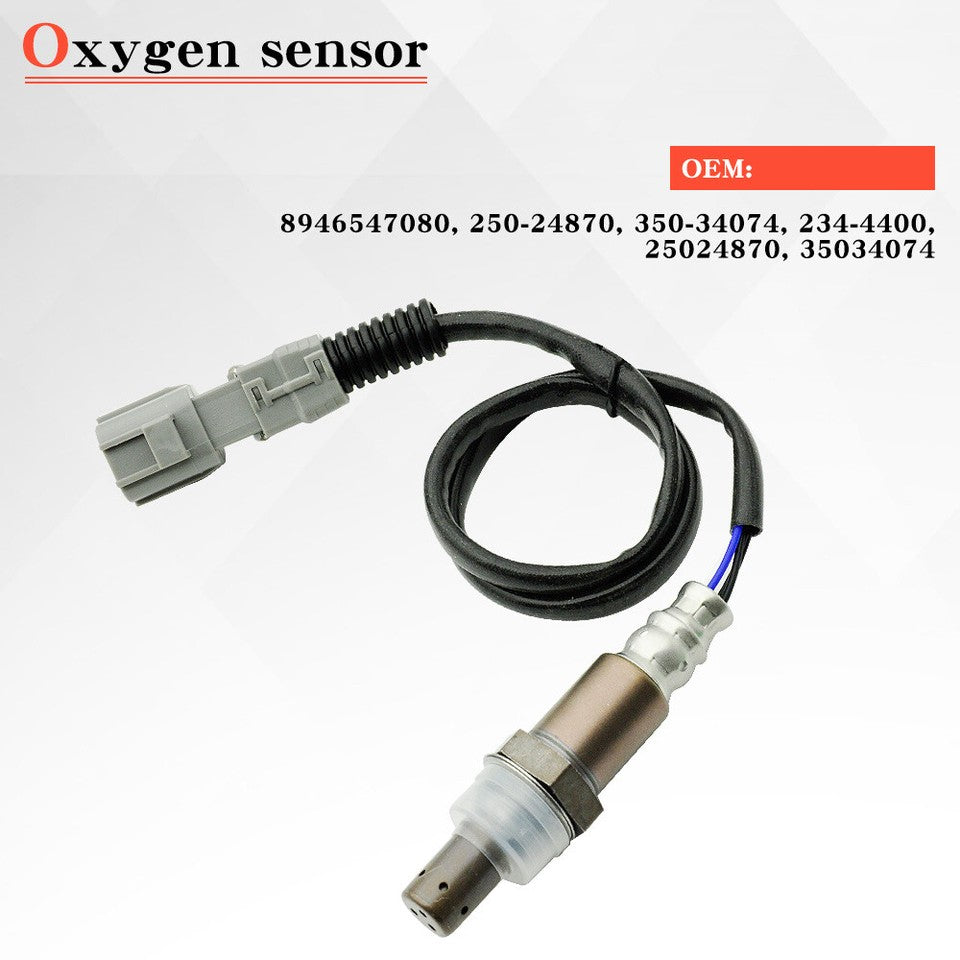

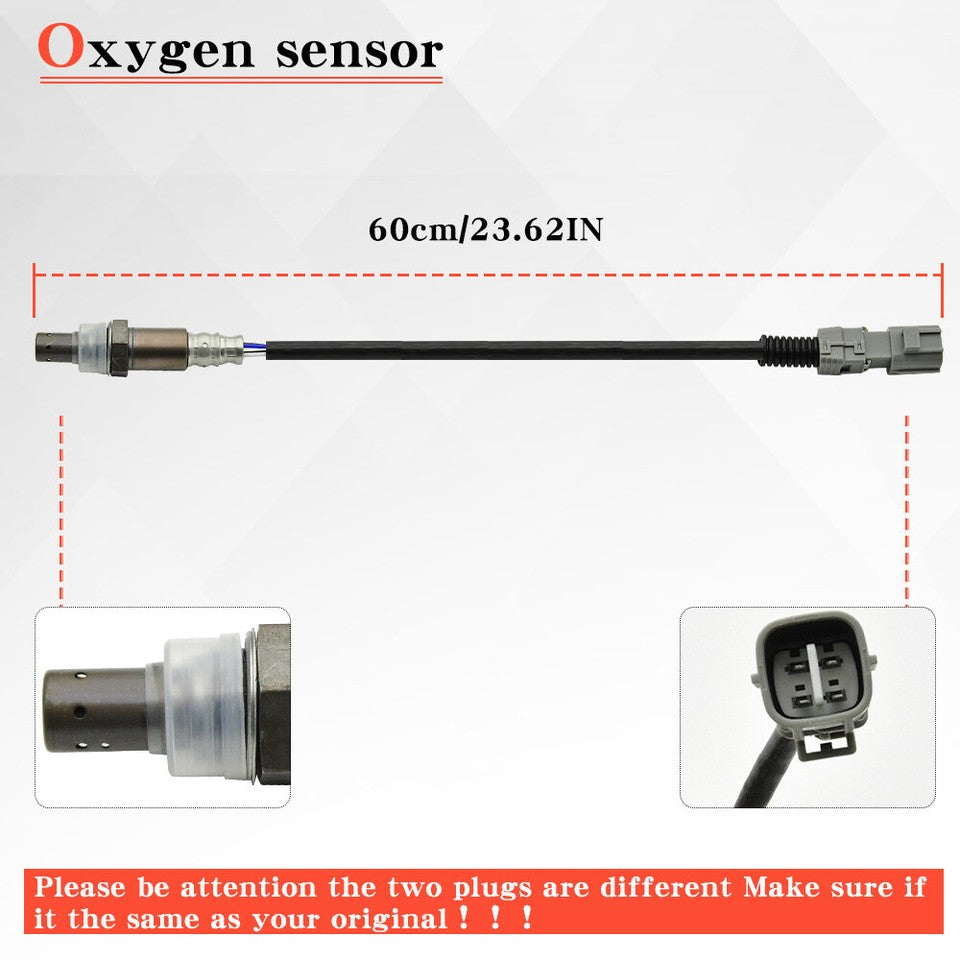

O2 Oxygen Sensor Downstream for Toyota Prius (2010-2014) 1.8L

Direct-Fit Downstream Oxygen Sensor for 2010-2014 Toyota Prius (ZVW30)

What it Does: The downstream oxygen sensor monitors post-catalytic converter exhaust gas chemistry on the 2010-2014 Toyota Prius to ensure proper emissions compliance, verify catalyst efficiency, and optimize secondary fuel trim mapping.

The Stock Toyota Prius Sensor Degradation

Factory secondary oxygen sensors on the ZVW30 chassis degrade over sustained operating cycles due to thermal fatigue and exhaust contaminants. With continuous hybrid engine start-stop cycling, the internal zirconia sensing ceramic element is subjected to rapid thermal shifts, silicone poisoning, and soot accumulation. Over time, the integrated heater circuit weakens or fails outright, resulting in diagnostic trouble codes such as P0136, P0137, or P0141. A sluggish downstream sensor limits the engine control module's ability to verify catalytic converter performance, often triggering false catalyst efficiency faults (P0420) and suboptimal hybrid fuel management.

The Engineering Solution

This direct-fit downstream oxygen sensor delivers precise secondary feedback using a premium planar ceramic sensing element and a rapid-heating internal circuit. Shielded by a dual-layer 304 stainless steel protective housing, the assembly resists high-temperature oxidation and road-debris impact. Laser-welded internal connections ensure stable millivolt signal transmission even under continuous thermal fluctuation. Pre-terminated wiring harnesses and factory-style weatherproof connectors mate directly to the vehicle's OEM harness without cutting or splicing, re-establishing precise signal response for the 2ZR-FXE powertrain management system.

What's Included

• 1x Downstream Oxygen Sensor

Technical Specifications

Compatibility

• 2010-2014 Toyota Prius Base, Two, Three, Four, Five (1.8L L4 Hybrid)

Frequently Asked Questions & Fitment Warnings

Does this fit the ZVW30 Prius?

Yes, this is a direct fit for the downstream (post-catalytic converter) location on the 2010-2014 Toyota Prius equipped with the 2ZR-FXE 1.8L engine. It is not designed to replace upstream air/fuel ratio sensors.

Does this oxygen sensor require thread anti-seize during installation?

Yes, apply a light coat of high-temperature sensor-safe anti-seize to the exhaust threads only, taking extreme care to prevent the compound from contacting the sensor snout or perforated shield.

The Toyota Caliber Standard

Toyota hybrid powertrains require strict stoichiometric control and clean electrical feedback to preserve battery cycling efficiency and catalyst life. Replacing aged emissions sensors with exact-specification hardware maintains peak fuel economy and prevents unnecessary diagnostic trouble codes.
