LS Swap Block Hugger Headers LS1 LS2 LS3 LS6 LS7 4.8L 5.3L 6.0L 6.2L V8

Space-Saving LS Swap Block Hugger Headers for Chevrolet Projects

What it Does: These stainless steel block-hugger headers provide critical frame and steering clearance when swapping GM LS-series V8 engines into classic chassis.

The OEM Manifold Problem

When transplanting a modern LS engine into a classic chassis, the OEM cast iron exhaust manifolds from the donor vehicle rarely fit. Factory truck or car manifolds typically feature wide, sweeping designs that immediately interfere with older frame rails, steering boxes, upper control arms, or custom engine mounts. Furthermore, factory cast iron manifolds are excessively bulky, prone to cracking under severe thermal stress, and feature rough internal castings that introduce exhaust turbulence and restrict exhaust gas scavenging, ultimately choking the engine's volumetric efficiency.

The Engineering Solution

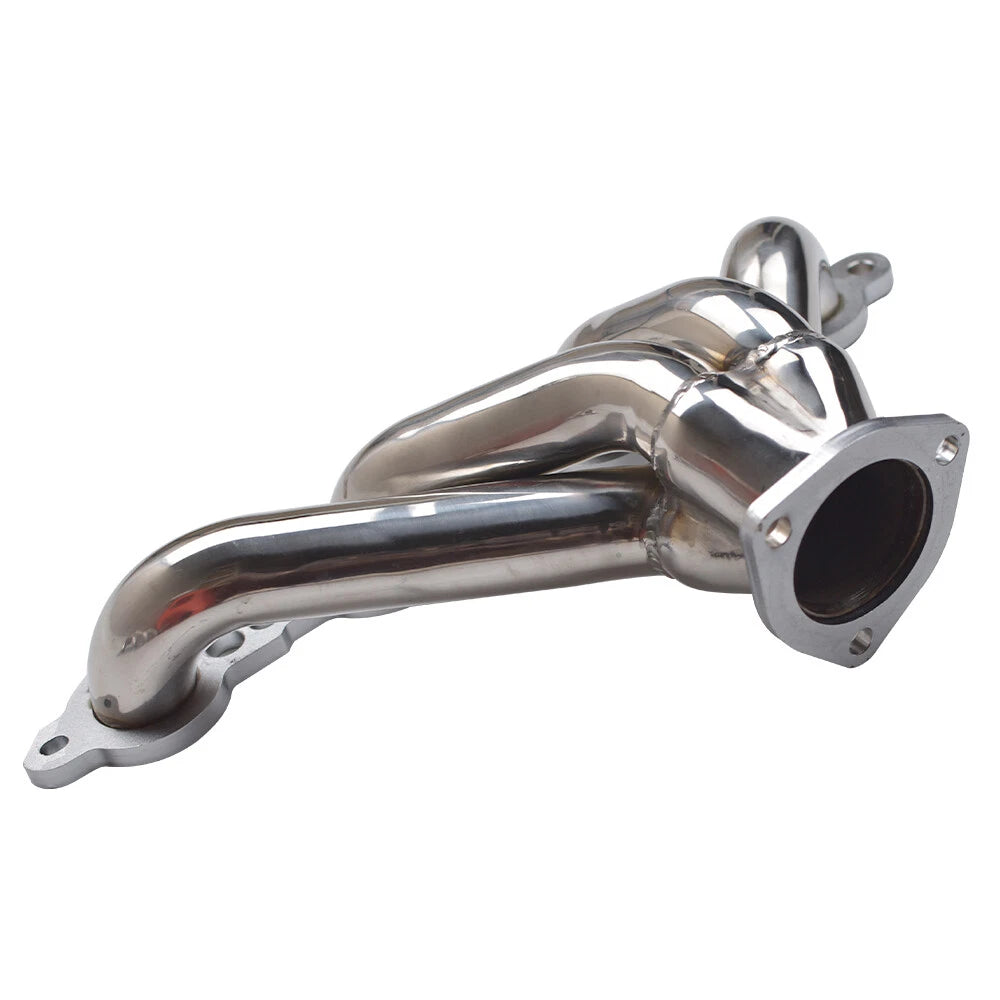

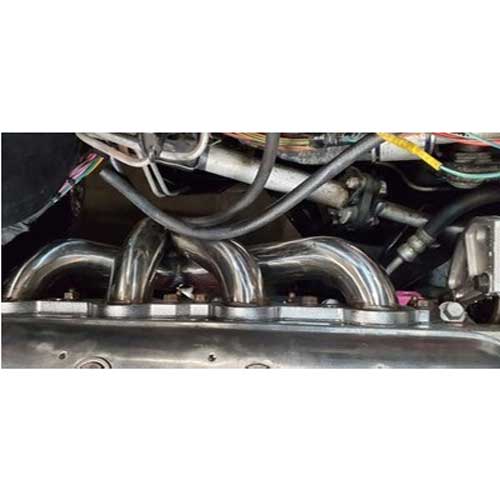

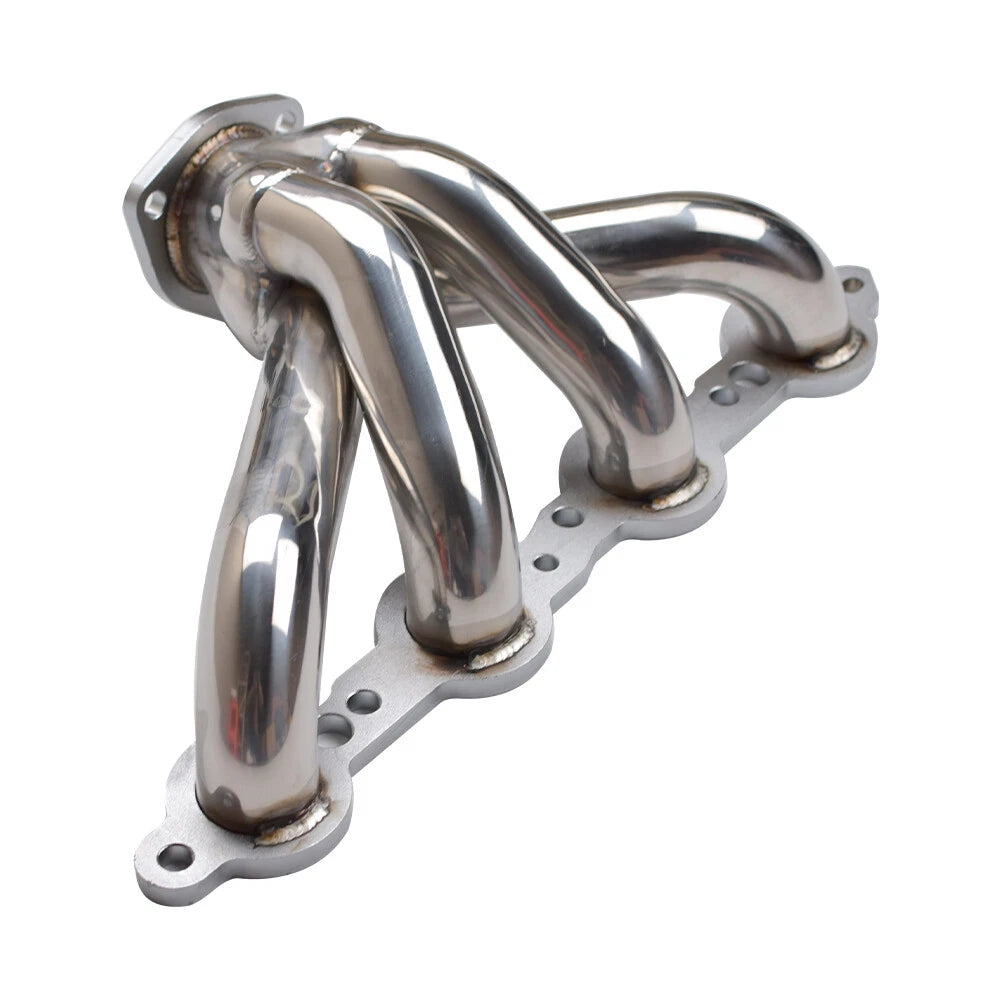

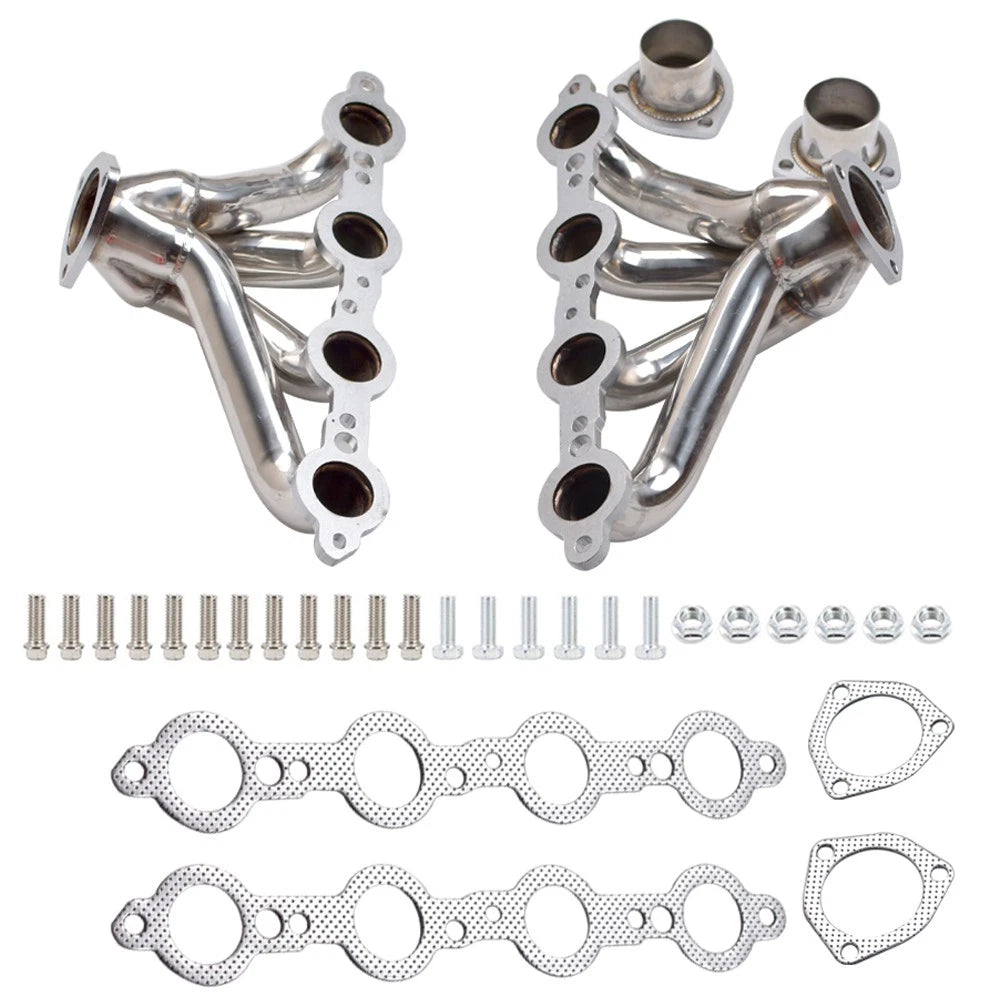

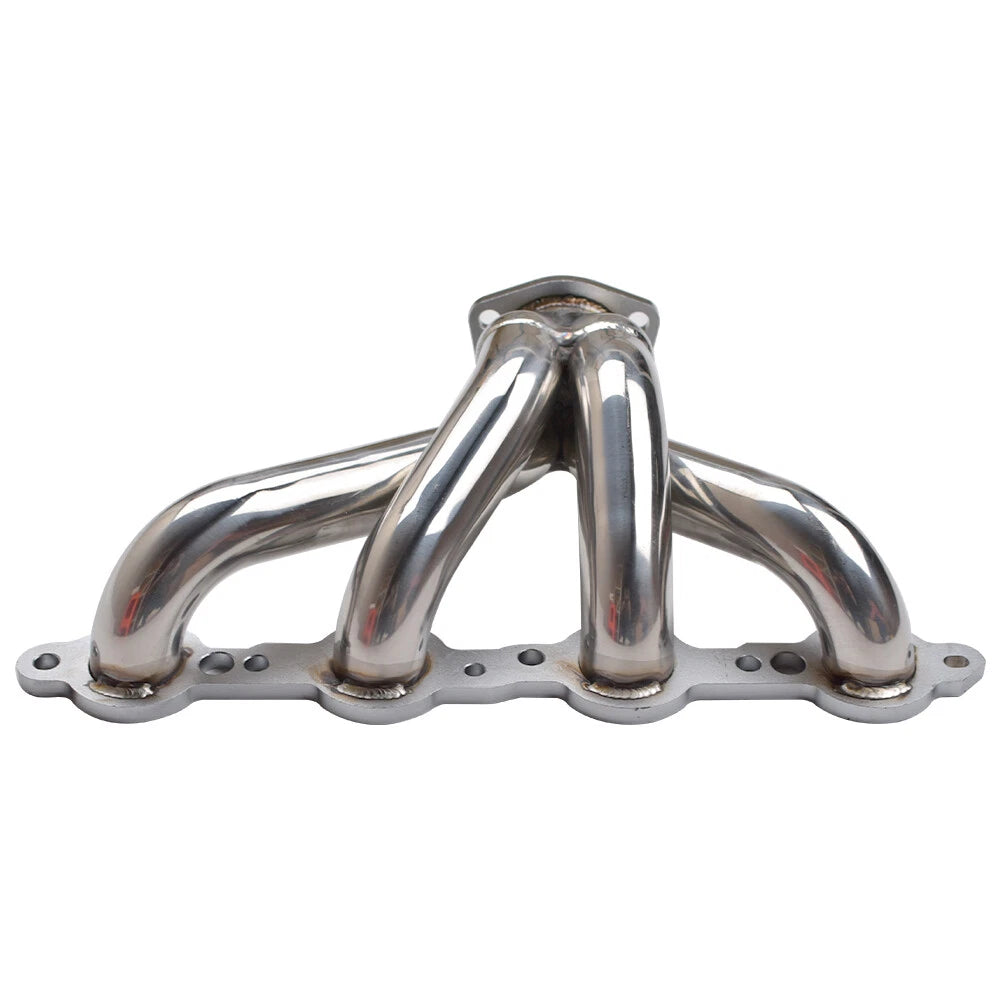

These short tube, block-hugger headers are specifically engineered to solve strict packaging constraints by tucking the exhaust routing tightly against the engine block. Fabricated from corrosion-resistant stainless steel, they withstand high heat cycles significantly better than standard mild steel manifolds. The headers utilize 1-5/8" primary tubes, the optimal diameter for maintaining exhaust gas velocity and maximizing low-end to mid-range torque on 4.8L to 7.0L displacements. Precision-machined 3/8" thick flanges ensure a perfectly flat mating surface to prevent high-temp exhaust leaks and resist warping under load. Complete with a 3-bolt collector (measuring approximately 2-1/4" to 2-1/2"), this setup allows fabricators the necessary flexibility to route custom exhaust plumbing around crossmembers and steering linkages.

Technical Specifications

Compatibility

• LS1 5.7L
• LS2 6.0L
• LS3 6.2L
• LS6 5.7L
• LS7 7.0L
• 4.8L LS
• 5.3L LS
• 6.0L LS
• 6.2L LS
• Common Swap Chassis: Chevrolet Camaro, Chevelle, Nova, El Camino, Impala, Bel Air, C10/C20/C30, GMC C/K trucks
• Note: Custom fitment required depending on engine mounts and steering clearance. Not recommended for 4WD/AWD vehicles or as direct-fit factory replacements.

The Chevrolet Swap Standard

Building a high-horsepower LS-powered classic demands components that balance performance with strict packaging constraints. These block-hugger headers deliver the clearance required for complex installations while maximizing V8 exhaust flow.

Common Questions

Which GM LS engines do these block-hugger headers fit?
They fit GM Gen III and Gen IV LS-series V8 engines, including the LS1 (5.7L), LS2 (6.0L), LS3 (6.2L), LS6 (5.7L), LS7 (7.0L), and truck Vortec 4.8L, 5.3L, 6.0L, and 6.2L engines.

Are these headers a direct replacement for factory exhaust manifolds?
These headers are built specifically for custom LS engine swaps into classic 2WD chassis—such as the Camaro, Chevelle, Nova, El Camino, Impala, Bel Air, and C10/C20/C30 trucks—and require custom exhaust routing.

Will these work on a 4WD or AWD vehicle?
These block-hugger swap headers are designed for 2WD classic swap chassis where frame rail and steering clearance are tight.

What are the tube and flange specifications?
They feature 1-5/8" primary tubes, precision-machined 3/8" thick flanges to resist warping, and 3-bolt collectors measuring approximately 2-1/4" to 2-1/2".

What material are the headers made from?
They are fabricated from corrosion-resistant stainless steel designed to handle high heat cycles and prevent cracking.
