Intercooler Charge Pipes for BMW M235i (2014-2016) 3.0T N55 Engine

Cold Side Intercooler Charge Pipe for BMW N55 3.0L Turbo (2013–2018) - Aluminum Upgrade & Reduced Turbo Lag

This cold side intercooler charge pipe is designed to replace the factory plastic charge pipe on 2013–2018 BMW models equipped with the 3.0L N55 turbocharged engine. The system is constructed from stepped T6-6061 aluminum piping (3.00" to 2.50") with precision CNC-machined flanges and TIG-welded sensor mounting points. This results in improved durability compared to the brittle factory plastic unit, reduced intake restriction, and enhanced throttle response with decreased turbo lag.

The charge pipe uses oversized aluminum piping compared to the factory component, creating a less restrictive path for pressurized air between the turbocharger and intercooler. The mandrel-bent construction maintains consistent internal diameter throughout each bend. The system includes stainless steel band clamps with protective liners, automotive-grade silicone couplers, and all necessary hardware for direct installation using factory mounting locations.

Vehicle Fitment

• 2013–2015 BMW 335i Sedan (3.0L N55 Turbo Engine)
• 2013–2015 BMW 335i xDrive Sedan (3.0L N55 Turbo Engine)
• 2014–2016 BMW 435i Coupe (3.0L N55 Turbo Engine)
• 2014–2016 BMW 435i xDrive Coupe (3.0L N55 Turbo Engine)
• 2014–2016 BMW M235i Coupe (3.0L N55 Turbo Engine)
• 2016–2018 BMW M2 Coupe (3.0L N55 Turbo Engine)

Performance & Design

Airflow Optimization: The system is engineered to reduce restriction in the pressurized intake path between the turbocharger and intercooler. The oversized aluminum piping (3.00" stepped to 2.50") provides increased flow capacity compared to the factory plastic pipe. This reduction in restriction contributes to improved throttle response and reduced turbo lag during acceleration and boost conditions. Actual performance improvements will vary based on vehicle condition, boost pressure, ambient temperature, and existing modifications.

Durability Enhancement: The T6-6061 aluminum construction replaces the brittle factory plastic unit that is prone to failure under boost pressure and heat cycling. The aluminum material withstands higher boost pressures and thermal cycling without the cracking or failure common in factory plastic charge pipes.

Construction & Materials

T6-6061 Aluminum Construction: The charge pipe is constructed from lightweight T6-6061 aluminum with stepped sizing from 3.00" to 2.50". The material provides superior strength and heat resistance compared to factory plastic components. The mandrel-bent tubing maintains consistent internal diameter throughout each bend, reducing turbulence and pressure loss in the pressurized intake path.

Precision CNC Machining: All flanges are precision CNC-machined for OE-style quick connect attachment to factory intercooler and turbocharger outlets. TIG-welded sensor flanges ensure proper fitment for factory sensors. The construction includes one 1/8" female NPT bung for auxiliary sensor or boost gauge installation.

Features & Components

• T6-6061 aluminum construction (3.00" stepped to 2.50")
• Replaces brittle factory plastic charge pipe
• Oversized piping reduces intake restriction
• Mandrel-bent tubing for consistent internal diameter
• Precision CNC-machined quick connect flanges
• TIG-welded sensor flanges for factory sensors
• Includes one 1/8" female NPT bung
• Stainless steel band clamps with protective inner liner
• Automotive-grade silicone couplers
• Uses all factory mounting locations
• Seamlessly integrates with OE intercooler
• Reduces turbo lag and improves throttle response
• Available in polished, wrinkle black, and wrinkle red finishes

What's Included

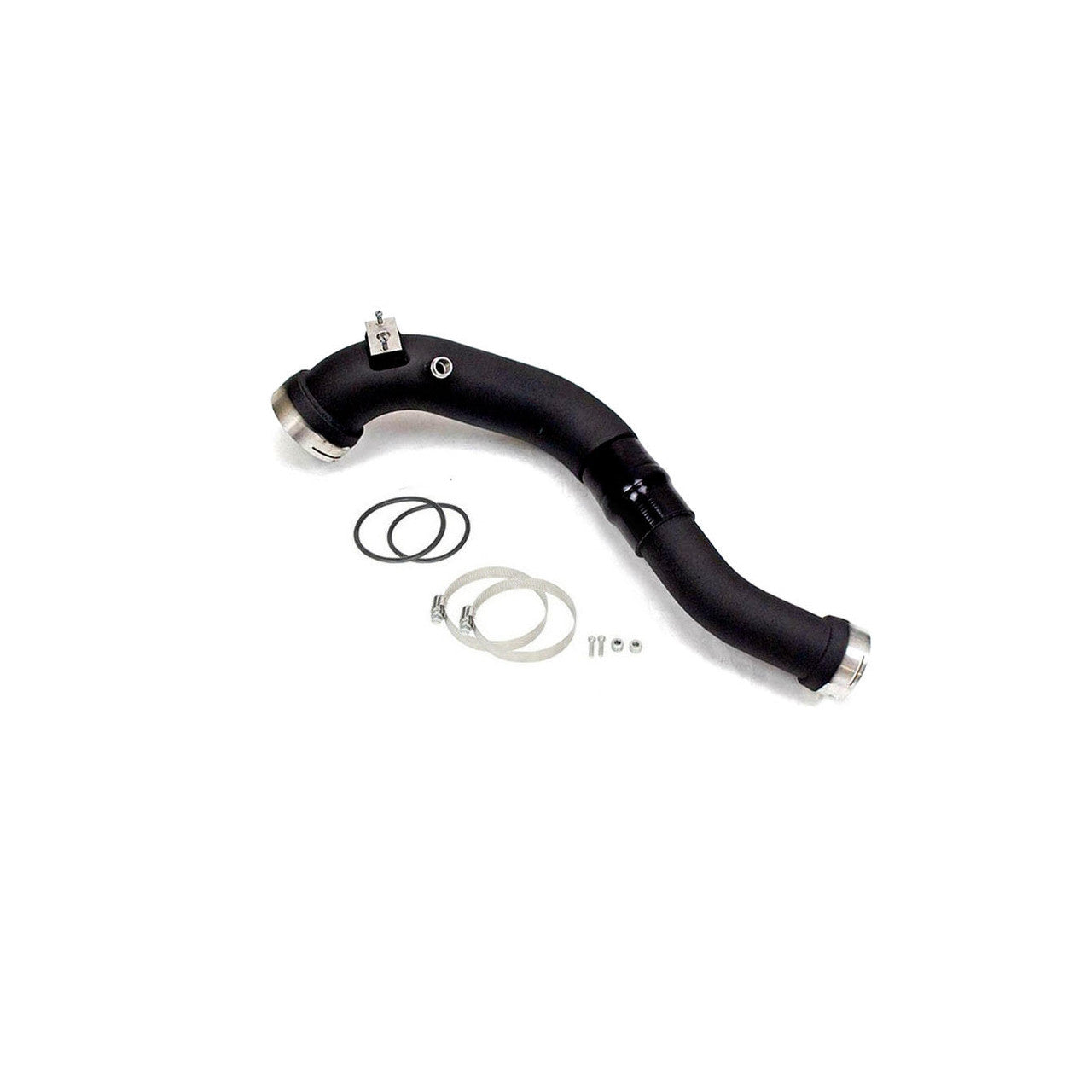

• Cold side intercooler charge pipe (aluminum)
• Stainless steel band clamps with protective liners
• Automotive-grade silicone couplers
• Complete mounting hardware
• Installation components

Installation

• Direct replacement for factory plastic charge pipe
• Uses all factory mounting locations
• Precision CNC-machined flanges for OE-style attachment
• No cutting or drilling required
• Professional installation recommended
• All necessary hardware included

Installation Note:
Installation requires removal of the factory charge pipe and installation of the aluminum replacement using factory mounting locations. The precision CNC-machined quick connect flanges attach to the factory intercooler and turbocharger outlets. Ensure all clamps are properly tightened to prevent boost leaks. Professional installation is recommended to ensure proper fitment and secure connections under boost pressure.

Finish Options

Available Finishes: This charge pipe is available in three finish options: polished aluminum, wrinkle black powder coat, and wrinkle red powder coat. All finishes provide corrosion resistance and durability in the engine bay environment.

Legal Notice & Compliance

California Emissions Compliance: This product is not CARB (California Air Resources Board) certified and is not legal for sale or use on emissions-controlled vehicles in California or states that have adopted CARB standards. This item cannot be shipped to California addresses. Verify local emissions regulations before purchase and installation.

Compatibility Requirements

Engine Verification: This cold side intercooler charge pipe is designed specifically for BMW models equipped with the 3.0L N55 turbocharged engine. Verify your vehicle is equipped with the N55 engine code before purchase. The system is compatible with both RWD and xDrive AWD models. Ensure vehicle compatibility before ordering.

This cold side intercooler charge pipe provides improved durability and reduced restriction for N55-equipped BMW models by replacing the failure-prone factory plastic unit with T6-6061 aluminum construction. The oversized mandrel-bent piping with precision CNC-machined flanges reduces turbo lag and improves throttle response under boost conditions. The system integrates seamlessly with factory intercooler and turbocharger outlets using OE-style quick connect flanges and all factory mounting locations.
