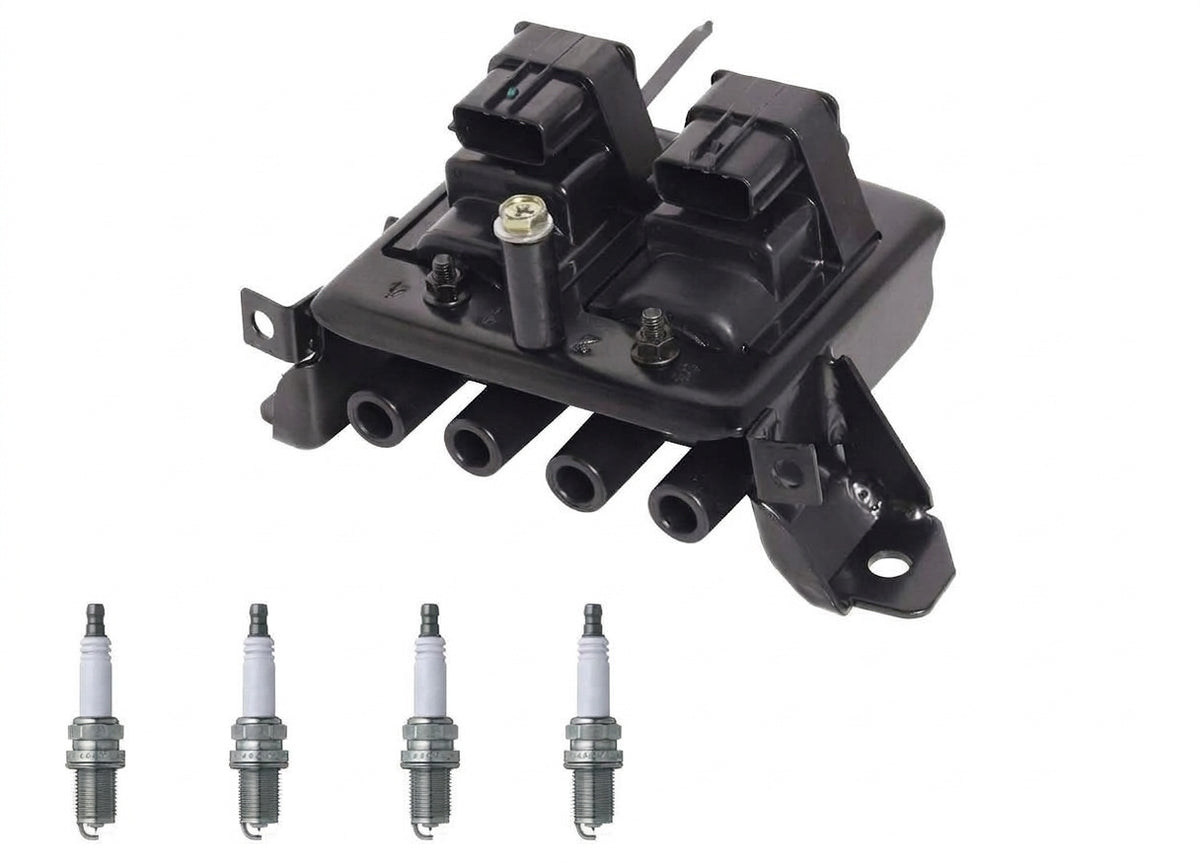

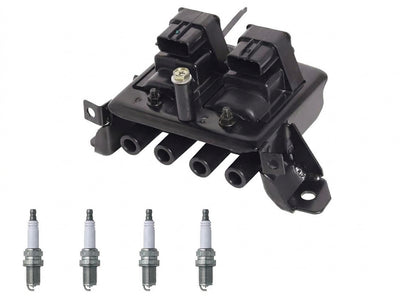

Ignition Coil + Spark Plugs for Mazda MX-5 Miata (1995-1997) 1.8L

Direct-Replacement Ignition Coil and Spark Plug Kit for 1995-1997 Mazda MX-5 Miata 1.8L (NA8 / BP-ZE)

What it Does: The Ignition Coil + Spark Plug Kit restores clean high-voltage spark delivery on the 1995-1997 Mazda MX-5 Miata to eliminate high-RPM misfires, stabilize idle, and recover lost engine efficiency.

The Stock Mazda MX-5 Miata Coil Degradation

The factory NA8C wasted-spark ignition coil pack is positioned at the rear of the cylinder head directly against the firewall, subjecting internal primary and secondary windings to continuous thermal radiation and vibration. Over time, heat-aged epoxy insulation breaks down, causing internal dielectric arcing, erratic tachometer signals, and weak spark energy across cylinder pairs. Coupled with aged, eroded electrode gaps on factory spark plugs, the deteriorating ignition system leads to unburned hydrocarbons, cataloged misfire fault codes, sluggish throttle response, and hesitation under wide-open throttle load.

The Engineering Solution

This direct-fit kit replaces deteriorated factory components with a precision-wound ignition coil pack and matching resistance spark plugs designed to match factory BP-ZE engine dwell profiles. Built using high-dielectric thermoset epoxy potting and heat-resistant copper windings, the coil unit prevents voltage bleed-down and internal shorting even under elevated underhood temperatures. The included spark plugs feature anti-corrosive plating, high-alumina ceramic insulators, and durable electrodes engineered to maintain consistent arc stability across the factory powerband.

Technical Specifications

Compatibility

• 1995 Mazda MX-5 Miata Base / M Edition 1.8L L4 Gas
• 1996 Mazda MX-5 Miata Base / M Edition 1.8L L4 Gas
• 1997 Mazda MX-5 Miata Base / M Edition / STO 1.8L L4 Gas

Frequently Asked Questions

Does this fit the NA MX-5 Miata?
Yes, this is a direct fit for the 1995-1997 Mazda MX-5 Miata equipped with the BP-ZE engine.

Should spark plug gaps be verified prior to installation?
Yes, always verify electrode gap to factory specification (0.040–0.044 in) and torque plugs to 11–17 lb-ft in a cold cylinder head.

The Mazda Roadster Caliber

The naturally aspirated BP-ZE relies on crisp, instantaneous spark timing to maintain its free-revving character through all 7,000 RPM. Installing a refreshed coil and plug assembly restores crisp throttle modulation, consistent top-end pull, and mechanical dependability on road or track.
