Ignition Coil + Spark Plugs for Ford E-Series (2000-2008) 4.6L

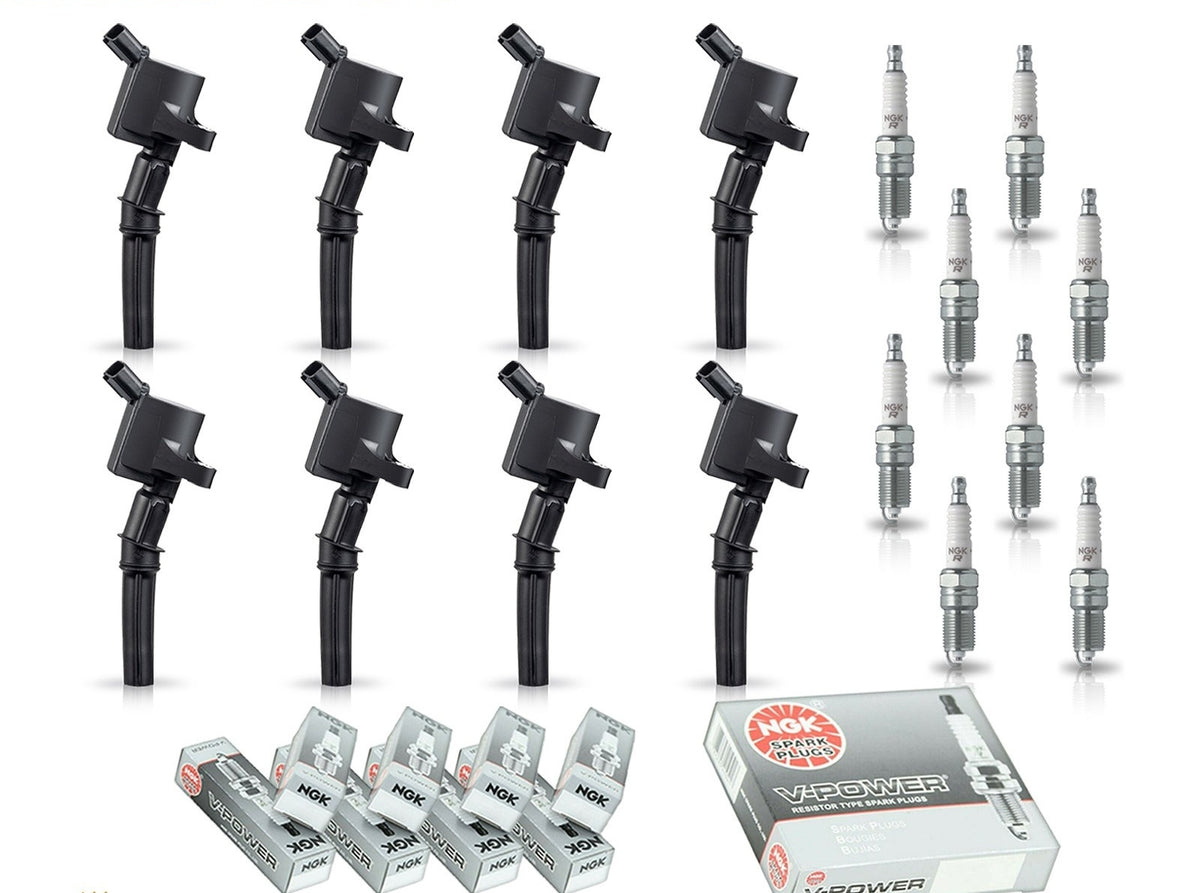

Direct-Fit Ignition Coil and Spark Plug Tune-Up Kit for 2000-2008 Ford E-Series

What it Does: The ignition coil and spark plug kit replaces degraded coil-on-plug units and worn spark plugs on the 2000-2008 Ford E-Series to eliminate misfires, stabilize idle quality, and restore factory combustion efficiency under load.

The Stock Ford E-Series Secondary Voltage Breakdown

In the cramped, high-heat doghouse engine bay of the VN platform E-Series, factory coil packs suffer severe thermal degradation over time. The original epoxy insulation breaks down, causing internal winding arching and high-voltage flashover across the dielectric boots. Paired with aged spark plugs whose gaps have widened from electrode erosion, the factory ignition system demands excessive primary amperage to fire the cylinder. This leads to intermittent cylinder misfires (often throwing P0301-P0308 DTC codes), hesitation under heavy payload acceleration, and unburned hydrocarbons washing down cylinder walls.

The Engineering Solution

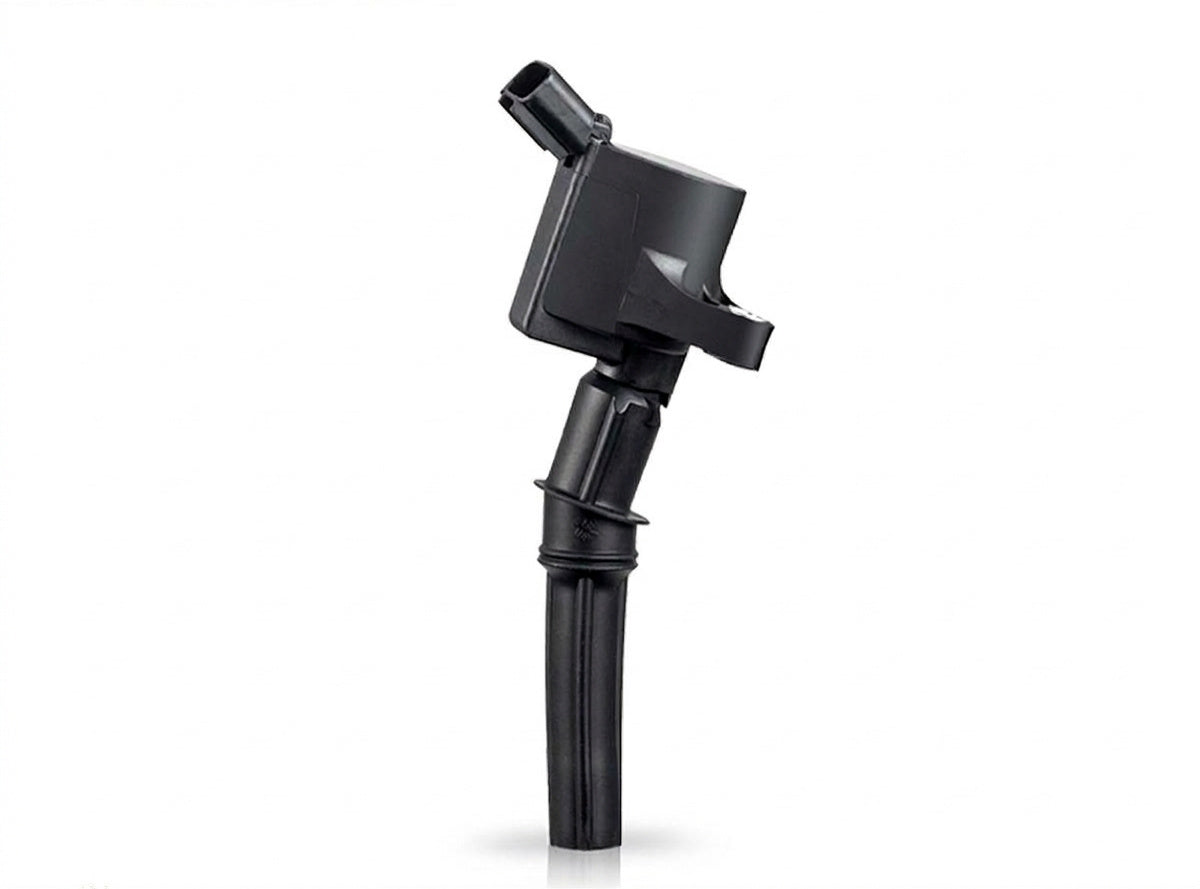

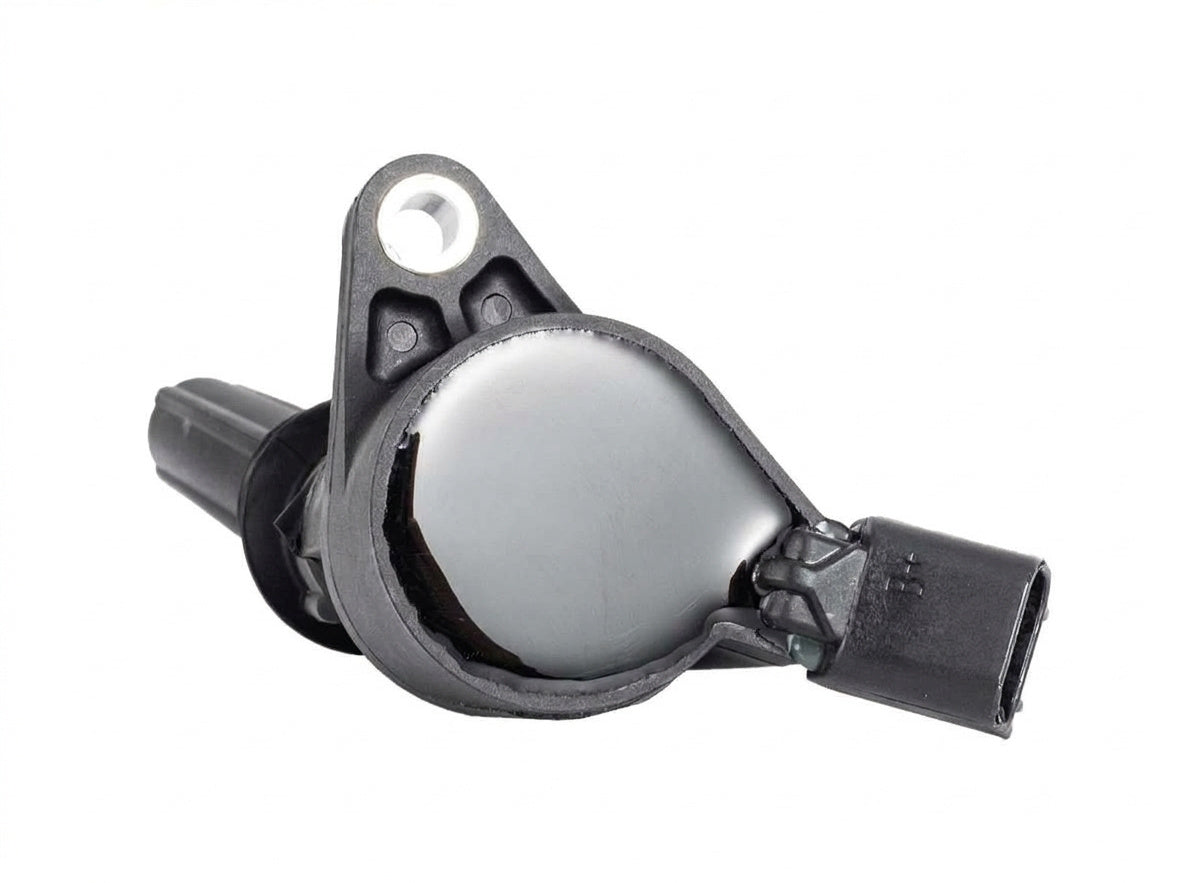

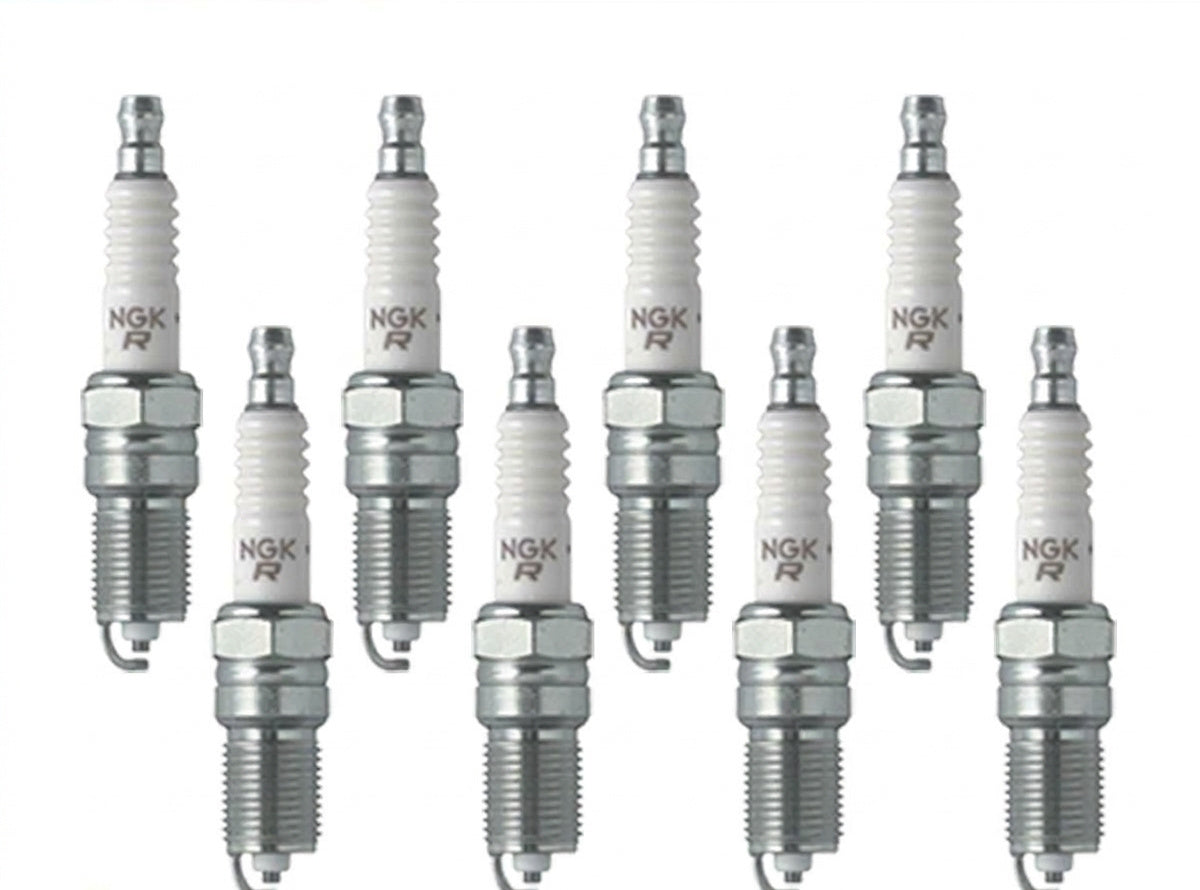

This direct-replacement ignition pack upgrades the secondary ignition circuit for the 4.6L Modular V8. Each individual coil-on-plug is engineered with premium magnetic copper wire windings and high-dielectric epoxy resin to prevent thermal heat soak and internal short circuits. Heavy-duty silicone boots resist ozone deterioration, oil contamination, and dielectric puncture. Matched with precise-gap nickel-alloy spark plugs, this kit stabilizes spark kernel energy across all eight cylinders, optimizing combustion chamber burn rates and protecting catalytic converters from unburnt fuel wash.

Technical Specifications

Compatibility

• 2000-2008 Ford E-150 4.6L V8
• 2000-2008 Ford E-150 Club Wagon 4.6L V8
• 2000-2008 Ford E-150 Econoline 4.6L V8
• 2000-2008 Ford E-150 Econoline Club Wagon 4.6L V8

Frequently Asked Questions

Does this fit the VN platform E-Series?
Yes, this is a direct fit for the 2000-2008 Ford E-Series equipped with the 4.6L Modular 2V SOHC V8 engine.

What is the torque specification for the spark plugs on this 2V head?
Torque the spark plugs dry to 11–14 lb-ft (or updated technical spec of 25–28 lb-ft on clean threads without anti-seize) to avoid stripping the aluminum cylinder head threads.

The Ford Heavy-Duty Work Standard

When hauling cargo or pulling commercial loads, an uncompromised secondary ignition system is vital for constant torque delivery. This complete tune-up kit restores immediate throttle response, reduces combustion chamber misfire under load, and preserves full trailering capability in high-demand fleet and commercial environments.
