Ignition Coil and Iridium Spark Plugs for Mitsubishi Outlander Sport (2011-2017) 2.0L

High-Efficiency Direct-Fit Ignition Coil and Iridium Spark Plug Kit for 2011-2017 Mitsubishi Outlander Sport

What it Does: Direct-fit complete ignition tune-up kit engineered to restore primary and secondary ignition circuit voltage, eliminate cylinder misfires, and stabilize idle dynamics on the 2.0L 4B11 MIVEC engine.

The Stock Outlander Sport Ignition Degradation

The factory ignition system on the 2.0L 4B11 engine is subjected to persistent high-temperature thermal cycling inside the deep cylinder head plug wells. Over time, heat soak causes dielectric breakdown in the OEM silicone boots, micro-fracturing of the internal epoxy potting, and resistance increases in the primary copper windings. Concurrently, factory spark plug gap erosion forces the coils to work harder, increasing the risk of voltage flashover, intermittent hesitation, P0300–P0304 misfire diagnostic trouble codes, and unburnt fuel waste.

The Engineering Solution

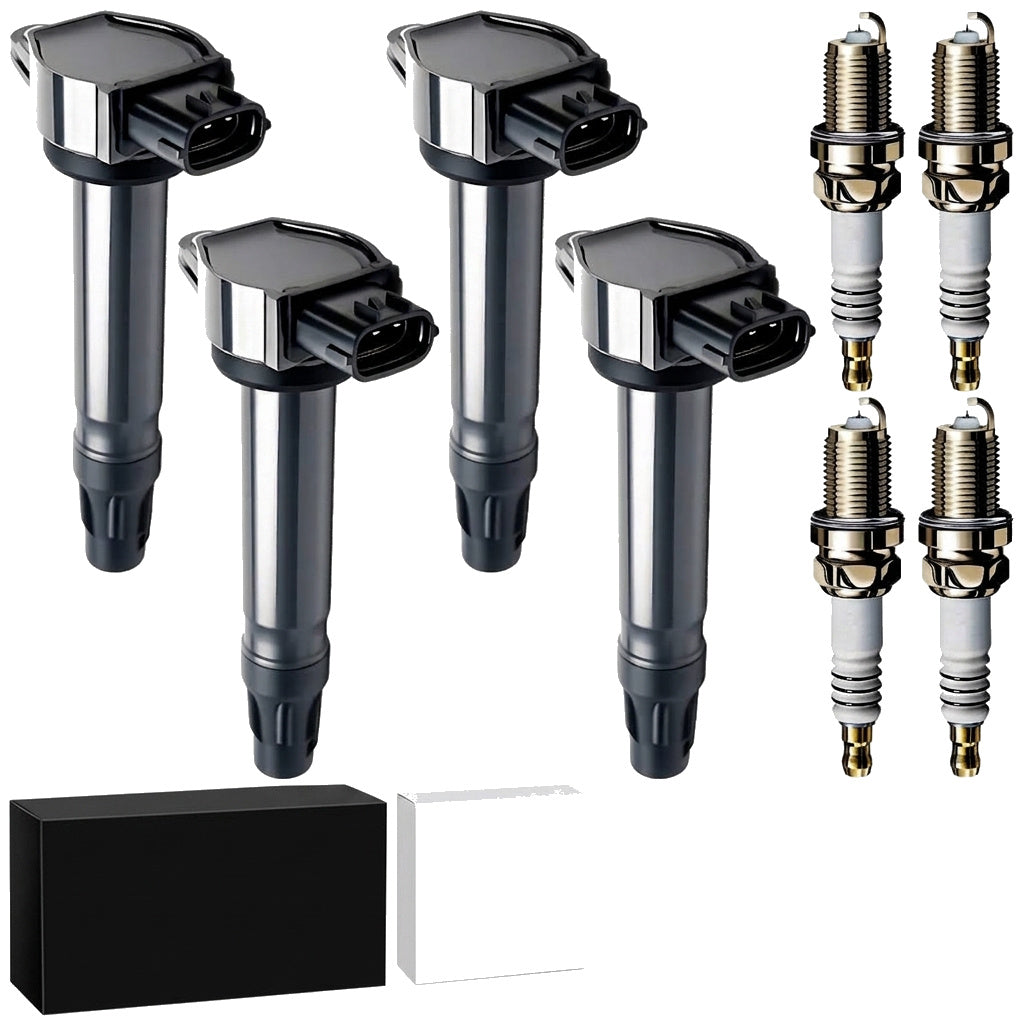

This 8-piece overhaul kit provides a matched high-energy replacement system. The coils are engineered with high-grade internal copper windings and reinforced dielectric housings that withstand extreme thermal fluctuations without insulation breakdown. Matched with fine-wire iridium spark plugs featuring ultra-high melting points and minimal electrode erosion rates, this combination requires lower ionization voltage to generate an immediate, stable flame kernel. The result is optimized combustion efficiency, consistent cold starting, and restored throttle response.

Technical Specifications

Compatibility

• 2011-2017 Mitsubishi Outlander Sport (2.0L L4 Gas - ES, SE, LE Trims)
• Interchange Reference: UF589, UF-589, FK0320, 1832A016, 52-2106, C1694, 5C1751, GN10519

The Mitsubishi Calibration Standard

Engineered to precise Japanese electrical tolerance specifications, this kit matches factory MIVEC ignition timing curves to deliver zero-CEL reliability, crisp power delivery, and long-term durability under demanding daily operating conditions.
