Ignition Coil and Iridium Spark Plugs for Ford Crown Victoria (2006-2011) 4.6L

Direct-Replacement Ignition Coil and Iridium Spark Plug Kit for 2006-2011 Ford Crown Victoria

What it Does: Delivers a complete secondary ignition refresh to restore combustion efficiency, eliminate misfire codes, and stabilize idle across all eight cylinders.

The Stock Crown Victoria Ignition Breakdown

The 4.6L Modular 2-Valve V8 relies on individual coil-on-plug (COP) assemblies seated deep in the cylinder head spark plug wells. Over continuous thermal cycles, factory coils suffer from thermal breakdown of internal dielectric potting and epoxy insulation. High engine bay temperatures degrade the copper secondary windings, inducing micro-arcing and secondary voltage leakage. Simultaneously, standard nickel-core or worn platinum plugs develop widening electrode gaps, dramatically increasing the required breakdown voltage. This elevated electrical load strains aging coils, resulting in sluggish throttle response, unburnt fuel wash, fouled catalytic converters, and persistent P0300-P0308 diagnostic trouble codes under load.

The Engineering Solution

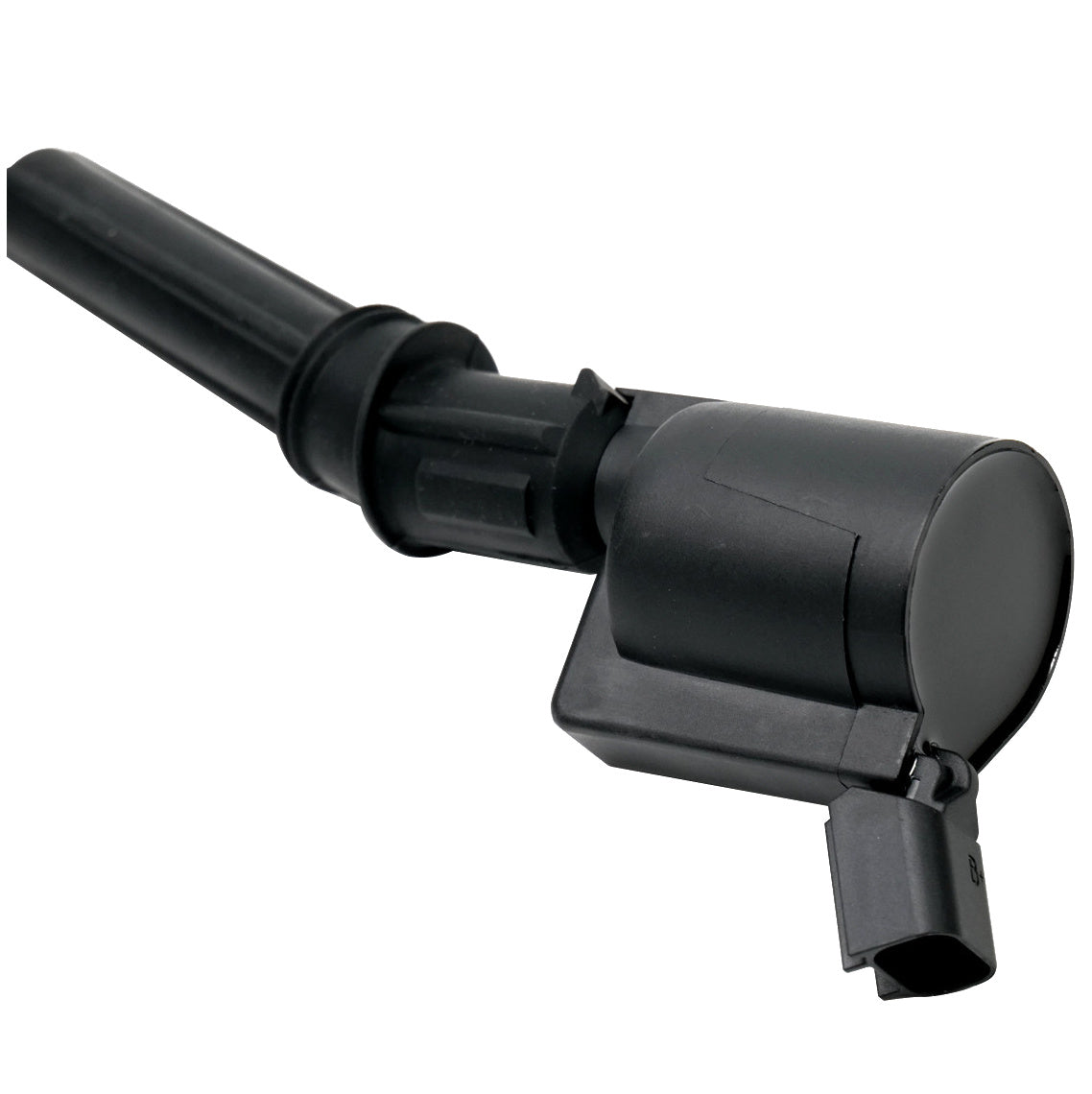

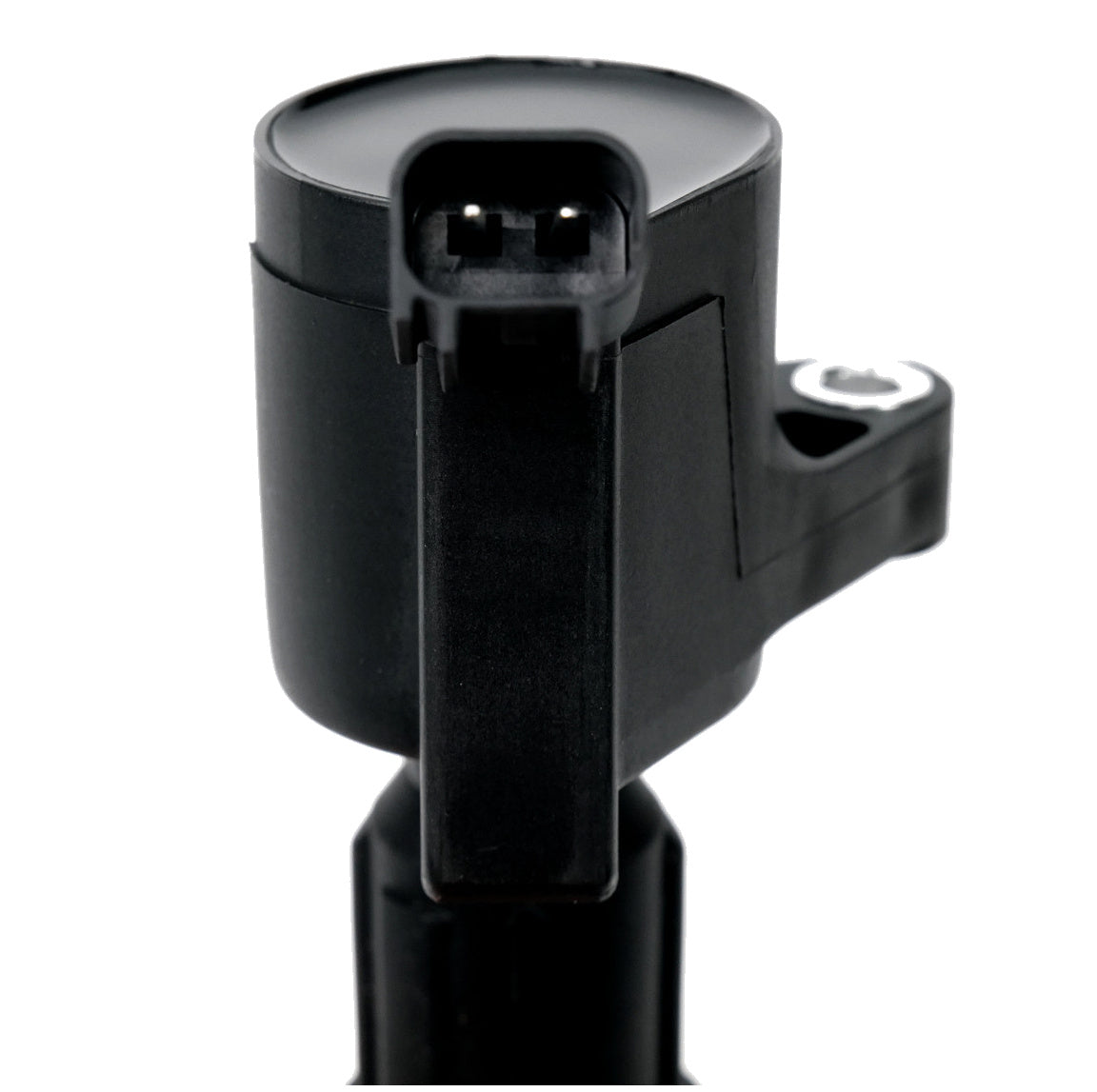

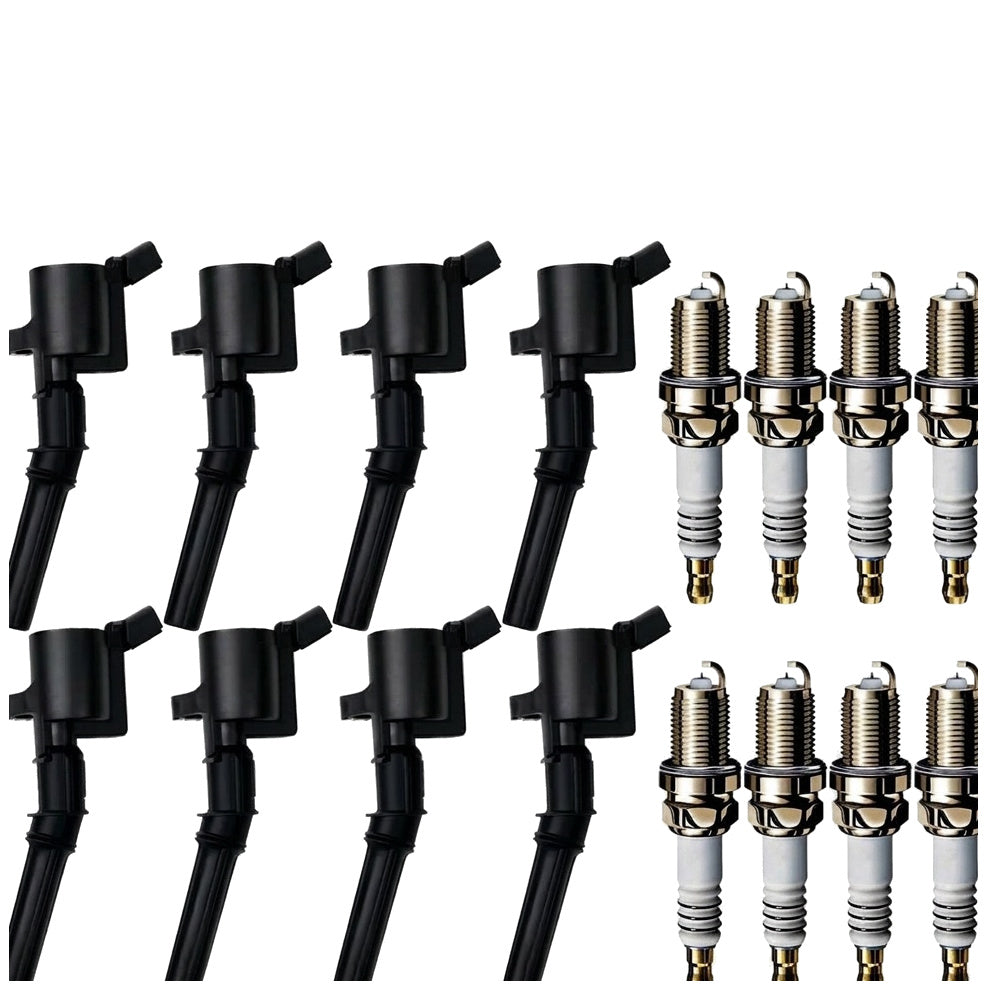

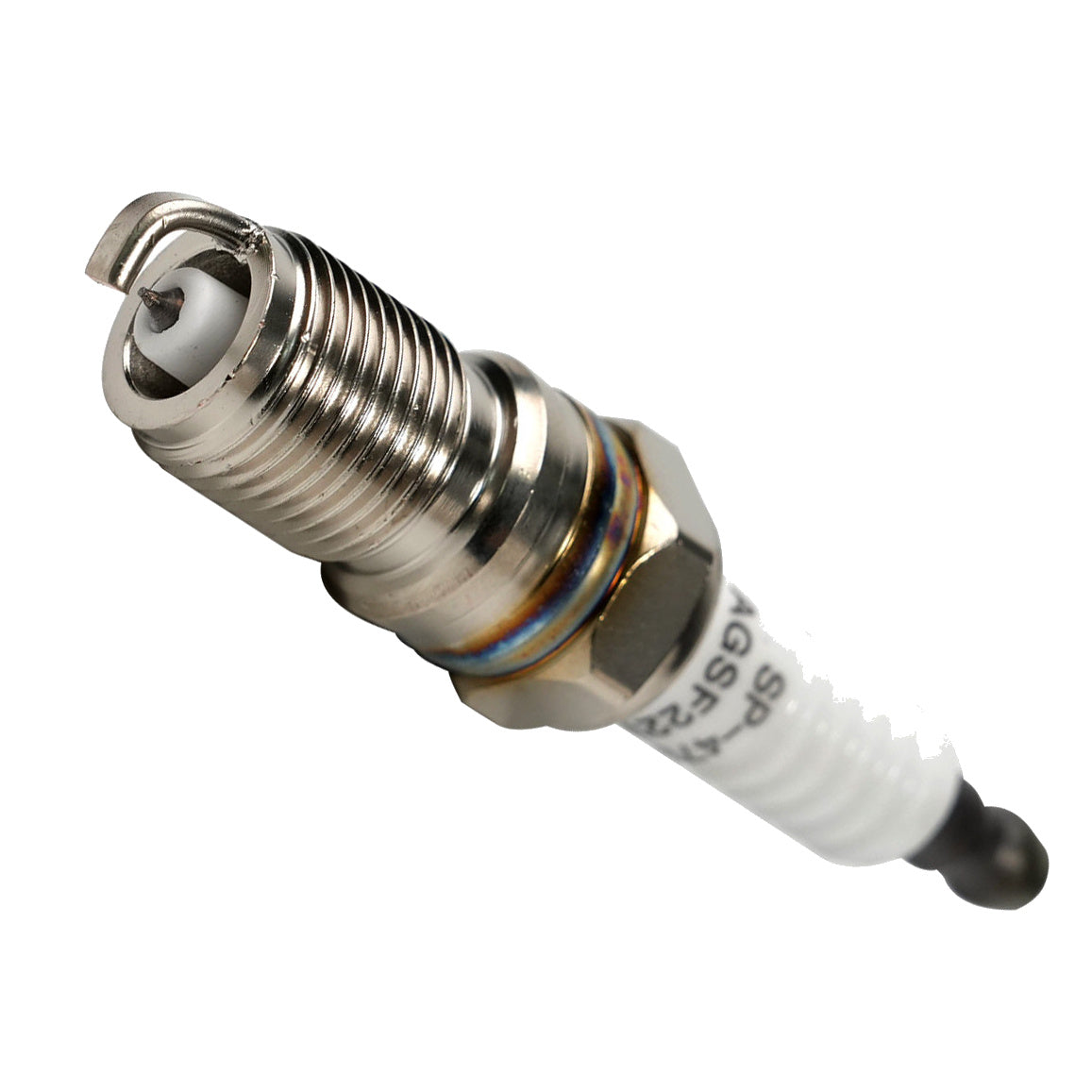

This comprehensive service kit pairs eight high-dielectric coil-on-plug assemblies with eight fine-wire iridium spark plugs. The ignition coils feature high-conductivity internal copper windings insulated with premium epoxy resin to withstand sustained thermal stress and prevent internal shorting. Solid blade terminals match OEM harness pinouts for zero-resistance electrical connectivity. The matched iridium spark plugs feature a laser-welded, ultra-fine center electrode that reduces ignition voltage requirements while providing extreme resistance to electrical erosion and carbon fouling, ensuring rapid flame propagation and reliable cold-start ignition.

Technical Specifications

Compatibility

• 2006-2011 Ford Crown Victoria Base 4.6L V8
• 2006-2011 Ford Crown Victoria LX 4.6L V8
• 2006-2011 Ford Crown Victoria Fleet 4.6L V8
• 2006-2011 Ford Crown Victoria Police Interceptor (P71/P7B) 4.6L V8

The Ford Panther Platform Standard

Built for the punishing duty cycles of fleet and severe-service patrol use, this ignition package delivers consistent high-voltage delivery under sustained highway pursuit and high-idle conditions without signal drift.
