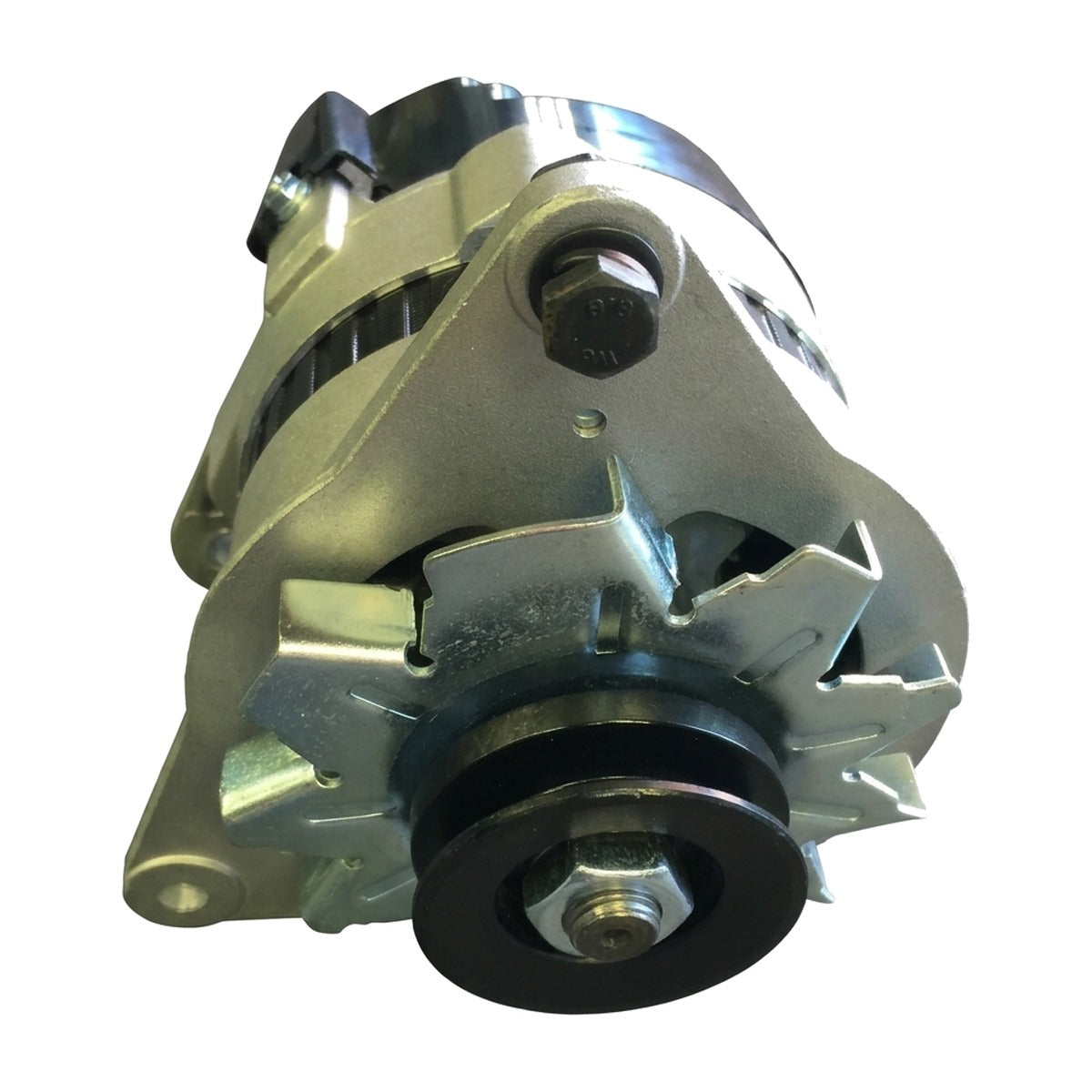

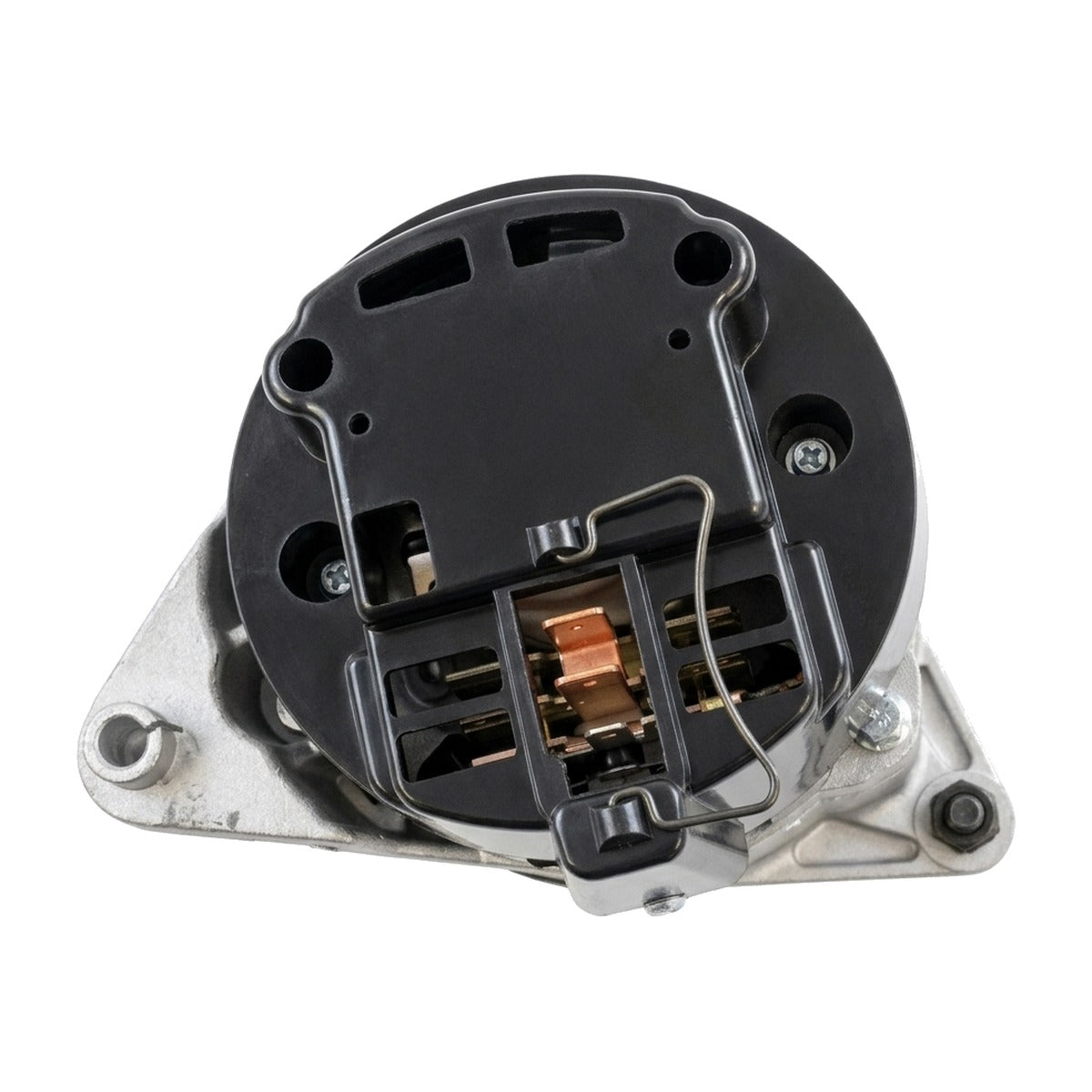

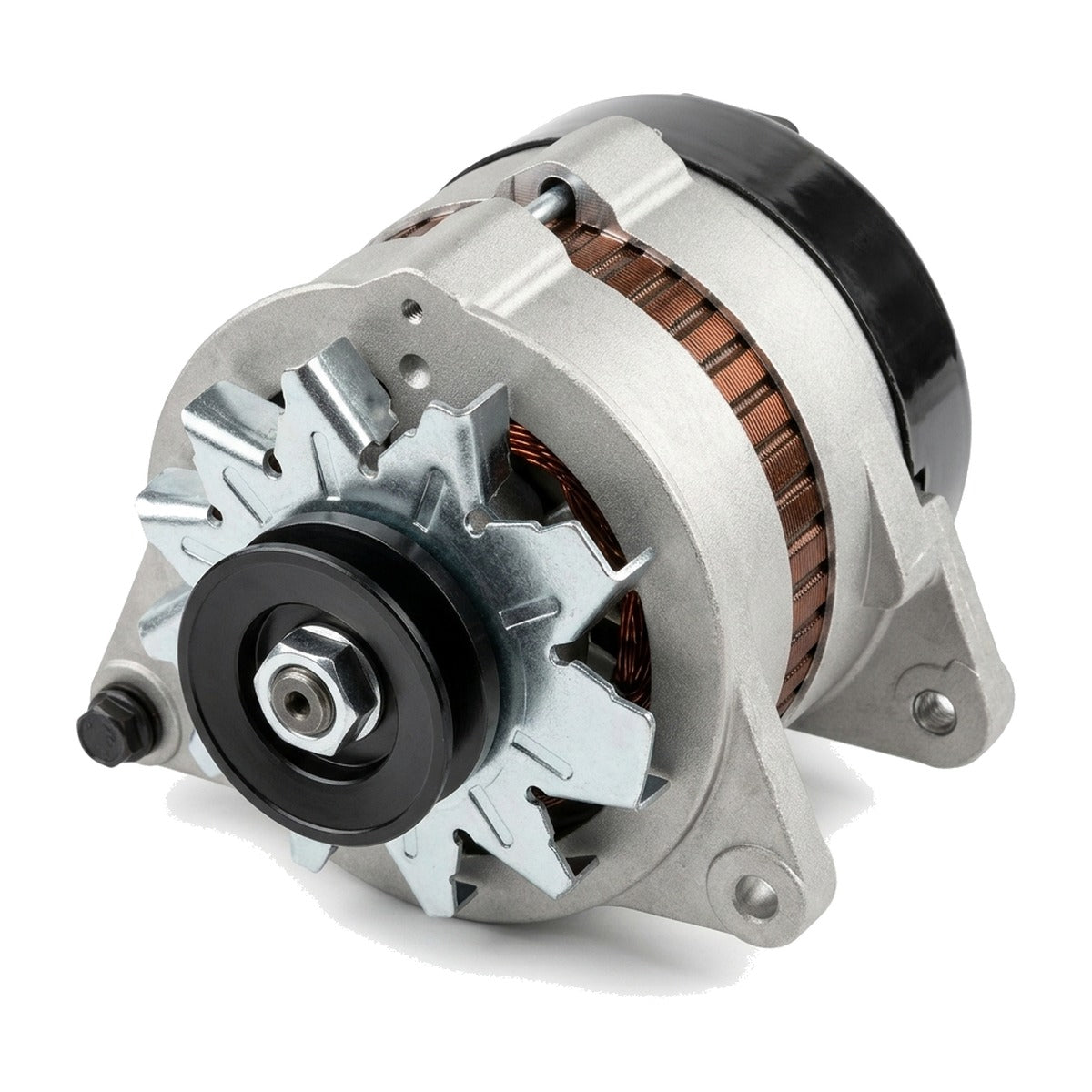

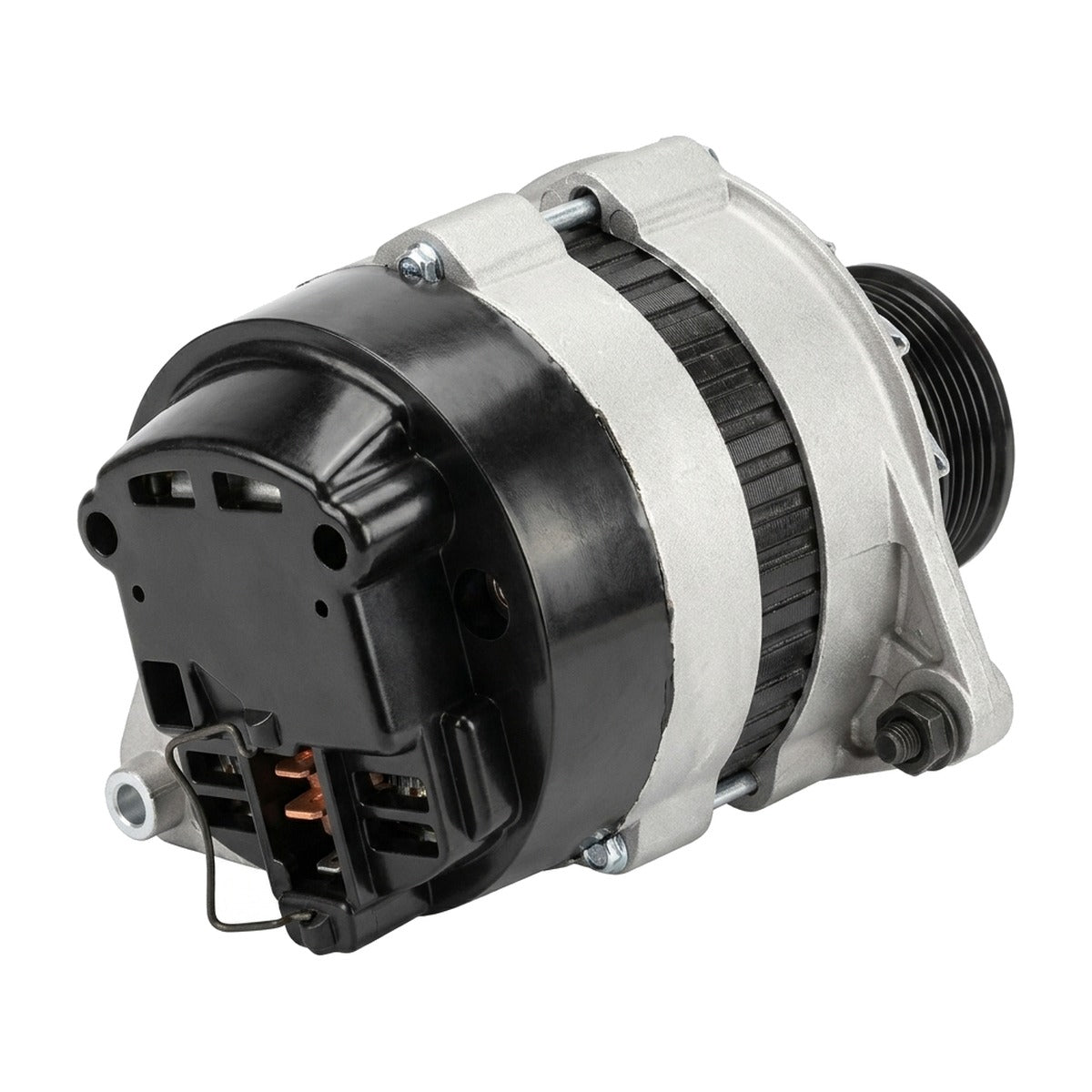

High Output Alternator for Triumph Spitfire TR8 (1974-1981) 1.5L 3.5L

High-Amp Charging High Output Alternator for 1974-1981 Triumph Spitfire,TR8 (Spitfire 1500 / TR8)

What it Does: The High Output Alternator upgrades the factory charging system on the 1974-1981 Triumph Spitfire and TR8 from a restrictive 43 amps to 95 amps to stabilize system voltage and reliably run modern electrical accessories.

The Stock Triumph Spitfire,TR8 Charging System Bottleneck

Factory Spitfire 1500 and TR8 models came equipped with low-output Lucas 16ACR/17ACR series alternators rated at an anemic 43 amps. Over decades of operation, internal brush wear, heat-induced diode breakdown, and stator resistance lead to critical voltage drop. At idle, the original charging circuit struggles to maintain the standard 13.5 to 14.5 volts, causing flickering gauges, dim headlamps, weak ignition spark, and battery discharge—especially when modern additions like high-flow electric cooling fans, auxiliary driving lamps, or upgraded audio systems are introduced to the vintage harness.

The Engineering Solution

This 95-amp unit provides more than double the amperage of the original factory charging unit while maintaining a bolt-on form factor. Built with heavy-gauge, high-temperature copper stator windings, a precision-balanced rotor, and low-friction sealed bearings, it reduces parasitic mechanical drag while generating steady low-RPM output. A solid-state internal voltage regulator eliminates the erratic charging curves common to mechanical units. Precision-engineered to match the factory bracket footprint, rotation direction, and plug geometry, this unit directly interchanges with OEM part numbers 14029, 23590, and LRA00100 without requiring firewall cutting, bracket modifications, or external regulator rewiring.

What's Included

• 1 High Output 95-Amp Alternator

Technical Specifications

Compatibility

• 1974-1980 Triumph Spitfire 1.5L
• 1980-1981 Triumph TR8 3.5L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the Spitfire 1500 and TR8?

Yes, this is a direct fit for the 1974-1981 Triumph Spitfire and TR8 equipped with the Standard SC 1.5L or Rover 3.5L V8 engine.

Should I upgrade my wiring when installing this 95-amp alternator?

For maximum charging efficiency and safety, upgrading the main B+ charge lead and engine ground cables with heavier-gauge wire is recommended when utilizing the full 95-amp capacity.

The Triumph Electrical Standard

Classic British sports cars demand absolute electrical stability to keep points, electronic ignitions, and cooling circuits functioning seamlessly under all driving conditions.
