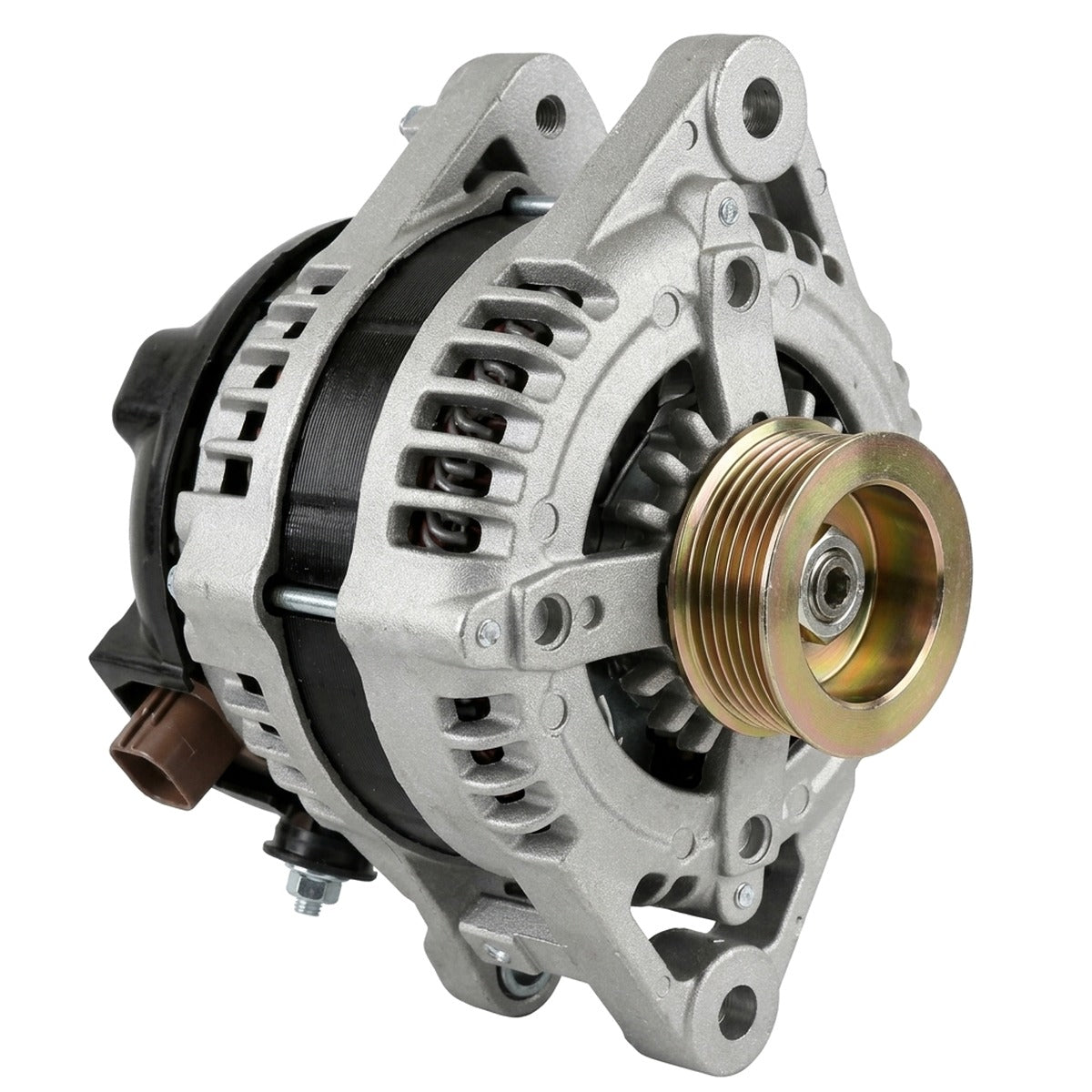

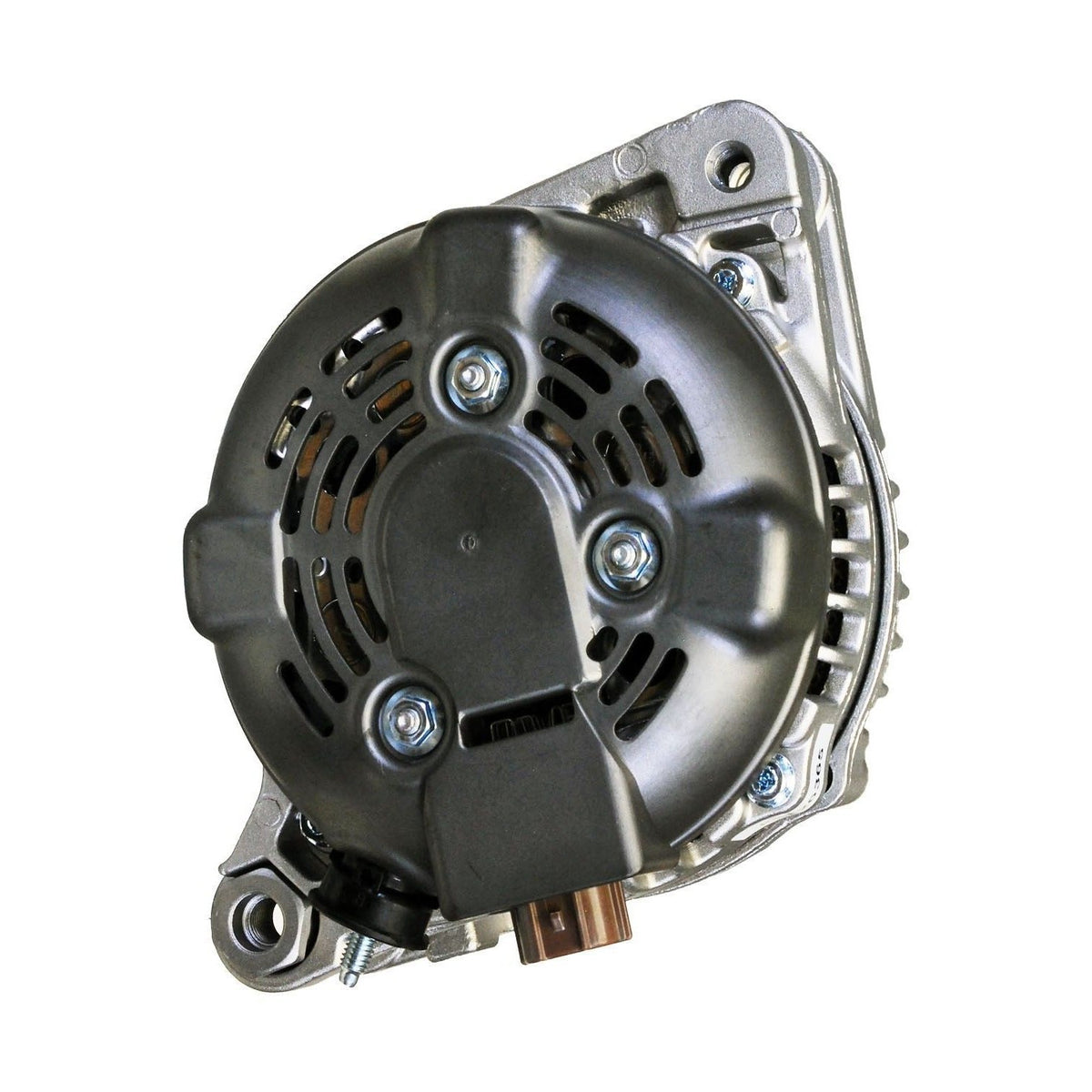

High Output Alternator for Toyota Venza (2010-2015) 3.5L

High-Amp 250A Replacement Alternator for 2010-2015 Toyota Venza (GGV10/GGV15)

What it Does: The 250 Amp High Output Alternator replaces the factory charging unit on the 2010-2015 Toyota Venza to eliminate voltage drop, stabilize charging voltage, and support demanding aftermarket electrical accessories.

The Stock Toyota Venza Charging System Limitation

Factory charging systems on the GGV10 and GGV15 chassis utilize an OEM Denso unit rated for standard factory cabin draws (roughly 100 to 130 amps). When owners install high-draw auxiliary components—such as upgraded audio amplifiers, supplemental lighting, inverters, or towing electrics—the stock stator windings cannot sustain idle output. Under high heat soak and continuous duty, factory diode bridge rectifiers degrade, producing severe voltage drop below 12.6V at low RPM, battery undercharging, and premature component failure.

The Engineering Solution

Engineered and assembled in the USA, this heavy-duty 250A alternator drops directly into the 2GR-FE engine mounting bracket without custom shimming. Built with heavy-gauge precision copper stator windings, dual internal cooling fans, and high-efficiency press-fit diodes, it provides superior thermal dissipation and delivers reliable high-amperage output both at idle and peak operating RPM. It operates seamlessly with factory ECU voltage regulators while protecting against circuit brownouts.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2010-2015 Toyota Venza Base 3.5L V6 (FWD / AWD)
• 2012-2015 Toyota Venza LE 3.5L V6 (FWD / AWD)
• 2012-2015 Toyota Venza XLE 3.5L V6 (FWD / AWD)
• 2012-2015 Toyota Venza Limited 3.5L V6 (FWD / AWD)

Frequently Asked Questions & Fitment Warnings

Does this fit the GGV10/GGV15 Venza?

Yes, this is a direct bolt-in fit for the 2010-2015 Toyota Venza equipped with the 2GR-FE 3.5L V6 engine; it does not fit 2.7L 1AR-FE 4-cylinder models.

Do I need an upgraded power cable (Big 3 Upgrade)?

To safely handle continuous 250A current draw and prevent voltage drops along the factory harness, upgrading the primary alternator-to-battery charging wire to 1/0 or 4-gauge OFC copper is recommended.

The Toyota Reliability Standard

Preserve Toyota's legendary daily drivability and long-haul dependability under auxiliary load with direct-fit electrical equipment precision-engineered to endure severe operating heat and vibration.
