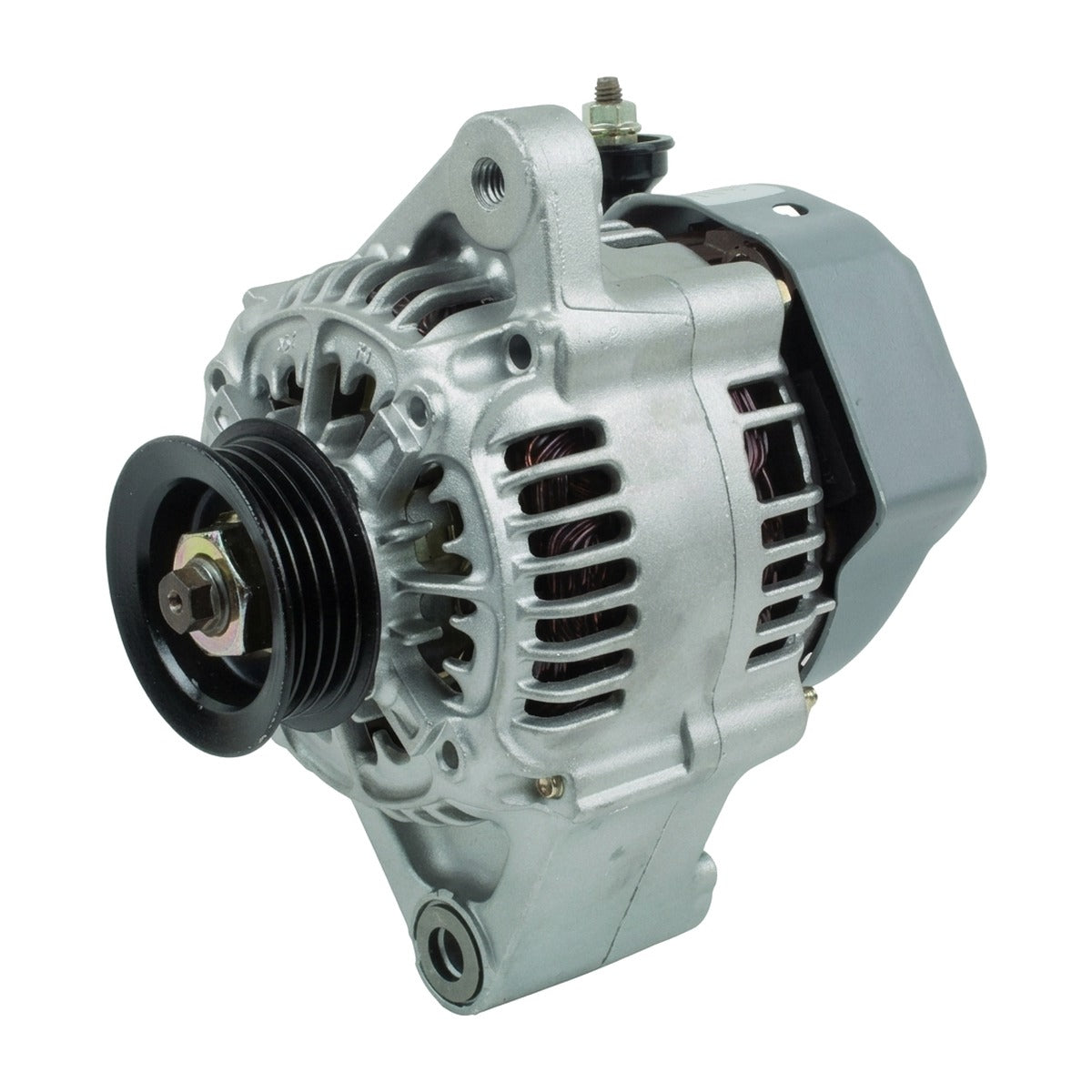

High Output Alternator for Toyota Tercel (1993-1997) 1.5L

High-Output 160A Alternator for 1993-1997 Toyota Tercel (EL40 / EL53)

What it Does: The 160 Amp High Output Alternator replaces the low-output factory charging unit on the 1993-1997 Toyota Tercel to eliminate idle voltage drop and sustain high-draw electrical accessories.

The Stock Toyota Tercel Electrical Deficit

Factory charging systems on the EL40 and EL53 generations were engineered exclusively for minimal base electrical loads, relying on modest 55-to-60 amp units. When paired with the 3E-E or 5E-FE engines, these original alternators produce barely 25 amps at hot idle (650–750 RPM). Adding aftermarket audio amplifiers, auxiliary lighting, or high-CFM electric radiator fans overwhelms the factory stator. The result is rapid voltage sag below 12.4V, dimming headlights, ignition spark degradation, and constant deep-cycle drain that prematurely destroys standard starter batteries.

The Engineering Solution

This high-output unit delivers up to 160 amps by incorporating precision, heavy-gauge copper stator windings and an upgraded heavy-duty internal rectifier bridge. Upgraded avalanche diodes dissipate extreme underhood heat while maintaining optimal current rectification across the entire operating band. Precision-wound rotors ensure substantial current delivery right off idle, maintaining a stable 14.2V to 14.6V charging profile. Housed in a direct-fit aluminum casing cross-referenced with OEM numbers 27060-11170 and 27060-11260, it installs directly onto factory engine brackets and interfaces seamlessly with the factory harness connector without custom fabrication.

What's Included

• 1x 160 Amp High Output Alternator

Technical Specifications

Compatibility

• 1993-1994 Toyota Tercel Base, DX, STD (1.5L 3E-E, EL40)
• 1995-1997 Toyota Tercel CE, DX, STD (1.5L 5E-FE, EL53)

Frequently Asked Questions & Fitment Warnings

Does this fit the EL40 / EL53 Tercel?

Yes, this is a direct bolt-in fit for the 1993-1997 Toyota Tercel equipped with the 3E-E and 5E-FE 1.5L four-cylinder engines.

Do I need to upgrade the primary charging wiring?

To safely handle the full 160-amp capability without heat accumulation or voltage drop, performing a "Big 3" upgrade with 4-gauge or 1/0-gauge pure copper wiring for the positive charge lead and chassis grounds is recommended.

The Toyota Durability Standard

Built to keep compact JDM platforms operational under heavy electrical demands, this charging upgrade supplies rock-solid voltage regulation to keep your audio equipment, cooling systems, and ignition electronics running at peak efficiency.
