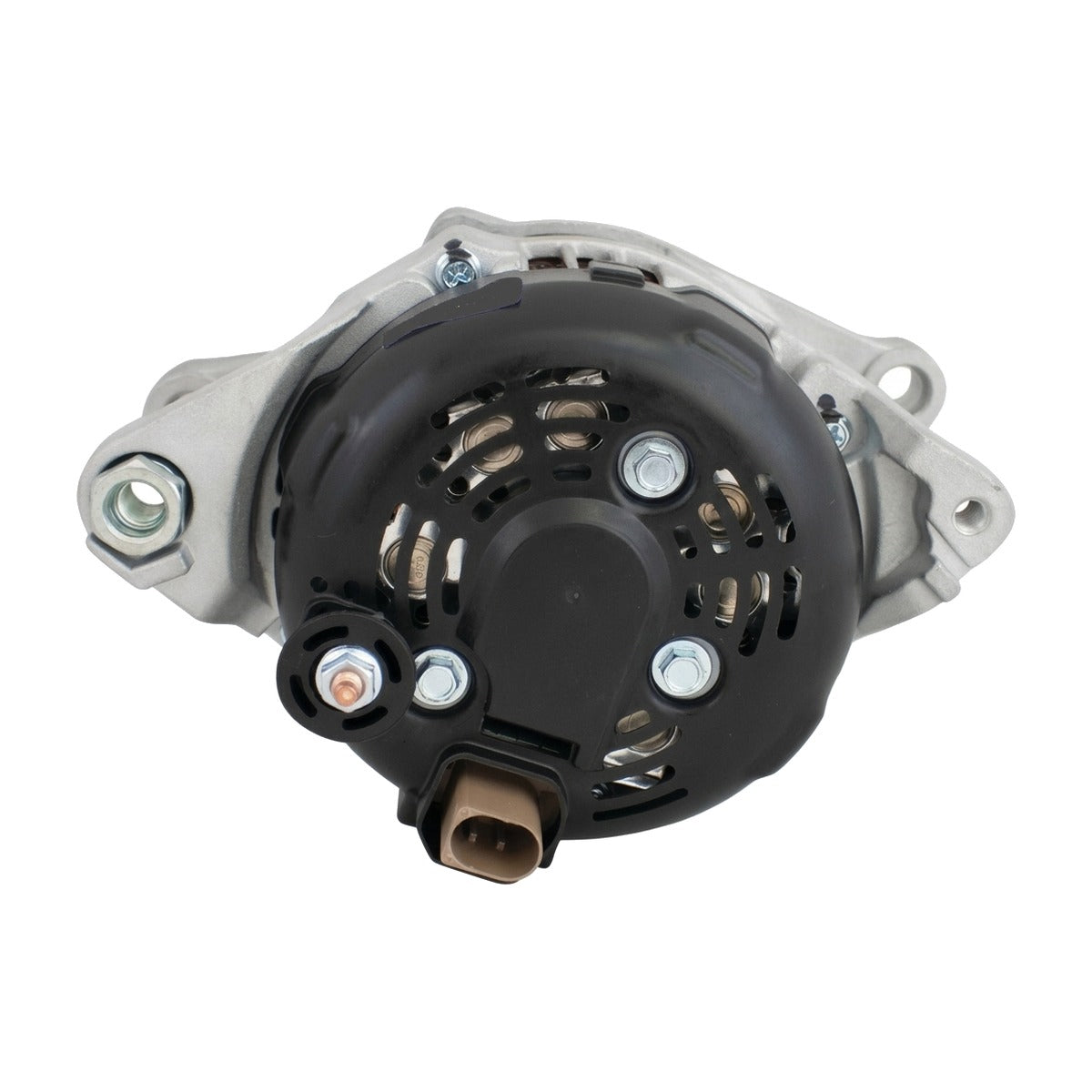

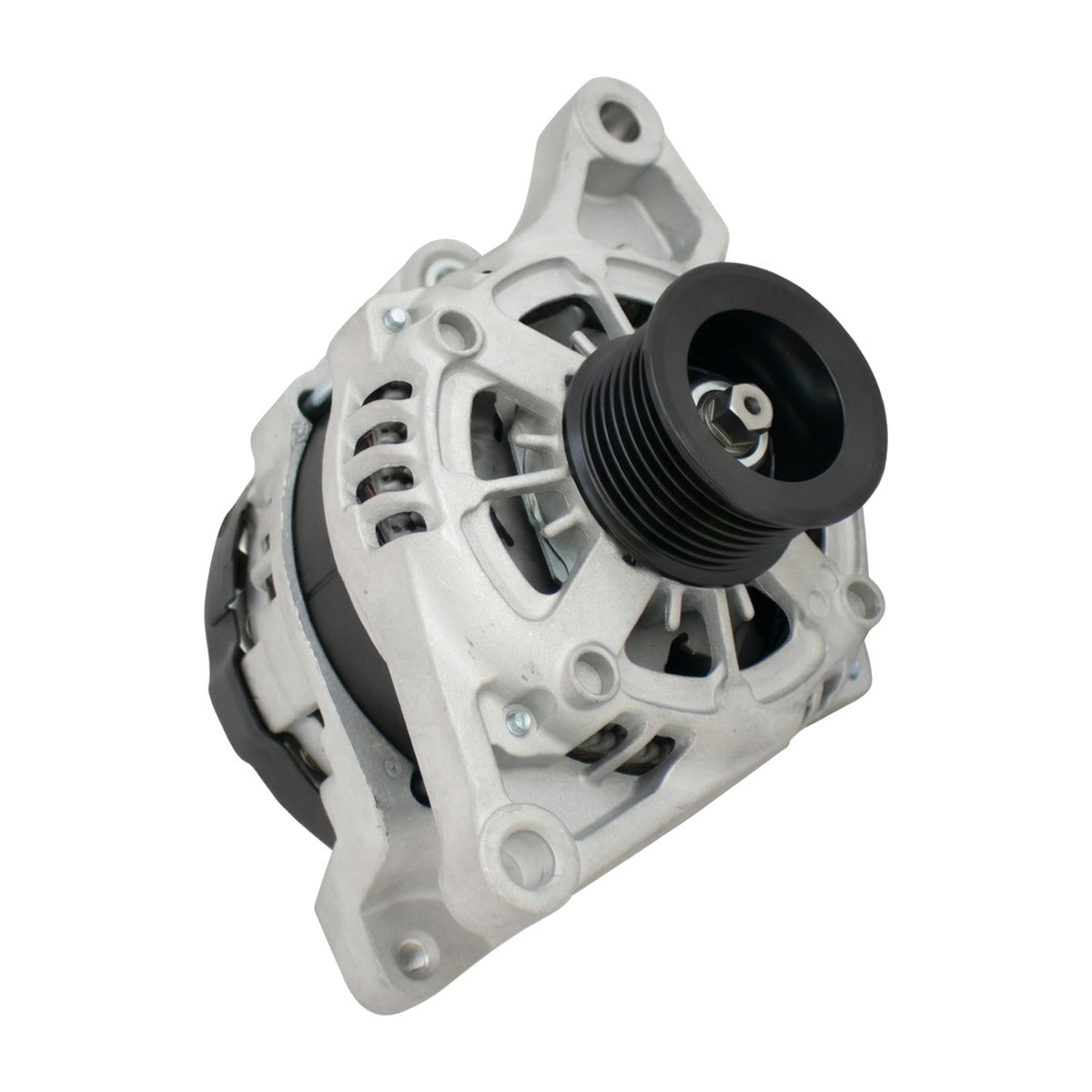

High Output Alternator for Toyota Tacoma (2016-2021) 3.5L

High-Amp Replacement Alternator for 2016-2021 Toyota Tacoma (N300)

What it Does: The high output alternator replaces the low-amperage factory unit on the 2016-2021 Tacoma to deliver consistent 320-amp charging current, stabilizing system voltage under heavy auxiliary electrical loads.

The Stock Toyota Tacoma Charging Limitation

The factory charging system on the N300 platform is engineered strictly for base electrical demands. Utilizing a standard 130-amp alternator, the OEM unit suffers severe voltage drop under high amperage draw at idle. When running high-load accessories such as recovery winches, auxiliary LED light bars, overland refrigeration, or high-RMS audio amplifiers, system voltage plummets below the optimal 13.5V threshold. This sustained thermal and electrical stress induces diode failure, battery sulfation, premature alternator brush wear, and intermittent electronic accessory brownouts.

The Engineering Solution

Engineered around precision hairpin stator technology, this 320-amp direct-fit unit significantly improves conductor slot fill density compared to conventional round-wire stators. Heavy-gauge copper windings lower internal electrical resistance, reducing heat soak and enabling immediate, high-current delivery right at engine idle. Supported by high-temp sealed bearings, a dynamic balanced rotor, and an internal voltage regulator, it maintains a stable 13.5V–14.5V output curve across the 2GR-FKS RPM range. It mounts directly into OEM brackets, utilizing the factory belt line and wiring plug without harness modifications.

What's Included

• 1 High Output 320A Alternator

Technical Specifications

Compatibility

• 2016-2021 Toyota Tacoma 3.5L V6 (SR, SR5, TRD Sport, TRD Off-Road, Limited, TRD Pro)

Frequently Asked Questions & Fitment Warnings

Does this fit the N300 Tacoma?

Yes, this is a direct bolt-on fit for the 2016-2021 Toyota Tacoma equipped with the 2GR-FKS 3.5L V6 engine.

Do I need to upgrade my wiring for this alternator?

While this unit retains the stock harness plug, executing a "Big 3" electrical upgrade with heavier-gauge charging and ground cables is strongly recommended to handle full 320-amp output safely.

The Toyota Durability Standard

Engineered for backcountry reliability and heavy overland rigging, this high-amperage charging upgrade ensures your Tacoma powers high-draw recovery gear and electrical accessories reliably in remote trail conditions.
