High Output Alternator for Toyota T100 (1997-1998) 2.7L

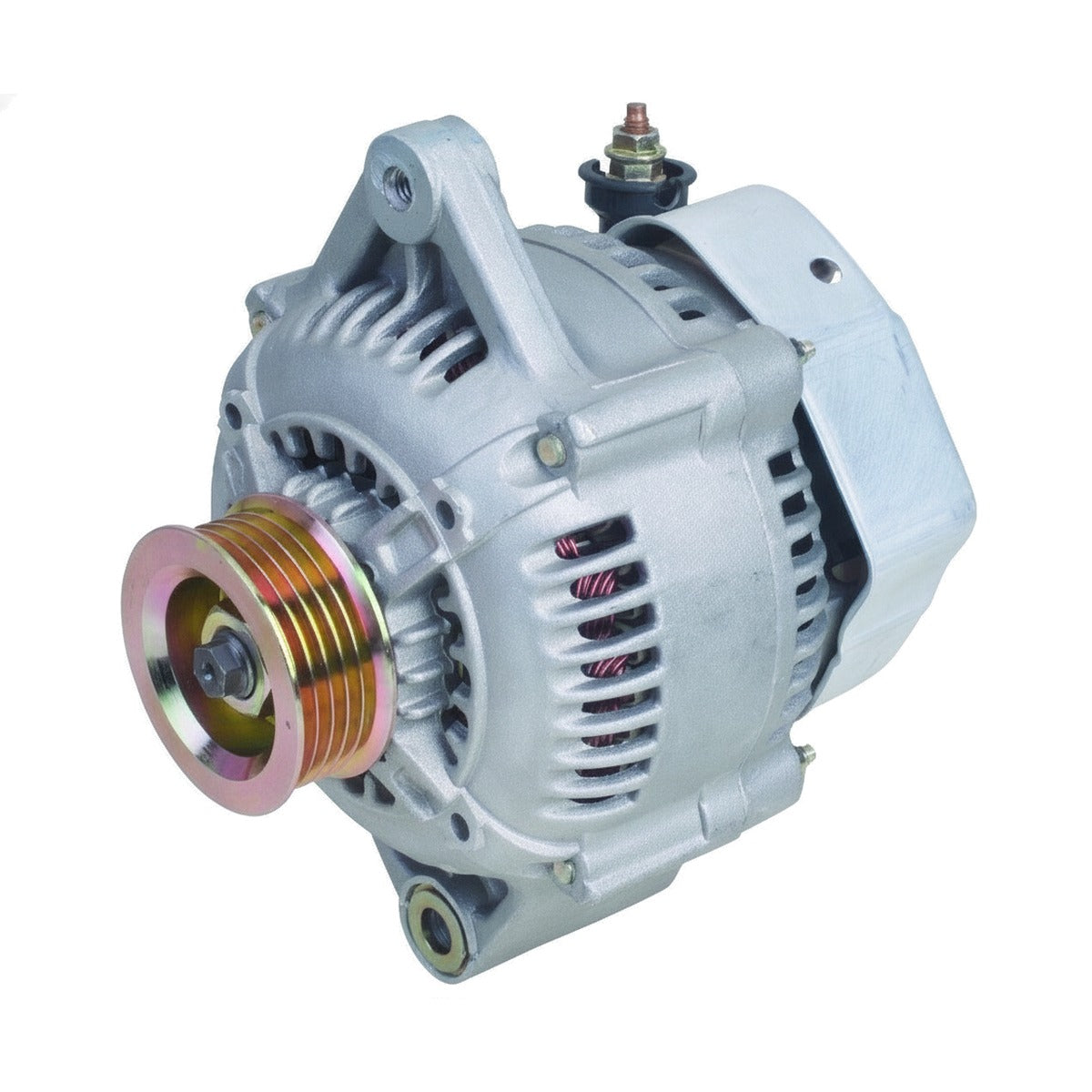

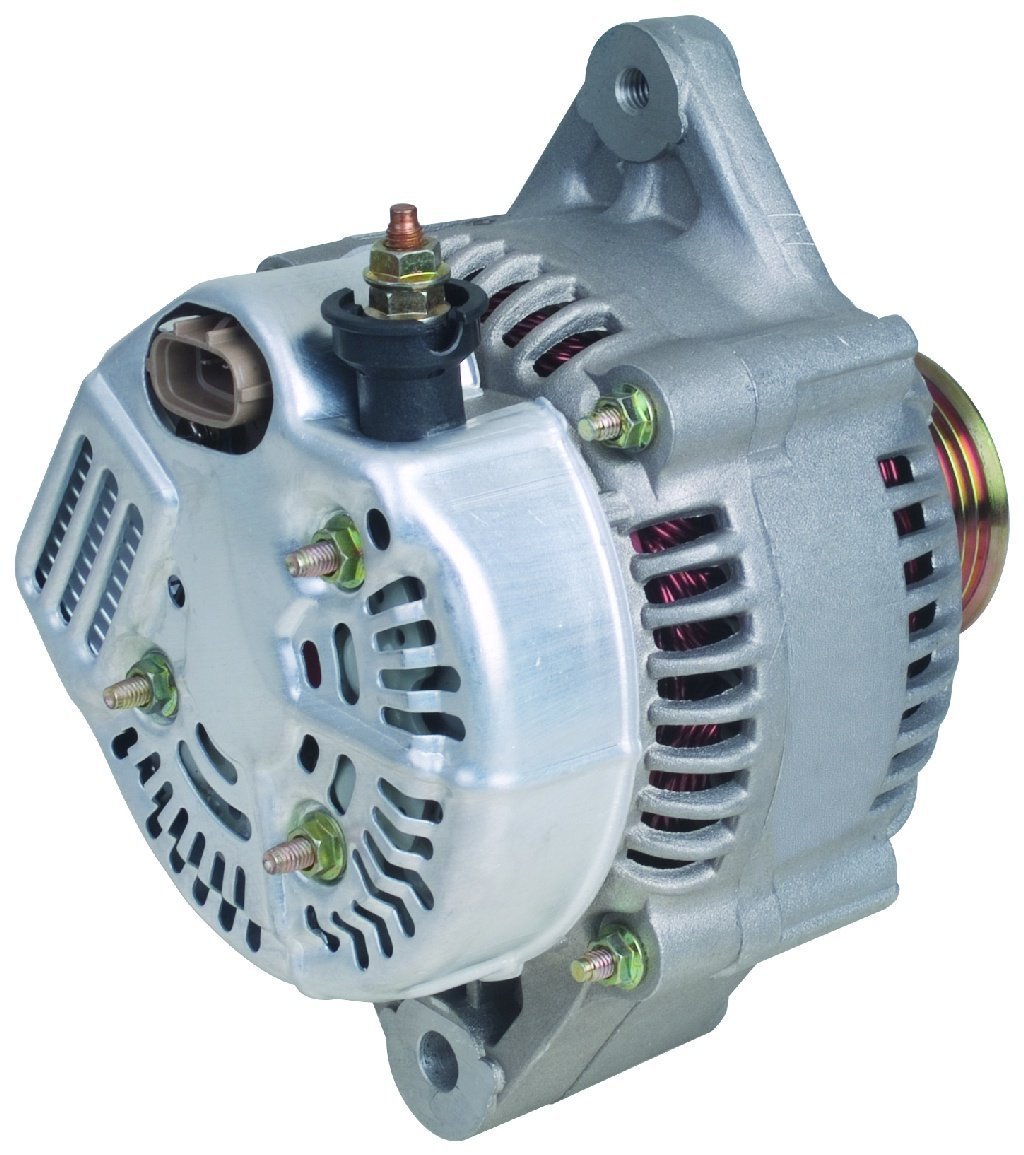

High-Output 200A Alternator for 1997-1998 Toyota T100 (RCK10)

What it Does: The 200 Amp High Output Alternator upgrades the factory charging system on the 1997-1998 Toyota T100 to eliminate electrical voltage drop under heavy auxiliary loads and sustain steady battery charging at idle.

The Stock Toyota T100 Electrical Bottleneck

Factory RCK10 chassis utility trucks rolled off the line with an OEM alternator rated at a modest 60 to 70 amps. While sufficient for bone-stock ignition and basic incandescent lighting, the factory rectifier and hairpin windings quickly encounter thermal saturation under modern demands. Adding auxiliary light bars, winches, snow plows, or high-draw audio equipment forces the OEM unit to overheat, causing idle voltage to sag below 12.5V, inducing ignition miss, and accelerating internal diode bridge burnout.

The Engineering Solution

Engineered for the 2.7L 3RZ-FE inline-four, this high-amperage alternator integrates high-temperature copper windings and a heavy-duty 12-diode bridge rectifier assembled into a precision-machined aluminum housing. Built in the USA, it dissipates heat soak under severe continuous runtime, maintaining a stable 14.2-volt charge even at low engine RPM. It installs into the factory bracket locations and directly replaces OE reference numbers including 27060-75150 and 101211-4120 without modifications.

What's Included

• 1 x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1997 Toyota T100 Base Standard Cab Pickup 2.7L L4 (3RZ-FE)
• 1998 Toyota T100 Base Standard Cab Pickup 2.7L L4 (3RZ-FE)
• 1997 Toyota T100 Base Xtracab Pickup 2.7L L4 (3RZ-FE)
• 1998 Toyota T100 Base Xtracab Pickup 2.7L L4 (3RZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the RCK10 T100?

Yes, this is a direct fit for the 1997-1998 Toyota T100 equipped with the 3RZ-FE 2.7L engine.

Do I need to upgrade my primary power wiring?

Yes, upgrading the primary alternator-to-battery charging wire to a fused 4-gauge or larger cable is strongly recommended to handle 200 amps safely without voltage drop.

The Toyota Truck Caliber

Engineered to match the bulletproof powertrain reliability of Toyota commercial trucks, this high-output charging unit ensures steady current during demanding towing and fleet use.
