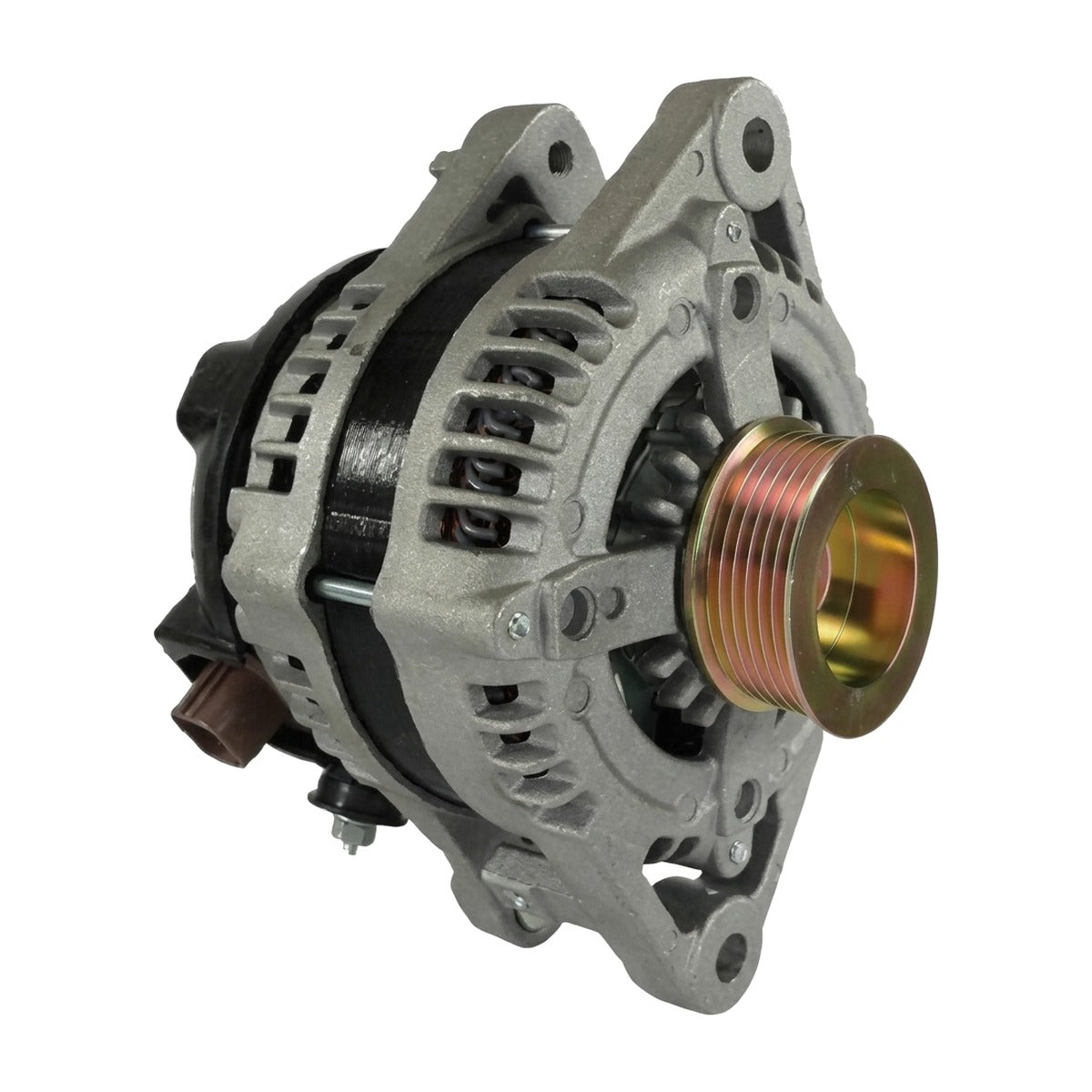

High Output Alternator for Toyota RAV4 (2006-2008) 3.5L

High-Amperage 250A Alternator for 2006-2008 Toyota RAV4 (XA30)

What it Does: The 250-amp high output alternator replaces the lower-capacity factory charging unit on the 2006-2008 Toyota RAV4 to deliver reliable electrical current and eliminate voltage drop under demanding accessory loads.

The Stock Toyota RAV4 Charging Limitations

The factory charging system on the XA30 RAV4 produces minimal reserve current beyond standard operating electronics. With the 2GR-FE engine running auxiliary high-draw loads—such as aftermarket amplifiers, winches, or off-road lighting—the stock stator overheats, triggering voltage sag below 13.0V at idle. This thermal saturation accelerates diode degradation, induces battery depletion, and causes electrical accessory cutouts.

The Engineering Solution

Engineered for high-current stability, this direct-replacement alternator produces 250 amps utilizing high-temperature, heavy-gauge copper stator windings and a balanced rotor assembly. Heavy-duty sealed bearings resist mechanical runout and belt-load fatigue, while a precision internal solid-state voltage regulator maintains a steady 13.5V to 14.5V output window. Built to match OEM bracket points, pulley alignment, and plug orientation, it delivers true plug-and-play installation without harness splicing.

What's Included

• 1x 250-Amp High Output Alternator (Part # 11323)

Technical Specifications

Compatibility

• 2006-2008 Toyota RAV4 Base 3.5L V6
• 2006-2008 Toyota RAV4 Sport 3.5L V6
• 2006-2008 Toyota RAV4 Limited 3.5L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the XA30 RAV4?

Yes, this is a direct fit for the 2006-2008 Toyota RAV4 equipped with the 2GR-FE 3.5L V6 engine.

Do I need upgraded power wiring for this 250A unit?

While this alternator utilizes the factory plug and mounting points, upgrading the primary B+ charging wire and ground cables (Big 3 upgrade) is strongly advised to handle the 250-amp output without resistance bottlenecks.

The Toyota Caliber

Engineered to complement Toyota's robust 3.5L powertrain, this unit delivers consistent, heavy-duty electrical output capable of supporting severe daily auxiliary demands.
