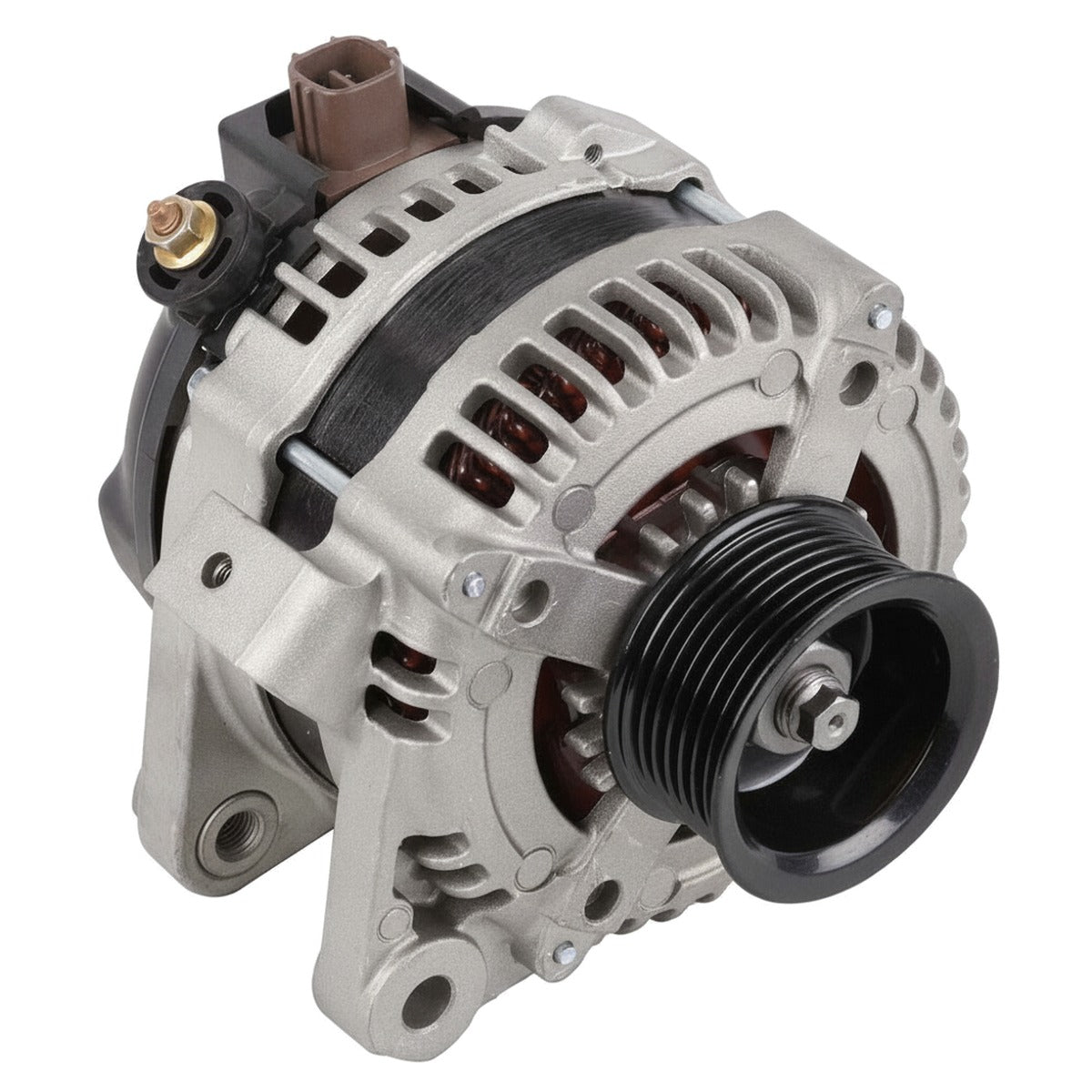

High Output Alternator for Toyota RAV4 (2004-2005) 2.4L

High-Output 250-Amp Alternator for 2004-2005 Toyota RAV4 (XA20)

What it Does: The High Output 250-Amp Alternator replaces the low-output factory charging unit on the 2004-2005 Toyota RAV4 to deliver reliable electrical current and eliminate voltage drop under heavy accessory loads.

The Stock Toyota RAV4 Charging Limitations

The factory charging system on the XA20 chassis was engineered around a standard 80-amp to 100-amp output rating, sized only for baseline factory electronics. When users add modern electrical loads—such as aftermarket audio amplifiers, auxiliary LED lighting, overland fridges, or winches—the stock alternator suffers severe voltage drop at idle. Prolonged high draw pushes the OEM diodes and internal voltage regulator into thermal saturation, accelerating brush wear and leading to prematurely drained batteries and ignition coil voltage starvation.

The Engineering Solution

Engineered and manufactured in the USA, this heavy-duty 250-amp alternator directly addresses factory electrical shortfalls. Featuring premium high-temperature copper rotor and stator windings, an oversized heavy-duty internal rectifier, and high-amperage avalanche press-fit diodes, this unit dissipates heat efficiently under continuous peak operation. It significantly boosts output at idle and cruising RPMs, providing stable 14.4-volt power transfer directly into your electrical architecture without thermal throttling.

What's Included

• 1 x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2004 Toyota RAV4 Base / L / Sport 2.4L L4 (2AZ-FE)
• 2005 Toyota RAV4 Base / L / Sport 2.4L L4 (2AZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the XA20 RAV4?

Yes, this is a direct bolt-on fit for the 2004-2005 Toyota RAV4 equipped with the 2AZ-FE 2.4L engine.

Do I need to upgrade my main power wiring?

Yes, installing a "Big 3" wiring upgrade with minimum 4-gauge or 1/0-gauge pure copper cabling and an inline fuse is mandatory to handle 250 amps safely.

The Toyota Longevity Standard

Maintain the rugged dependability of your XA20 platform with electrical components built to deliver steady voltage in demanding overland and daily driving conditions.
