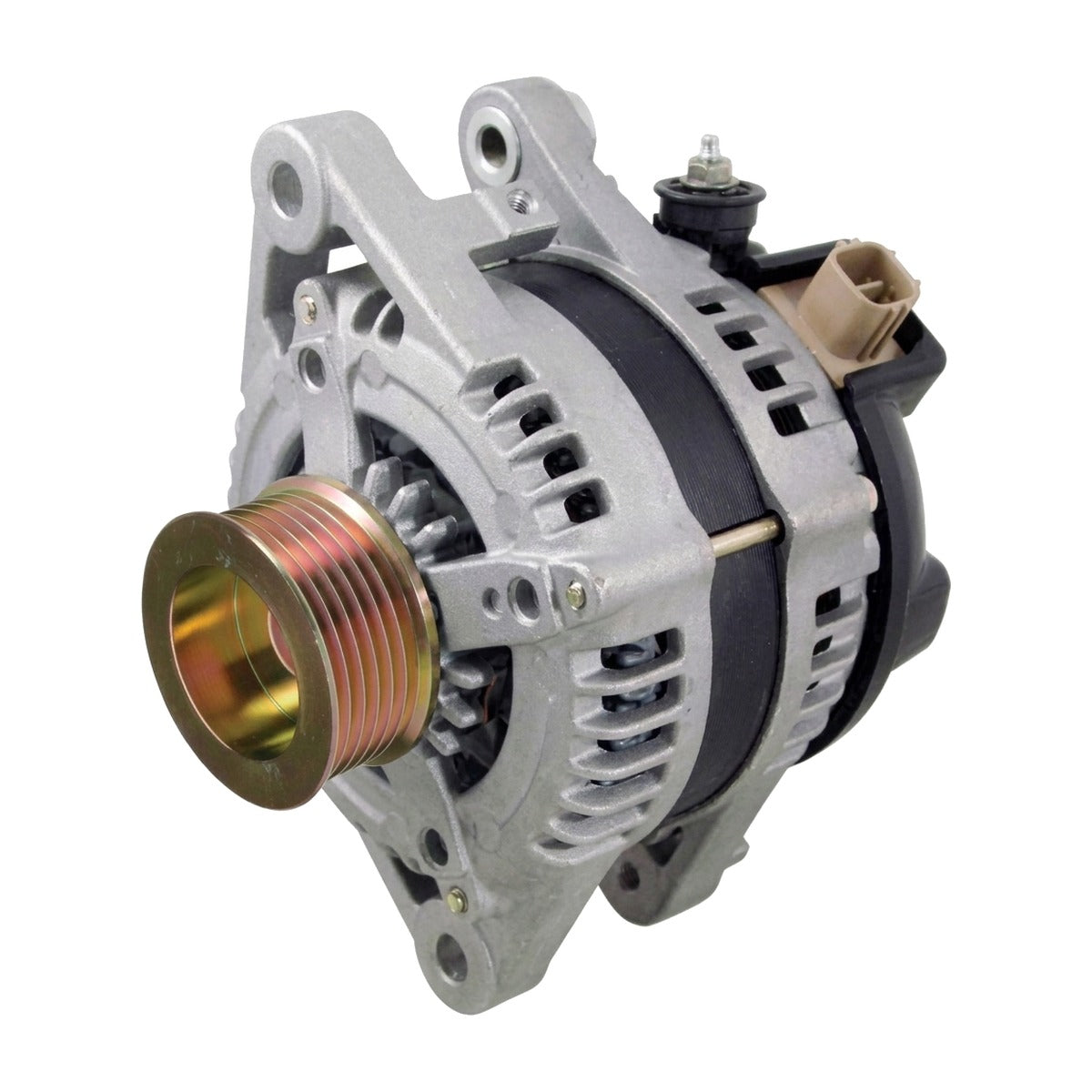

High Output Alternator for Toyota Avalon (2005-2018) 3.5L

High-Amp Output Alternator for 2005-2018 Toyota Avalon (XX30 / XX40)

What it Does: The high output alternator replaces the factory charging unit on the 2005-2018 Toyota Avalon to deliver a continuous 250 amps of electrical current, preventing system voltage drop under severe auxiliary loads.

The Stock Toyota Avalon Charging Limitations

Factory charging systems on the XX30 and XX40 chassis rely on standard-output Denso units engineered solely for nominal factory electrical loads. When accessories like high-draw aftermarket audio systems, auxiliary lighting, or additional cooling fans are added, the OEM 100-150 amp unit suffers from severe thermal saturation and inductive current loss. At idle, the stock rotor and stator cannot generate adequate ampere output, forcing the battery to absorb the transient deficit. This causes voltage sag below 12.8 volts, premature diode rectifier degradation, flickering headlights, and slow electrical response across onboard control modules.

The Engineering Solution

Engineered for high current density, this 250A direct-replacement alternator features heavy-gauge copper stator windings packed to maximize magnetic flux while minimizing internal electrical resistance. A dynamically balanced rotor supported by high-grade sealed bearings prevents shaft runout at high RPM, drastically reducing bearing whine and parasitic drag. An internal heavy-duty solid-state voltage regulator maintains a steady 13.5 to 14.5 charging voltage under heavy duty-cycle demands. Engineered with OEM mounting points and factory-spec hairpin electrical connectors, it interchanges directly with original equipment without bracket alterations or wire harness hacking.

What's Included

• 1 High Output Alternator (Part Number: 11136-250A)

Technical Specifications

Compatibility

• 2005-2012 Toyota Avalon (XX30 Chassis, 3.5L V6 2GR-FE Engine)
• 2013-2018 Toyota Avalon (XX40 Chassis, 3.5L V6 2GR-FE Engine)

Frequently Asked Questions & Fitment Warnings

Does this fit the XX30 and XX40 Avalon?

Yes, this is a direct fit for the 2005-2018 Toyota Avalon equipped with the 2GR-FE 3.5L engine, utilizing original brackets, rotation, and harness plugs.

Do I need to upgrade my factory wiring to run this 250A alternator?

While it works on the factory harness, upgrading the primary battery charge lead and engine ground cables (Big 3 upgrade) to 0-gauge or 4-gauge wire is recommended to handle peak amperage safely.

The Toyota Caliber

Built to match the rigorous reliability of Toyota engineering, this high-output charging unit delivers uninterrupted voltage and robust electrical reserve without sacrificing daily driving dependability.
