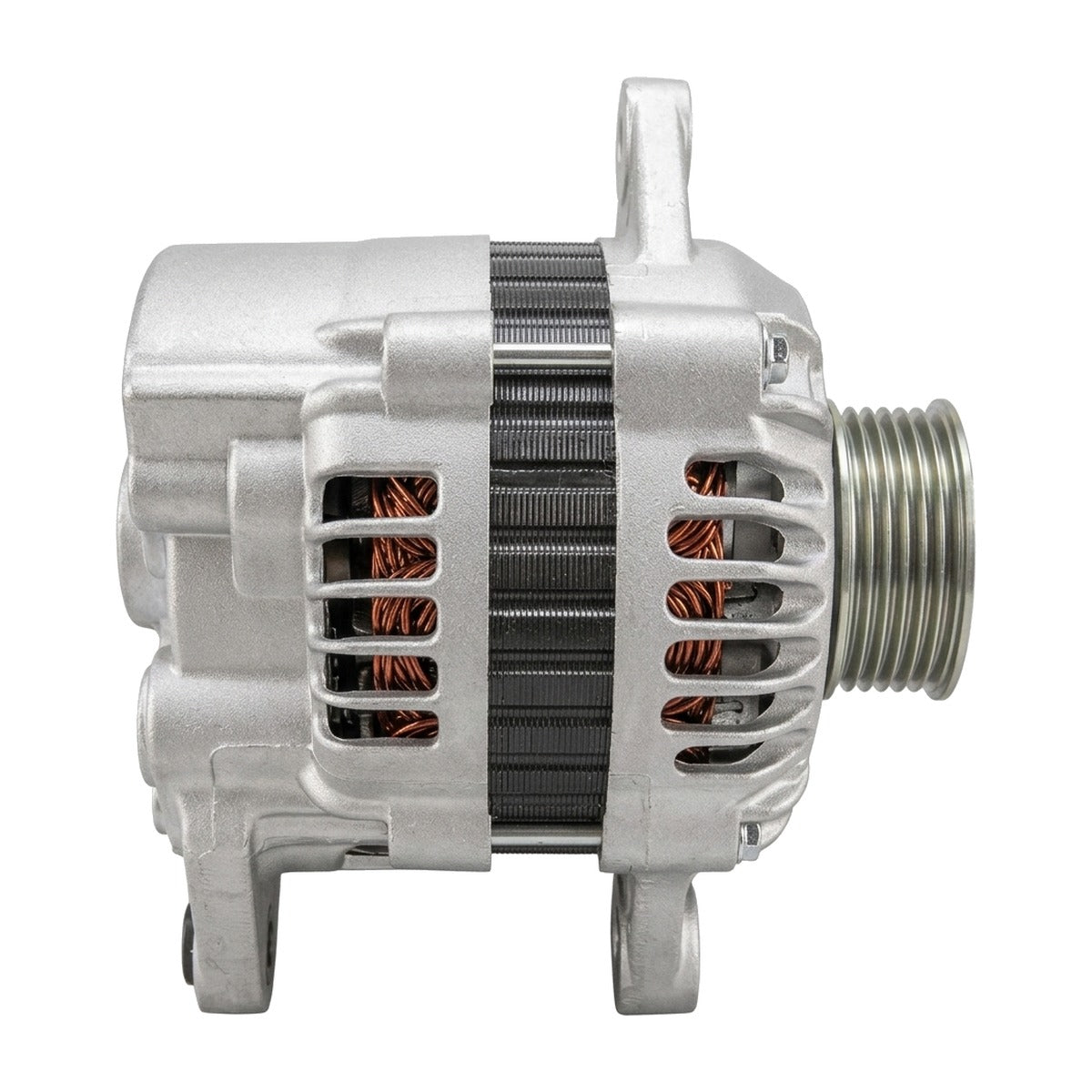

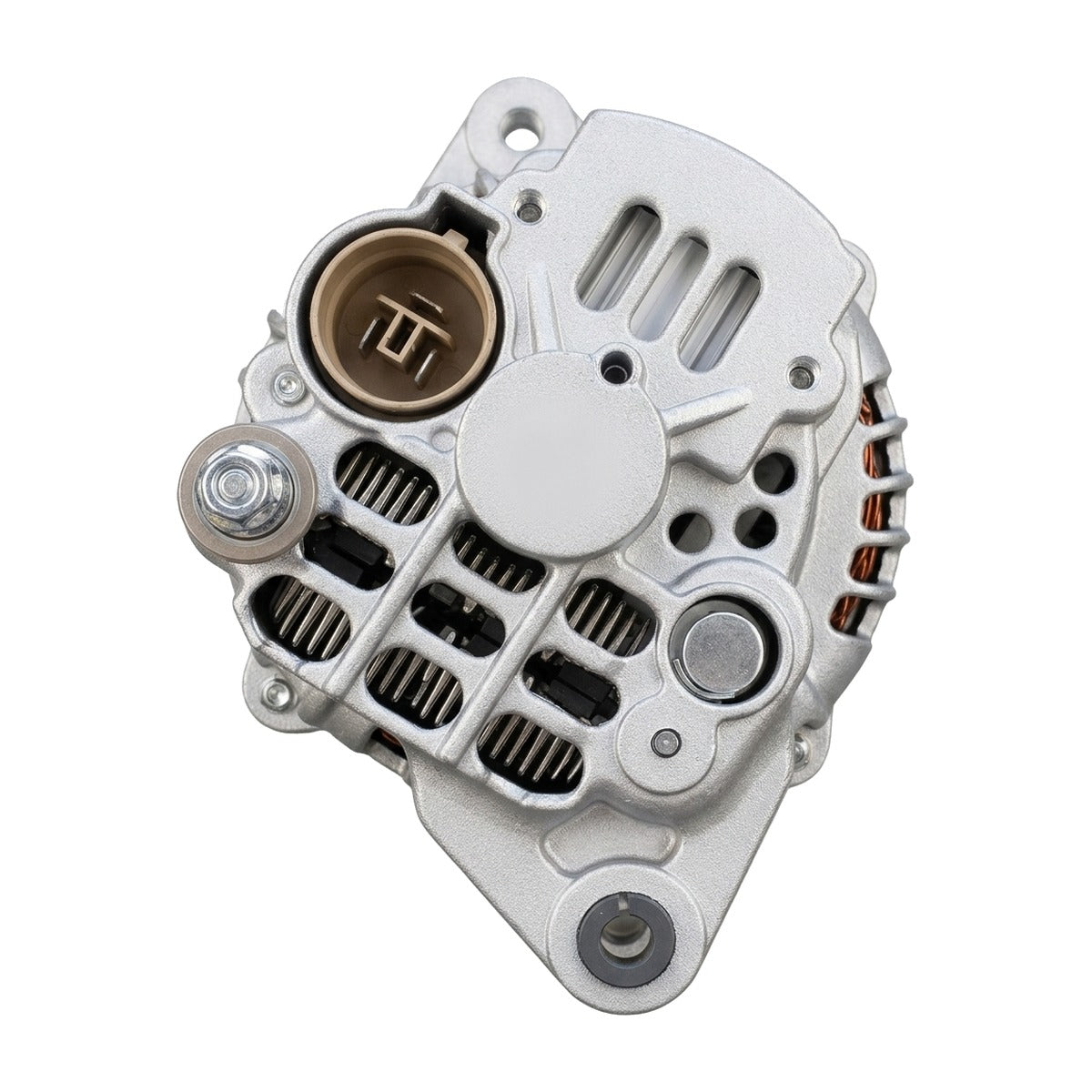

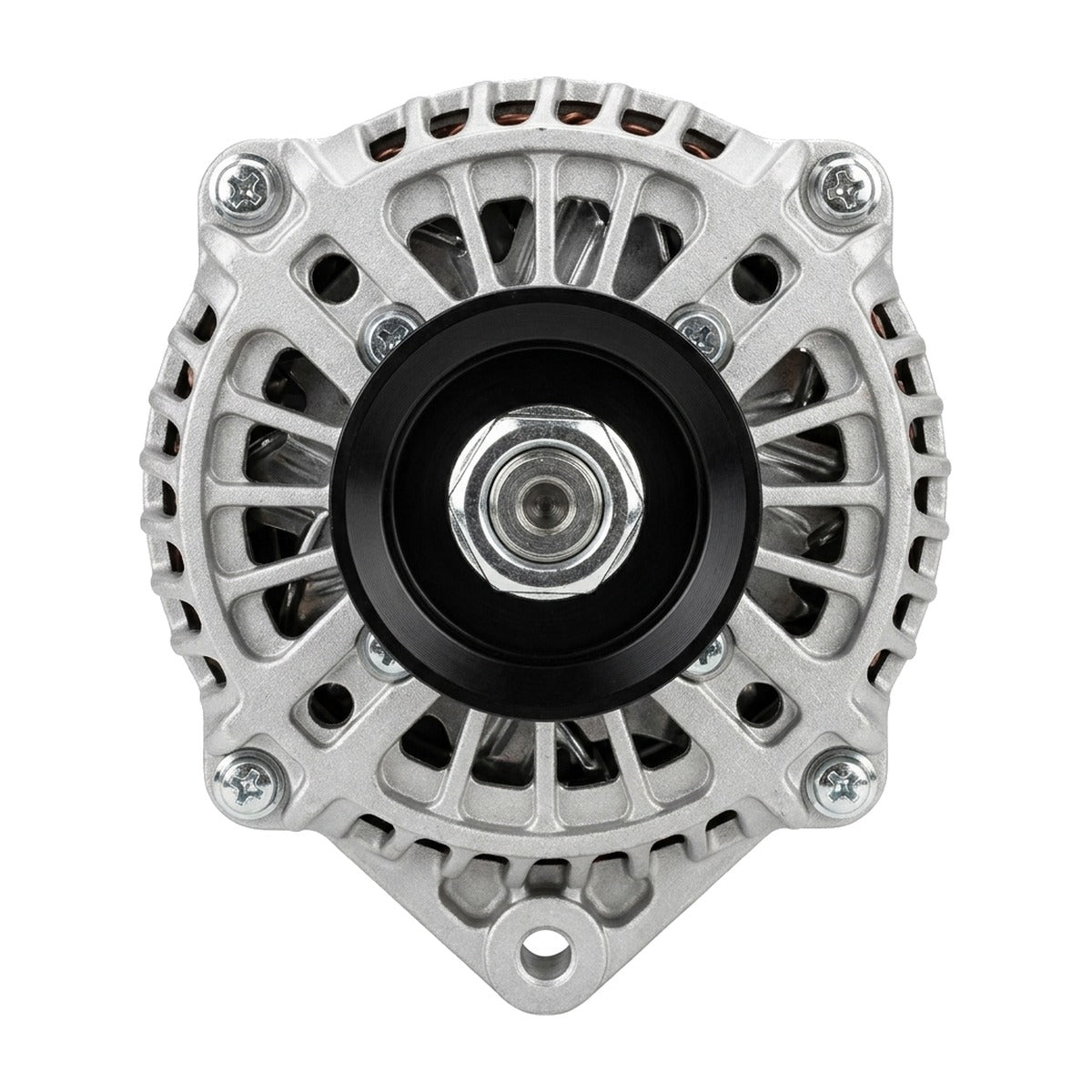

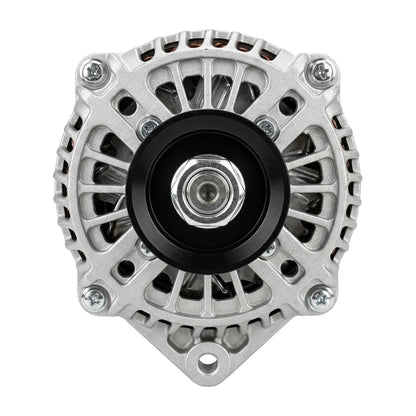

High Output Alternator for Suzuki Sidekick (1989-1994) 1.6L

High-Output 110A Alternator for 1989-1994 Suzuki Sidekick (TA01)

What it Does: The high-output 110-amp alternator replaces the low-output factory charging unit on the 1989-1994 Suzuki Sidekick to stabilize voltage and supply sufficient reserve amperage for auxiliary electrical loads and off-road equipment.

The Stock Suzuki Sidekick Charging System Bottleneck

Factory charging systems on the TA01 chassis were engineered with a standard 45-to-55 amp rating strictly sized for bare-minimum stock running gear. When adding common off-road trail additions—such as recovery winches, high-draw halogen or LED auxiliary arrays, heavy-duty cooling fans, or aftermarket audio amplifiers—the factory windings suffer severe thermal saturation and voltage drops. Under high-load idle conditions, battery discharge occurs rapidly, leading to flickering instrument clusters, degraded spark energy from the ignition circuit, and premature diode pack failure from thermal fatigue.

The Engineering Solution

This 110-amp direct replacement is wound with heavy-gauge, high-conductivity copper stator windings paired with a dynamically balanced rotor to deliver increased charging capability at low engine RPM. Built around heavy-duty internal rectifiers, high-temp sealed bearings, and an internal solid-state voltage regulator, it maintains a clean 13.5V to 14.5V output curve under severe duty. Designed for OEM direct bolt-in fitment, it integrates seamlessly with the factory bracketry, drive pulley geometry, and original wiring connector without harness splicing or fabrication.

What's Included

• 1 High Output 110-Amp Alternator (Part # 13213) with internal regulator

Technical Specifications

Compatibility

• 1989-1994 Suzuki Sidekick Base, JX, JLX 1.6L 4-cylinder (8-valve G16A & 16-valve G16B)

Frequently Asked Questions & Fitment Warnings

Does this fit the TA01 Sidekick?

Yes, this is a direct fit for the 1989-1994 Suzuki Sidekick equipped with the G16A or G16B 1.6L engine; it does not fit later 1.8L Sport or 2.0L V6 models.

Do I need to upgrade the primary charging lead during installation?

While this unit functions with the factory harness, upgrading the primary battery charge lead and engine block ground to 4-gauge wire is strongly recommended to safely deliver full 110-amp capacity without line resistance.

The Suzuki Trail Standard

Engineered for lightweight 4x4 trail resilience, this charging assembly withstands off-camber vibration, severe ambient thermal cycling, and high accessory current demands without dropping line voltage.
