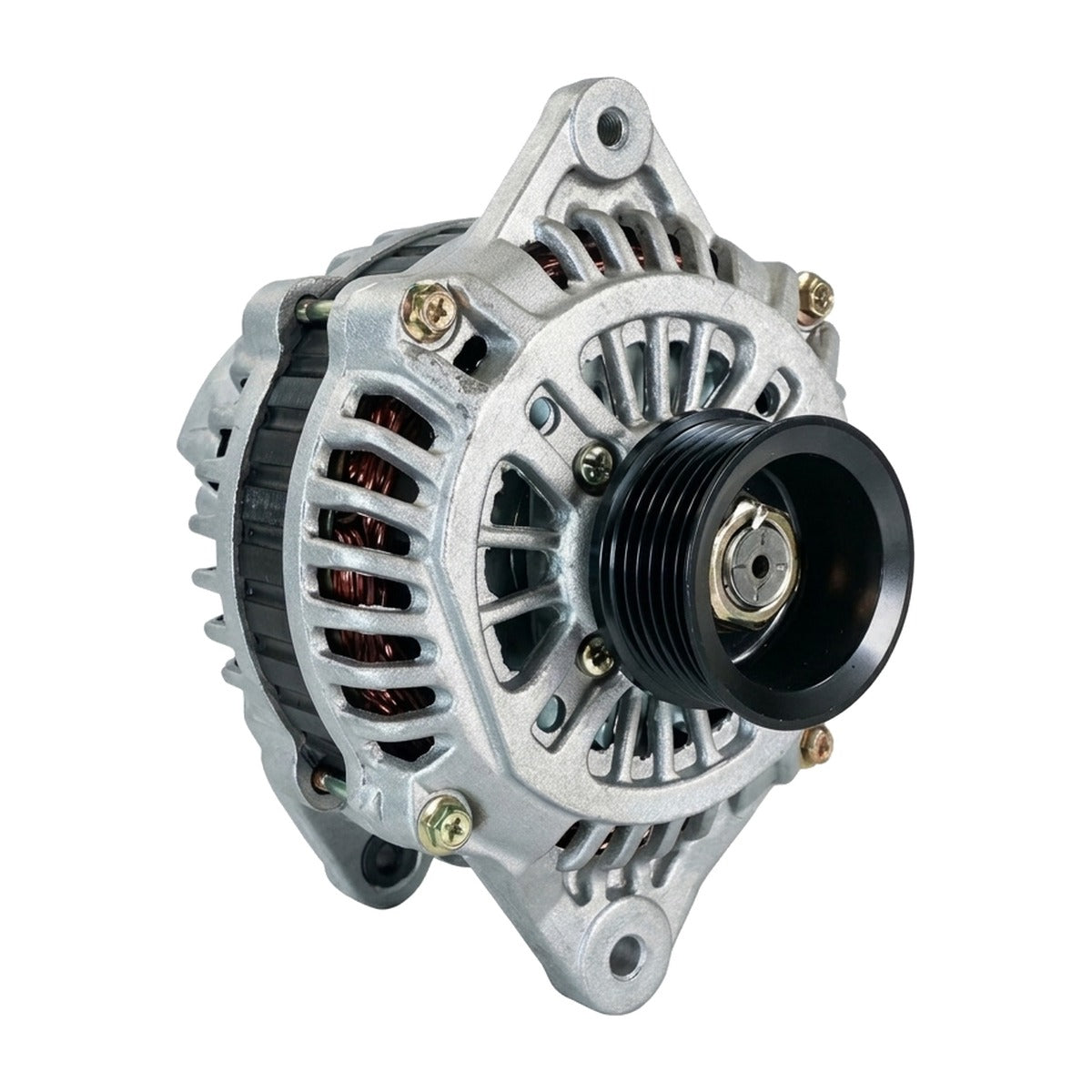

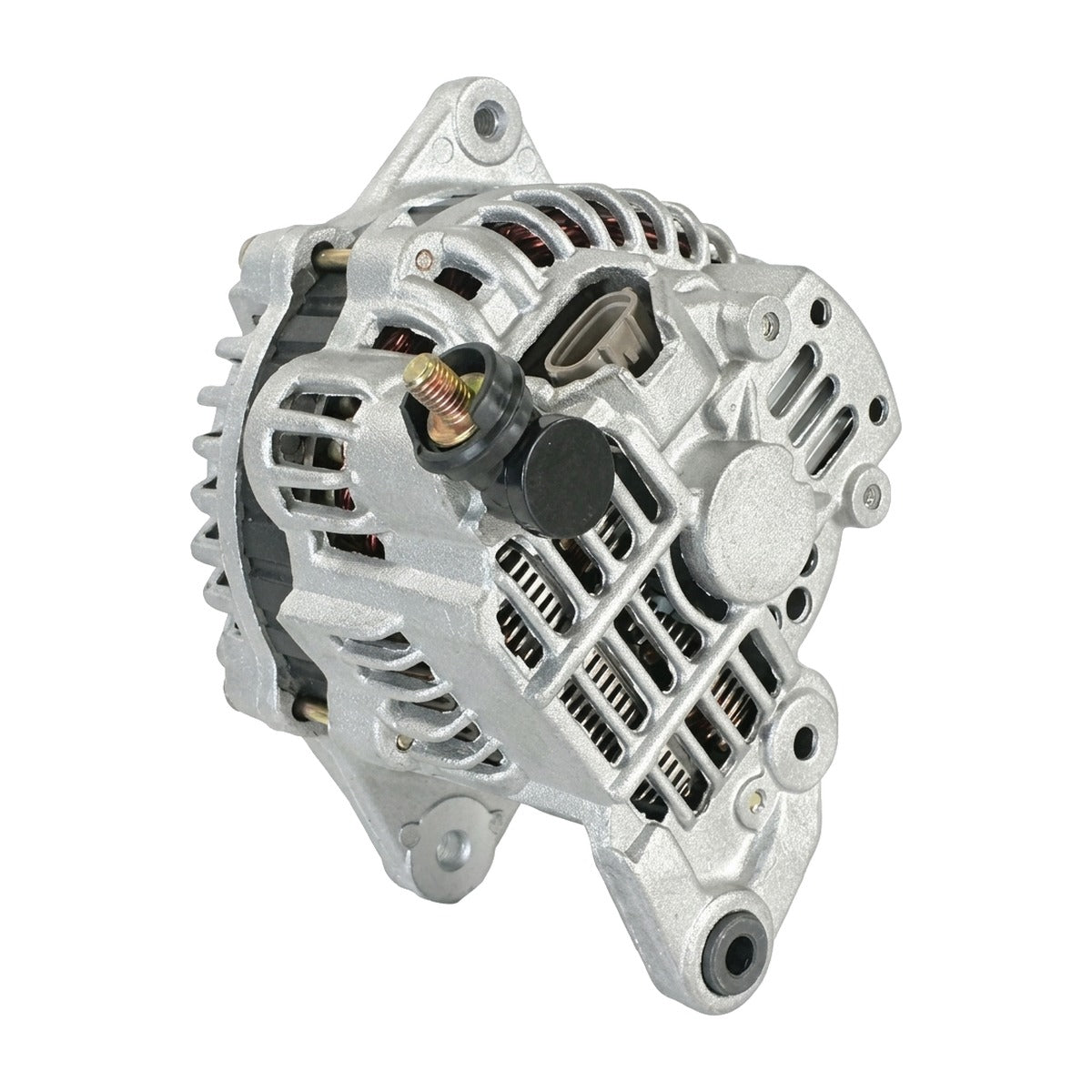

High Output Alternator for Subaru Outback (2001-2005) 3.0L

Direct-Fit 200 Amp High Output Alternator for 2001-2005 Subaru Outback (BH/BP)

What it Does: The High Output Alternator replaces the low-amperage factory charging unit on the 2001-2005 Outback to deliver 200 amps of stable current, preventing voltage drops caused by high-draw auxiliary electronics and aftermarket loads.

The Stock Subaru Outback Charging Limitations

Factory alternators on the EZ30 3.0L flat-six are rated for approximately 90 to 100 amps, leaving little headroom beyond standard vehicle electronics. As these platforms age, thermal cycling degrades the internal voltage regulator, while excessive load from aftermarket lighting, audio amplifiers, or overlanding winches causes acute voltage drop at idle. Operating near maximum duty cycle induces severe stator heat soak, leading to diode bridge failure, dimming cabin electronics, slow cranking, and premature AGM or lead-acid battery starvation.

The Engineering Solution

Engineered as a direct bolt-in upgrade, this 200 amp high output alternator utilizes heavy-gauge copper stator windings and a precision-balanced rotor to maximize efficiency across all RPM ranges. Built with premium dual-sealed bearings to combat front-engine radial load and high-temperature internal voltage regulation to maintain a solid 13.5V to 14.5V output, this unit resolves idle sag. The casing retains factory mounting points, OE rotation, and identical plug pinning for seamless integration without harness rewiring, replacing failing units identified by 13888 and A3TB1891.

What's Included

• 1 High Output 200 Amp Alternator

Technical Specifications

Compatibility

• 2001-2005 Subaru Outback 3.0L H6

Frequently Asked Questions & Fitment Warnings

Does this fit the BH/BP Outback?

Yes, this is a direct fit for the 2001-2005 Subaru Outback equipped with the EZ30 3.0L H6 engine; it does not fit 2.5L EJ25 4-cylinder models.

Do I need to upgrade my factory wiring to run this 200 amp alternator?

While this alternator functions safely on stock wiring, upgrading the main B+ charging cable and chassis grounds ("Big 3" upgrade) is recommended to achieve full 200-amp peak throughput without resistive heat loss.

The Subaru All-Terrain Caliber

Designed to sustain rugged overlanding configurations and heavy trail demands, this upgraded charging unit ensures your auxiliary systems and symmetrical all-wheel-drive electronics operate without power degradation on technical routes.
