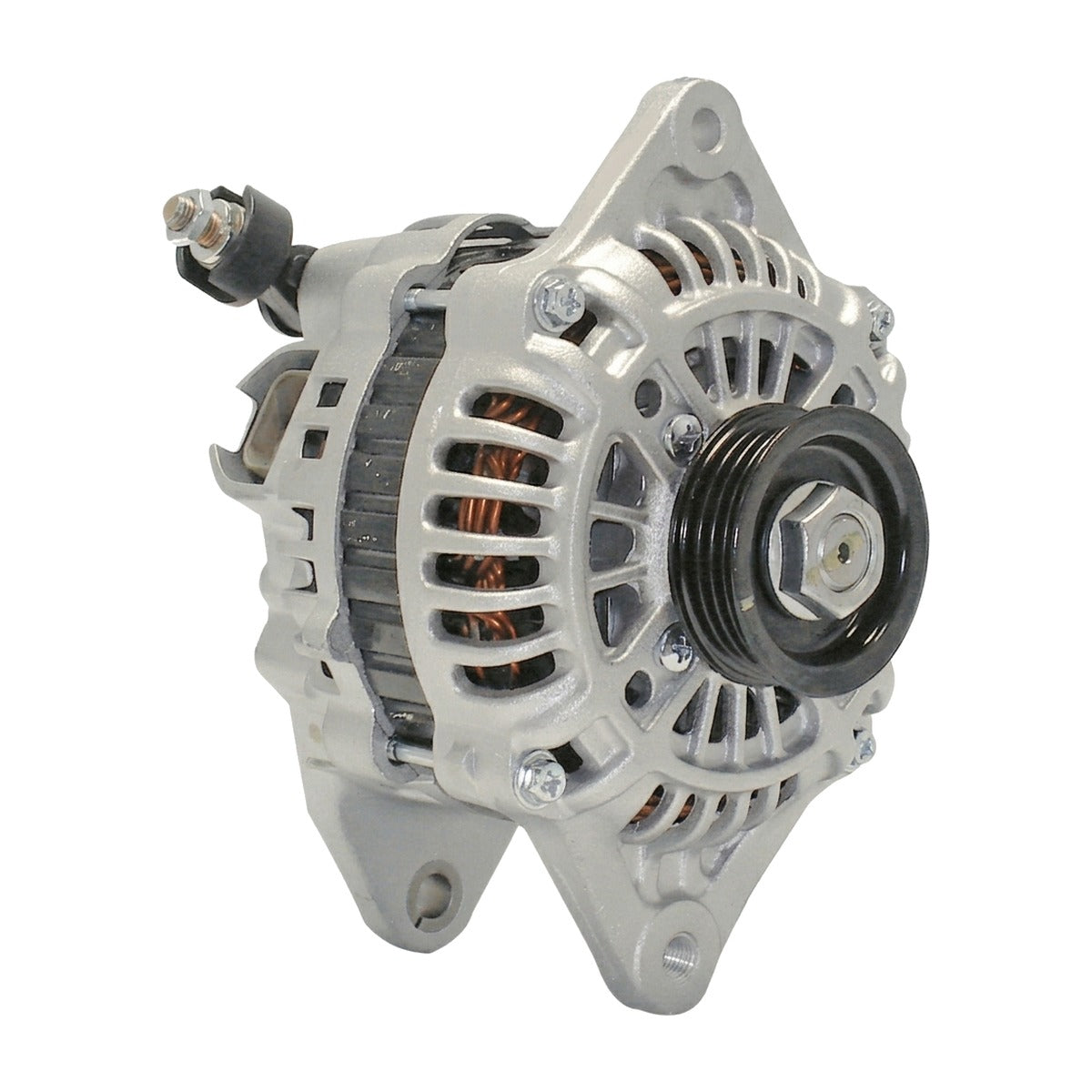

High Output Alternator for Mazda MX-5 Miata (1994-1997) 1.8L

High-Amp 150A Direct-Fit Alternator for 1994-1997 Mazda MX-5 Miata

What it Does: The 150 Amp High Output Alternator replaces the low-capacity factory charging unit on the 1994-1997 Mazda MX-5 Miata to supply consistent system voltage under severe auxiliary electrical loads and eliminate idle voltage drops.

The Stock Mazda MX-5 Miata Electrical Limitations

The factory charging system in the first-generation NA chassis utilizes a modest 70-amp alternator engineered strictly for base electrical demands. When builders configure the BP-ZE engine for track or street use, the addition of dual high-cfm electric cooling fans, standalone engine management, upgraded high-flow fuel pumps, or high-draw audio amplifiers rapidly overwhelms the OEM stator. This deficit causes critical voltage sag below 12.8V at idle, generating dim headlights, slow starter cranking, erratic sensor data, and battery degradation due to thermal saturation of the factory internal rectifier.

The Engineering Solution

Engineered as a bolt-on replacement for OEM casting BPE9-18-300, this heavy-duty unit steps up total output from 70 amps to a bench-tested 150 amps. Built around heavy-gauge copper windings and high-temp solid-state rectifiers, it maintains optimal charging current across low-RPM idle and high-rev operation. The housing retains factory mounting lug geometry, stock belt alignment, and OE plug integration for the internal voltage regulator, requiring zero fabrication or chassis modifications.

What's Included

• 1 High Output 150 Amp Alternator

Technical Specifications

Compatibility

• 1994-1997 Mazda MX-5 Miata Base Convertible 2-Door 1.8L
• 1994-1997 Mazda MX-5 Miata M Edition Convertible 2-Door 1.8L
• 1994-1997 Mazda MX-5 Miata R-Package Convertible 2-Door 1.8L
• 1997 Mazda MX-5 Miata STO Edition Convertible 2-Door 1.8L

Frequently Asked Questions & Fitment Warnings

Does this fit the NA MX-5 Miata?

Yes, this is a direct fit for the 1994-1997 Mazda MX-5 Miata equipped with the BP-ZE 1.8L engine. Does not fit 1990-1993 1.6L (B6-ZE) engines without swapping mounting brackets and pulleys.

Do I need to upgrade my factory wiring harness?

To safely pull the full 150-amp capacity, upgrading to a 4-gauge B+ alternator charge wire and chassis ground is strongly recommended.

The Mazda Track Standard

Built to handle aggressive track cycles and demanding aftermarket loads, this alternator provides rock-solid electrical stability to keep your ignition strong and your electronics fully powered through every apex.
