High Output Alternator for Lincoln Navigator (2003-2004) 5.4L

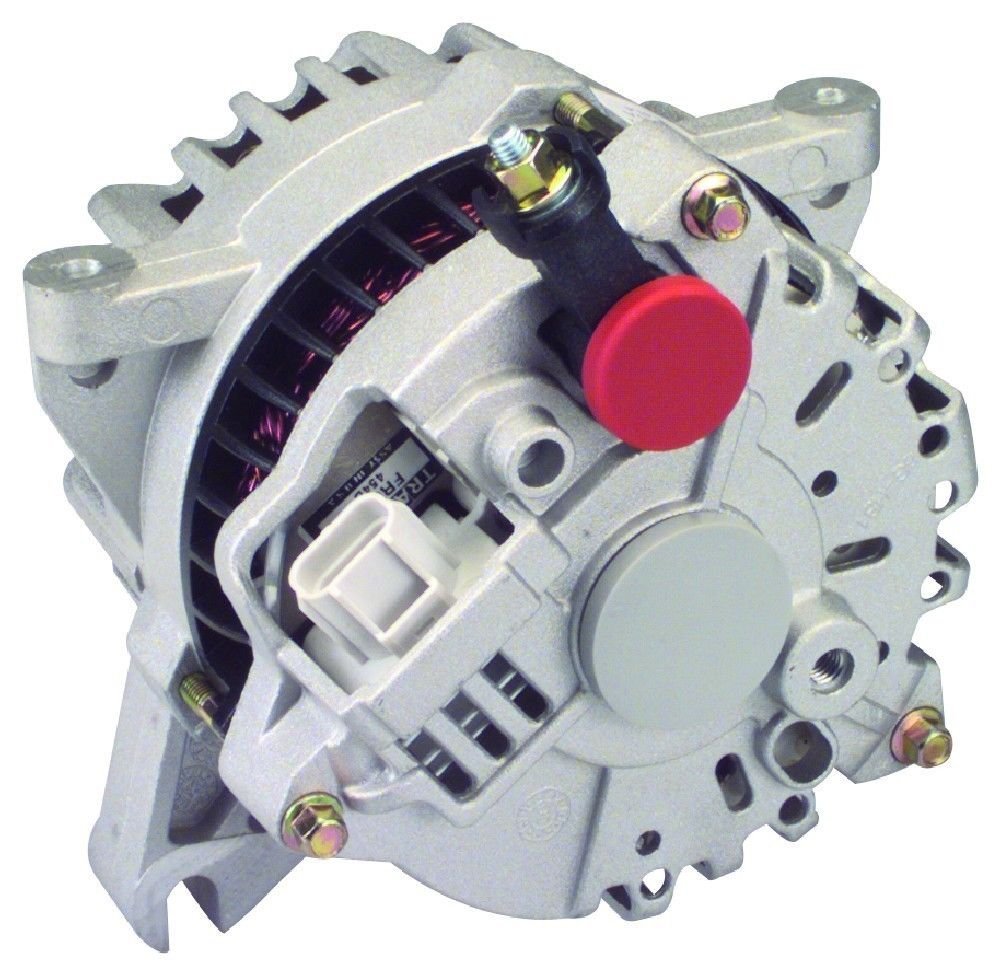

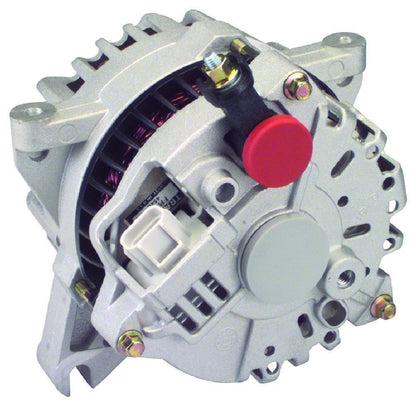

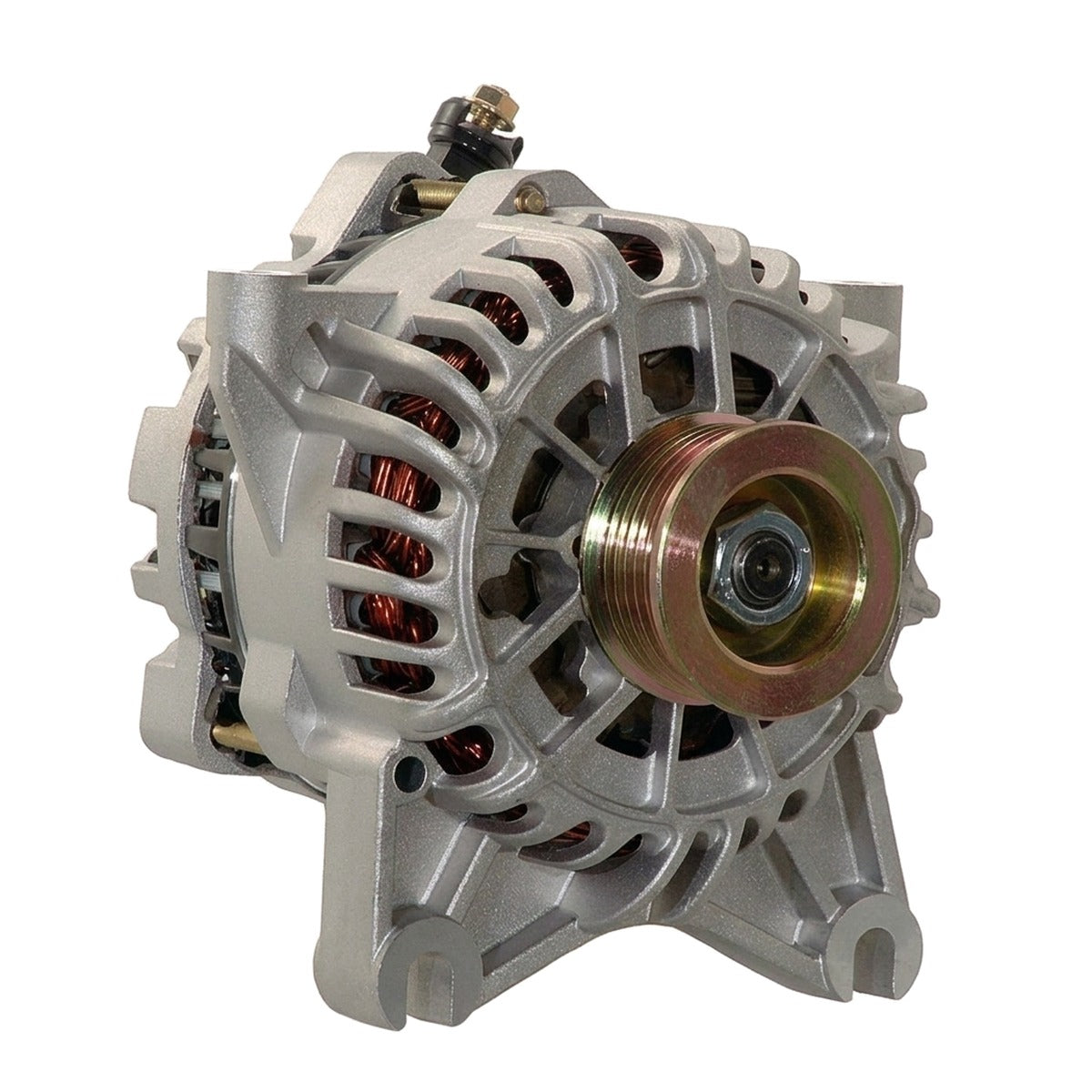

High-Output 250-Amp Alternator for 2003-2004 Lincoln Navigator (U228)

What it Does: The 250-Amp High-Output Alternator replaces the factory charging unit on the 2003-2004 Lincoln Navigator to eliminate voltage sag and supply stable electrical current under heavy system demands.

The Stock Lincoln Navigator Charging Limitation

The factory 130-amp charging system on the U228 chassis struggles to maintain system voltage under heavy auxiliary draw. Factory pneumatic air suspension compressors, multi-zone HVAC blowers, and power-folding accessories pull significant current simultaneously. At curb idle, the stock alternator's internal rectifier suffers from heat soak inside the cramped engine bay, resulting in thermal throttling, charging dropouts below 12.8 volts, premature diode pack breakdown, and accelerated battery failure.

The Engineering Solution

Engineered for high-demand electrical architecture, this 250-amp unit utilizes heavy-gauge copper windings and high-temperature precision stators to deliver high amperage across the RPM band, specifically stabilizing idle output. The casing features heavy-duty avalanche diode rectifiers paired with oversized heat sinks to manage thermal dissipation under continuous load. Manufactured in the USA, this direct-fit unit matches the factory mounting geometry and belt alignment of the 5.4L InTech DOHC modular platform, superseding OEM numbers 3L7410346AA, 3L7Z10346AA, and AL7614X.

What's Included

• 1x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2003 Lincoln Navigator Luxury 5.4L V8
• 2003 Lincoln Navigator Ultimate 5.4L V8
• 2004 Lincoln Navigator Luxury 5.4L V8
• 2004 Lincoln Navigator Ultimate 5.4L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the U228 Navigator?

Yes, this is a direct fit for the 2003-2004 Lincoln Navigator equipped with the 5.4L InTech DOHC engine.

Do I need to upgrade the primary charging cable?

A "Big 3" wiring upgrade utilizing 0-gauge or 4-gauge power and ground cables is strongly recommended to safely carry the full 250-amp current capacity to the battery.

The Lincoln Severe-Duty Standard

Built for heavy-duty towing applications, recovery equipment, and high-draw accessory loads, this alternator provides uninterrupted voltage stability under sustained electrical and thermal stress.
