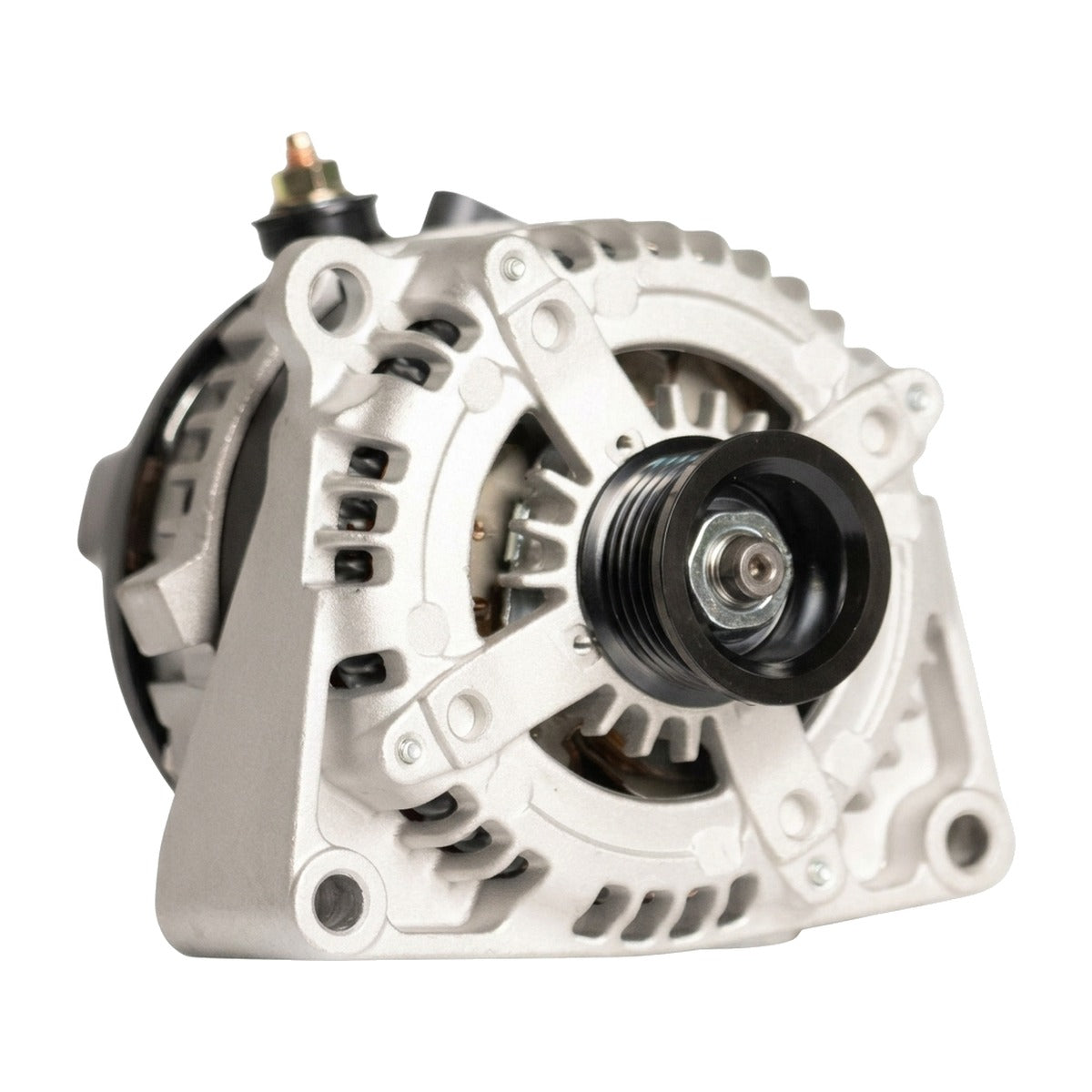

High Output Alternator for Isuzu Hombre (1998-2000) 4.3L

High-Amp Direct-Fit High Output Alternator for 1998-2000 Isuzu Hombre (GMT325)

What it Does: The high output alternator replaces the low-amperage factory charging unit on the 1998-2000 Isuzu Hombre to deliver reliable 250-amp power delivery and stabilize electrical voltage under heavy loads.

The Stock Isuzu Hombre Charging System Limitations

Factory-installed Delco CS130D alternators on the GMT325 platform produce a marginal 100 to 105 amps at peak output, dropping significantly to roughly 60 amps at hot curb idle. When supporting auxiliary equipment such as electric cooling fans, high-draw winches, or aftermarket audio amplifiers, the factory stator windings suffer thermal saturation. This causes catastrophic voltage drop below 12.6V, leading to dimming headlights, slow cranking, drained AGM batteries, accelerated diode bridge degradation, and internal bearing wear from continuous thermal cycling.

The Engineering Solution

Engineered as a direct bolt-on upgrade, this 250A unit features precision-wound, heavy-gauge copper hairpin stator windings designed to deliver 150 amps at idle speeds without heat soak. It integrates a heavy-duty internal voltage regulator, dynamically balanced rotor, and high-temp sealed bearings to withstand sustained high-RPM operation. Utilizing the original factory mounting footprint, pulley dimensions, and electrical harness connector, it drops cleanly into the Vortec 4300 L35 engine bay while maintaining 13.5 to 14.5 continuous operating volts under peak electrical accessory draw.

What's Included

• 1 High Output 250-Amp Alternator

Technical Specifications

Compatibility

• 1998 Isuzu Hombre 4.3L V6
• 1999 Isuzu Hombre 4.3L V6
• 2000 Isuzu Hombre 4.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT325 Hombre?

Yes, this is a direct fit for the 1998-2000 Isuzu Hombre equipped with the 4.3L Vortec L35 V6 engine.

Do I need to upgrade my wiring with this alternator?

While it plugs directly into the factory connector, performing a Big 3 wiring upgrade on the main charging and ground cables is highly recommended to handle full 250-amp flow without thermal resistance.

The Isuzu Workhorse Standard

Designed to handle the demands of work trucks and off-road trail utility, this heavy-duty charging system ensures high-amperage recovery for winches and heavy accessories without leaving you stranded.
