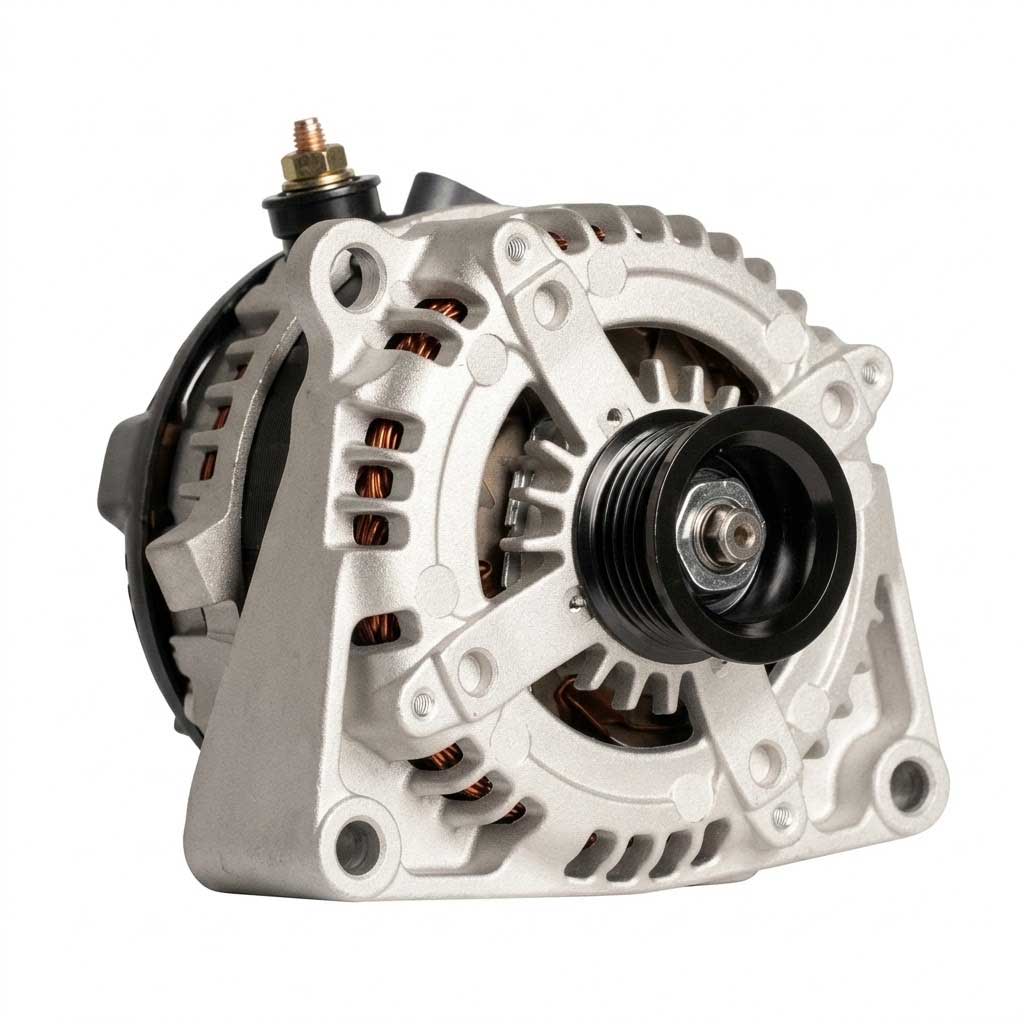

High Output Alternator for GMC Yukon (1996-1997) 6.5L

High-Amp 300A Replacement Alternator for 1996-1997 GMC Yukon (GMT400)

What it Does: The 300 Amp High Output Alternator upgrades the factory charging system on the 1996-1997 GMC Yukon to deliver stable system voltage under heavy electrical loads and eliminate severe idle voltage drop.

The Stock GMC Yukon Electrical Bottleneck

Factory GMT400 utility platforms powered by the Detroit Diesel 6.5L Turbo Diesel rely on standard Delco units producing merely 100 to 105 amps. When supporting dual battery banks, high-draw glow plug cycling, electric fuel lift pumps, and aftermarket winches or auxiliary lighting, the OEM rectifier quickly experiences thermal saturation. Under continuous load, the stock stator overheats, leading to diode bridge degradation, voltage drops below 12.6V at curb idle, and premature failure of sensitive components like the pump mounted driver (PMD).

The Engineering Solution

Manufactured in the USA, this direct-fit 300-amp unit utilizes a precision-wound heavy-duty stator and high-efficiency copper heat sinking to manage high-amperage heat dissipation. Engineered with commercial-grade avalanche diodes, heavy-gauge internal brush gear, and high-temperature Class-H insulation, it delivers exceptional output at idle speeds while maintaining a clean 14.4V output. The direct bolt-on casing integrates into the factory 6.5L Turbo Diesel serpentine bracketry without custom machining, replacing OEM units like 10463651 and 10480167.

What's Included

• 1 x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 1996 GMC Yukon 6.5L V8 Turbo Diesel
• 1997 GMC Yukon 6.5L V8 Turbo Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT400 Yukon?

Yes, this is a direct fit for the 1996-1997 GMC Yukon equipped with the Detroit Diesel 6.5L Turbo Diesel engine.

Do I need to upgrade my main charging wire?

Yes, running a fused 1/0 AWG "Big Three" power wire directly from the alternator output stud to the primary battery is required to safely carry the 300A current load.

The GMC Towing & Hauling Standard

Built to handle sustained commercial recovery and extreme diesel towing cycles, this alternator provides uninterrupted reserve capacity under severe duty cycles.
