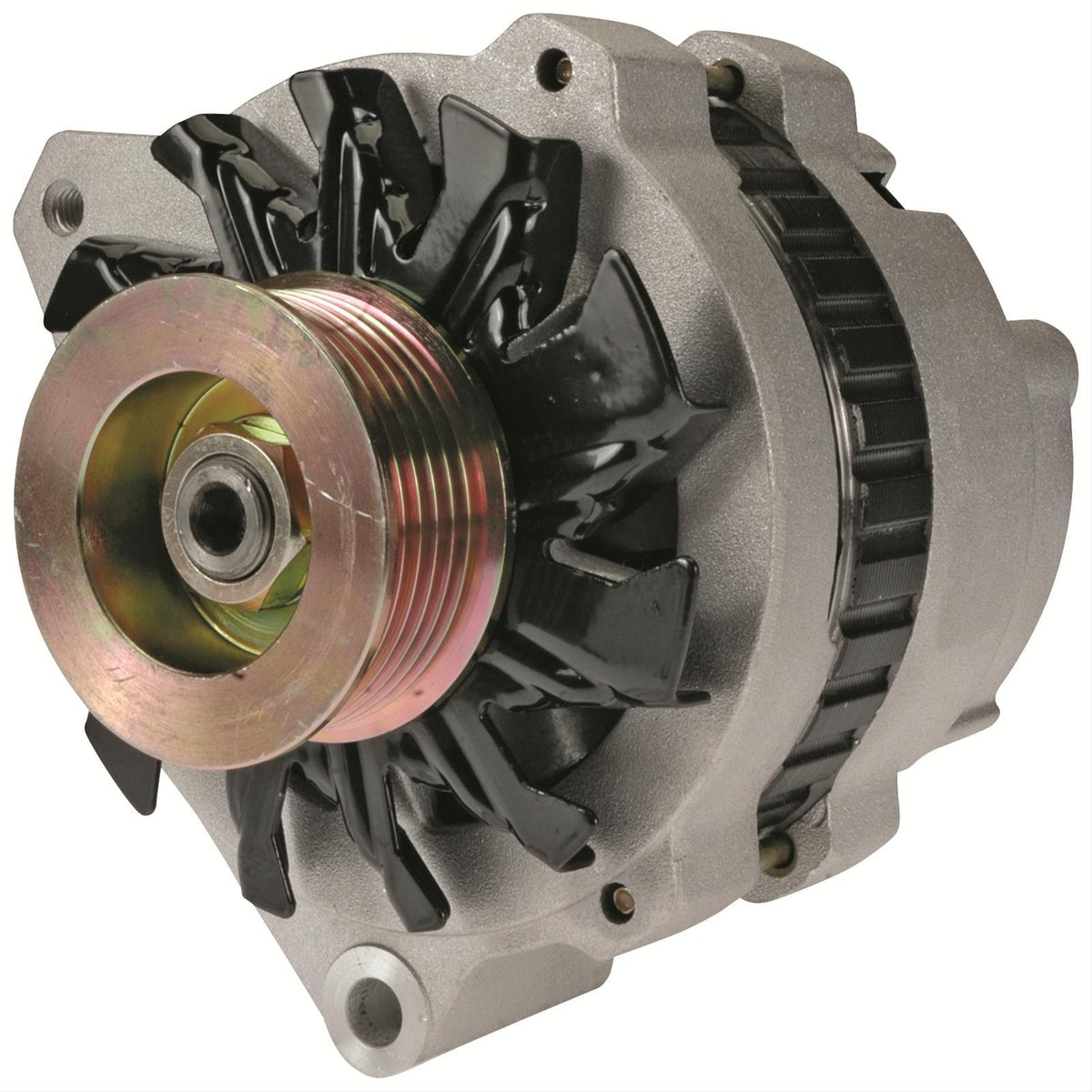

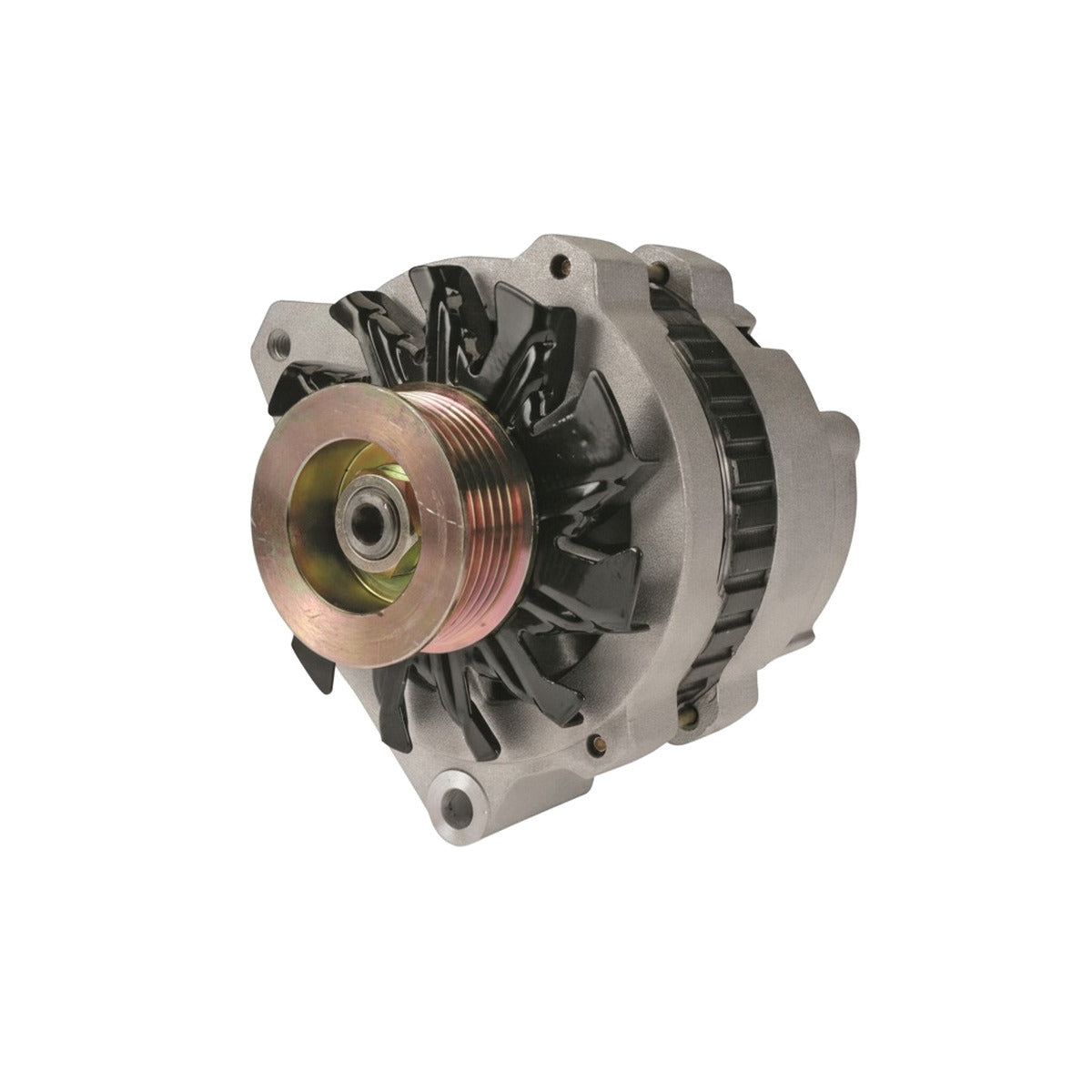

High Output Alternator for GMC Yukon (1993-1995) 5.7L

Heavy-Duty 200A High Output Alternator for 1993-1995 GMC Yukon (GMT400)

What it Does: The 200 Amp High Output Alternator replaces the low-output factory charging unit on the 1993-1995 GMC Yukon to supply continuous high-amperage current and eliminate severe idle voltage drop under demanding electrical loads.

The Stock GMC Yukon Charging Limitation

Factory GMT400 platform trucks equipped with the 5.7L L05 TBI V8 came from the assembly line with Delco alternators rated at only 100 to 105 peak amps, dropping to less than 65 amps at curb idle. When modern electrical demands such as high-draw cooling fans, auxiliary off-road lighting, winches, or audio systems are introduced, the factory unit suffers from severe thermal saturation. High underhood temperatures degrade the OEM internal diodes and regulator, causing systemic voltage drops below 12.8V, battery degradation, and erratic sensor readings across the fuel injection harness.

The Engineering Solution

This 200-amp high-output replacement is engineered to provide substantial charging headroom across the entire RPM band, delivering over 120 amps at engine idle. Built with heavy-gauge pure copper windings, a high-efficiency rotor, and low-leakage silicon avalanche diodes, it significantly reduces internal resistance and heat build-up. The unit retains factory-spec mounting dimensions to match OE bracketry (replacing units like 10463415 and 321-1011) for a seamless installation, while delivering the sustained current needed to power auxiliary equipment without voltage sag.

What's Included

• 1x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1993 GMC Yukon Base / SLE 5.7L V8
• 1994 GMC Yukon Base / SLE / Sport 5.7L V8
• 1995 GMC Yukon Base / SLE / SLT 5.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT400 Yukon?

Yes, this is a direct bolt-in fit for the 1993-1995 GMC Yukon equipped with the 5.7L L05 Small Block Chevy engine.

Do I need to upgrade my factory charging wire?

Yes, upgrading the primary B+ charging lead to 4-gauge or 1/0-gauge cable is required to safely handle the full 200-amp capacity without bottlenecking current or overheating factory wiring.

The GMC Utility Standard

Designed for severe duty, heavy towing, and off-road trail recovery, this high-amperage unit provides steady current under extreme thermal loads, ensuring your truck electrical systems remain fully stable wherever the job demands.
