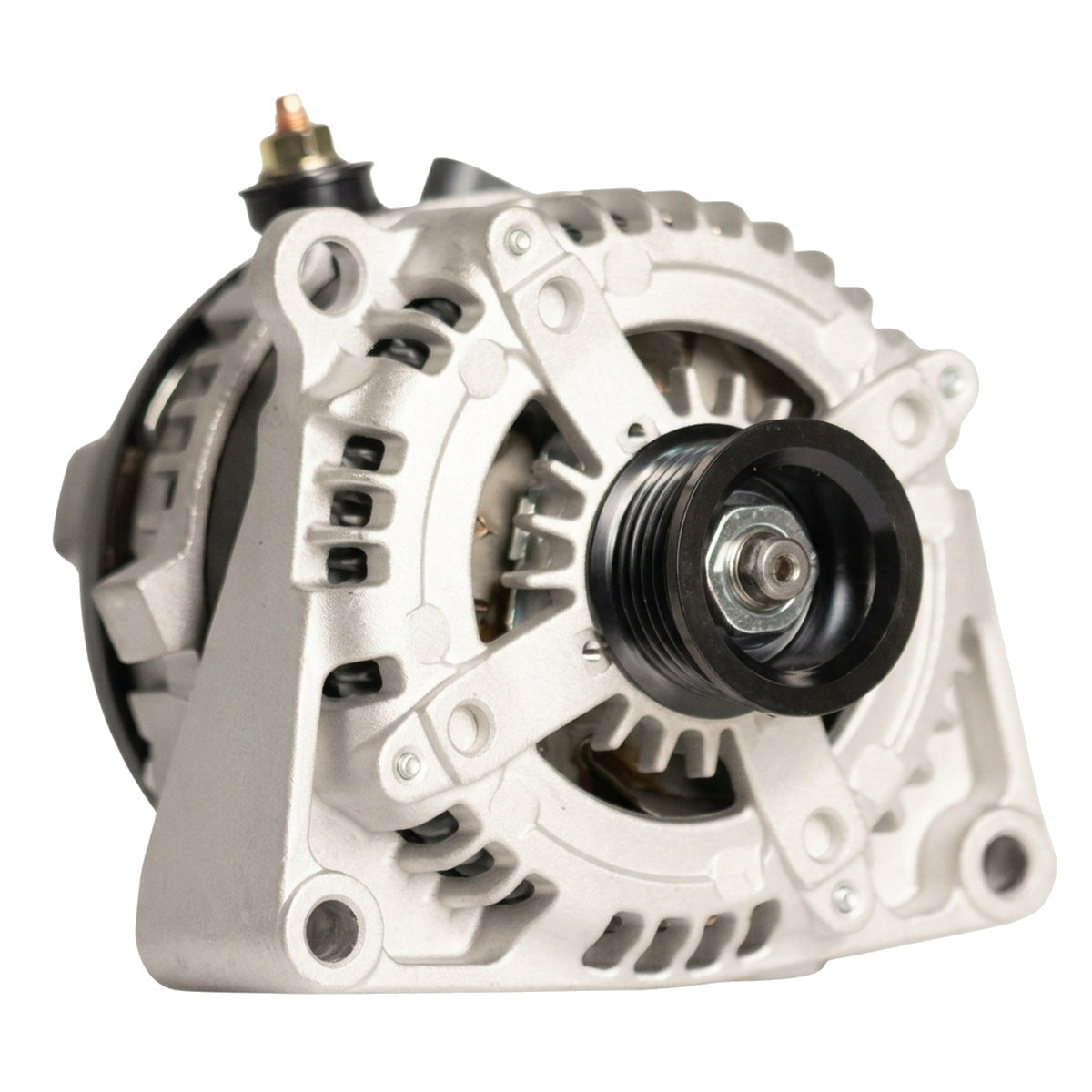

High Output Alternator for GMC Safari (2001-2004) 4.3L

High-Output 300A Hairpin Alternator for 2001-2004 GMC Safari (M-Platform)

What it Does: The 300-amp hairpin alternator replaces the lower-output factory charging unit on the 2001-2004 GMC Safari to eliminate severe voltage drop under high-draw electrical loads and auxiliary equipment demands.

The Stock GMC Safari Electrical Bottleneck

Factory charging systems on the M-Platform Safari were engineered around low-draw base configurations utilizing either 105-amp or 145-amp units. As these workhorse vans take on aftermarket electronics, inverter loads, auxiliary lighting, or audio setups, the original round-wire stators experience extreme heat soak and internal resistance. This causes charging voltage to sink well below 13.2 volts at idle, resulting in dead batteries, flickering instrumentation, and premature bridge rectifier failure under sustained operating conditions.

The Engineering Solution

Engineered for high current delivery and superior thermal stability, this 300-amp alternator features heavy-gauge square hairpin copper windings that optimize stator slot fill density. The direct-contact hairpin architecture dramatically lowers internal electrical resistance and sheds heat far more effectively than standard wire setups. Designed with a standard 12-volt clockwise rotation, a CNC-machined 6-groove serpentine pulley, and a factory-matched 4-pin internal regulator plug, it directly bolts to the Vortec 4300 accessory bracket while providing heavy idle output and sustained top-end amperage. Built in the USA to replace OEM units 321-1798, 321-2104, 8247, 10480388, and 10464438.

What's Included

• 1 x 300 Amp Hairpin High Output Alternator (Clockwise, 6-Groove Pulley, 4-Pin Connector)

Technical Specifications

Compatibility

• 2001-2004 GMC Safari Base (4.3L V6 LU3/L35)
• 2001-2004 GMC Safari SL / SLE / SLT (4.3L V6 LU3/L35)
• 2001-2004 GMC Safari Cargo / Passenger (RWD / AWD)

Frequently Asked Questions & Fitment Warnings

Does this fit the M-Platform Safari?

Yes, this is a direct fit for the 2001-2004 GMC Safari equipped with the LU3 / L35 4.3L V6 engine. Note: This unit directly replaces factory 105-amp and 145-amp units; it does NOT replace the factory 124-amp alternator found on select models.

Do I need to upgrade my battery and ground cables for this 300-amp unit?

Yes, installing a high-capacity fused 1/0 or 4 AWG power lead and engine-to-chassis ground wire (Big 3 upgrade) is strongly recommended to safely transfer the additional amperage without scorching factory wiring.

The GMC Commercial Standard

Built for rigorous commercial hauling and severe utility duty, this high-output unit ensures your electrical system maintains clean, uninterrupted operating voltage whether you are towing payloads or powering high-draw onboard systems.
