High Output Alternator for GMC Safari (1996-1999) 4.3L

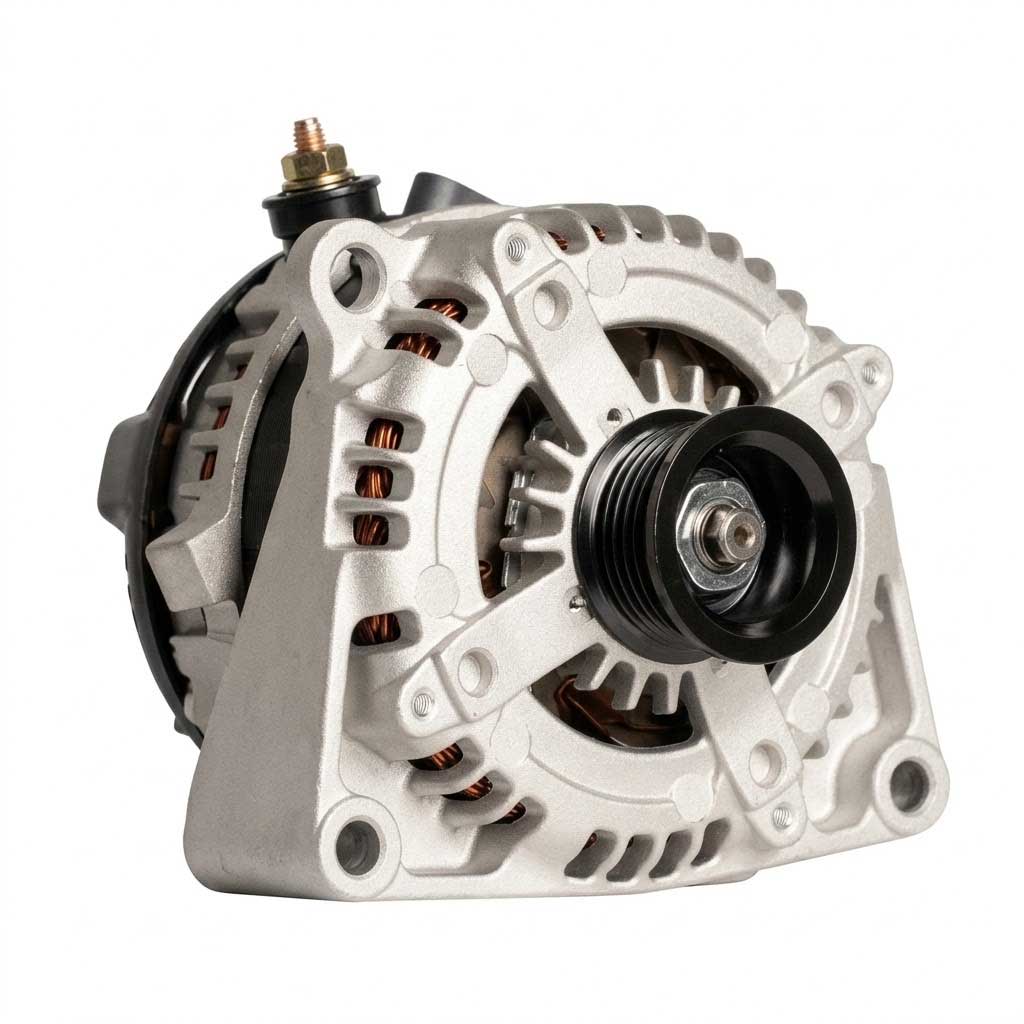

High-Output 250-Amp Alternator for 1996-1999 GMC Safari (M/L Chassis)

What it Does: The 250-amp high-output alternator replaces the failure-prone factory unit on the 1996-1999 GMC Safari to supply stable charging voltage under heavy electrical loads and prevent low-RPM voltage drop.

The Stock GMC Safari Alternator Bottleneck

The original equipment Delco CS130D or CS144 units fitted to the M/L platform GMC Safari deliver only 100 to 105 amps from the factory. Operating the Vortec 4300 L35 under heavy electrical demand—such as dual rear HVAC systems, conversion van interior packages, aftermarket inverters, or auxiliary audio setups—severely taxes the stock charging system. The OEM internal bridge rectifiers and undersized avalanche diodes suffer from acute heat soak within the cramped Safari engine doghouse. This thermal stress induces catastrophic thermal runaway, voltage drop at idle speeds below 800 RPM, and premature regulator failure that leaves 12V lead-acid batteries chronically undercharged.

The Engineering Solution

Engineered to resolve electrical starvation, this American-made 250-amp alternator significantly upgrades charging throughput across the entire powerband. Built with high-purity copper windings, heavy-gauge hairpin stators, and dual internal cooling fans, this unit efficiently dissipates heat generated in dense van engine bays. Heavy-duty 12-diode bridge rectifiers and a precision solid-state internal voltage regulator maintain a solid 14.4-volt charge curve even at low engine idle. Designed as a direct bolt-on fitment, it drops into factory brackets to replace OEM reference numbers including AL8706X, 10463651, and 10480167 without bracket alterations.

What's Included

• 1 x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 1996 GMC Safari 4.3L V6 (Base, SL, SLE, SLT)
• 1997 GMC Safari 4.3L V6 (Base, SL, SLE, SLT)
• 1998 GMC Safari 4.3L V6 (Base, SL, SLE, SLT)
• 1999 GMC Safari 4.3L V6 (Base, SL, SLE, SLT)

Frequently Asked Questions & Fitment Warnings

Does this fit the M/L Chassis Safari?

Yes, this is a direct fit for the 1996-1999 GMC Safari equipped with the Vortec 4.3L (L35) engine across both RWD (M-body) and AWD (L-body) configurations.

Do I need to upgrade my charging wiring?

Due to the increased 250-amp output capacity, performing a "Big 3" electrical upgrade using 1/0 AWG power and ground cables is strongly recommended to eliminate voltage drops and prevent harness overheating.

The GMC Commercial Standard

Whether navigating severe fleet duty, towing cargo trailers, or handling conversion van cabin accessories, this alternator provides continuous current integrity and heavy-duty reliability required for demanding utility use.
