High Output Alternator for Ford F-100 (1996-2001) 3.0L

High-Output 250-Amp Alternator for 1996-2001 Ford F-100 (PN96)

What it Does: The High Output 250-Amp Alternator replaces the low-output factory charging unit on the 1996-2001 Ford F-100 to eliminate idle voltage drop and supply stable current to heavy electrical loads.

The Stock Ford F-100 Charging Deficit

The original equipment Ford 3G charging system on the PN96 platform was engineered with a conservative 95-amp to 130-amp stator output, strictly suited for bare-bones factory electronics. When operating the 3.0L Vulcan V6 with auxiliary lighting, commercial inverters, winches, or aftermarket audio systems, the OEM unit suffers severe thermal throttling. High engine bay heat causes standard rectifier diodes to heat-soak, degrading efficiency and dropping rail voltage below 12.8V at idle. This persistent undervoltage starves the ignition coils, strains the starter motor, and rapidly depletes battery reserve capacity.

The Engineering Solution

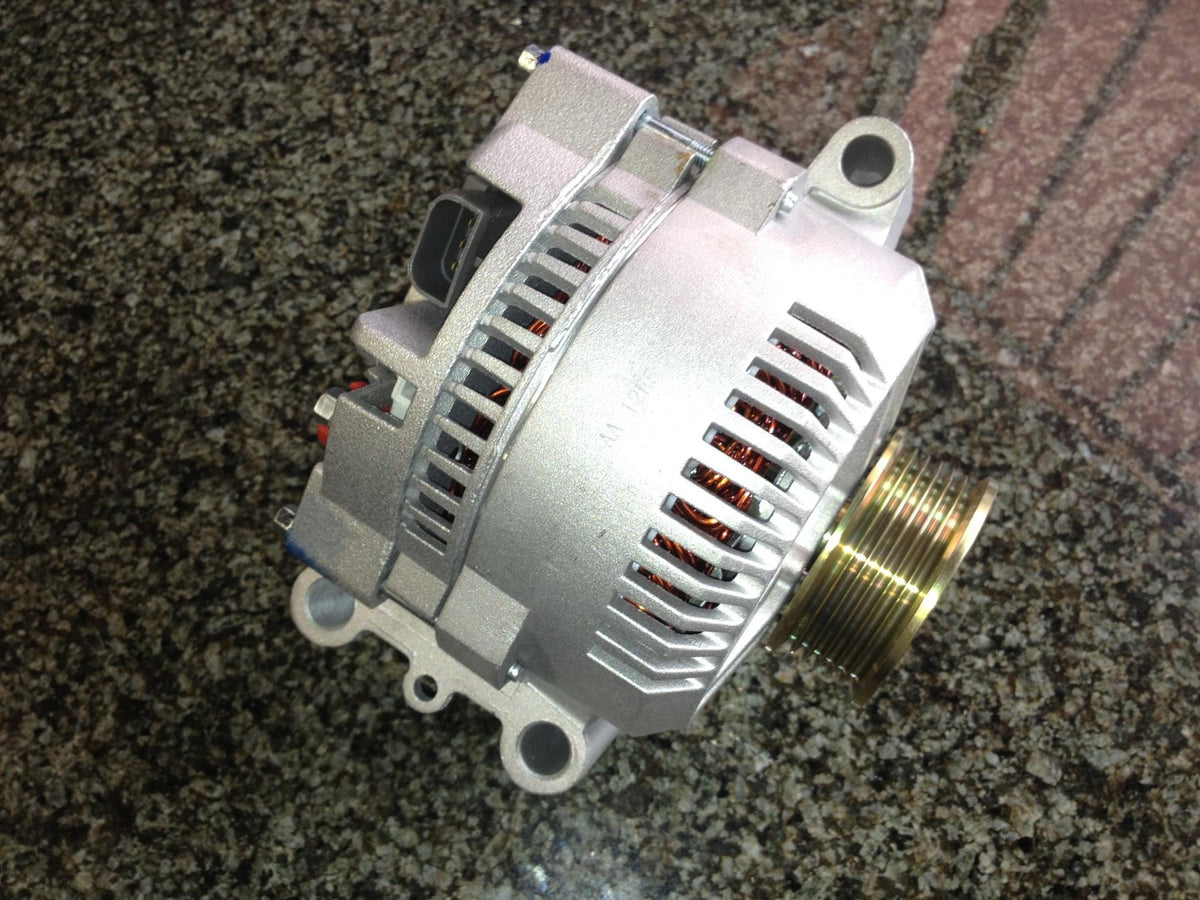

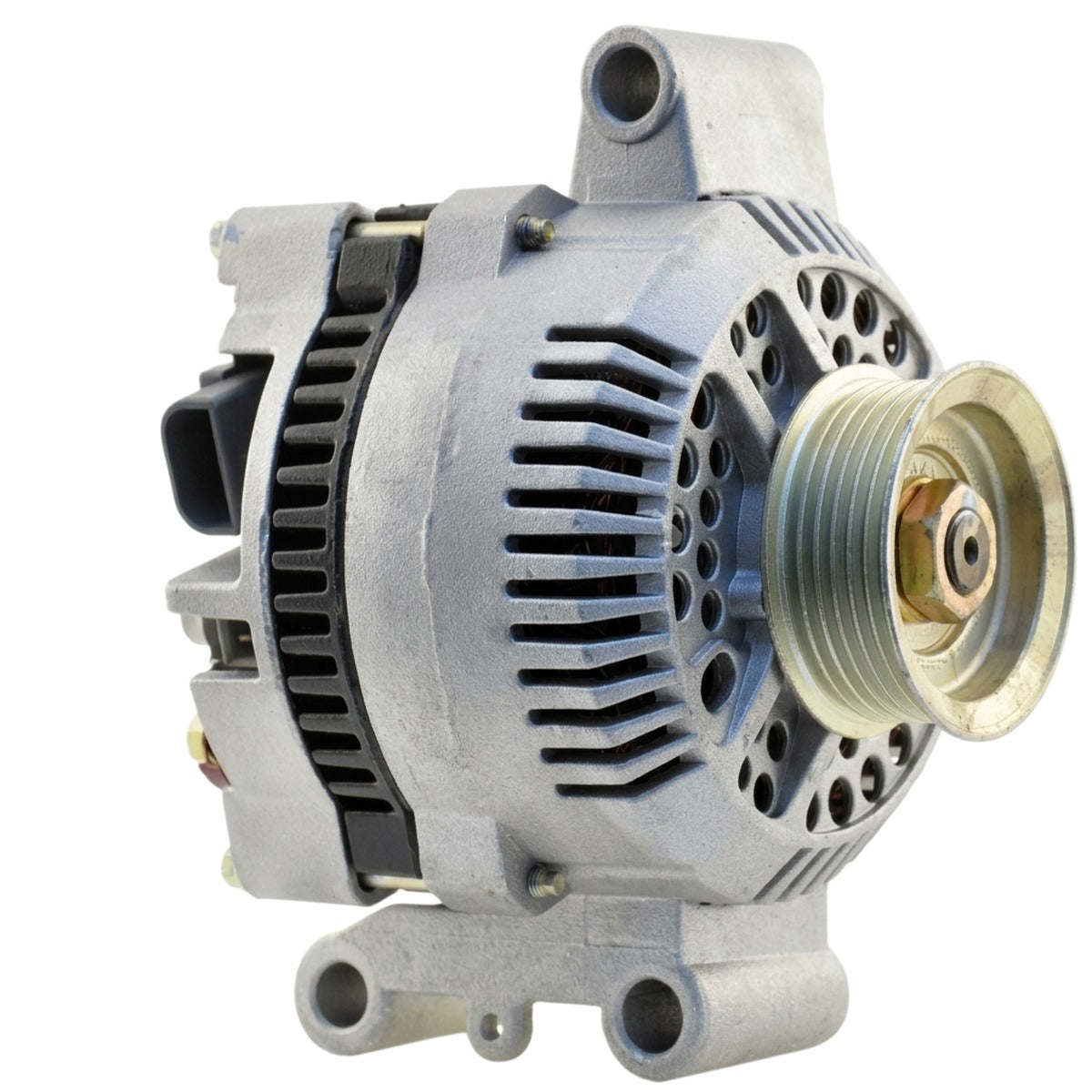

Engineered for continuous commercial and heavy-duty duty cycles, this 250-amp alternator features precision copper rotor and stator windings that produce an impressive 165 amps at curb idle and reach a peak 250 amps under load. The casing utilizes a high-conductivity, finned aluminum housing that maximizes convective cooling across the internal 12-diode avalanche rectifier bridge. Built with premium heavy-duty bearings to handle serpentine belt tension and heat-rated class-H insulation, this unit directly replaces OEM numbers F07F-10300-AA and 7750 using factory mounting ear dimensions without custom fabrication.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 1996-2001 Ford F-100 (3.0L V6 Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the PN96 F-100?

Yes, this is a direct fit for the 1996-2001 Ford F-100 equipped with the 3.0L Vulcan V6 engine.

Do I need to upgrade my main charging wire with this 250-amp alternator?

Yes, you must install a fused 1/0 or 4-gauge heavy-duty power lead directly from the alternator output stud to the battery terminal to handle 250 amps safely without overloading factory fusible links.

The Ford Truck Workhorse Caliber

Built to withstand extreme duty cycles, relentless chassis vibration, and severe service loads, this high-output unit delivers uninterrupted electrical reliability under the harshest conditions.
