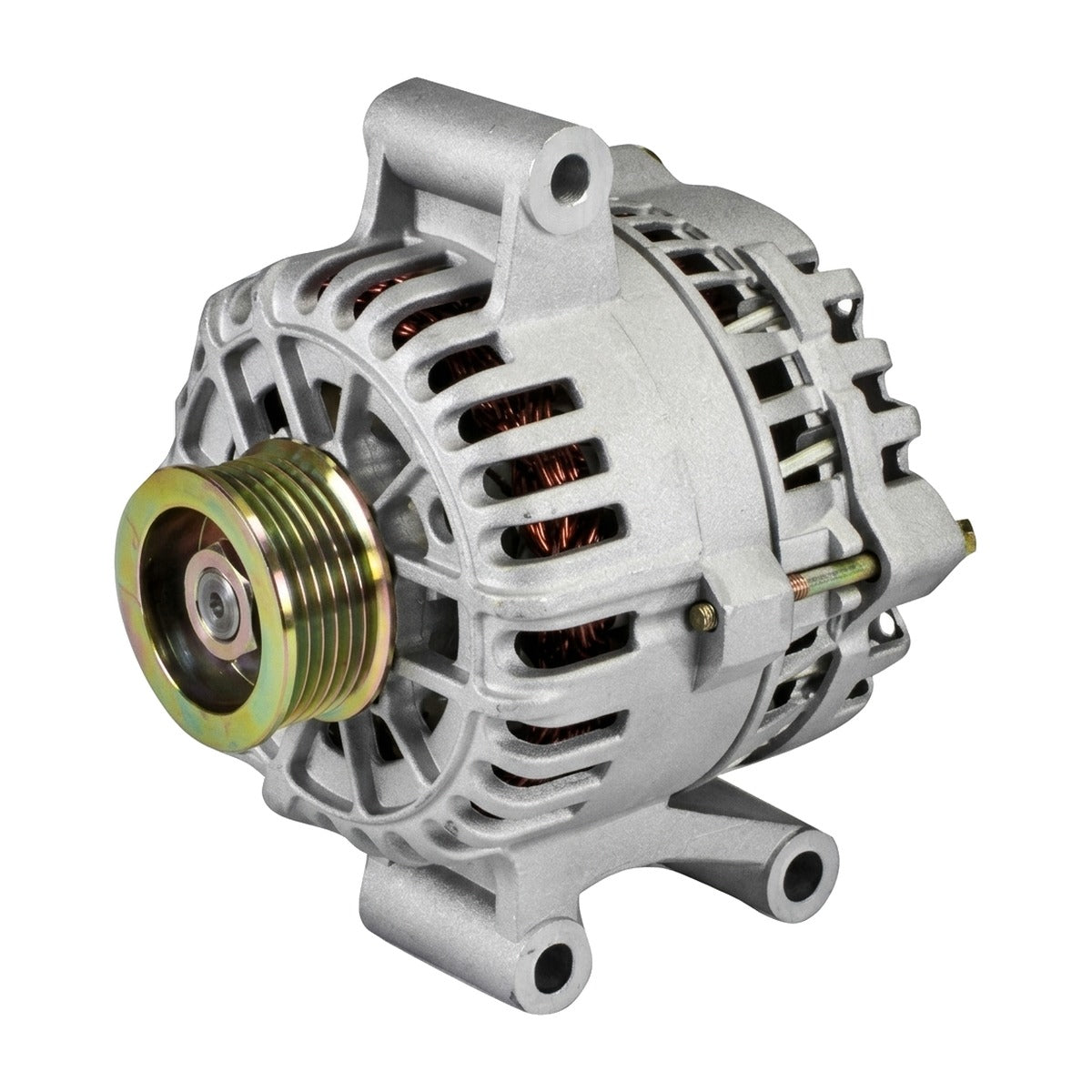

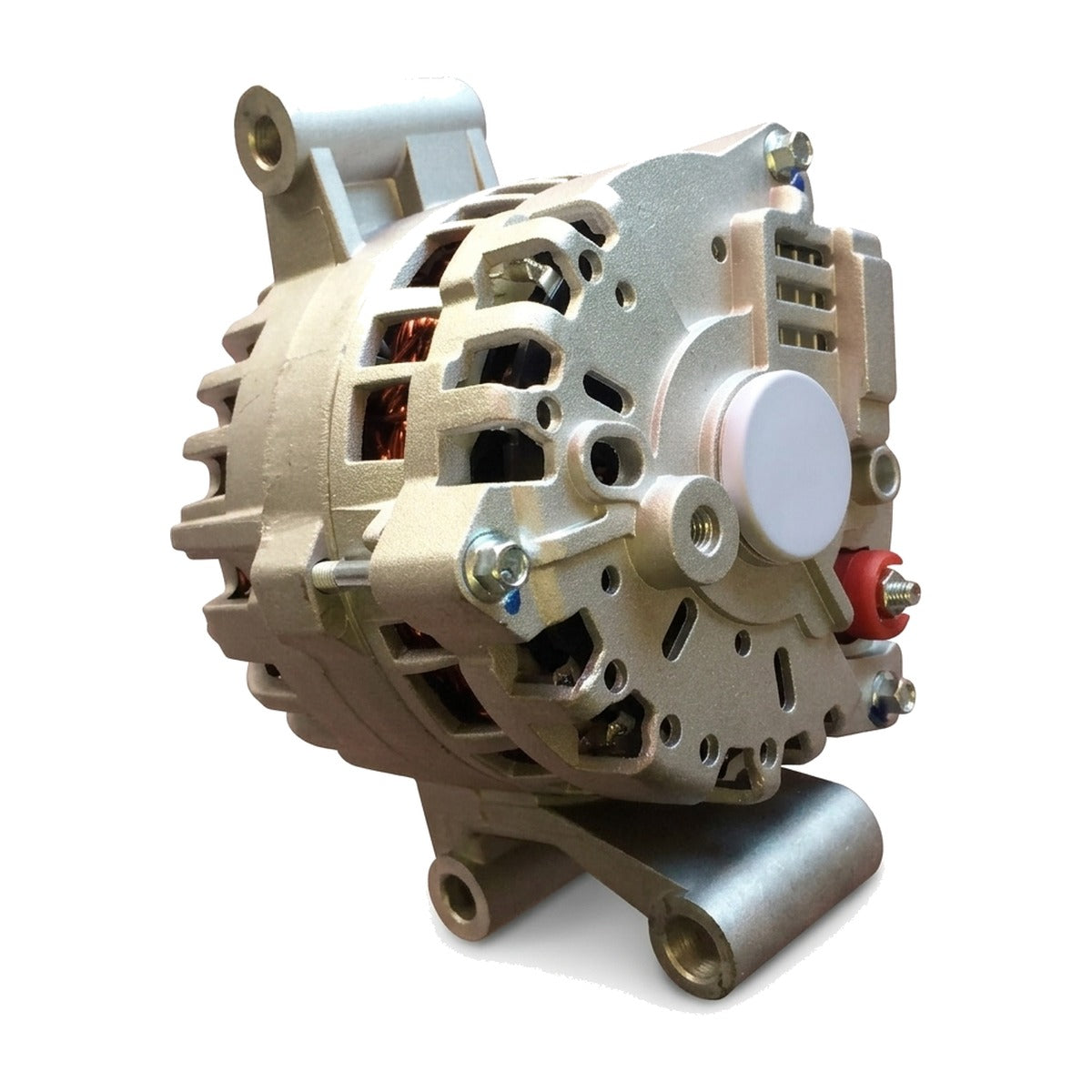

High Output Alternator for Ford Escape (2001-2004) 3.0L

High-Amperage 250A Alternator for 2001-2004 Ford Escape CD2

What it Does: The 250-amp high output alternator replaces the low-output factory charging unit on the 2001-2004 Ford Escape to stabilize operating voltage and supply continuous current for heavy auxiliary electrical loads.

The Stock Ford Escape Charging Deficiencies

The factory charging system on the CD2 chassis utilizes a standard-output alternator rated at roughly 110 to 130 amps, engineered strictly for baseline electrical draw. Under high continuous demand—such as aftermarket audio amplifiers, auxiliary off-road lighting, winches, or electric cooling upgrades—the stock stator and diode bridge suffer from rapid heat soak. This thermal saturation leads to excessive voltage drops at idle, headlight dimming, delayed battery recovery, and premature regulator failure under sustained inductive load.

The Engineering Solution

Engineered as a direct bolt-in replacement, this unit delivers up to 250 peak amps by utilizing heavy-duty internal copper windings, an upgraded heavy-gauge rotor, and high-temperature avalanche diodes for maximum heat dissipation. The unit fits directly onto the Duratec 30 front accessory drive, maintaining stock serpentine belt alignment and retaining the factory plug connector. Each unit is precision bench-tested under load to guarantee rated output and eliminate voltage sag in stop-and-go conditions.

What's Included

• 1 High Output 250 Amp Alternator

Technical Specifications

Compatibility

• 2001-2004 Ford Escape XLS 3.0L V6
• 2001-2004 Ford Escape XLT 3.0L V6
• 2003-2004 Ford Escape Limited 3.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the CD2 Escape?

Yes, this is a direct fit for the 2001-2004 Ford Escape equipped with the Duratec 30 3.0L V6 engine.

Do I need to upgrade my charging wiring?

A Big 3 wiring upgrade (positive charge lead, engine ground, and chassis ground) is strongly recommended to handle 250A output safely without resistive line loss.

The Ford Utility Standard

Built to handle off-grid demands and severe-duty towing gear, this unit ensures your Ford compact utility platform maintains constant 14-volt baseline stability in harsh operating environments.
